Affordable Grandstand Roofs: How Community Parks Save on Shade
Replacing a heavy corrugated steel grandstand roof with a tensioned PVDF membrane reduces the required structural steel tonnage by up to 40%, directly slashing material and freight costs for community park budgets. In our experience supplying structures to municipal parks, the fastest way to blow a community budget is through weeks of on-site welding for a traditional roof, rather than bolting together a pre-engineered tensile canopy in a matter of days.
When municipal planners and parks directors face tight public funding limits, value-engineering is not optional. You need a structure that meets local wind and snow load codes without the bloated costs of legacy construction methods. This guide explains the engineering behind lightweight architectural membranes, how they drastically reduce installation labor, and how sourcing a factory-direct kit keeps your local contractors competitive.
The Economics of Steel Tonnage: Why Rigid Roofs Break Budgets
When reviewing municipal RFPs for grandstand shade, we consistently see outdated specifications calling for I-beams, heavy trusses, and corrugated metal panels. This approach creates a cascading cost effect.
Heavy roofing materials require massive amounts of structural steel to prevent deflection. That heavy steel framework then demands deep, oversized concrete footings to handle the dead load. You end up paying for thousands of pounds of buried concrete and steel before the shade structure even goes up.
Tensile architecture flips this equation. By utilizing a highly tensioned 900g/㎡ to 1050g/㎡ PVDF membrane, the roof itself becomes a structural element that distributes wind and snow loads efficiently. Because the membrane weighs a fraction of corrugated metal, we can engineer the supporting Q355B galvanized steel framework to be significantly lighter. This 30% to 40% reduction in steel tonnage directly translates to thousands of dollars saved on raw materials, cross-country freight, and foundation excavation.
Eliminating On-Site Welding: The Labor Cost Advantage
Material savings are only half the equation. The other half is installation labor—the most unpredictable variable for local contractors bidding on park projects.
Traditional grandstand roofs often require specialized welders working at heights, heavy crane rentals for multiple weeks, and on-site painting to touch up welds. If it rains, the project stops, and labor costs compound.
A modern bleacher shade canopy is designed for rapid mechanical assembly. The structures we manufacture utilize precision-engineered bolted connections. Every steel member is cut, drilled, and hot-dip galvanized with a C5 marine-grade anti-corrosion finish at our factory. There is zero on-site welding.
For the local contractor, this means they can assemble the steel frame using basic lifting equipment and a standard rigging crew. The pre-cut membrane panels are then pulled over the frame and tensioned using integrated hardware. What usually takes a month of heavy construction is reduced to 5 to 7 days of straightforward assembly.

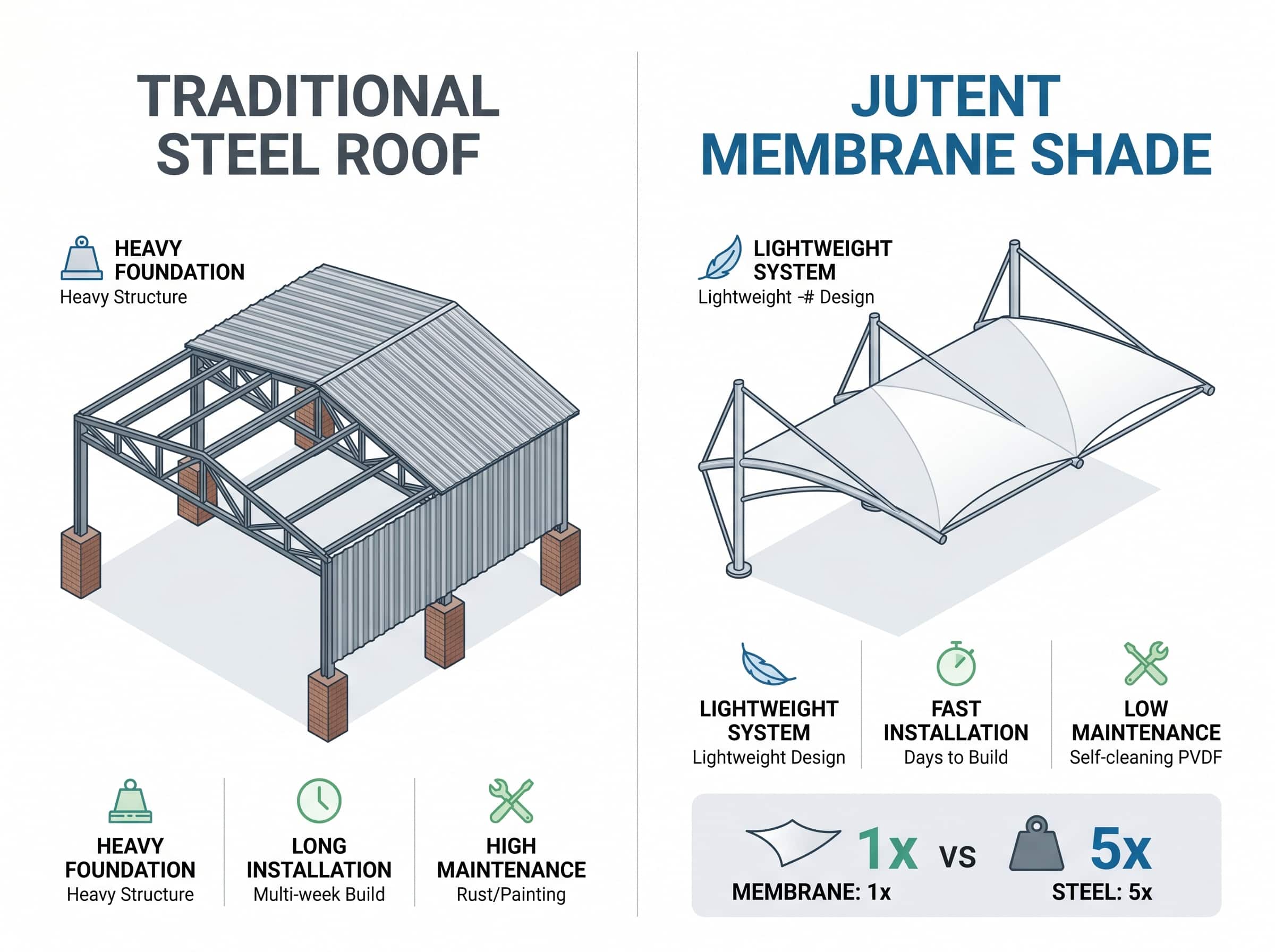

Cost and Parameter Comparison: Traditional vs. Tensile
To win a municipal bid or justify a park budget, you need hard data. Here is a breakdown of how pre-engineered tensile structures outperform traditional rigid roofs in both cost and engineering parameters:
| Engineering Metric | Traditional Metal/Brick Roof | PVDF Tensile Membrane Roof | Budget Impact |
|---|---|---|---|
| Dead Load (Weight) | > 40 kg/㎡ | < 1.5 kg/㎡ | Massive savings on steel framing |
| Foundation Depth | Deep (Heavy concrete piers) | Shallow (Tension-focused footings) | Lower excavation & concrete costs |
| On-Site Installation | 3 - 6 Weeks (Welding req.) | 5 - 7 Days (Bolted assembly) | Cuts contractor labor bids by up to 50% |
| UV & Thermal Control | Absorbs heat (Radiates downward) | Reflects 73% of solar heat (UPF 50+) | Eliminates need for active cooling |
| Maintenance | High (Rust treatment, painting) | Zero (Self-cleaning PVDF topcoat) | Reduces 10-year total cost of ownership |
Sourcing Direct: Our Supply-and-Support Model
Navigating municipal procurement often forces parks departments to rely on expensive local design-build firms who markup the materials.
Jutent operates differently. We are a direct manufacturer. We supply the complete, fully engineered shade structure system directly to the end customer or the winning local contractor. We do not provide local installation crews. Instead, we provide the following to ensure a flawless build:
- Complete Fabrication: We supply the Q355B steel framework, the tensioned PVDF membrane, and all commercial-grade tensioning hardware.
- Engineering Documentation: You receive full structural calculations (certified for your local 120km/h to 150km/h wind loads) and detailed, step-by-step assembly drawings.
- Remote Technical Guidance: If your local contractor has questions during the tensioning process, our engineering team provides real-time remote support to ensure the membrane is perfectly tensioned.
This factory-direct approach gives community parks a world-class architectural structure while keeping procurement and labor costs strictly within budget.
Next Steps for Your Park Project
Stop overpaying for heavy steel and prolonged installation labor. A tensioned membrane structure delivers superior weather protection, modern aesthetics, and undeniable cost efficiency.
For Parks Directors & Municipal Planners:
Maximize your community budget. Contact us today for a preliminary design concept and budget estimate to include in your next public RFP.
For Local Contractors:
Looking to win a municipal grandstand shade bid? We supply the pre-engineered materials and structural drawings. You supply the local labor. Reach out for a factory-direct Bill of Materials (BOM) quote to make your bid unbeatable.
Frequently Asked Questions
A: Yes. Because architectural fabric is extremely lightweight, it requires up to 40% less structural steel for the supporting framework and shallower concrete foundations. This significantly reduces both raw material costs and heavy freight expenses.
A: Absolutely. Our structures are engineered for bolted assembly with zero on-site welding. We provide the pre-cut membrane, the prefabricated steel, and comprehensive installation drawings, allowing any experienced local rigging or steel erection crew to complete the installation in a matter of days.
A: Despite their lightweight appearance, tensile structures are highly engineered aerodynamic systems. We engineer the steel framework and the 900g/㎡+ PVDF membrane to meet or exceed strict local building codes, routinely designing for 120km/h to 150km/h wind load ratings.
