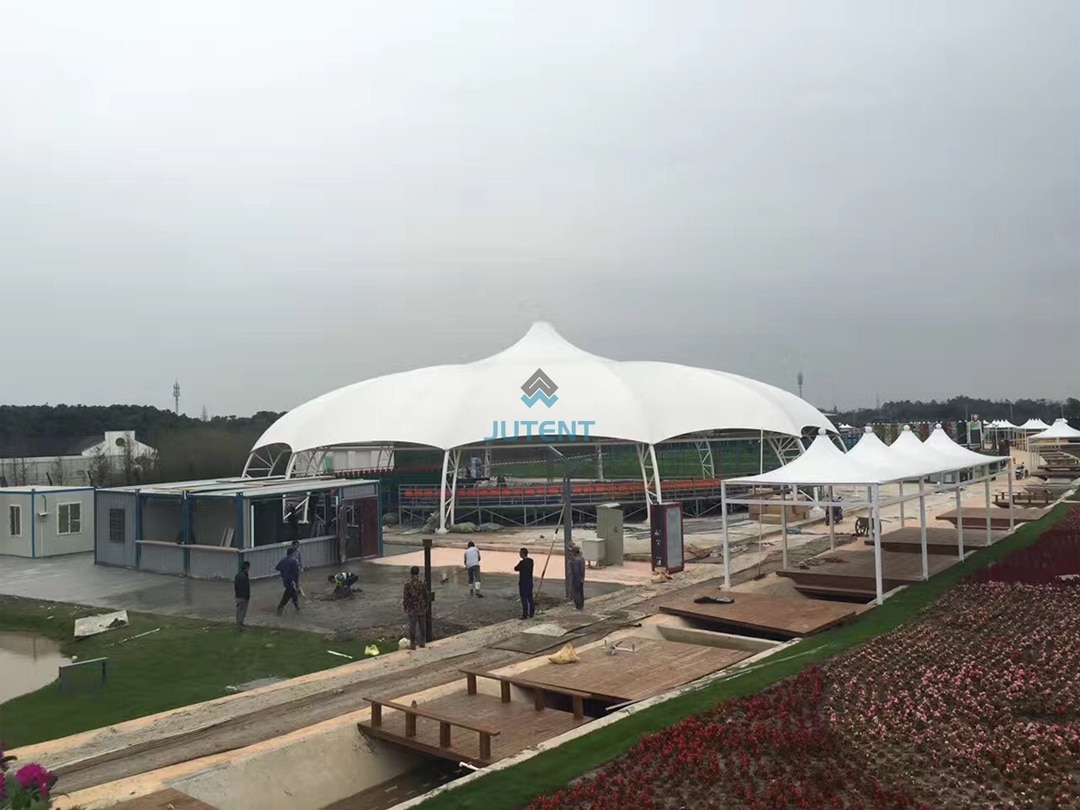

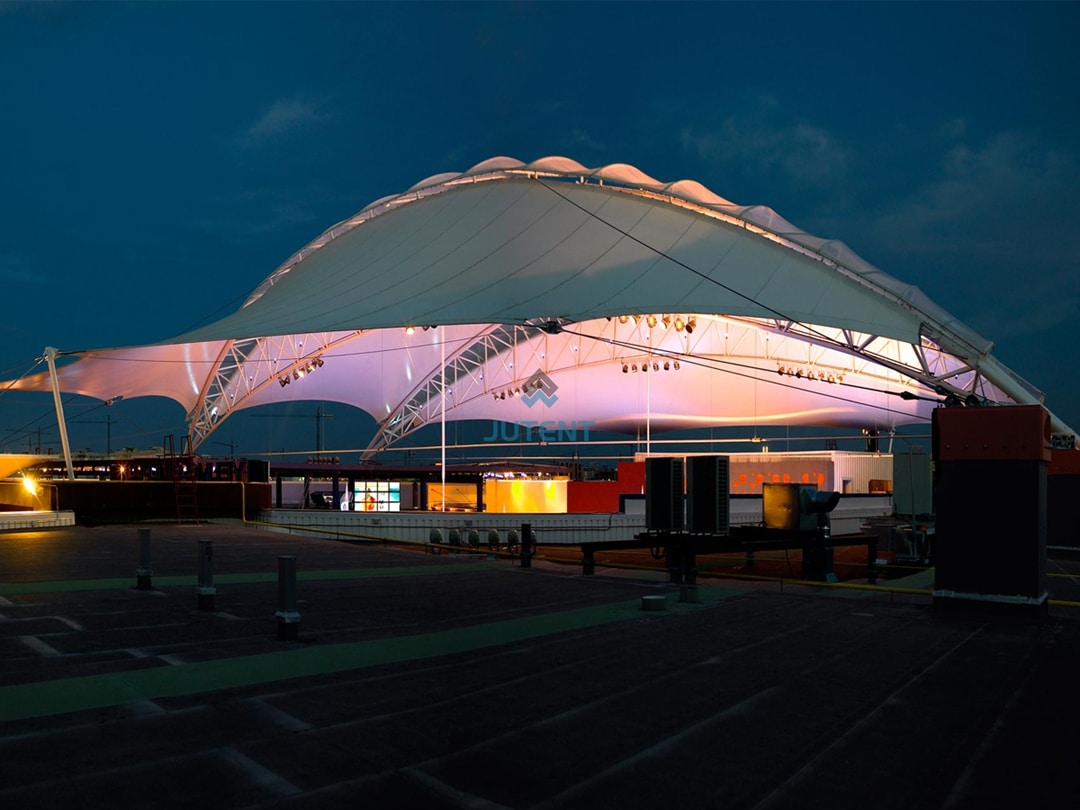

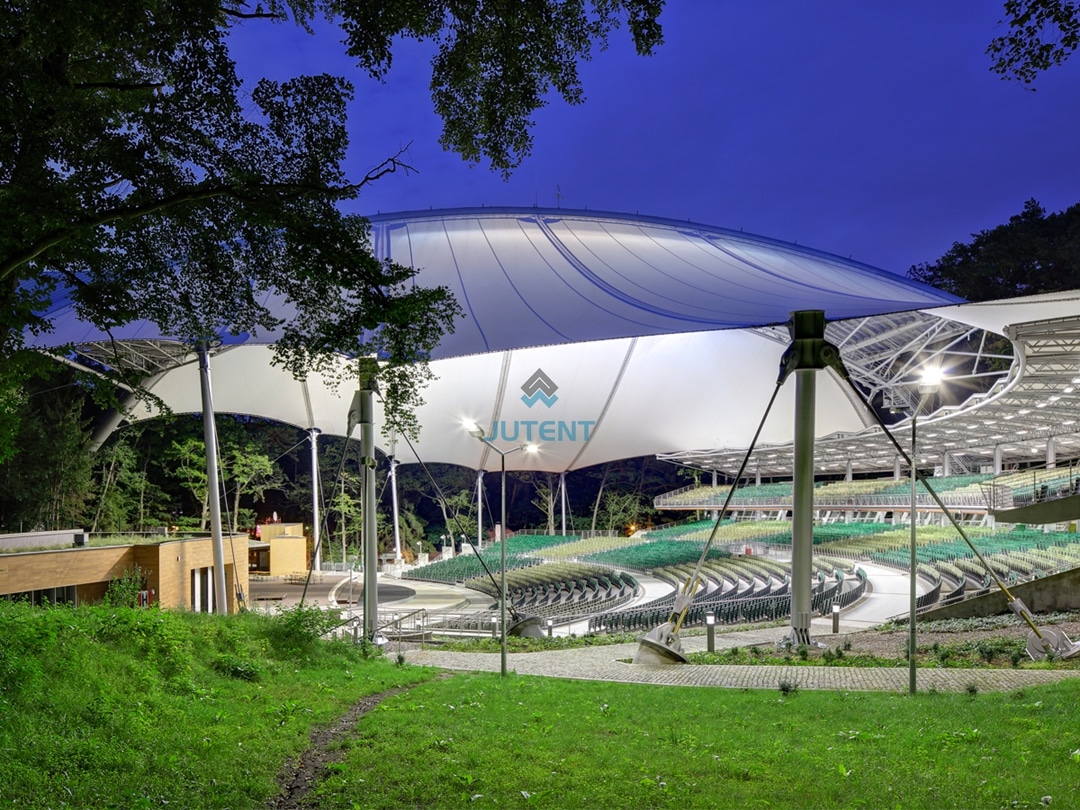

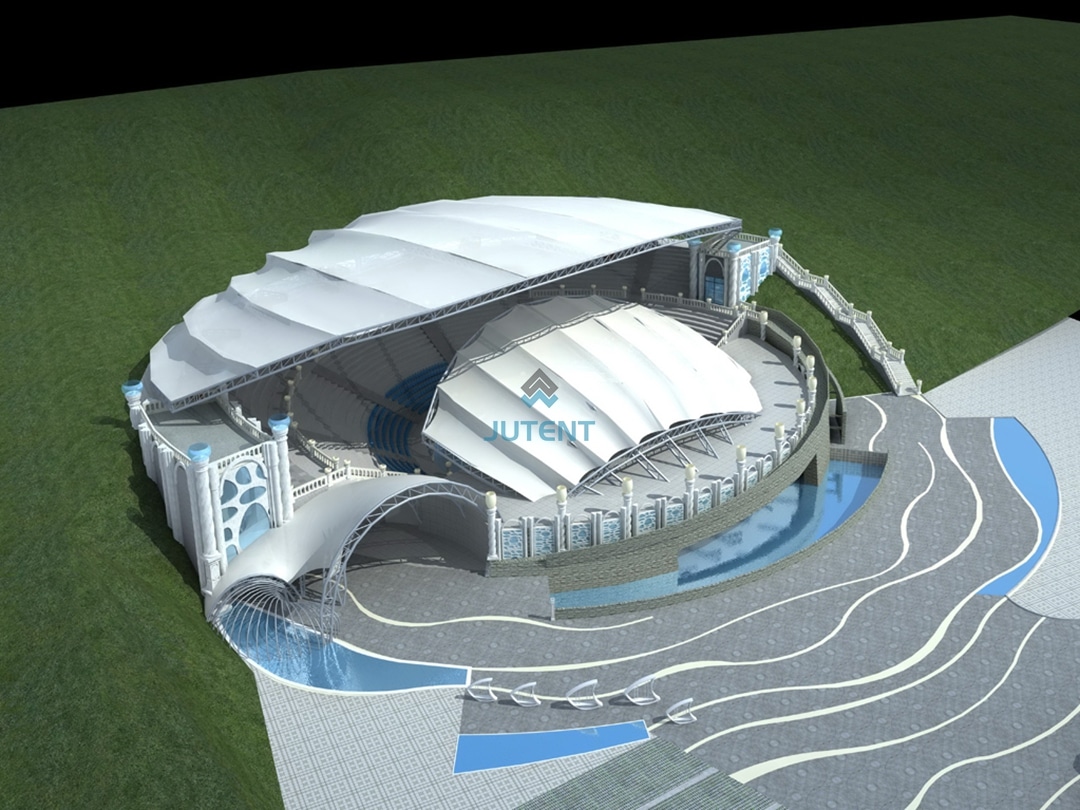

Theater Stage Tensile Membrane Roof Design and Engineering
| Specification | ||
|---|---|---|
| Fabric Type | PVC / PVDF / PTFE | |
| Material brand | Ferrari, Heytex, Duraskin, Sattler, Mehler, Sioen, etc. | |
| Fabric Color | White or Customized | |
| Frame Type | Q235B/Q355B steel, Opt. Hot Dip Galvanized | |
| Flame Retardancy | A2 (PTFE)/ B1 ( PVC/PVDF) DIN4102 | |
| Wind Resistance | 120 - 200 km/h | |
| Warranty Period | 10-35 years | |
| Lead Time | About 30 Days after confirm deposit | |
UV Protection
100% Waterproof
Eco-Friendly
Wind Resistant
Engineering Iconic Stages
Advanced tensile membrane structures designed for superior acoustics, aesthetics, and structural integrity in the event industry.
Core Advantages
Massive Clear Spans
Achieve spans from 10m to 40m+ without internal columns, ensuring perfect sightlines for every audience member.
Weather Resilience
Engineered for 100% UV protection and high-efficiency drainage, ensuring events continue regardless of weather.
Typhoon Resistance
Structurally calculated to withstand wind loads up to Level 16 (2.0 kN/m²), meeting the strictest safety codes.
Rapid Deployment
Our prefabricated systems reduce on-site installation time by 60% compared to traditional steel roofing.
Acoustic Excellence
The unique geometry and material properties minimize echo and enhance sound distribution for concerts.
Architectural Freedom
Create organic, flowing shapes that serve as a visual landmark for festivals and cultural events.
Membrane Comparison
| Material Type | Tensile Strength | Light Transm. | Fire Rating | Service Life |
|---|---|---|---|---|
| PVC | 4200 N/5cm | 10% | B1 / NFPA 701 | 5 - 8 Years |
| PVDF | 5500 N/5cm | 15% | B1 / DIN 4102 | 10 - 15 Years |
| PTFE | 8000 N/5cm | 22% | Class A (Non-comb.) | 25 - 30 Years |
Structural Specifications
Steel Frame System
- Steel GradeQ235B / Q355B
- Corrosion ProtectionHot-dip Galvanizing
- Surface TreatmentHigh-Gloss Epoxy Paint
- Design Life50+ Years
- Connection TypeHigh-Strength Bolting
Load Parameters
- Max Wind Load2.0 kN/m²
- Snow Loading0.3 - 0.8 kN/m²
- Design StandardsASCE / Eurocode
- Seismic GradeLevel 8 Resistant
- Safety Factor2.5x Structural Overload
Application Areas
Engineering Excellence In Tensile Structures
Since 2016, JUTENT has been at the forefront of the membrane structure industry, delivering iconic architectural solutions that blend durability with aesthetic innovation.
Established Since 2016
Nearly a decade of deep expertise in high-quality tensile structure engineering and global supply chain management.
30+ Countries Served
Our engineering solutions have been successfully deployed across 5 continents, meeting diverse climatic and regulatory standards.
420+ Project Milestones
Proven track record of completing complex engineering challenges with precision and creative flair globally.
300k+ m² Installed
Large-scale manufacturing and installation capacity, handling everything from sports stadiums to luxury resorts.
End-to-End Solutions
A seamless workflow covering conceptual design, fabrication, logistics, and onsite installation management.
ISO-Standard Quality
Rigorous safety testing and premium material selection ensure 15-30 years of structure service life.
Start Your Next Project with Jutent
Our engineering team is ready to provide a preliminary assessment and a detailed quote for your tensile structure needs.
Why Choose Jutent?
- 15+ Years Industry Experience
- Global Installation Support
- Custom Structural Engineering
- ISO 9001 Certified Factory
