SP-BL02

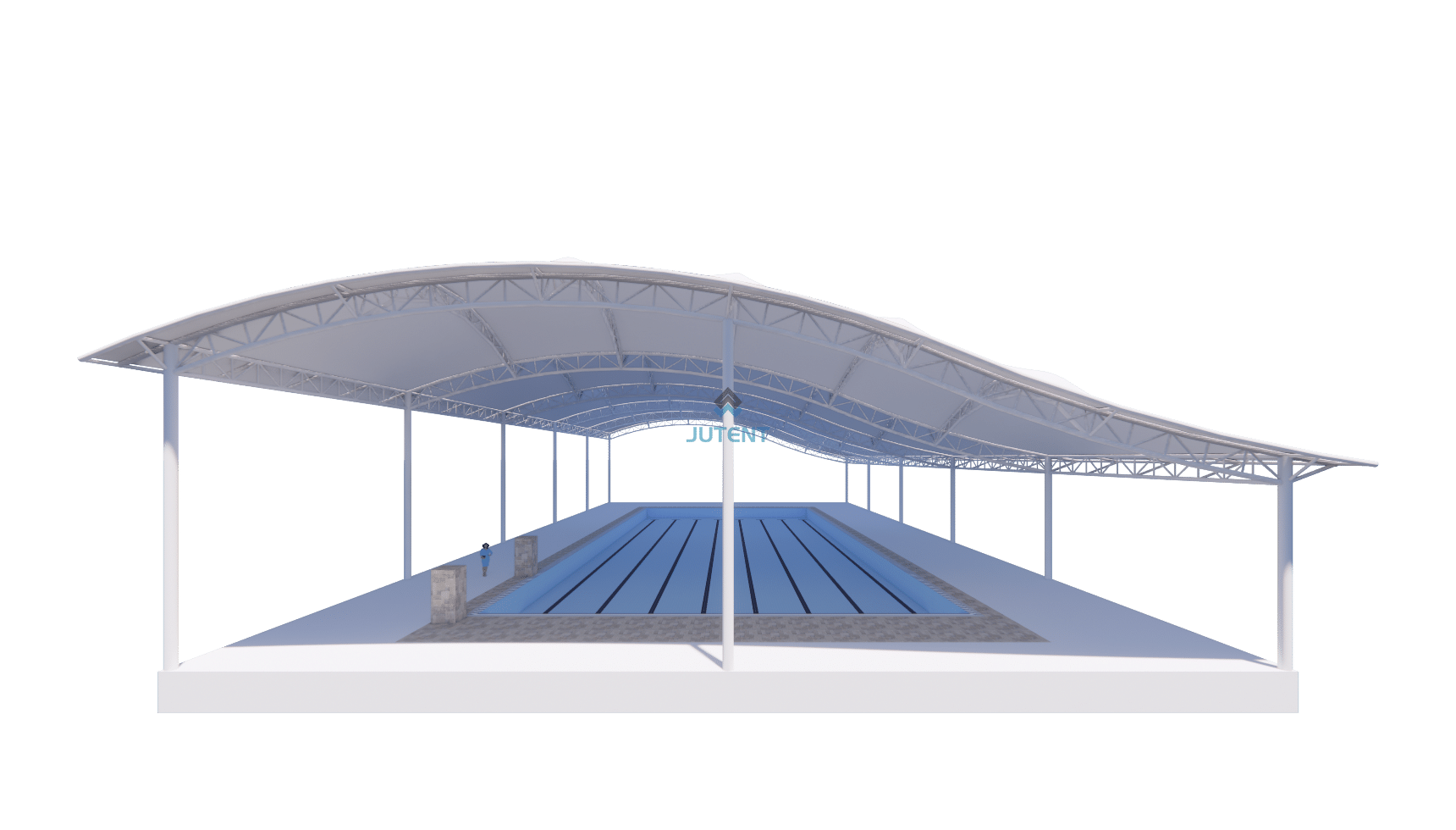

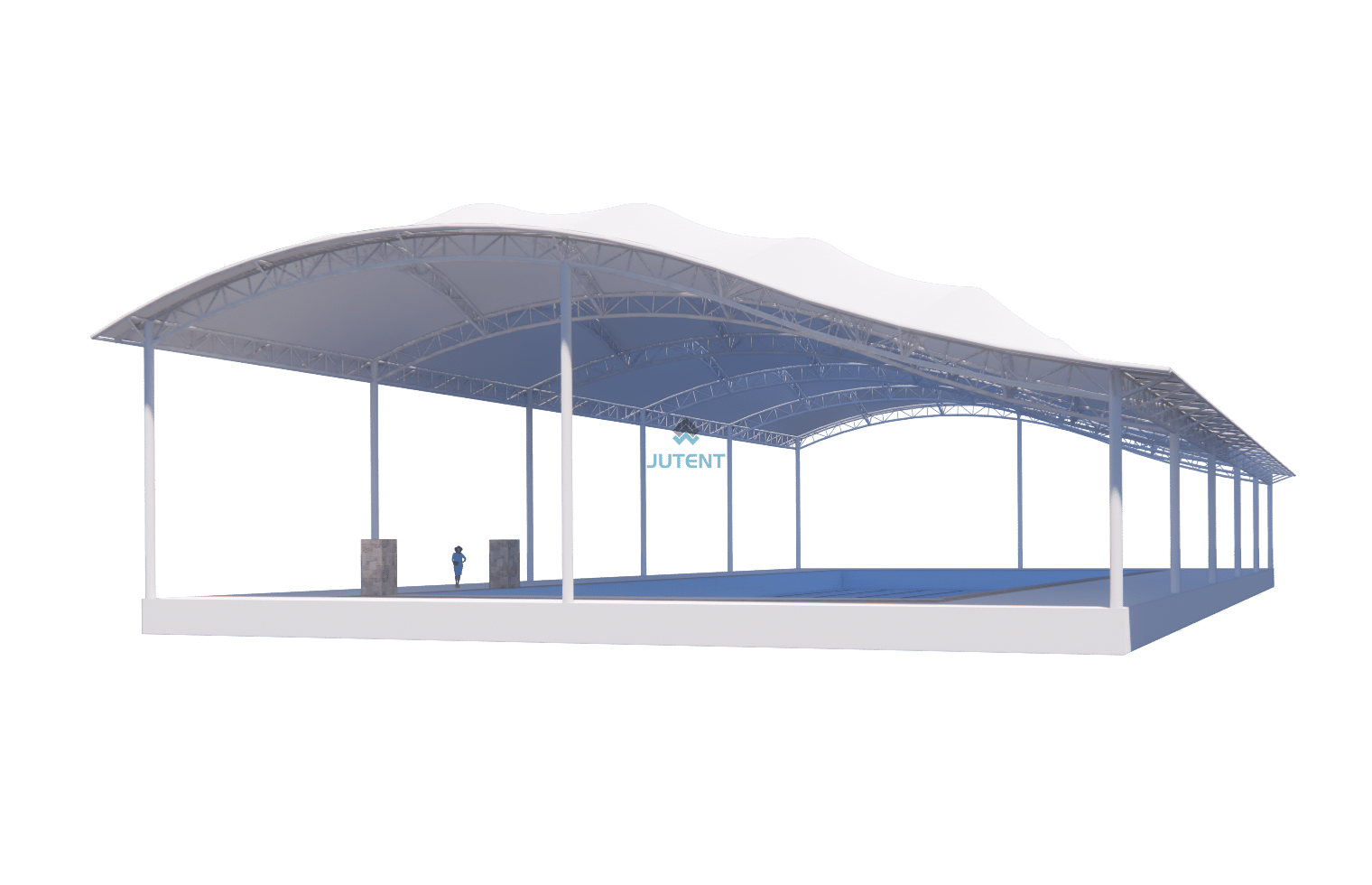

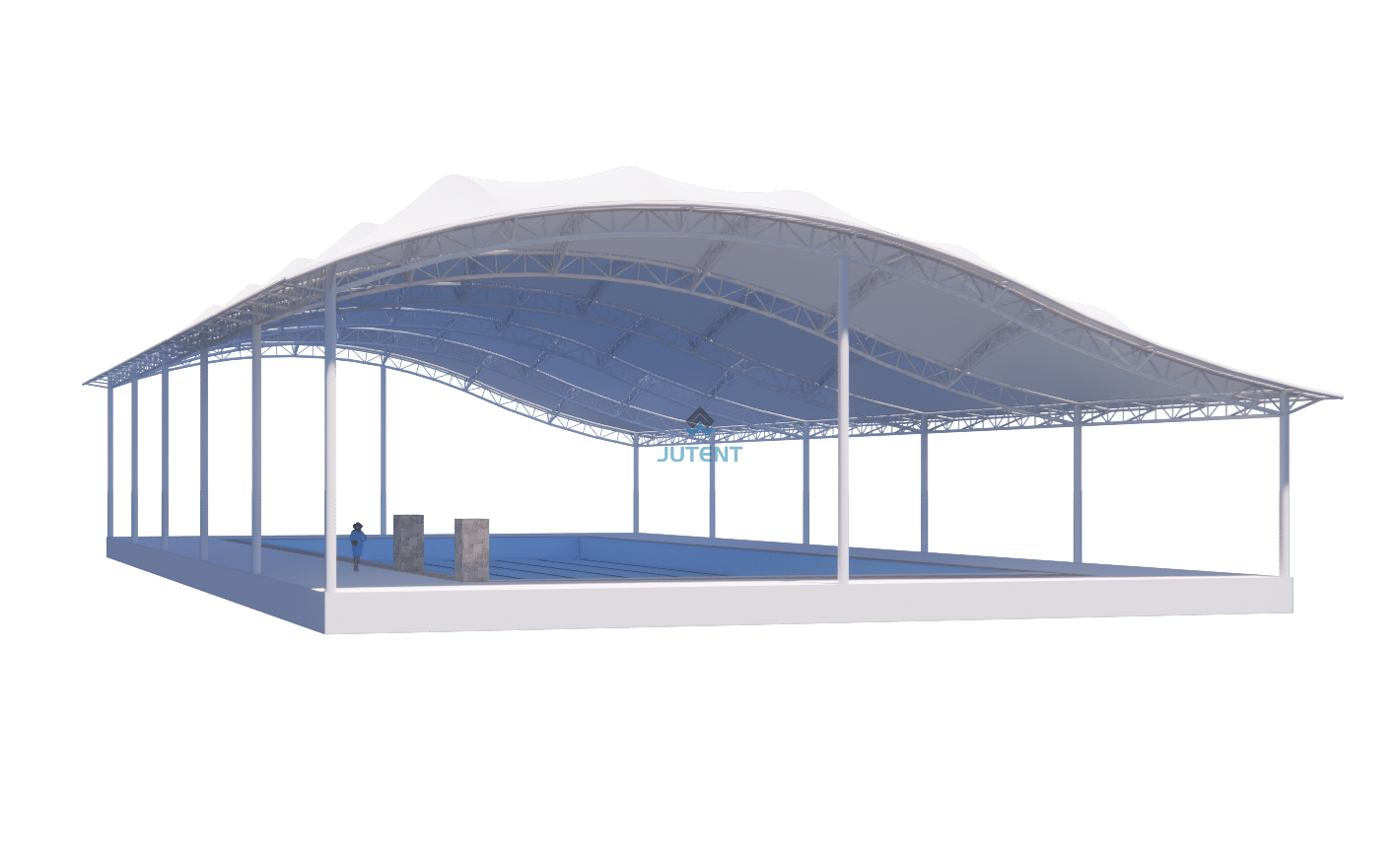

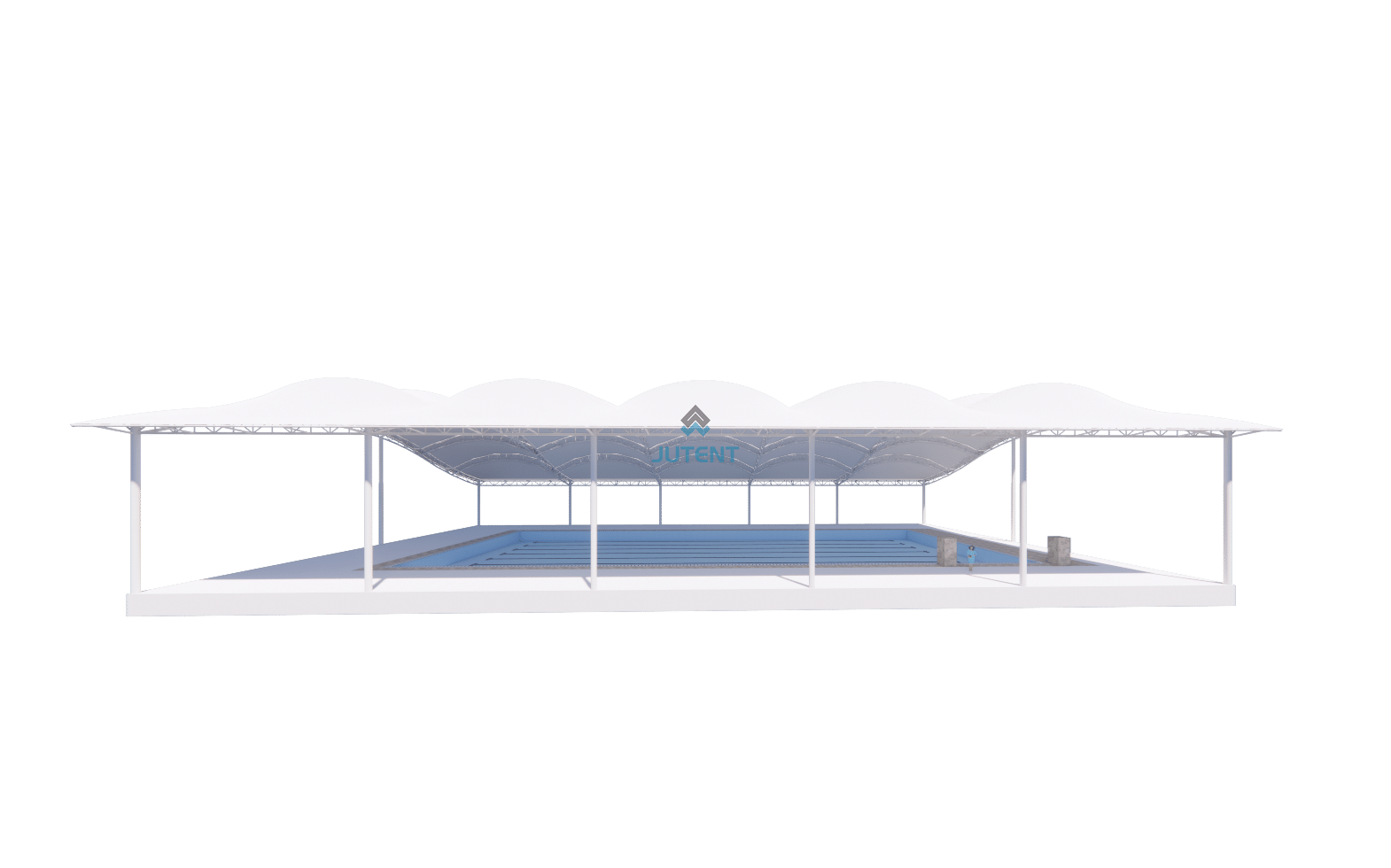

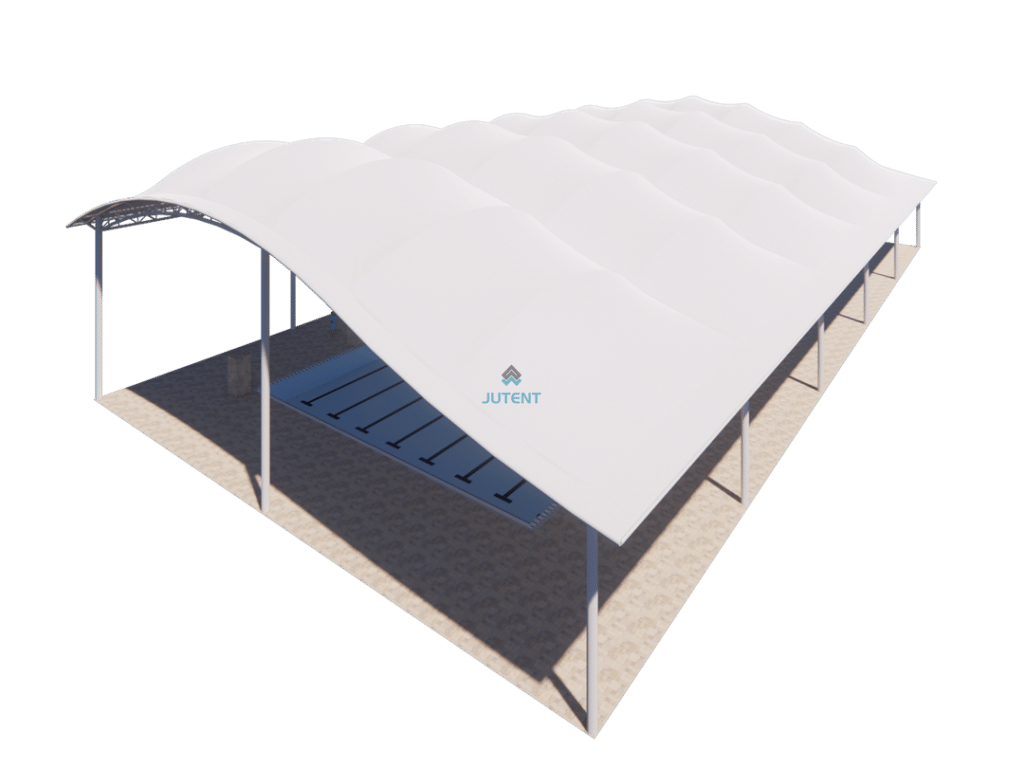

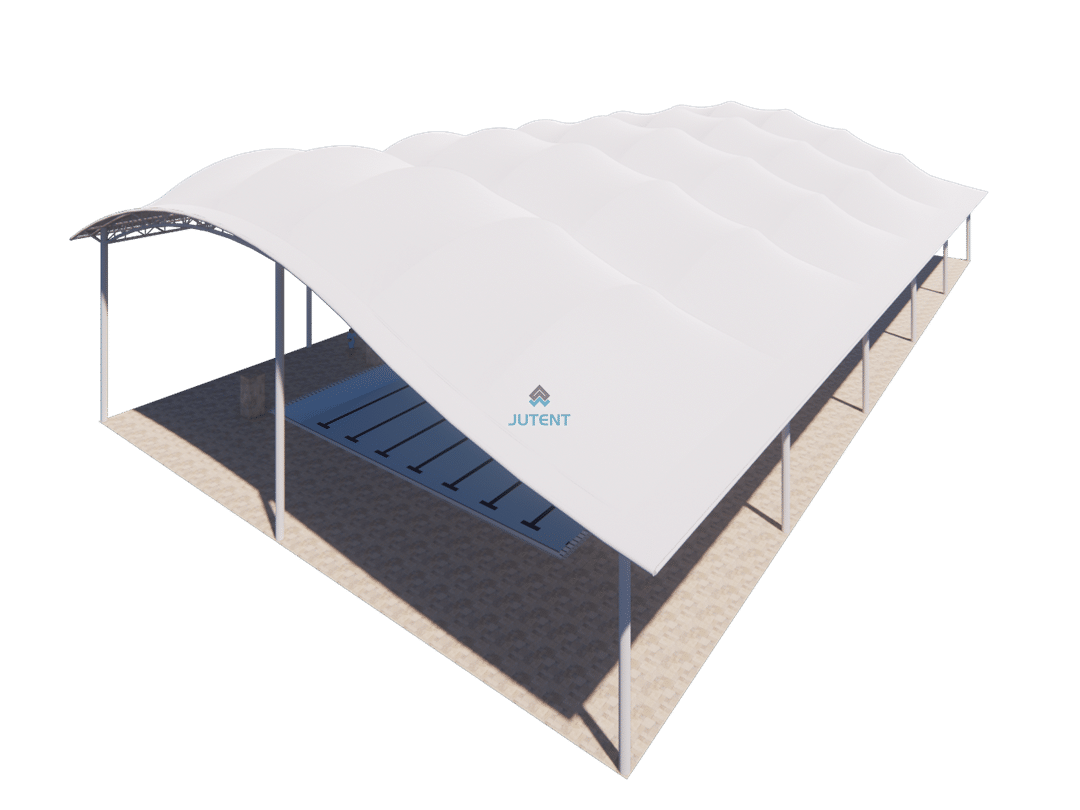

Arched Swimming Pool Tensile Membrane Canopy
Sports Membrane Systems
High-performance tensile structures engineered for large-span sports facilities, combining iconic architectural design with unmatched durability.
Iconic Design
Dynamic tensile forms create visually striking sports venues and world-class landmark structures.
80m+ Large Span
Column-free designs provide unobstructed playing areas and superior viewing experiences for fans.
Natural Daylighting
Translucent membranes allow soft, uniform daylight, significantly reducing artificial lighting costs.
All-Weather Play
100% protection from sun, rain, and UV while maintaining natural airflow through engineered ventilation.
Level 16 Typhoon Ready
Engineered for extreme wind loads up to 2.0 kN/m². Safety certified for the world's harshest climates.
Rapid Deployment
Precision prefabricated components ensure fast on-site assembly, cutting project timelines by 40%.
Competitive Advantages
| Feature | Membrane Structure | Steel Roof | Concrete Structure |
|---|---|---|---|
| Appearance | Modern & Iconic | Industrial | Heavy & Rigid |
| Span Capability | 20m – 80m+ | Medium | Limited |
| Dead Weight | Lightweight | Heavy | Very Heavy |
| Natural Lighting | Excellent (15-25%) | Poor | Poor |
| Maintenance | Low (Self-cleaning) | Medium | High |
Membrane Material Tiers
| Parameter | PVC Standard | PVDF Premium | PTFE Ultimate |
|---|---|---|---|
| Tensile Strength | 3000–5000 N/5cm | 4000–7000 N/5cm | 6000–8000 N/5cm |
| Light Transmission | 10–15% | 10–20% | 12–25% |
| Lifespan | 8–15 Years | 15–20 Years | 20–30 Years |
| Fire Rating | B1 | B1 | A2 / B1 |
Engineering Specs
Steel System
- Q235B / Q355B Grade
- Space Frame / Arch
- Galvanized ≥80μm
- Fluorocarbon Finish
Load Criteria
- Wind: 2.0 kN/m²
- Typhoon Level 16
- Snow: 1.0 kN/m²
- Eurocode/ASCE Std
Facility Dimensions
