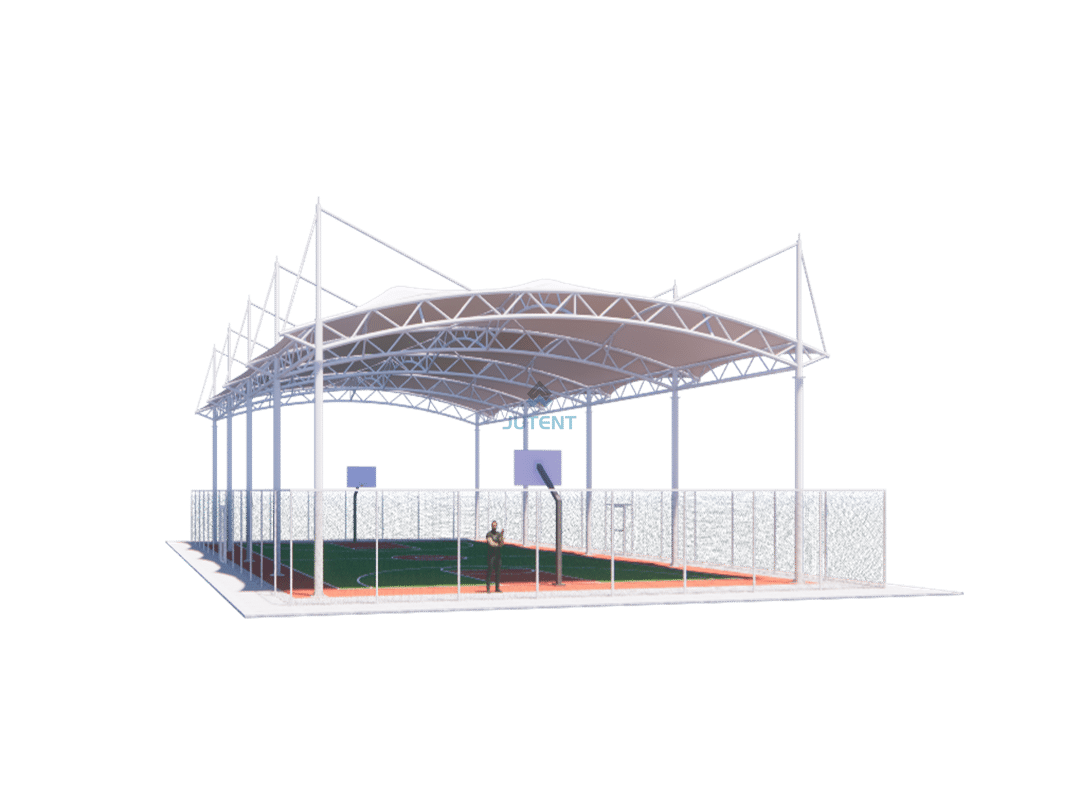

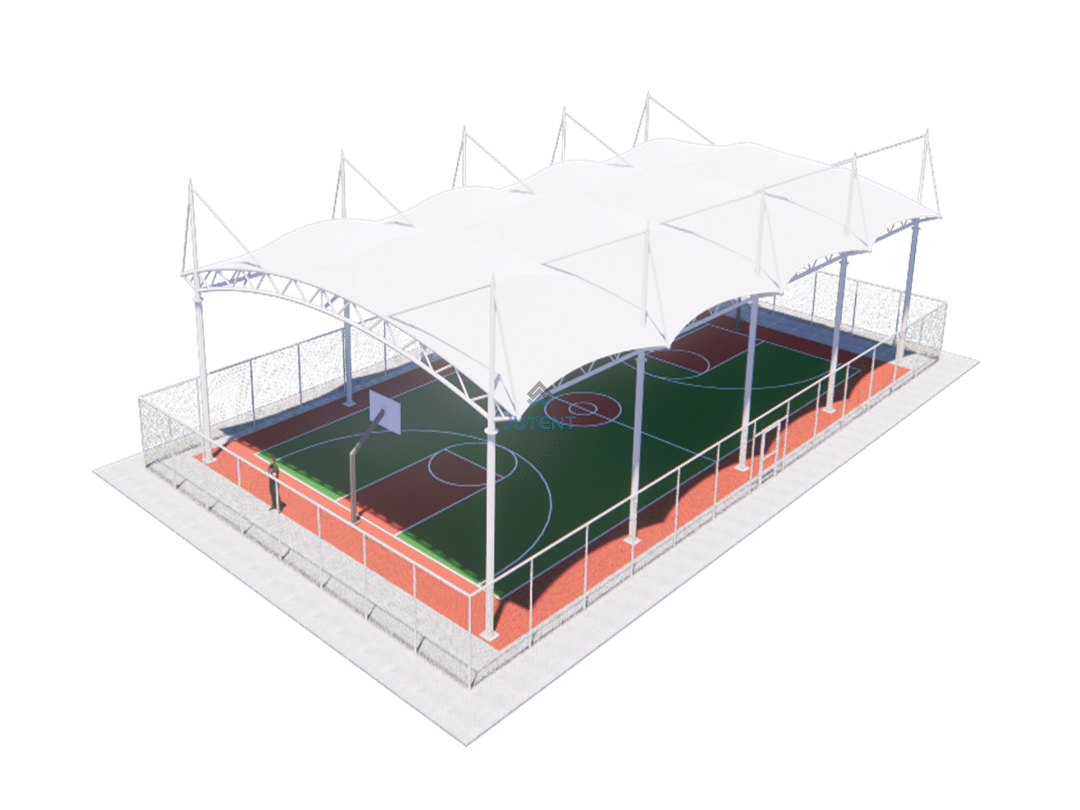

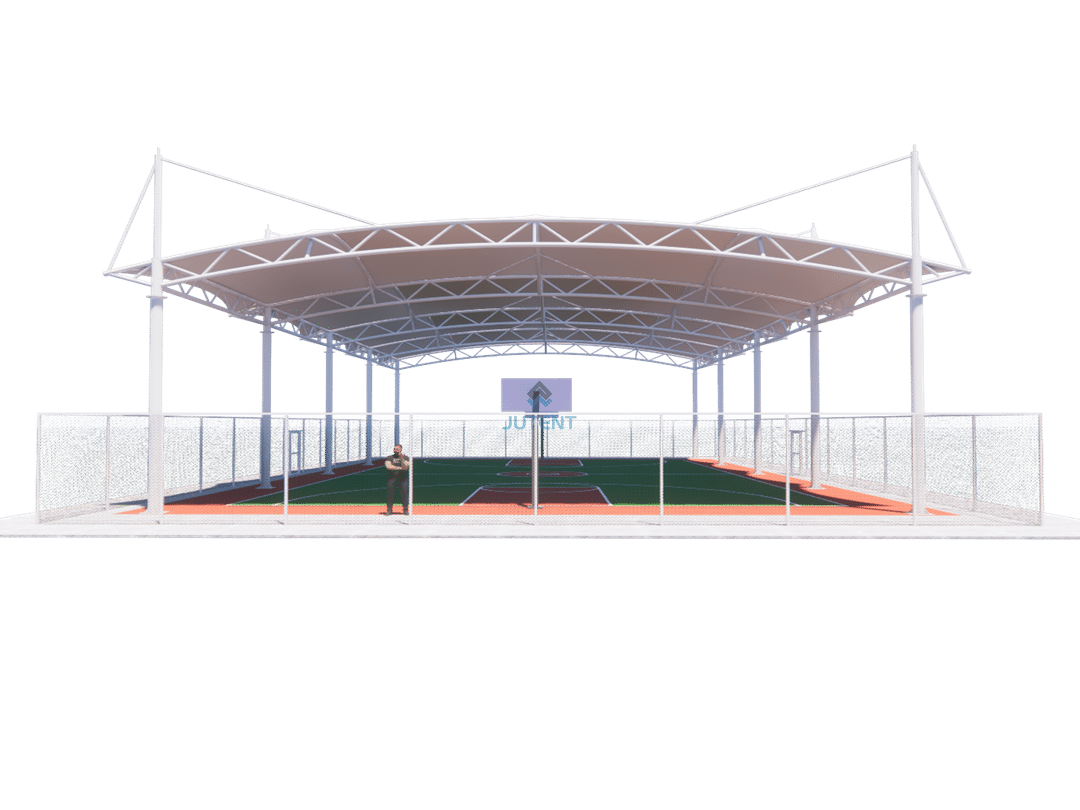

Standard Basketball Court Tie-Rod Tensile Membrane Canopy
Recommended basketball court canopy: 34 m × 19 m × 8 m high, customizable to suit site conditions.
Model No:
BC-A42S
Overview
Tensile membrane roof for basketball courts, combining arched steel structure, lightweight construction, visually striking design, and flexible sports facility coverage.
Key Features
Large Span,Lightweight
Fast Installation
Roof Self-Cleaning
UV Resistance
Specification
Max Clear Span
17 – 21 meters
Design Wind Speed
30 – 65 m/s(Project location based)
Fabric Type
PVDF-coated PVC / PTFE (650–1350 g/m²)
Surface Treatment
Painting ≥ 160 μm/Hot-dip galvanized(Optional)
Flame Resistance
B1 / B-s1,d0 (PTFE A2)
Design Service Life
Steel ≥ 20 years/ Membrane 15–25 years
