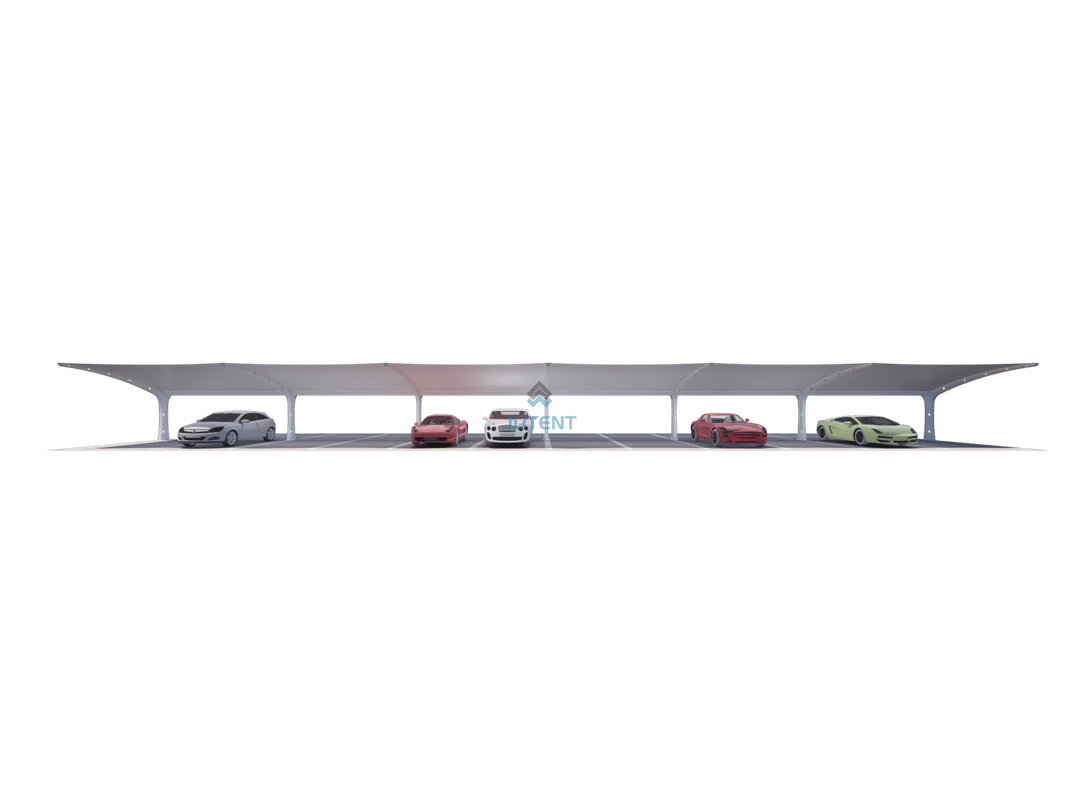

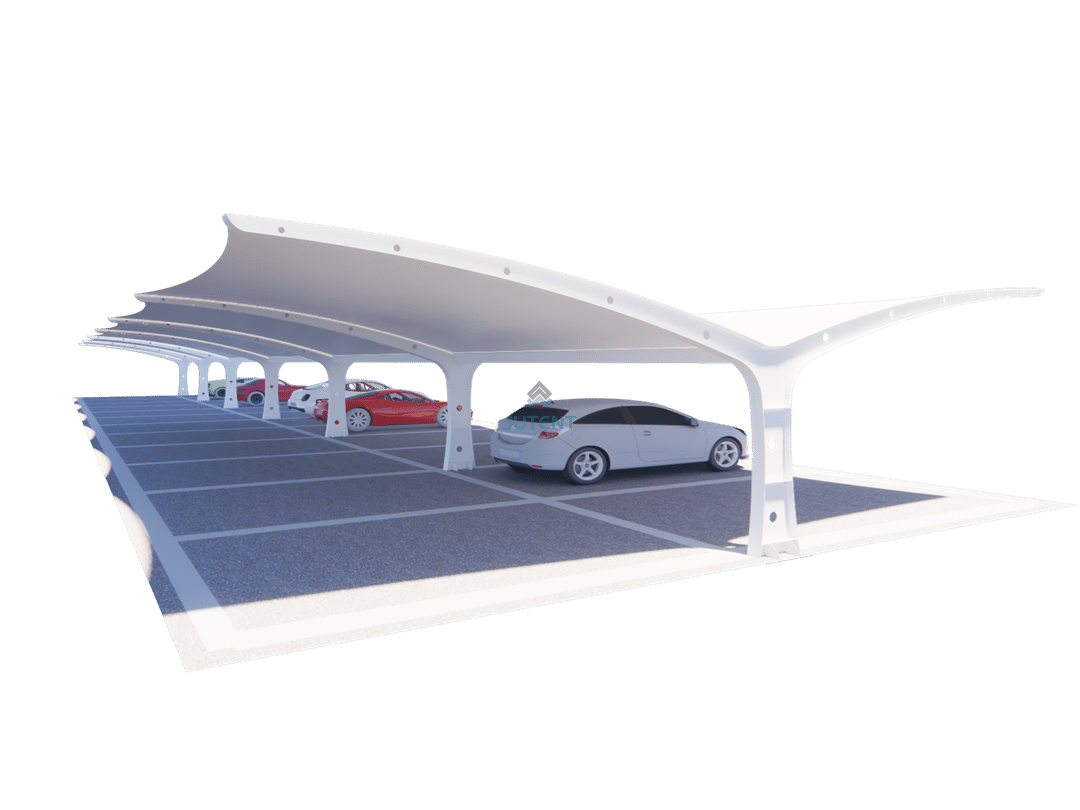

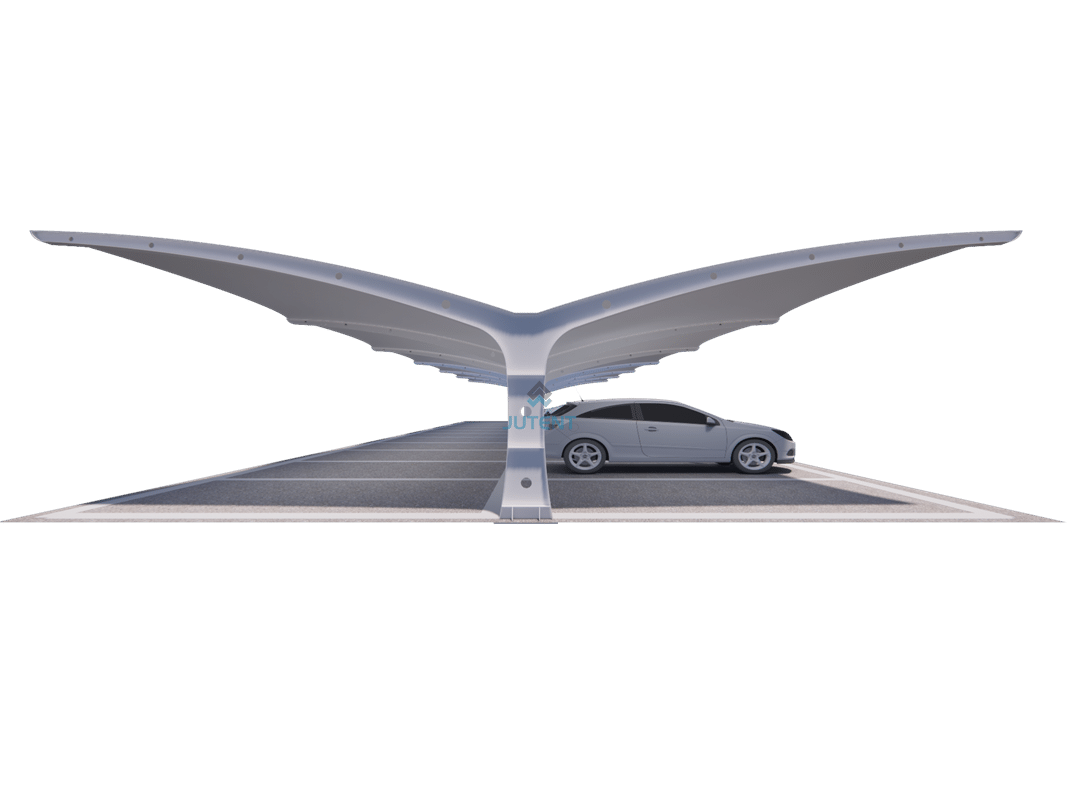

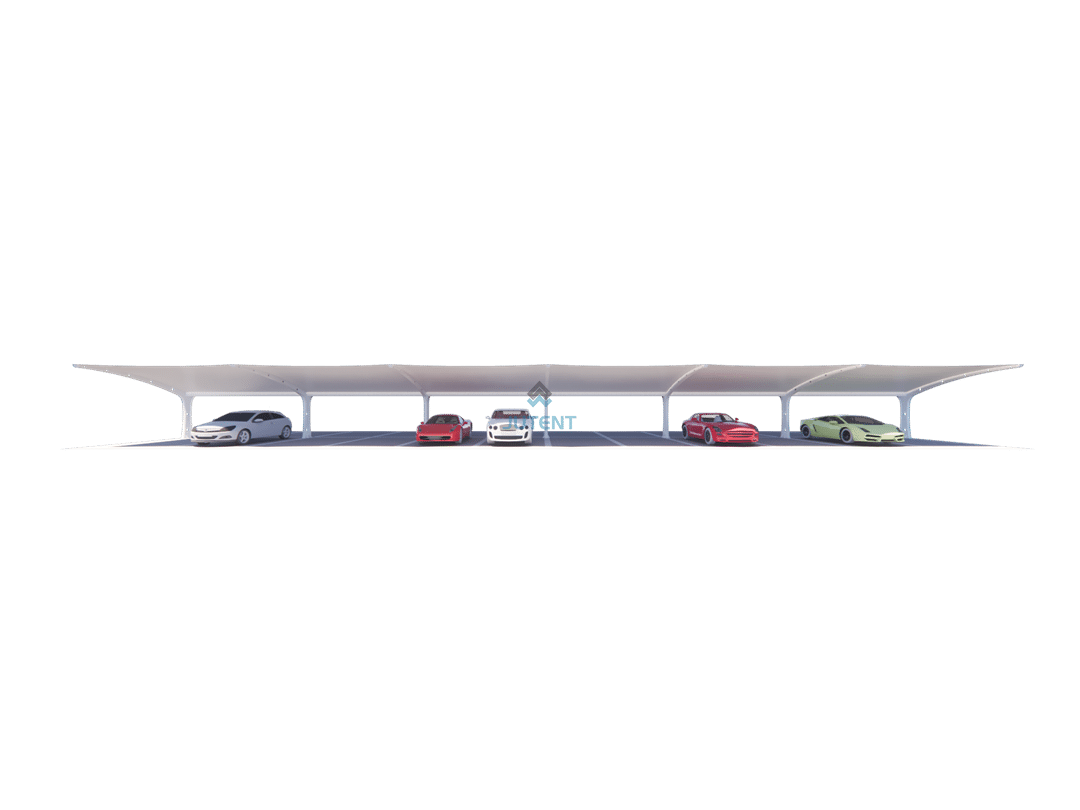

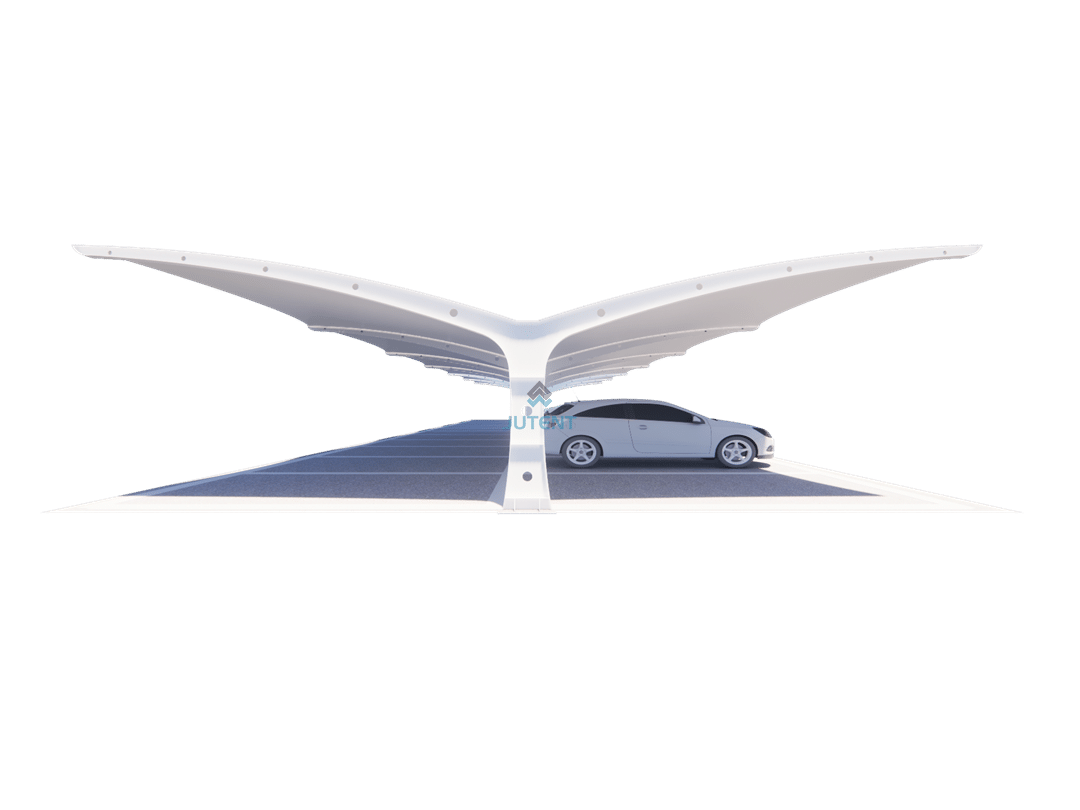

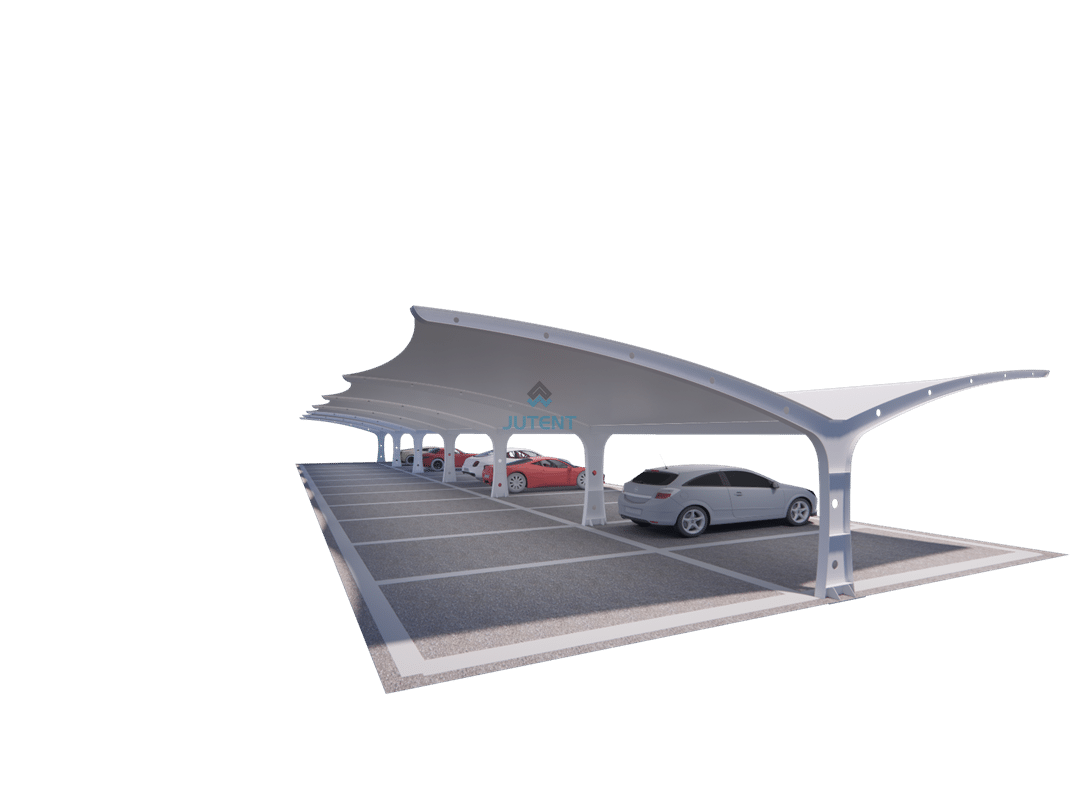

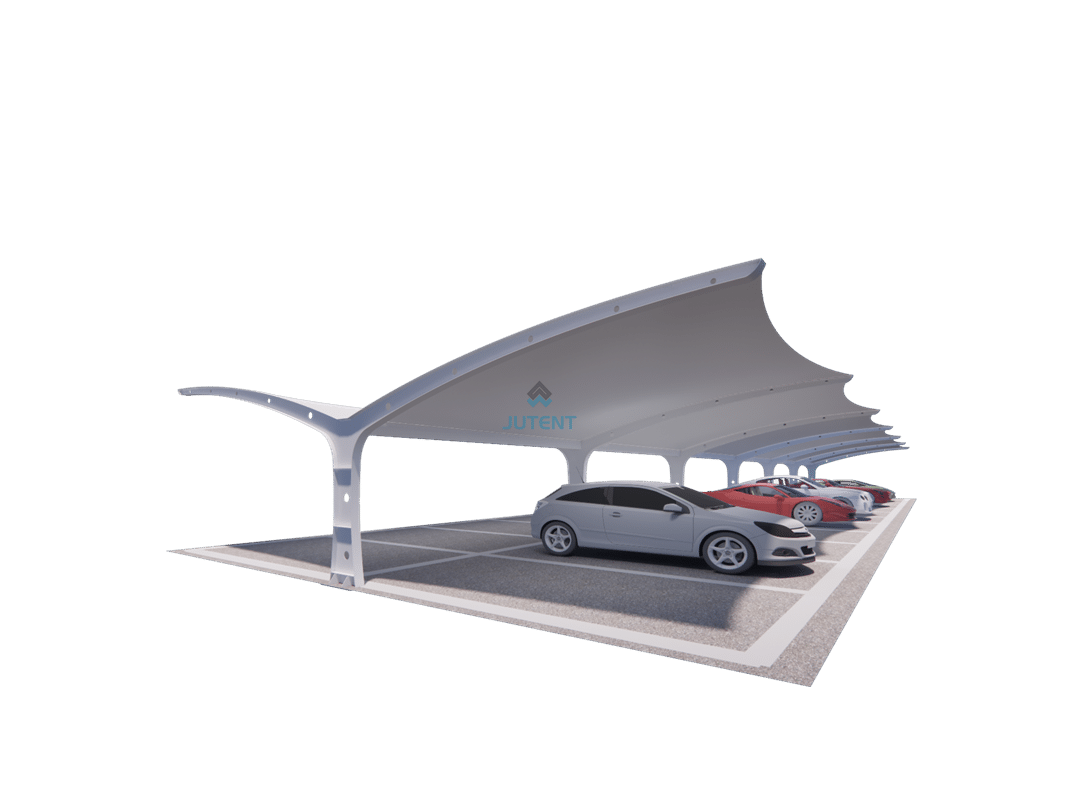

Double-Sided I-Beam Tensile Membrane Carport
Recommended single-bay size: 6 m × 12 m × 2.5 m, suitable for four cars. Custom sizes available.
Model No:
CP-A71D
Overview
Double-sided I-beam tensile membrane carport featuring a stable steel structure and efficient coverage, ideal for commercial, residential, and industrial parking areas
Key Features
Large Span,Lightweight
Fast Installation
Roof Self-Cleaning
UV Resistance
Specification
Max Clear Span
11 – 12 meters
Design Wind Speed
30 – 65 m/s(Project location based)
Fabric Type
PVDF-coated PVC / PTFE (650–1350 g/m²)
Surface Treatment
Painting ≥ 160 μm/Hot-dip galvanized(Optional)
Flame Resistance
B1 / B-s1,d0 (PTFE A2)
Design Service Life
Steel ≥ 20 years/ Membrane 15–25 years
