Model No:
SG-S15B

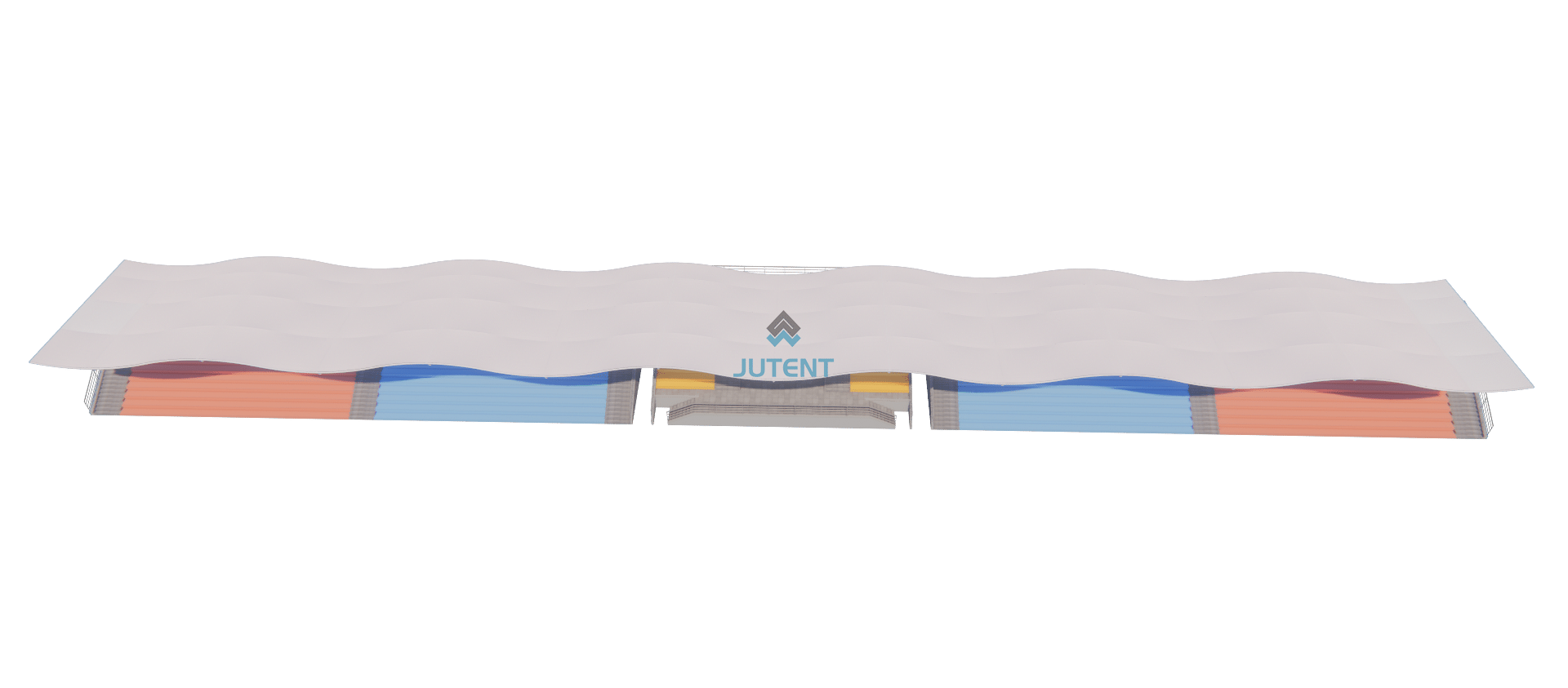

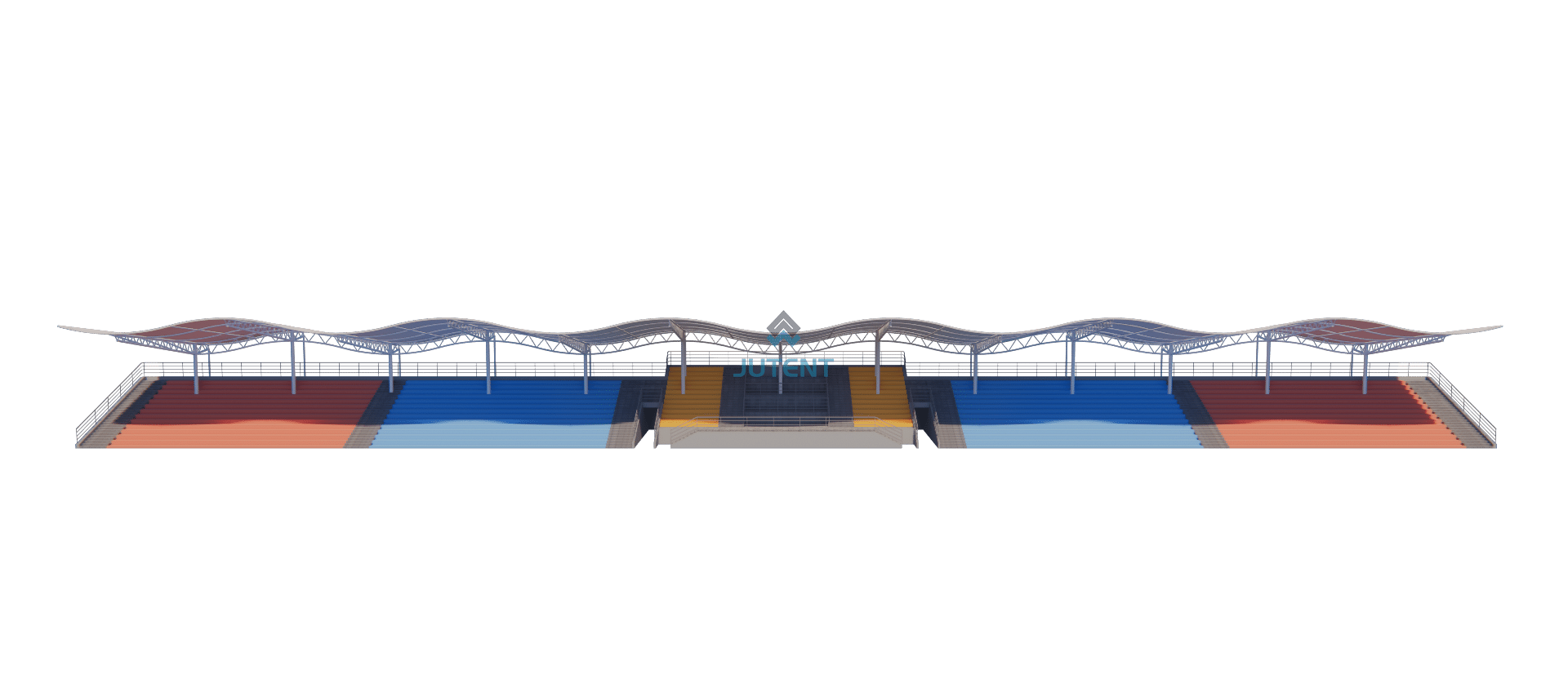

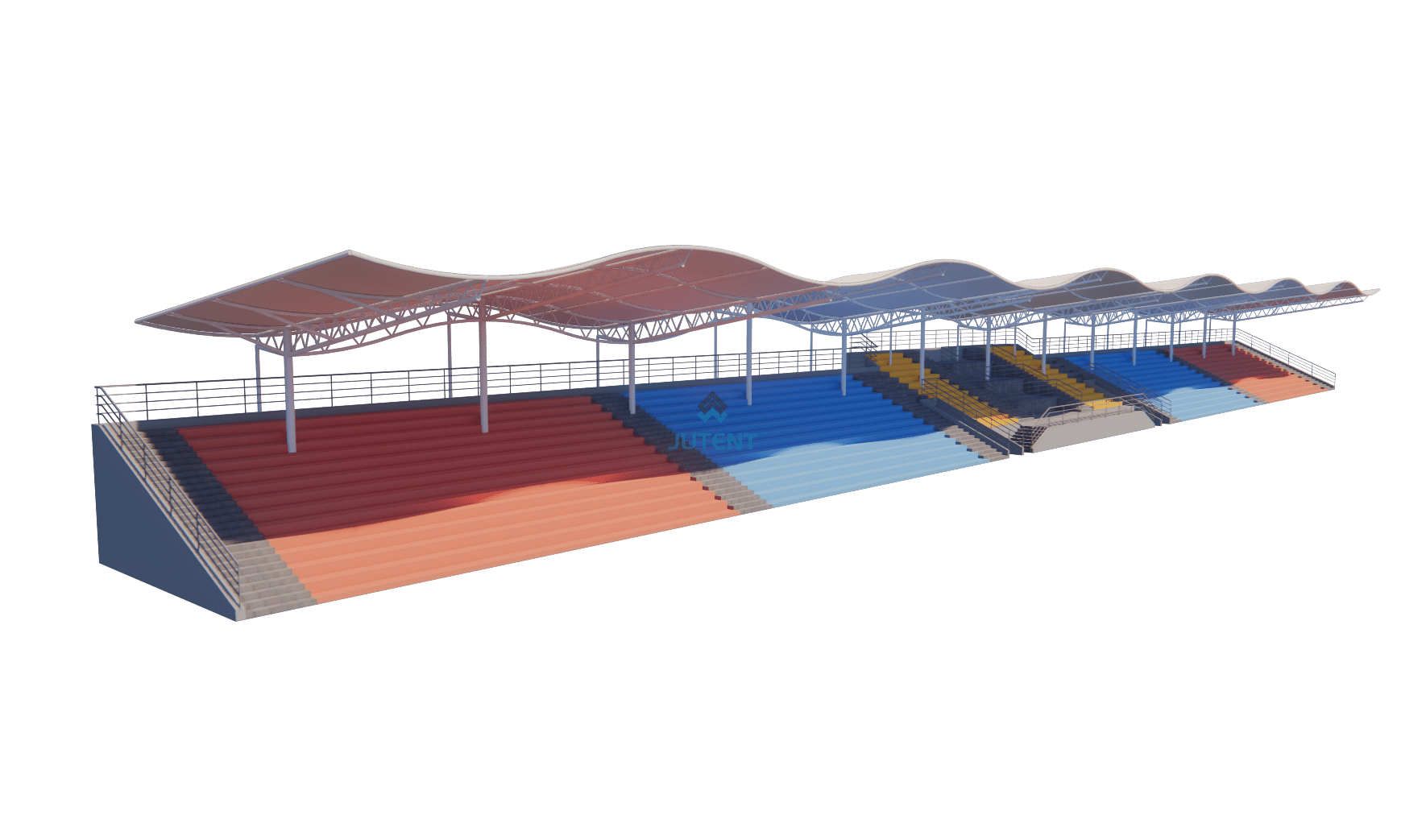

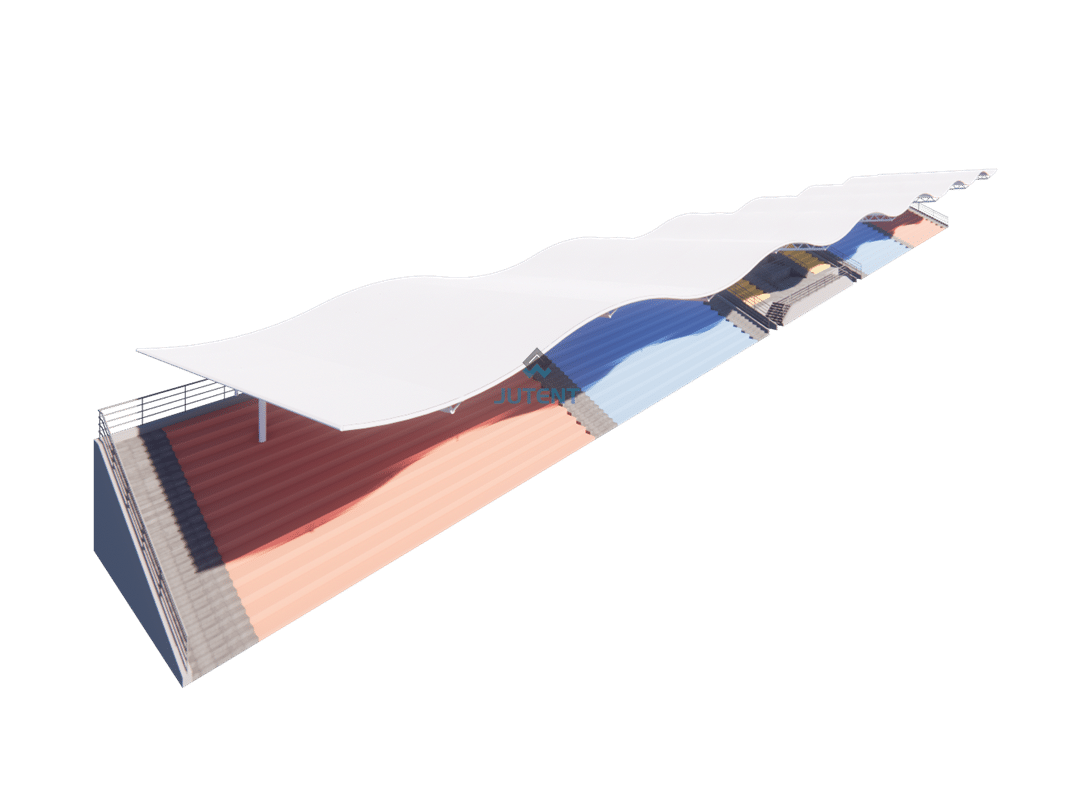

Sports Stadium Grandstand Tensile Membrane Canopy
This grandstand canopy is designed at 125 m × 16 m and can be customized based on the actual grandstand dimensions.
Ultra-Large Span
99% UV Rejection
Faster Installation
High Durability
Grandstand Tensile Membrane Structure Advantages
Optimized Spectator Coverage
Engineered to provide maximum shading and rain protection for seating areas while maintaining unobstructed field views.

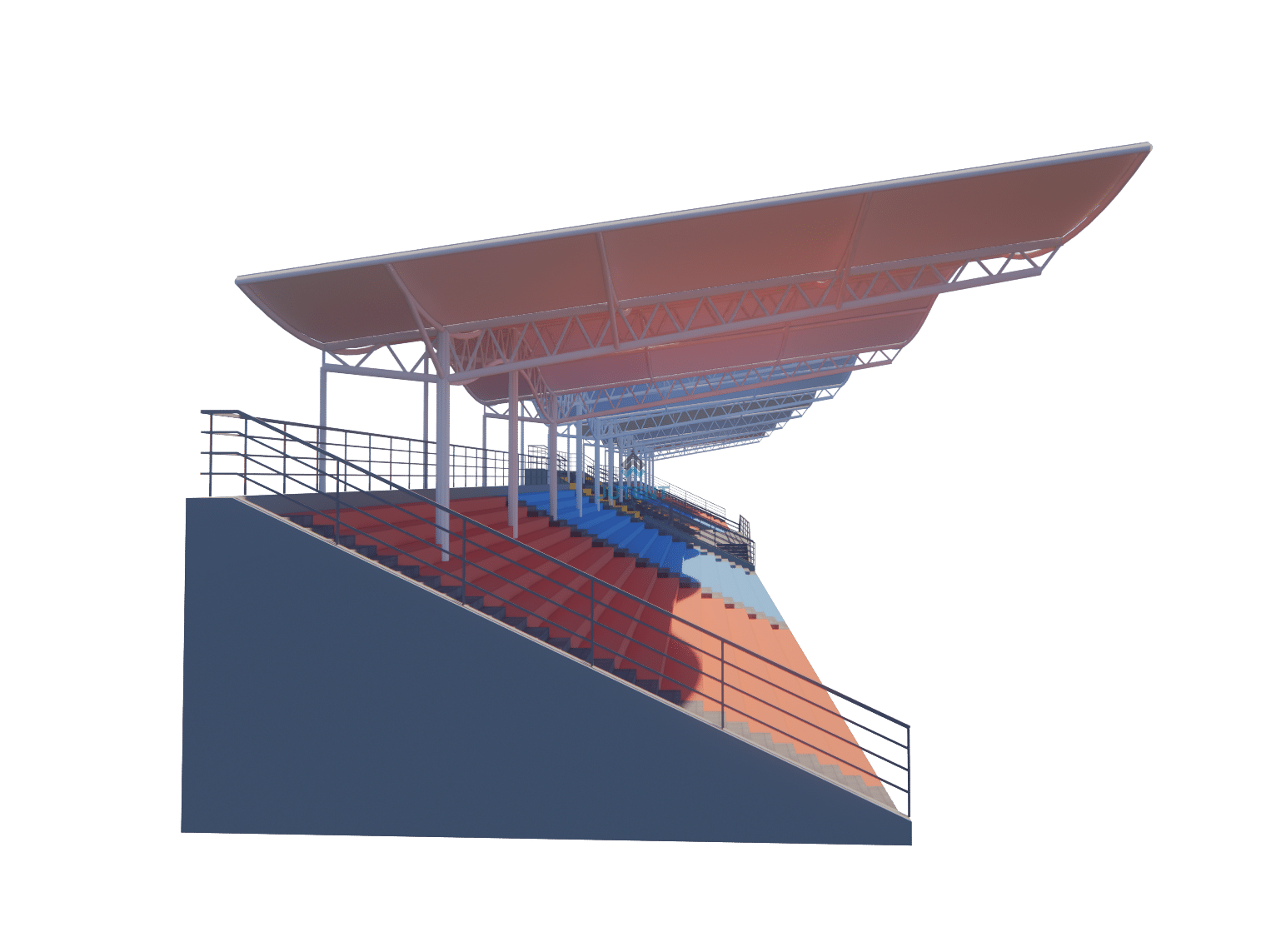

Cantilevered Design Capability
Large cantilever structures minimize front-row columns, ensuring critical sightlines and a premium spectator experience.
Lightweight Roofing System
Advanced membrane materials significantly reduce the dead load on the grandstand structure compared to heavy conventional roofing.
High Wind Resistance
Aerodynamically optimized forms engineered for wind loads between 1.5–2.0 kN/m², ideal for high-exposure stadium environments.
Daylight Comfort
High translucency membranes filter natural sunlight, eliminating harsh glare and shadows while keeping the concourse bright.
Architectural Aesthetic
Iconic curved forms and organic silhouettes transform functional stadiums into modern architectural landmarks.
Stadium Roofing Comparison
| Performance Feature | Membrane Roof (Recommended) | Conventional Steel Roof | Polycarbonate Roof |
|---|---|---|---|
| Structural Weight | Ultra-Light (1-2 kg/m²) | Heavy (30-60 kg/m²) | Moderate (5-10 kg/m²) |
| Cantilever Capability | Excellent (Up to 40m+) | Good (Requires heavy truss) | Limited (Material brittleness) |
| Installation Time | Fast (Prefabricated) | Slow (On-site welding) | Moderate |
| Wind Performance | Superior (Aerodynamic) | High Load (Rigid resistance) | Vulnerable (Pressure risk) |
| Daylight Performance | Soft Diffused Light | Zero (Full shadow) | High (Heat gain issues) |
| Maintenance | Self-cleaning (PVDF/PTFE) | Frequent Painting Required | Difficult (Dust & Yellowing) |
| Visual Quality | Modern Iconic Landmark | Industrial / Conventional | Prone to aging |
Membrane Technical Specifications
| Parameter | PVC (Standard) | PVDF (High Grade) | PTFE (Permanent) |
|---|---|---|---|
| Thickness | 0.6 - 0.9 mm | 0.8 - 1.2 mm | 0.5 - 1.0 mm |
| Tensile Strength | 4000 N / 5cm | 6000 N / 5cm | 8000+ N / 5cm |
| Light Transmission | 8% - 12% | 10% - 15% | 18% - 25% |
| Expected Lifespan | 8 - 12 Years | 15 - 20 Years | 30+ Years |
| Fire Rating | B1 / DIN 4102 | B1 / NFPA 701 | Class A (Non-combustible) |
| Surface Treatment | Acrylic | PVDF Coating | Teflon (PTFE) |
Steel Structure System
Steel GradeQ235B / Q355B (High Strength)
Structure TypeCantilever Truss / Arch / Space Frame
Surface TreatmentHot-dip Galvanized ≥80μm
Optional FinishFluorocarbon / Powder Coating
Corrosion Resistance10–25 years
Connection MethodPrecision Bolted + Structural Welding
Design Load Parameters
Wind Load Capacityup to 2.0 kN/m²
Typhoon ResistanceLevel 16 (Hurricane Force)
Snow Load Design0.3 – 0.8 kN/m²
Seismic DesignSite-specific Optional
International CodesASCE / Eurocode / BS
Standard Structural Dimensions
10m
Small Stand Span
15–25m
Medium Stand Span
30m+
Large Cantilever
8–25m
Height Range
8–30m
Coverage Depth
Global Application Scenarios
Frequently Asked Questions
Will the roof block spectators’ view?
No. Our structures utilize advanced cantilever engineering which eliminates the need for perimeter front columns, ensuring 100% clear sightlines for all seating rows.
Can it withstand strong wind?
Yes. Every grandstand canopy is structuraly calculated for site-specific conditions, capable of resisting wind loads up to 2.0 kN/m² (equivalent to a Level 16 Typhoon).
Is it suitable for coastal areas?
Absolutely. We specify C4 or C5-M grade anti-corrosion treatments, including heavy hot-dip galvanization and specialized epoxy coatings, specifically for high-salinity maritime environments.
Does it provide enough shading?
Yes. The membrane geometry is optimized via solar path analysis to provide maximum UV protection and thermal comfort during peak event hours.
What is the lifespan of the structure?
The steel framework lasts 50+ years. The membrane itself lasts between 10 to 30 years depending on the material selection (PVC, PVDF, or PTFE).
