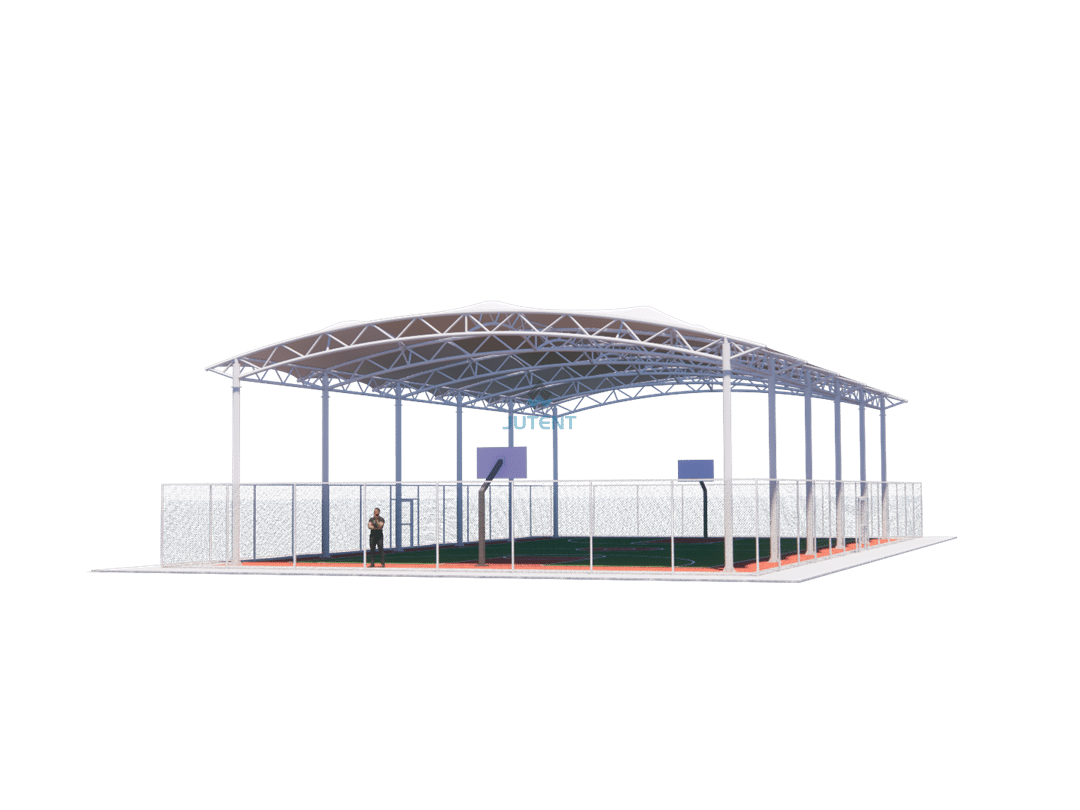

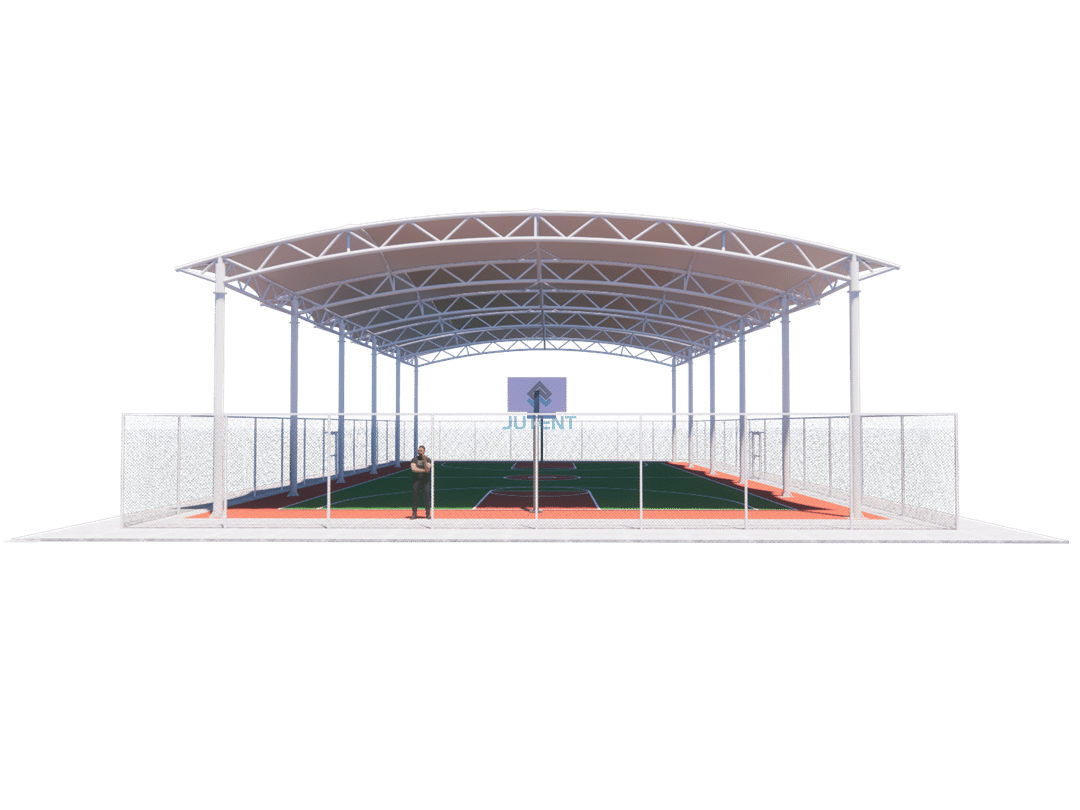

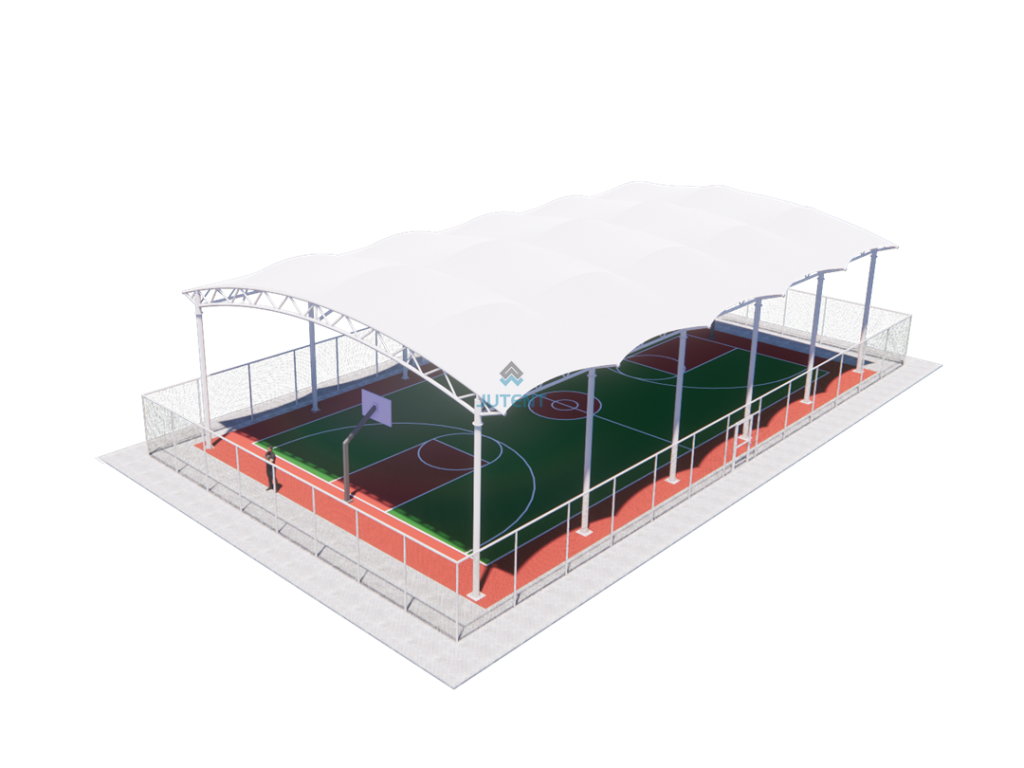

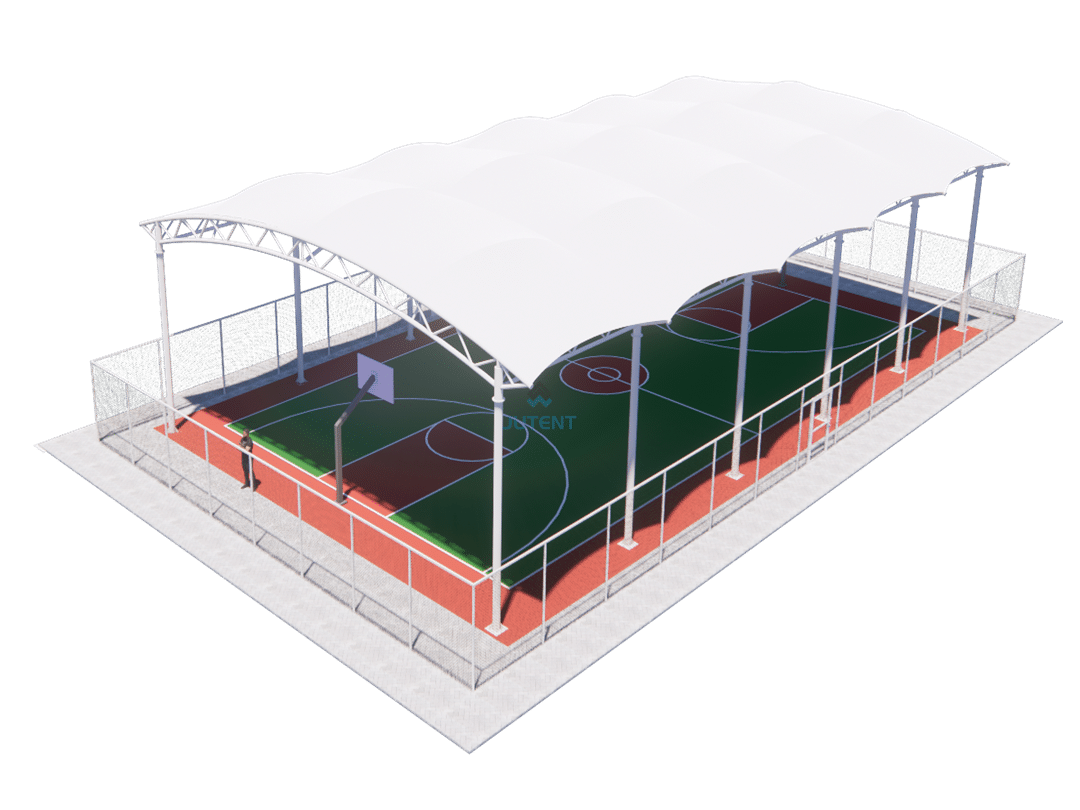

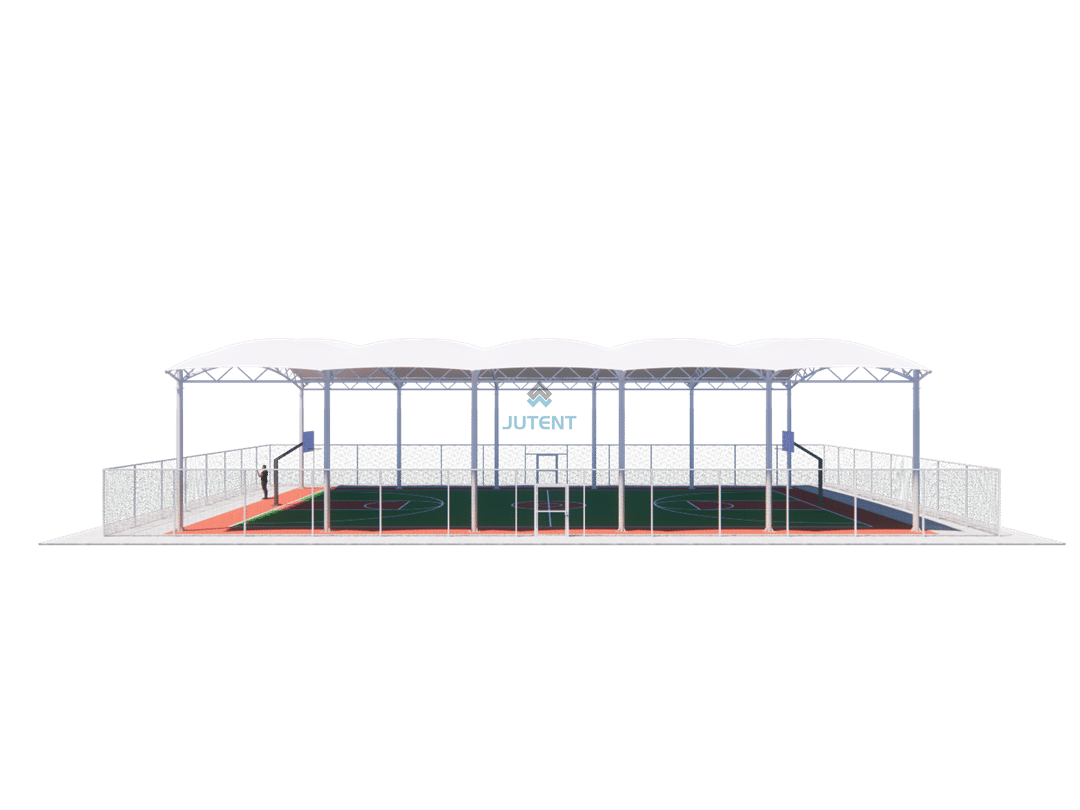

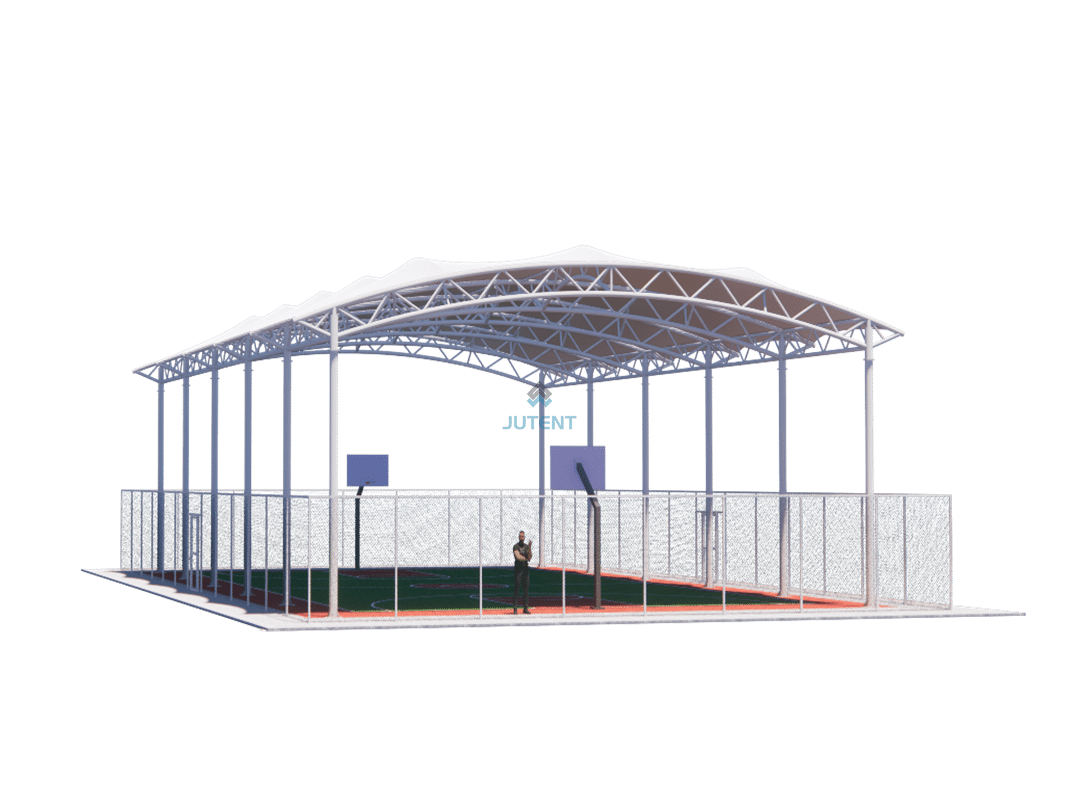

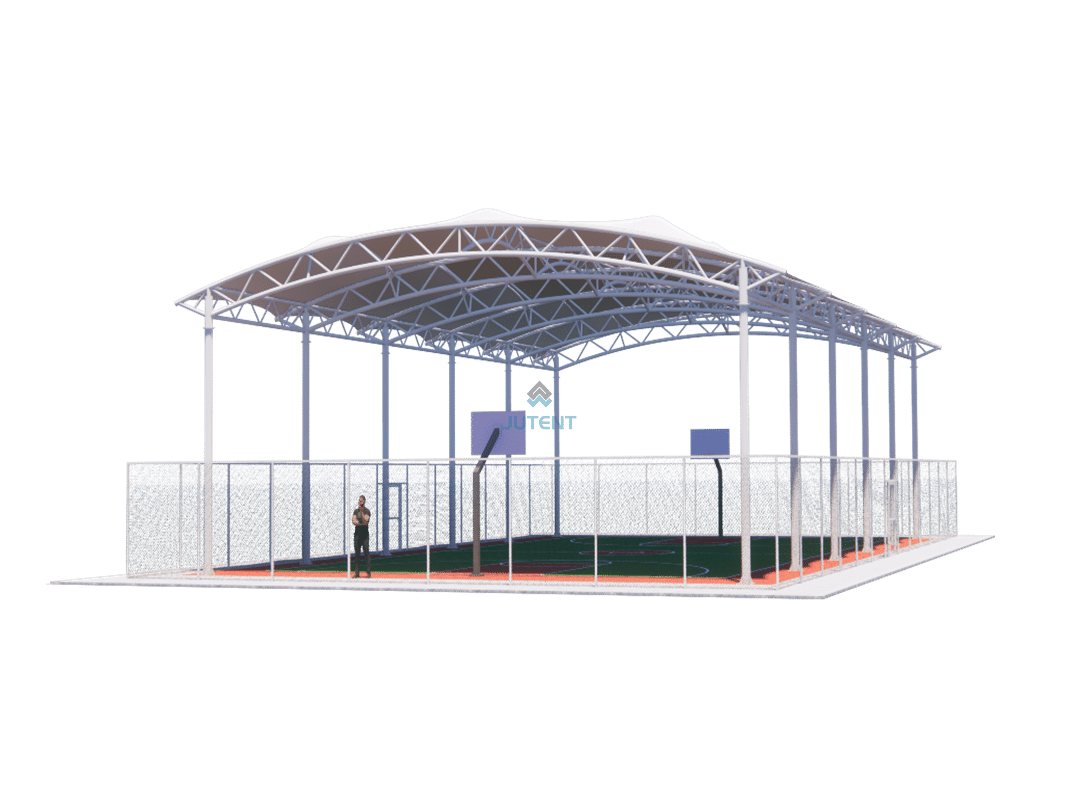

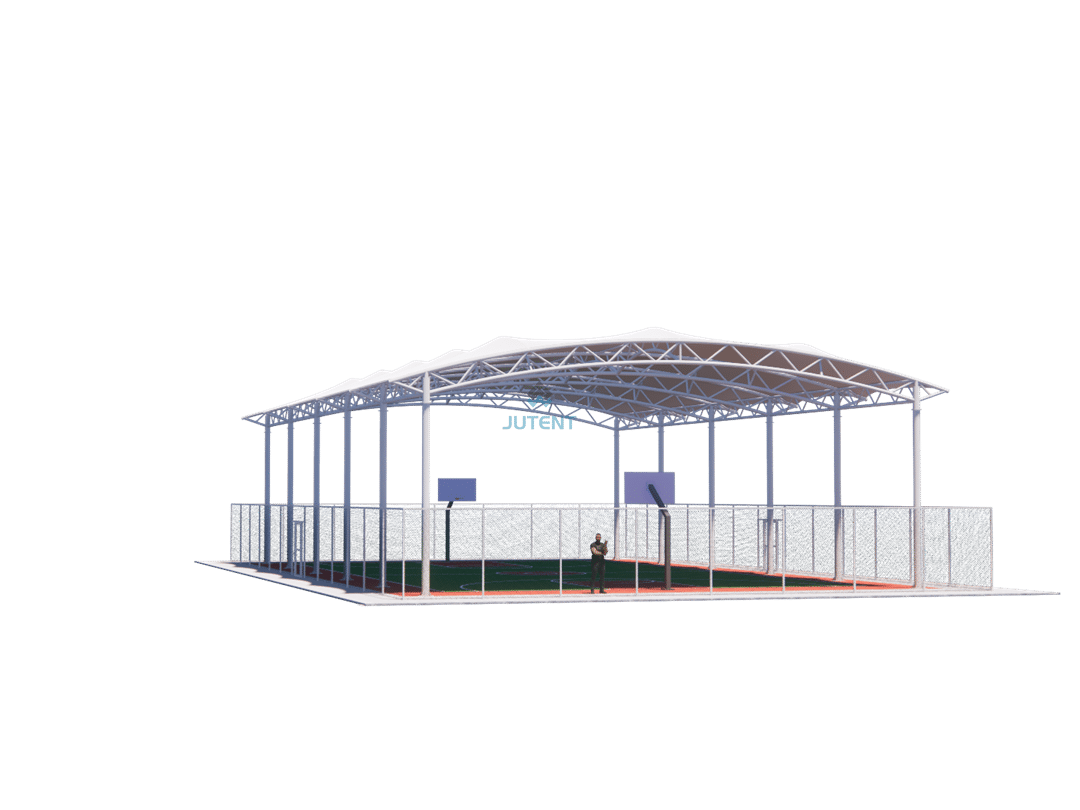

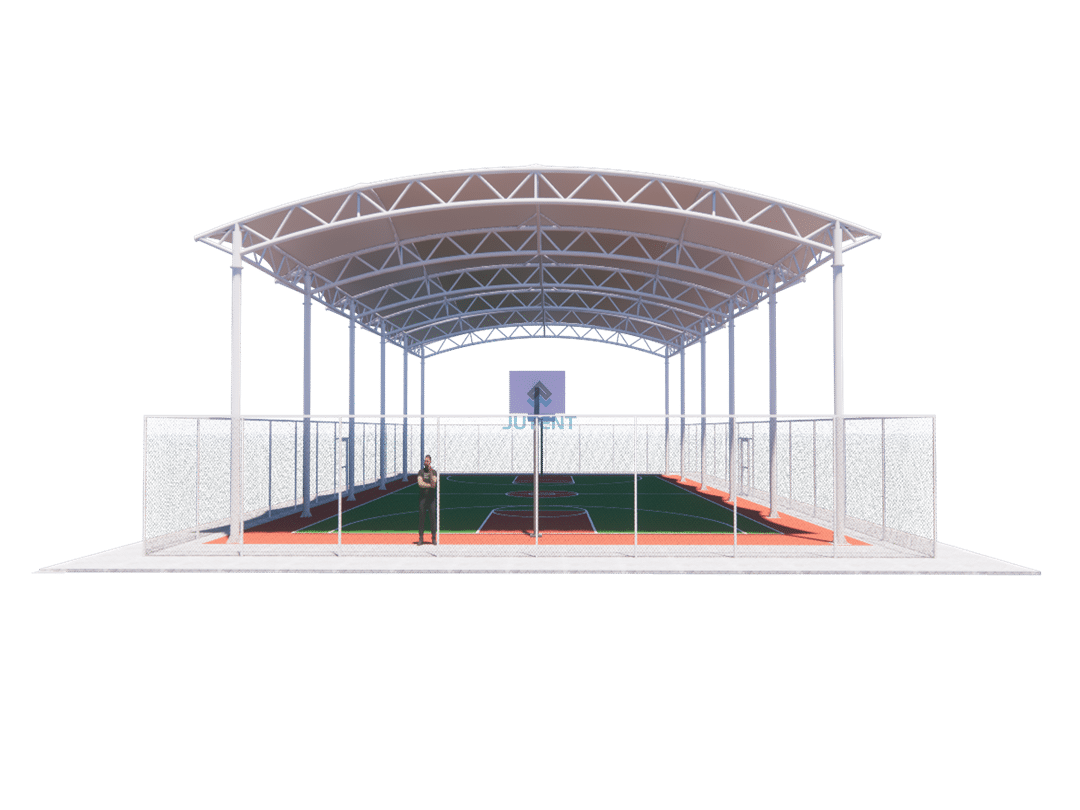

Standard Basketball Court Arch Membrane Canopy
Recommended basketball court canopy: 34 m × 19 m × 8 m high, customizable to suit site conditions.
Model No:
BC-A41S
Overview
Basketball court membrane canopy with curved tensile roof, robust steel frame, modern architectural aesthetics, and customizable for indoor or outdoor sports venues.
Key Features
Large Span,Lightweight
Fast Installation
Roof Self-Cleaning
UV Resistance
Specification
Max Clear Span
19 – 21meters
Design Wind Speed
30 – 65 m/s(Project location based)
Fabric Type
PVDF-coated PVC / PTFE (650–1350 g/m²)
Surface Treatment
Painting ≥ 160 μm/Hot-dip galvanized(Optional)
Flame Resistance
B1 / B-s1,d0 (PTFE A2)
Design Service Life
Steel ≥ 20 years/ Membrane 15–25 years
