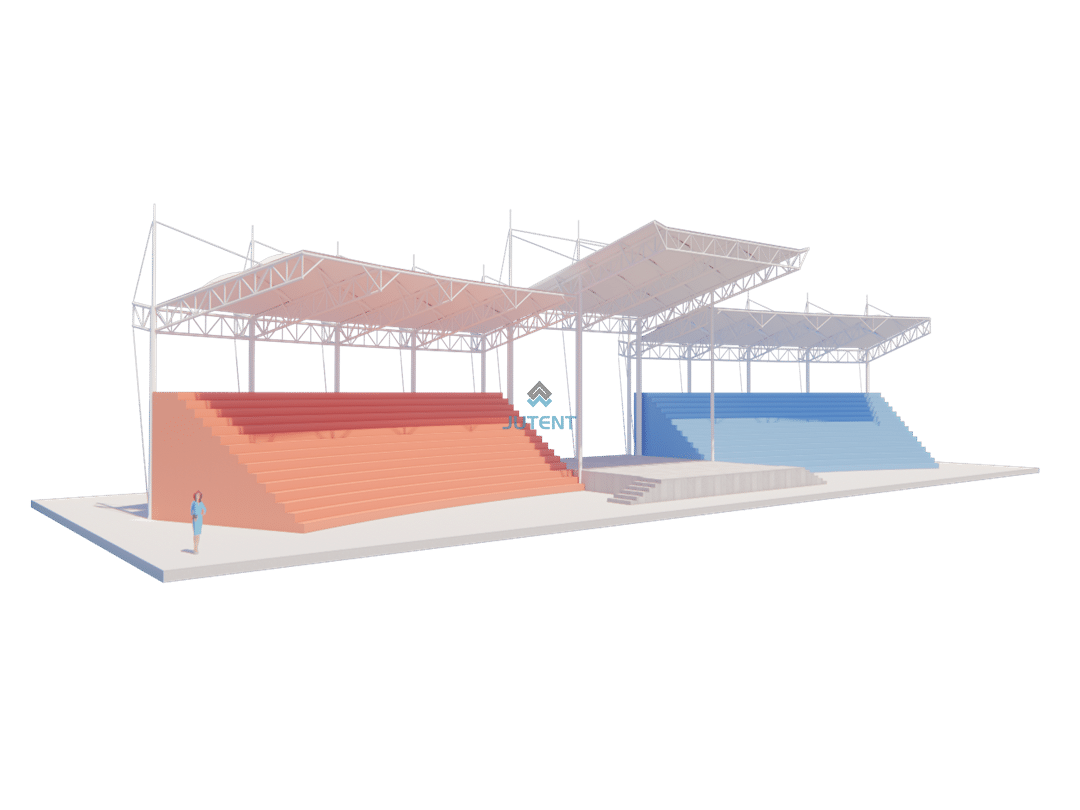

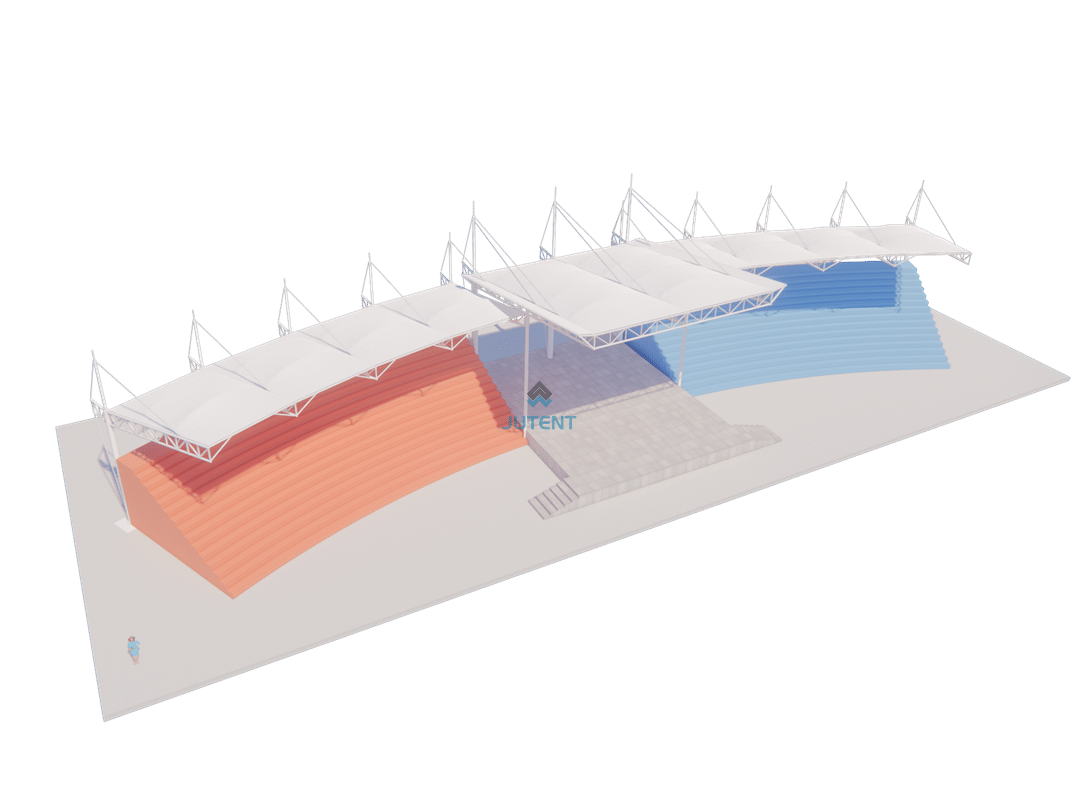

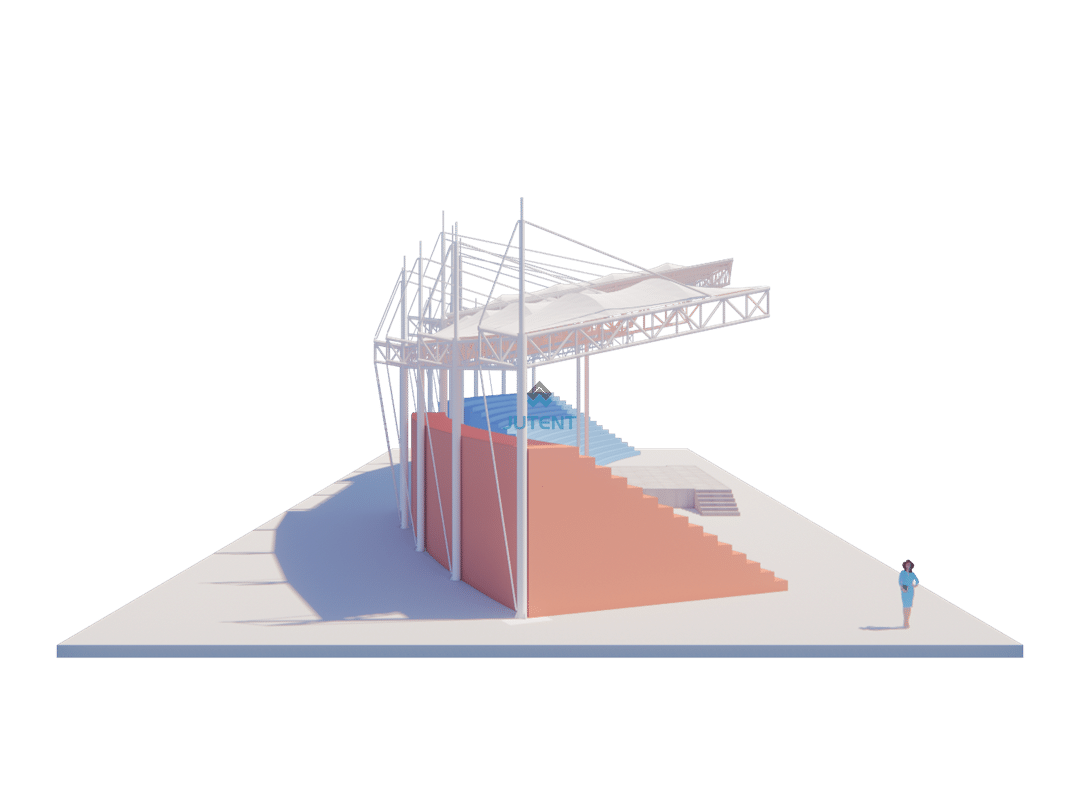

Tension Rod Supported Membrane Roof for Stadium Grandstands
Tension rod tensile membrane canopy with spans from 10 m and customizable dimensions, designed for stadium grandstands.
Model No:
SG-C15A
Overview
Tension rod supported tensile membrane canopy with a span starting from 10 meters. The length and height can be customized to meet project requirements, making it an ideal roofing solution for stadium grandstands and spectator seating areas.
Key Features
Ultra-Large Span
20% Natural Translucency
1/10th Structural Weight
99% UV Rejection
Specification
Max Clear Span
10 - 18 meters
Design Wind Speed
30 – 65 m/s(Project location based)
Fabric Type
PVDF-coated PVC / PTFE (650–1350 g/m²)
Surface Treatment
Painting ≥ 160 μm/Hot-dip galvanized(Optional)
Flame Resistance
B1 / B-s1,d0 (PTFE A2)
Design Service Life
Steel ≥ 20 years/ Membrane 15–25 years
