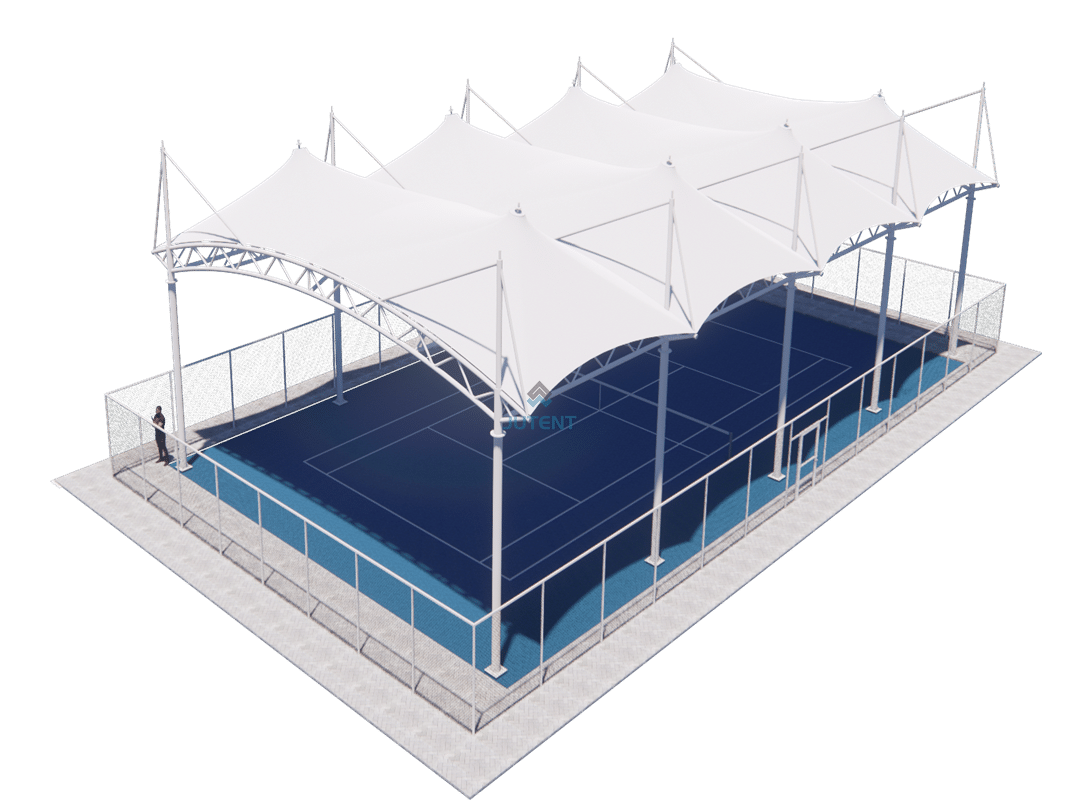

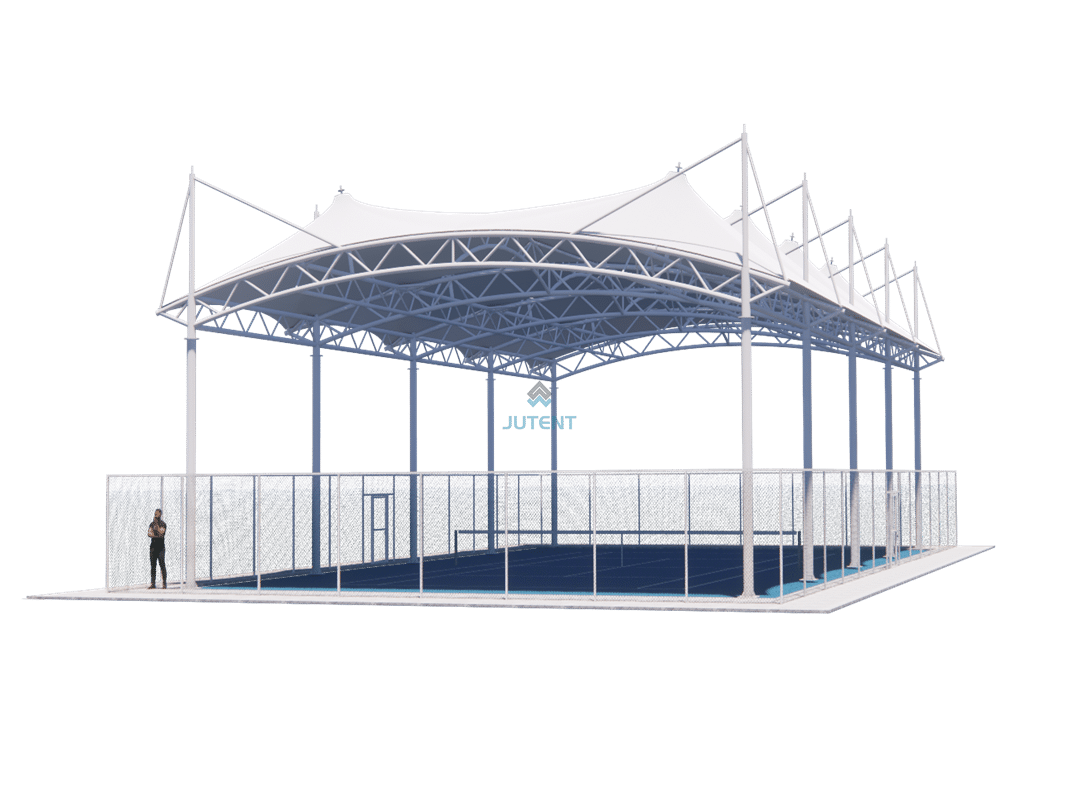

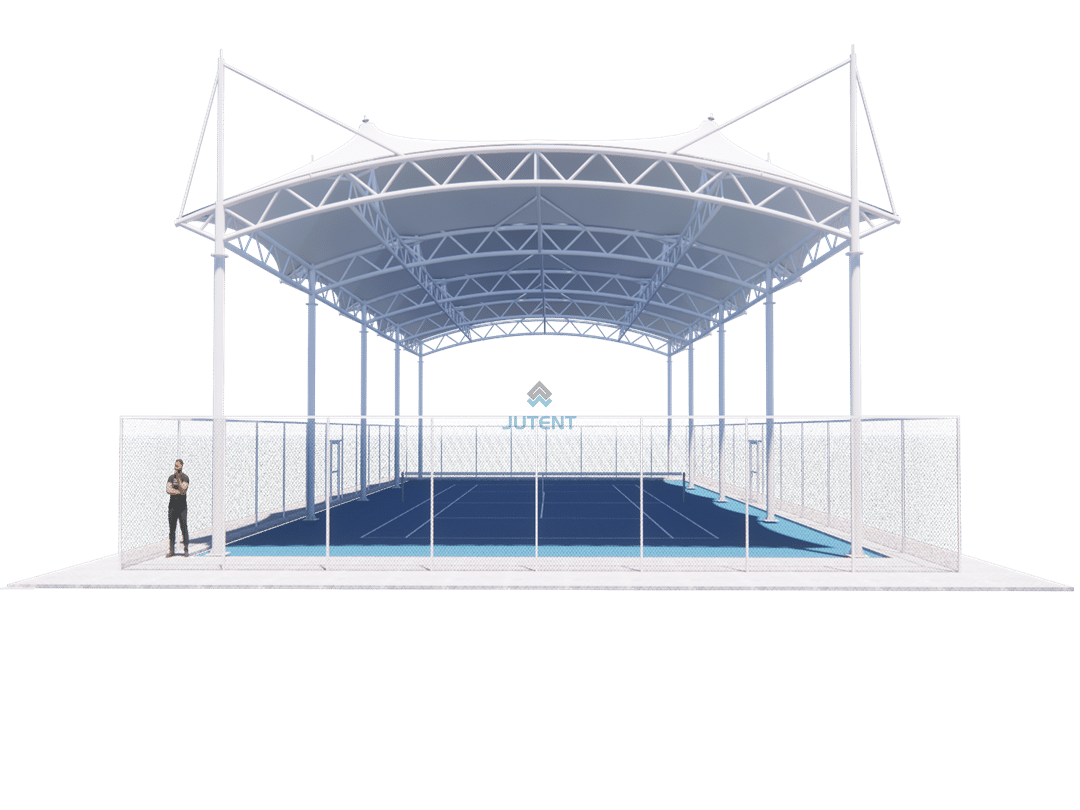

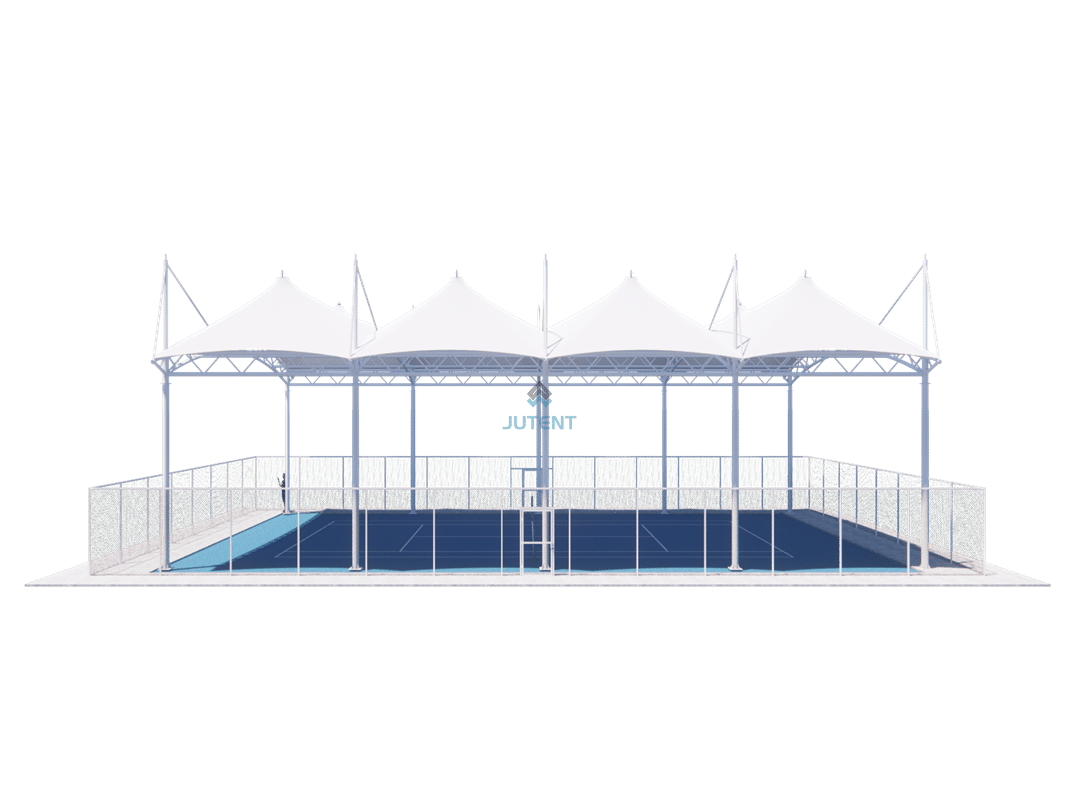

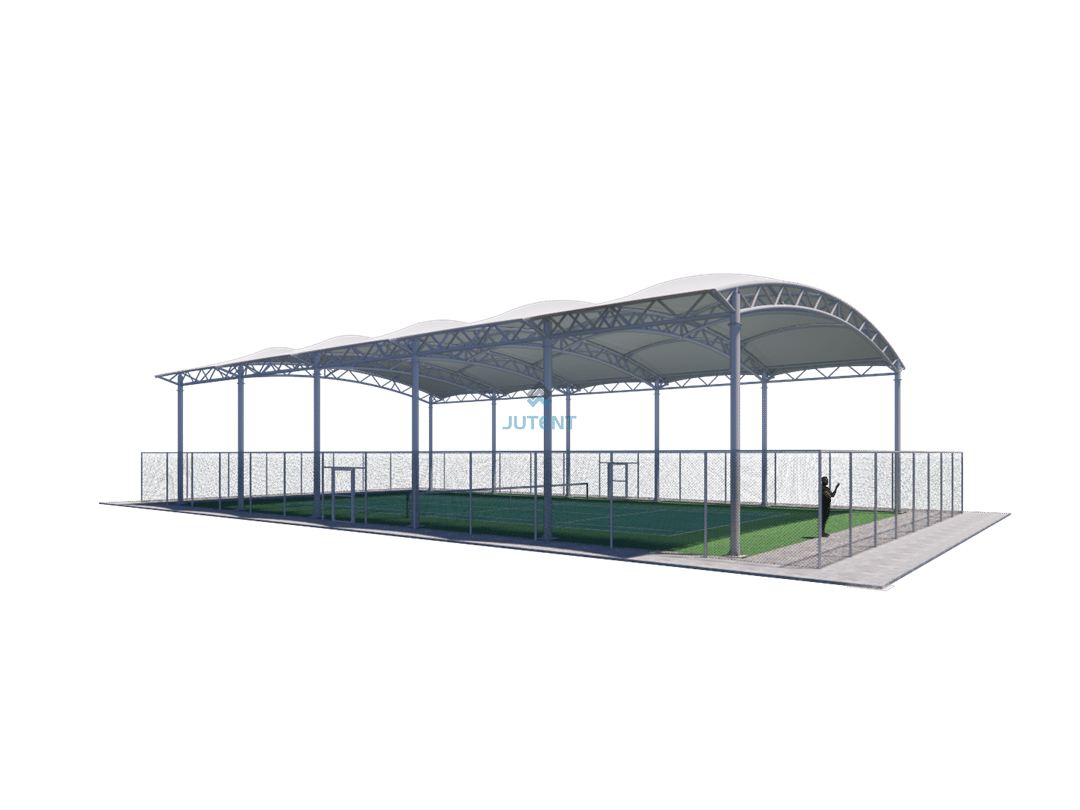

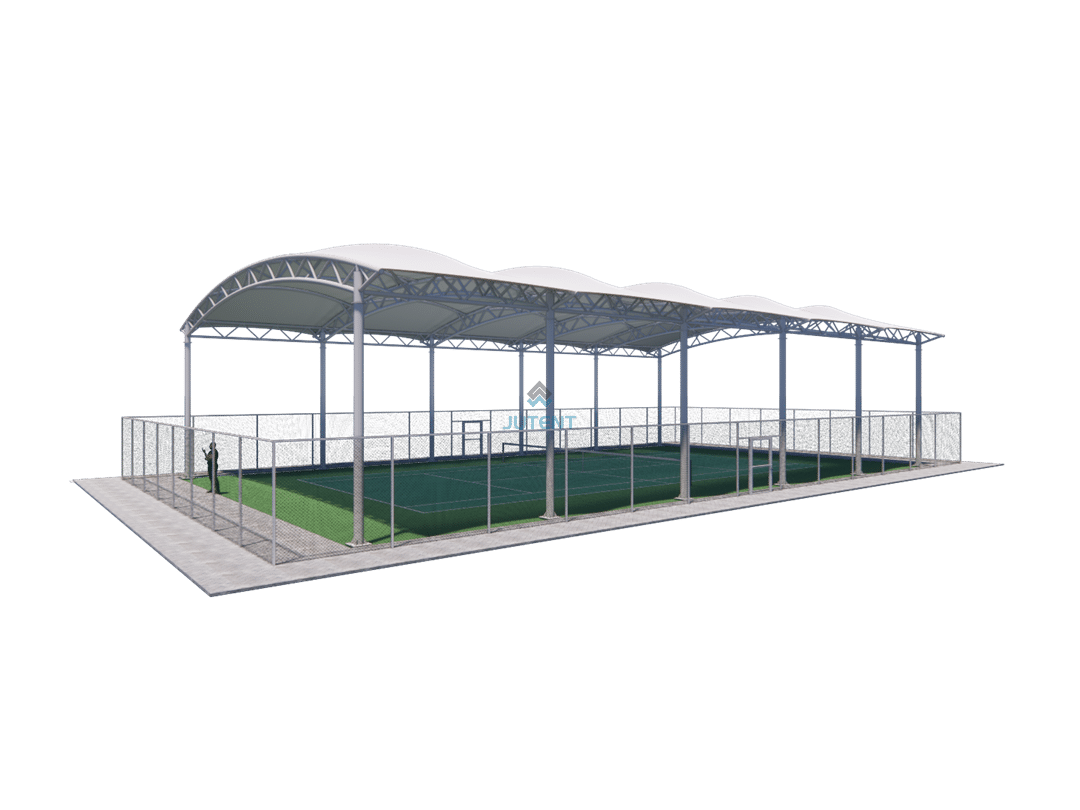

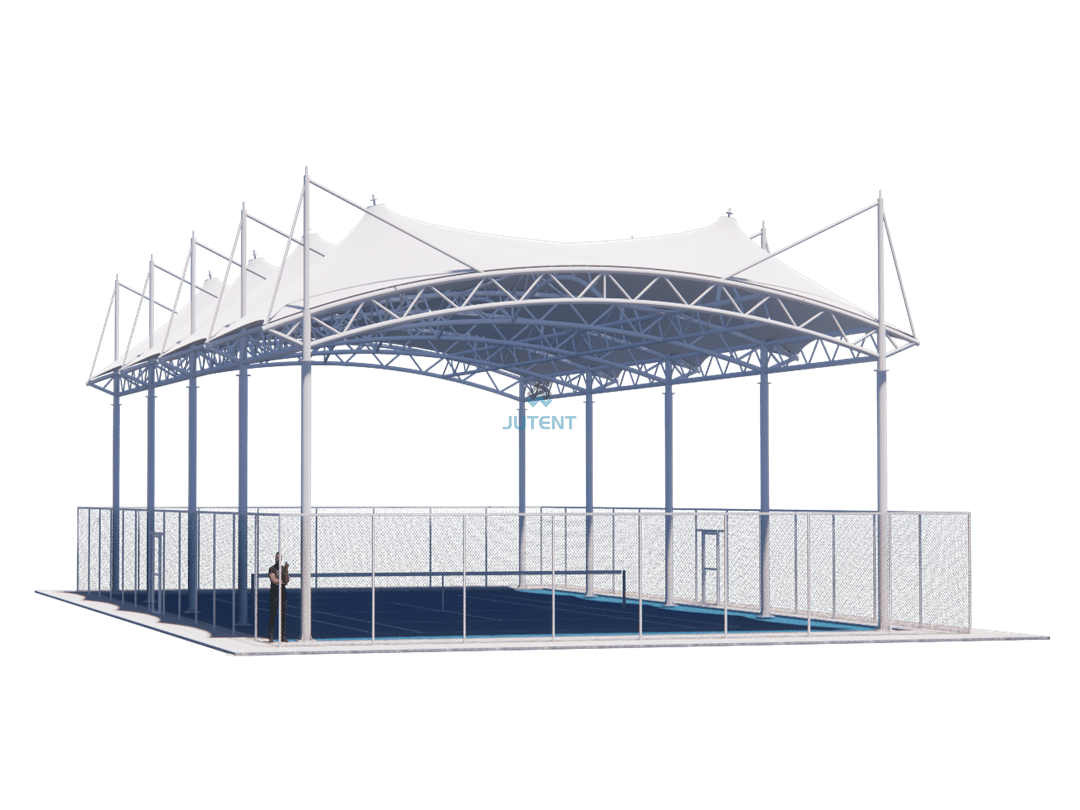

Standard Curved Tennis Court Tensile Membrane Canopy
Recommended tennis court canopy: 35 m × 19 m × 9 m high, customizable to suit site conditions.
Model No:
TC-A61S
Overview
Tennis court membrane canopy with curved tensile roof, robust steel frame, modern architectural aesthetics, and customizable for indoor or outdoor sports venues.
Key Features
Large Span,Lightweight
Fast Installation
Roof Self-Cleaning
UV Resistance
Specification
Max Clear Span
17 – 21 meters
Design Wind Speed
30 – 65 m/s(Project location based)
Fabric Type
PVDF-coated PVC / PTFE (650–1350 g/m²)
Surface Treatment
Painting ≥ 160 μm/Hot-dip galvanized(Optional)
Flame Resistance
B1 / B-s1,d0 (PTFE A2)
Design Service Life
Steel ≥ 20 years/ Membrane 15–25 years
