Busan Park Landscape Tensile Membrane Project

Busan Park tensile membrane canopy in Jiangmen, China, 150 sqm PVDF roof, epoxy steel frame, completed 2020, providing durable shading for parks and public spaces.

Location	Jiangmen, China
Complete Date	09/2020
Area （M²）	150
Fabric Type	PVDF
Steel Type	Frame Structure
Design Load	Wind 120 km/h

Project Overview

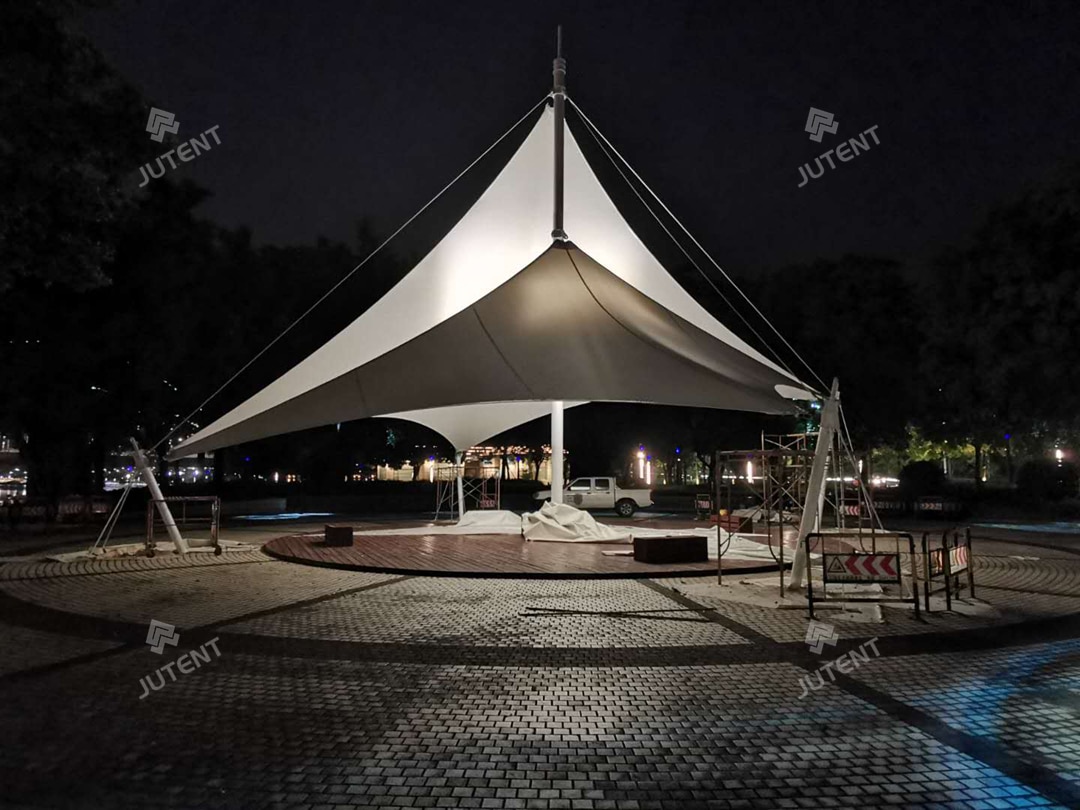

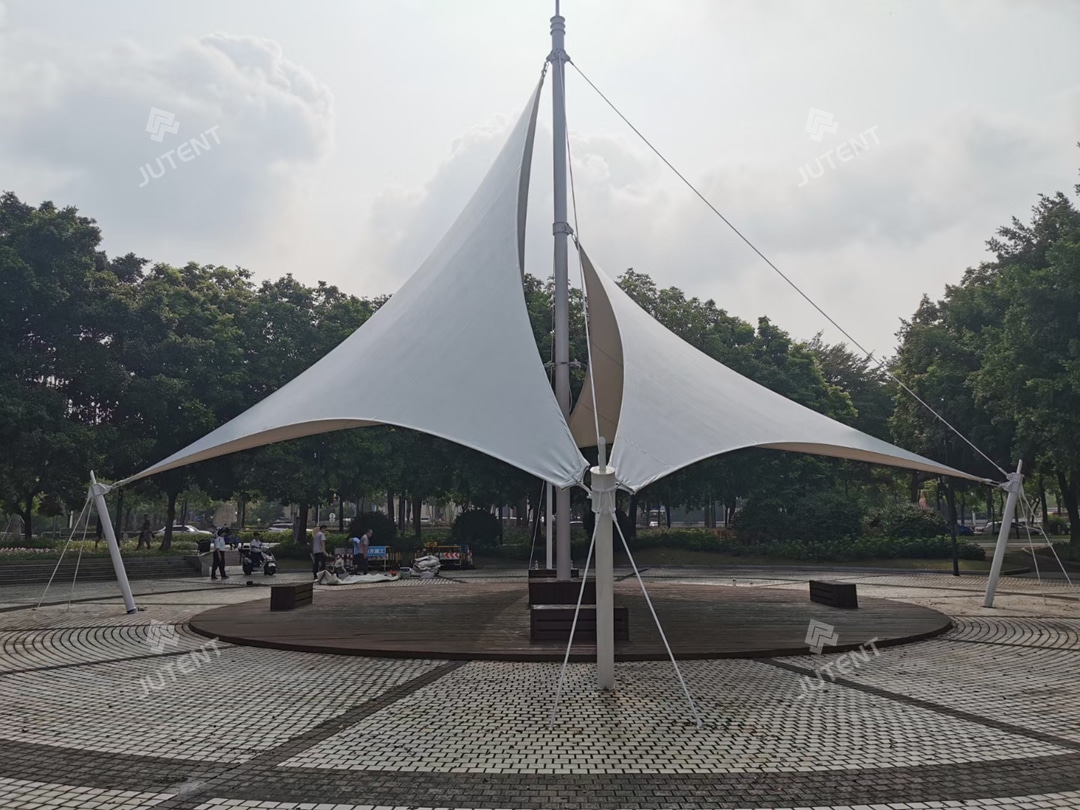

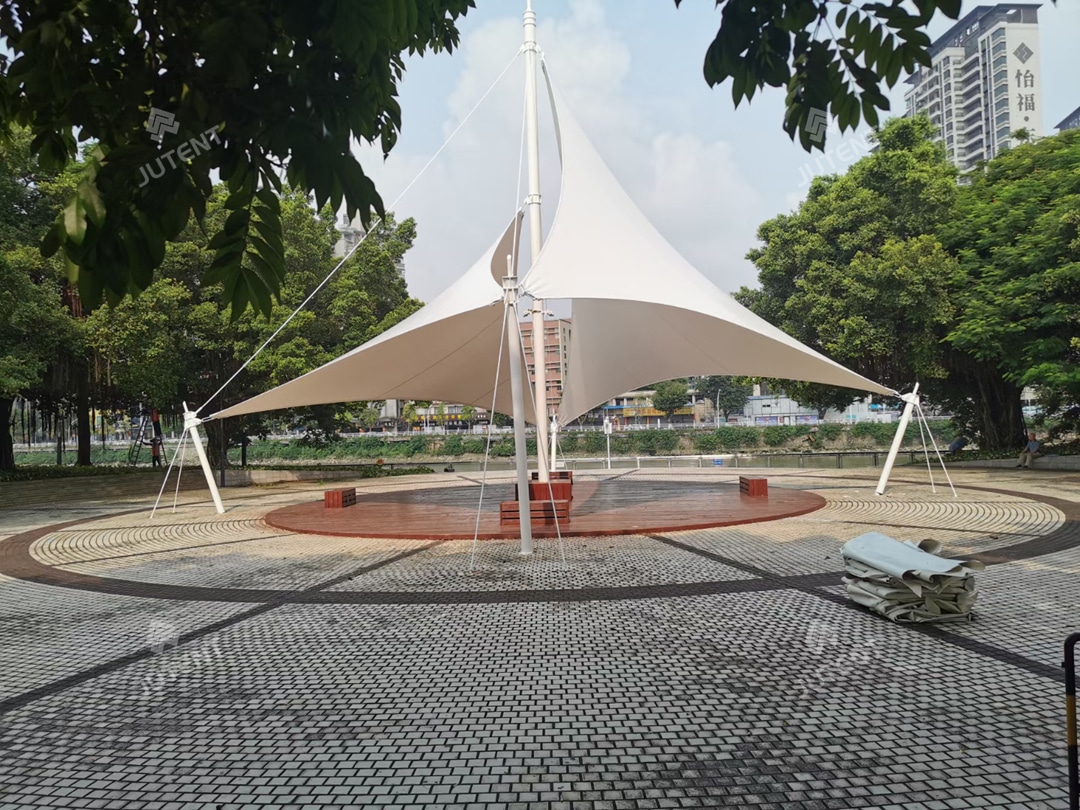

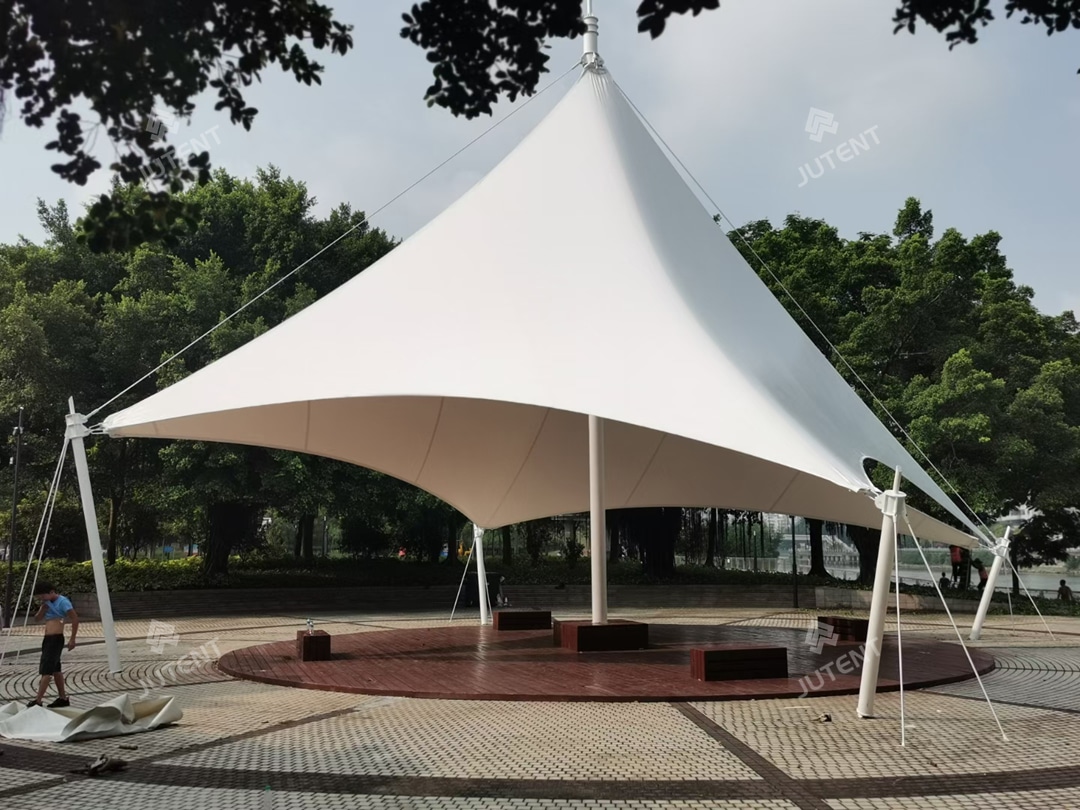

The Busan Park Landscape Tensile Membrane Project is located in Jiangmen City, Jianghai District, China. Completed in September 2020, this 150 m² recreational area features a soft-edge tensile membrane structure with perimeter steel cables. The canopy measures approximately 15 m × 10 m with a height of 8 m, and the steel structure uses around 1.5 tons of steel. The steel frame is treated with an epoxy-rich zinc primer and white topcoat for corrosion resistance and durability. The roof is covered with 1100 g/㎡ white PVDF membrane, achieving B1 fire rating and meeting public safety standards.

Installation
and Support

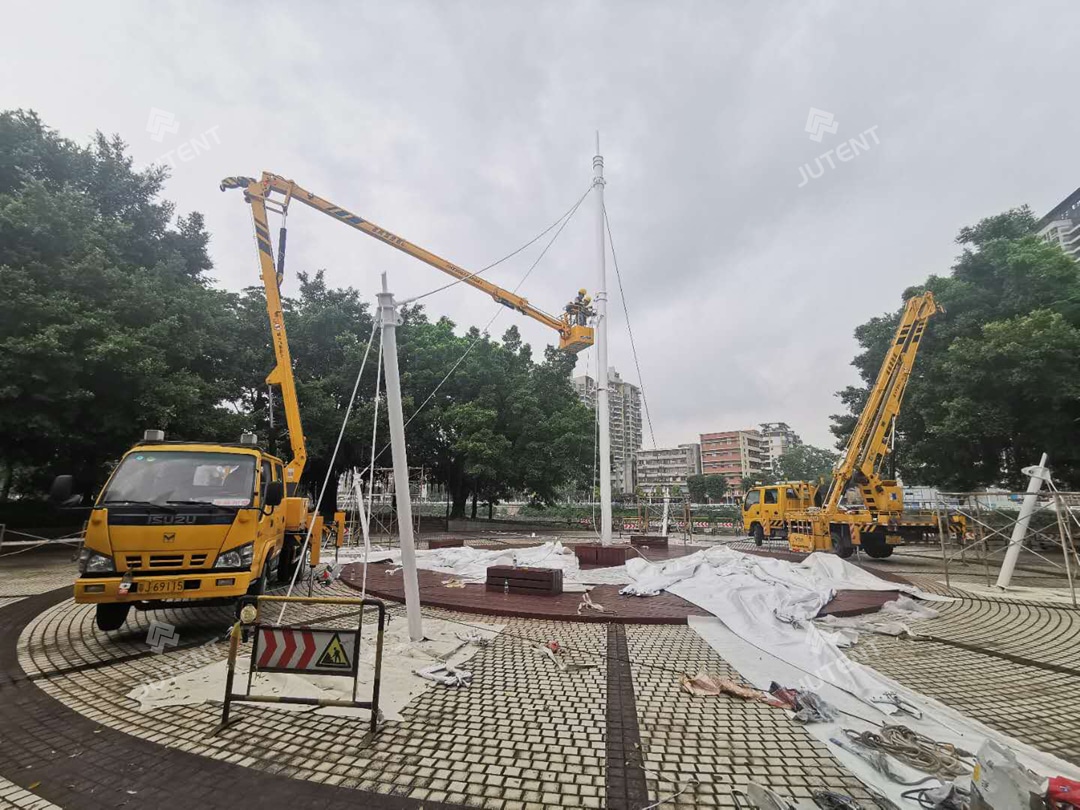

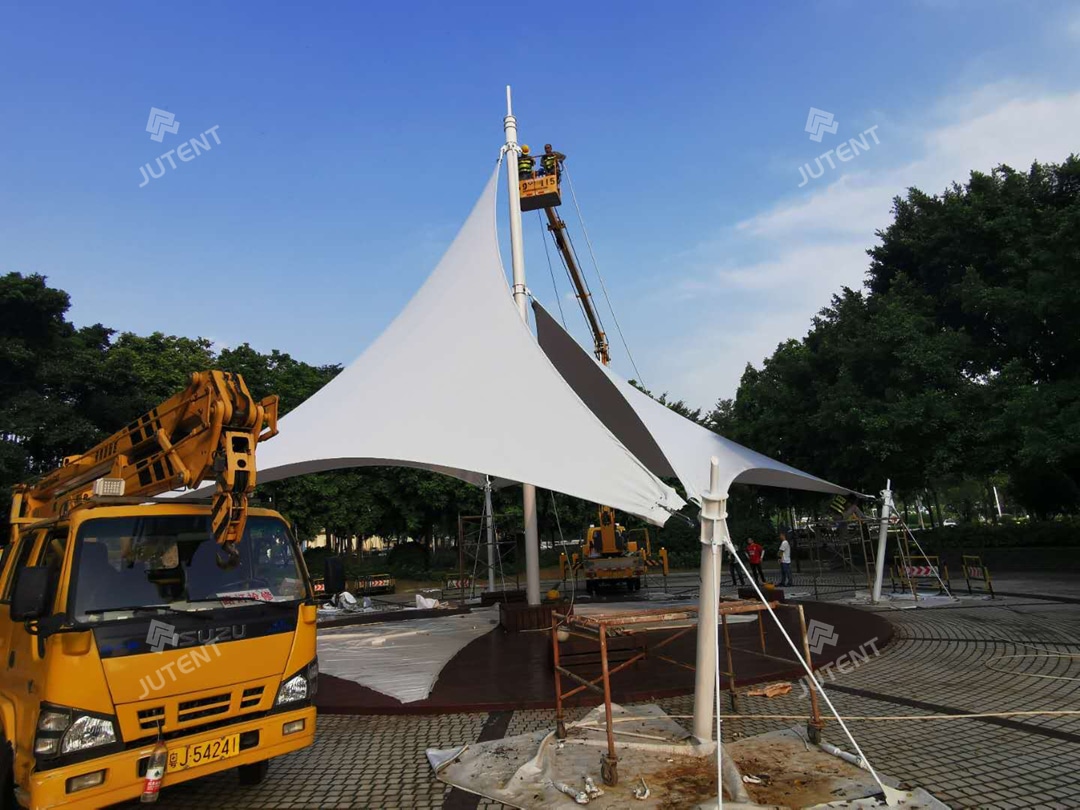

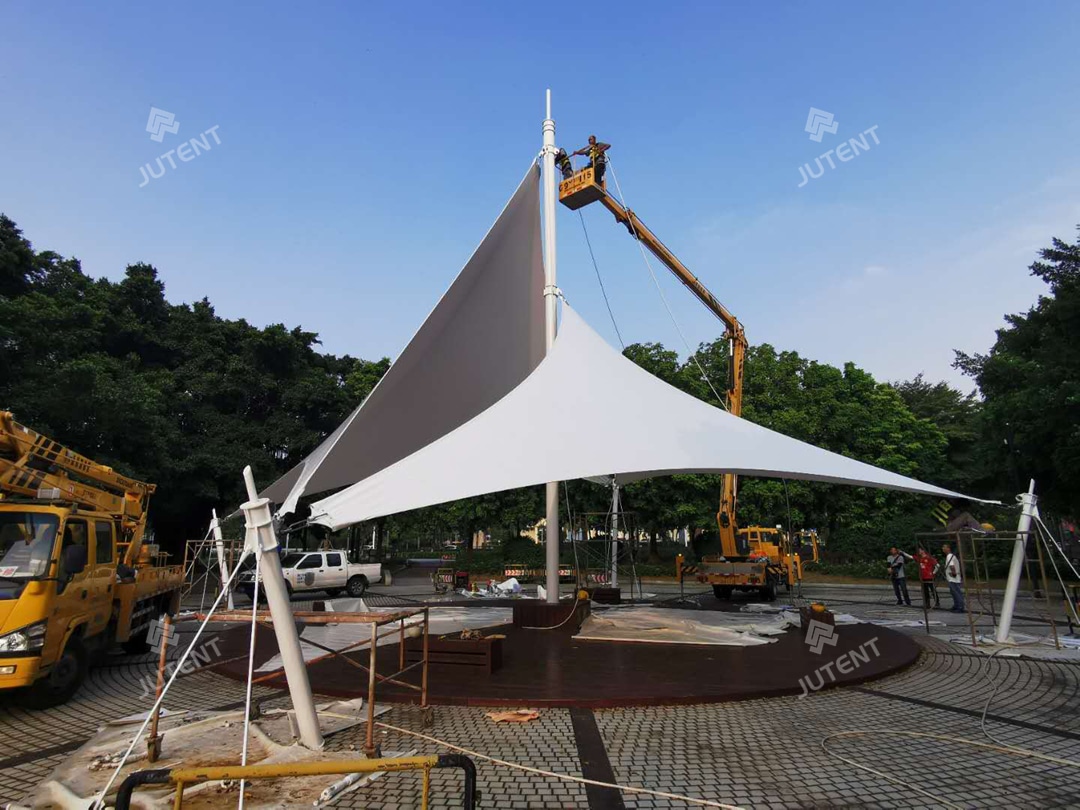

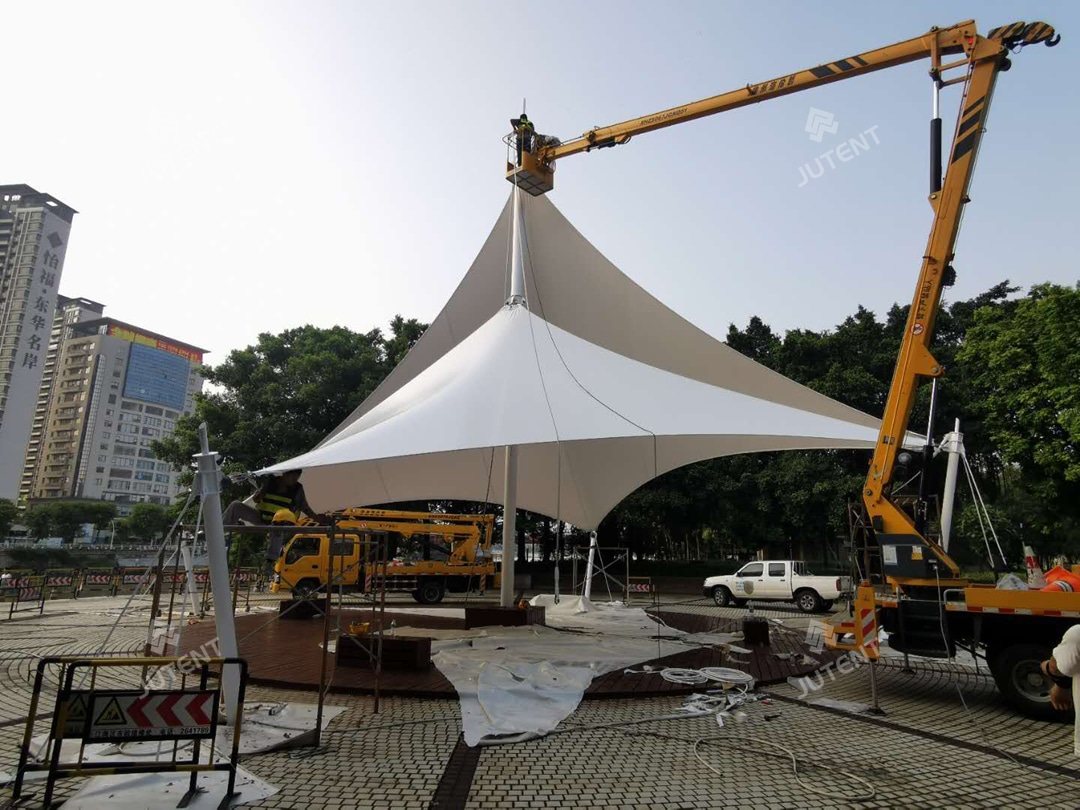

Installation was completed by our professional engineering team. Due to site restrictions, aerial work platforms were used instead of large cranes. Special attention was given to the alignment of soft-edge cables and PVC membrane to ensure smooth, even tension, leveraging our team’s extensive experience.

Application

Soft-edge tensile membrane structures like this are ideal for landscape features, park installations, commercial spaces, and industrial public areas. For similar project needs or customized membrane solutions, our engineering team is available for consultation.
