Commercial Membrane Canopy with Connective Canopy in Resort Area
Connected peak tensile membrane canopy for a resort in Guizhou, China, completed in 2025, featuring a truss steel frame and PVDF membrane for durable, all-weather outdoor coverage.
Location
China
Coverage（M²）
490
Wind Speed
Wind 120 km/h, Snow 0 KN/M2
Complete Date
10/2026
Project Overview

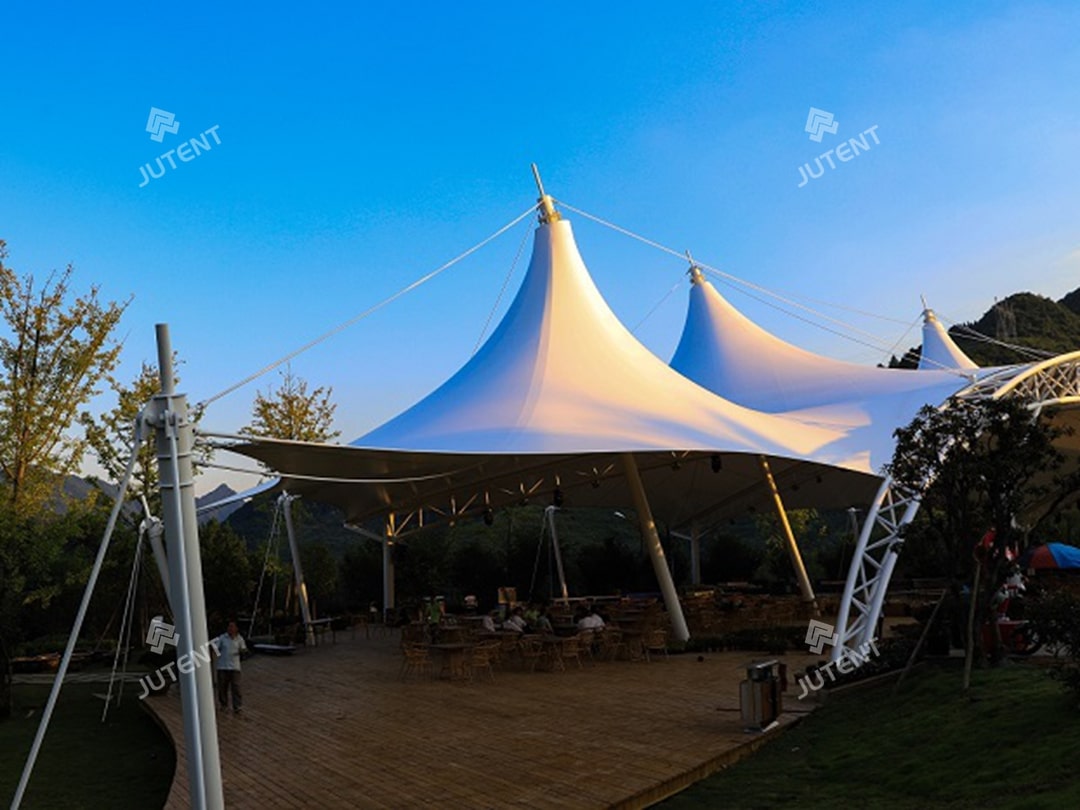

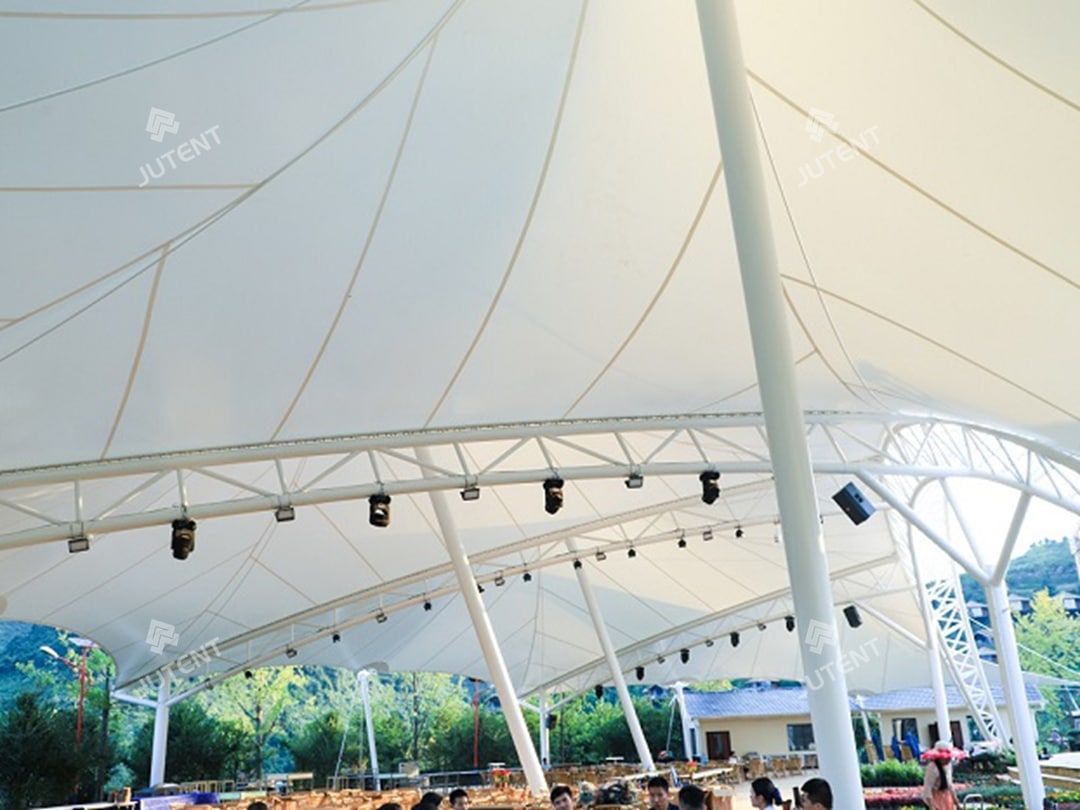

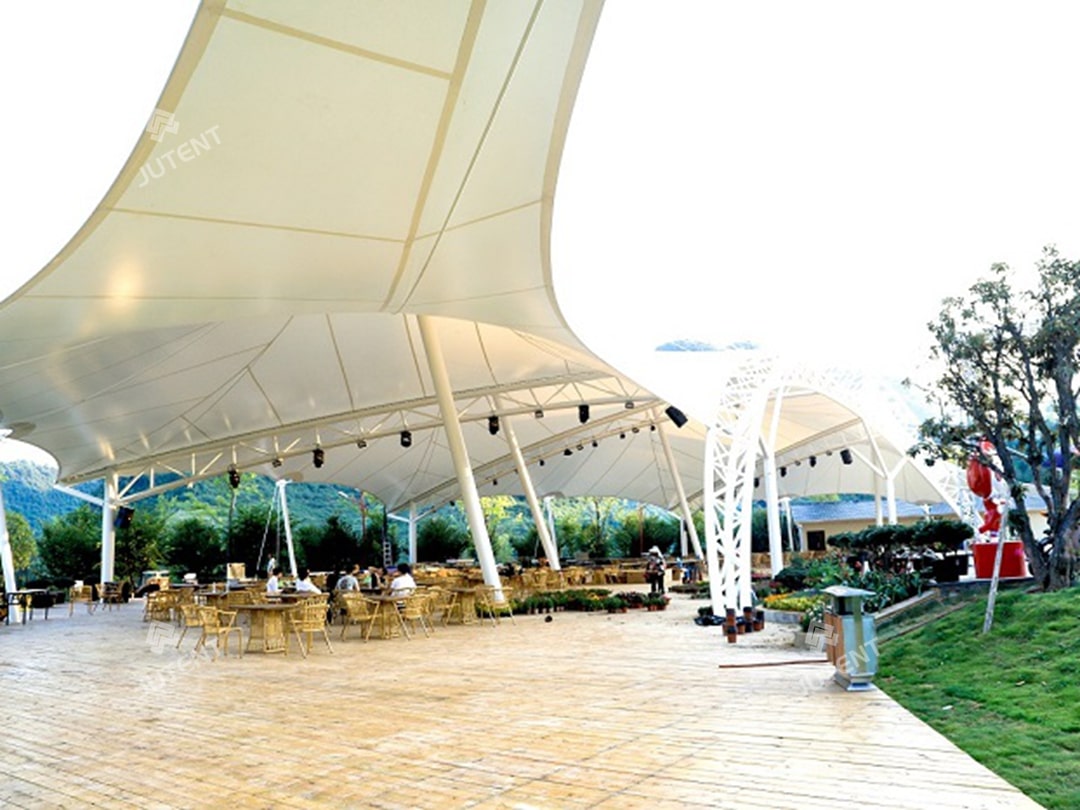

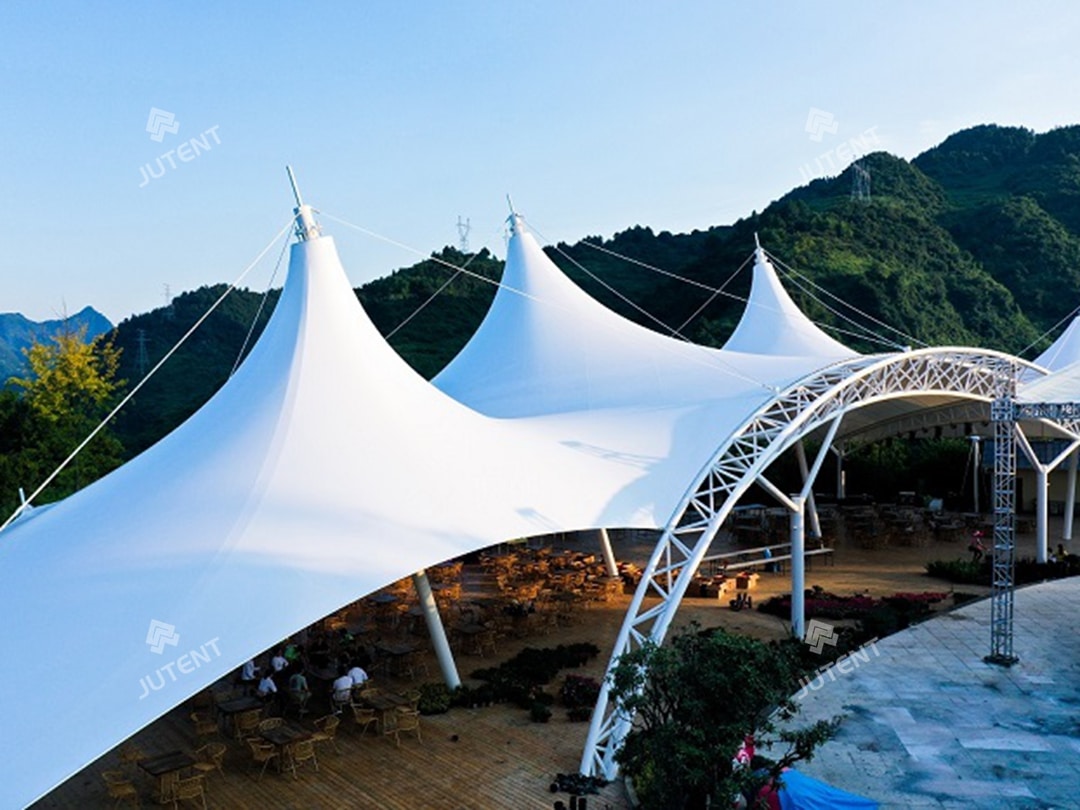

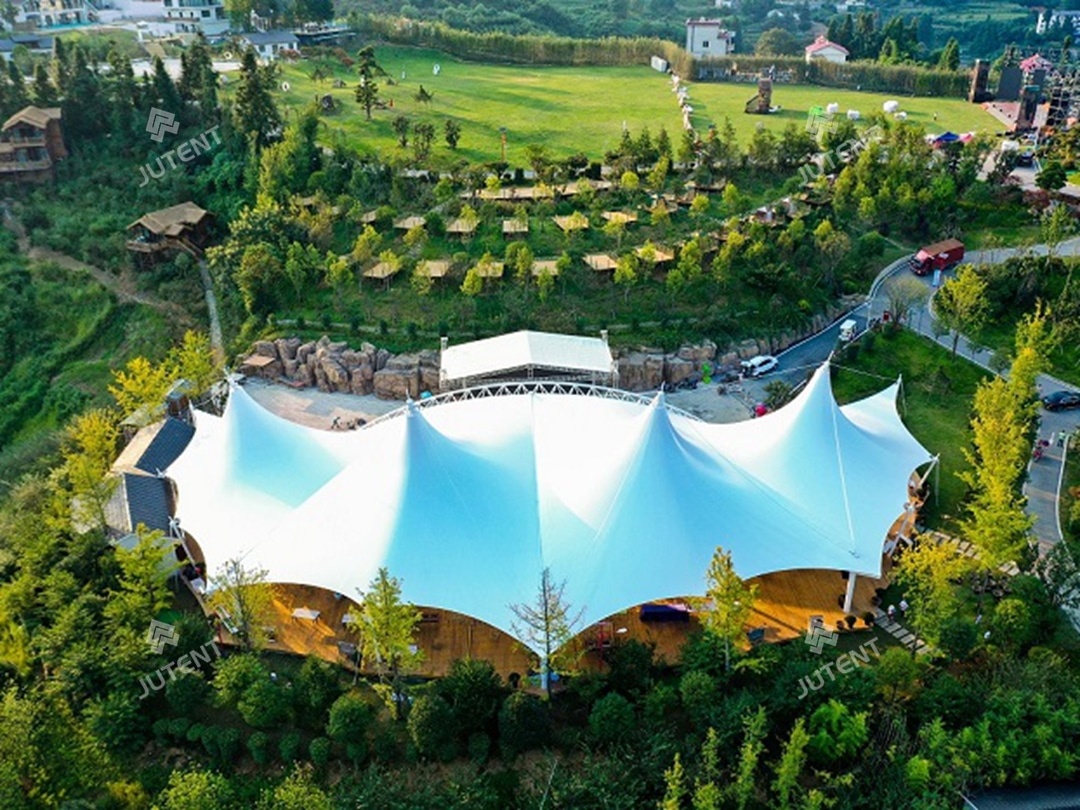

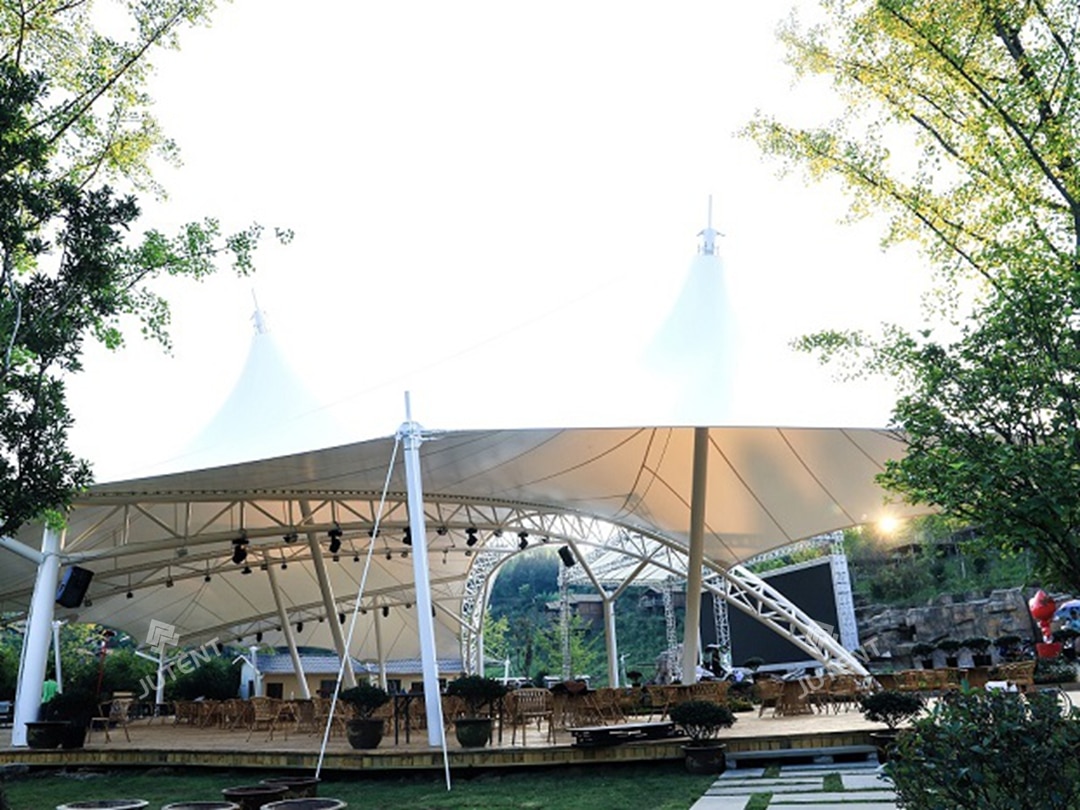

This project is located in Guizhou Province, China, and features a large-scale connected peak tensile membrane canopy designed for public leisure spaces within a resort. Completed in October 2025, the total coverage area is approximately 490 square meters. The main structure adopts a truss steel frame with a white anti-corrosion coating, combined with high-quality white PVDF membrane. The overall design is clean and modern, enhancing both functionality and the visual appeal of the space.
Drawing Visualization
Visualizing before fabrication
Design & Renderings
Challenge - Solution
The project utilizes a connected peak structural system, forming continuous coverage through modular design. The structure is lightweight and efficient, with clear load paths, ensuring excellent stability and wind resistance. The high-performance PVDF membrane, combined with a steel support system, provides superior weather resistance, UV protection, and self-cleaning properties, making it suitable for hot and humid environments.
On-site Execution
Fabrication & Installation phases
Construction Process
Installation - Support
The project was designed and fabricated by our company based on the client’s requirements and selected structural scheme. Installation was carried out by our professional team on-site, ensuring well-organized construction, high efficiency, and successful project completion as scheduled, with strong client satisfaction.
| Specification | ||
|---|---|---|
| Fabric Type | PVDF | |
| Frame Type | Tensegrity / Cable-Truss | |
| Design Load | Wind 120 km/h, Snow 0 KN/M2 | |
| Design Life | 25-30 Yrs | |
| Warranty | 10 Years | |
