Public Walkway Canopy for Transport Area Nigeria Project
Within Nigeria's high-traffic transit zones, this modular umbrella-style PVDF installation facilitates safe pedestrian circulation. The Public Walkway Canopy protects an 882㎡ area and is engineered for 120 km/h wind loads.
Location
Nigeria
Coverage（M²）
882㎡
Wind Speed
Wind 120 km/h
Complete Date
04/2021
Project Overview
This project is located in the Federal Republic of Nigeria and includes tensile membrane canopies for walkways and public transport waiting areas, such as bus and taxi shelters. Completed in April 2021, the total coverage area is approximately 800 square meters. The structure features white anti-corrosion coated steel combined with white PVDF membrane, creating a clean and modern architectural appearance.
Drawing Visualization
Visualizing before fabrication
Design & Renderings
Challenge - Solution

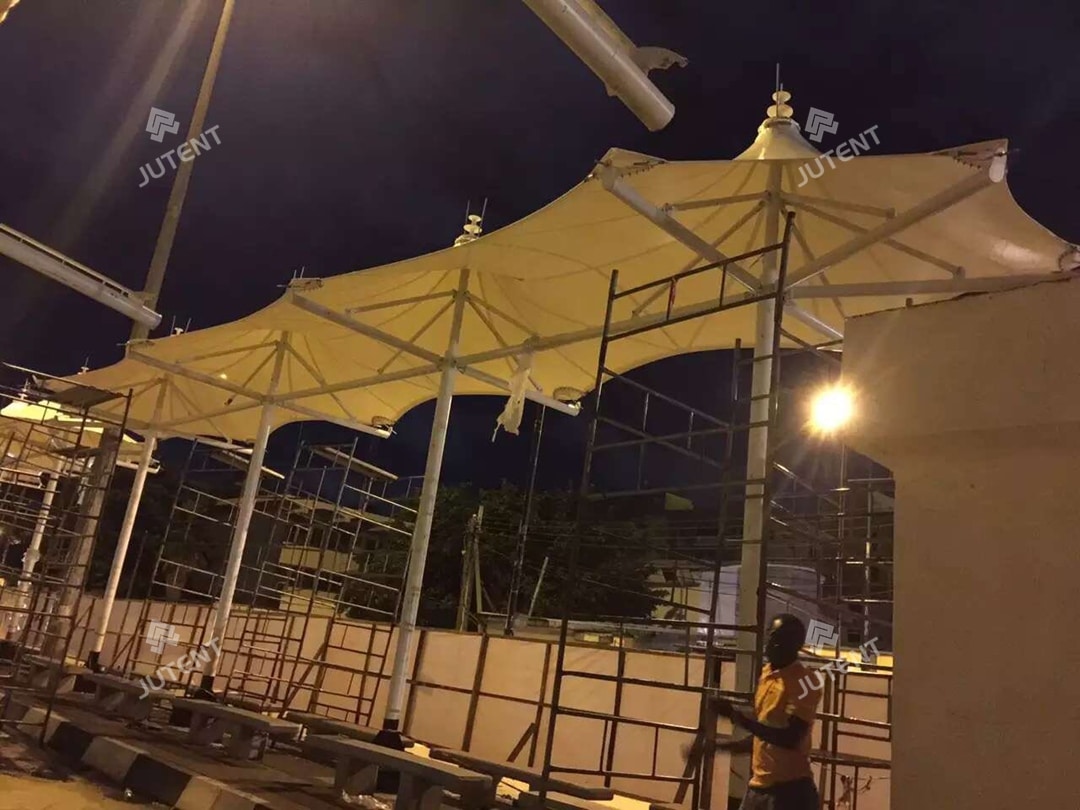

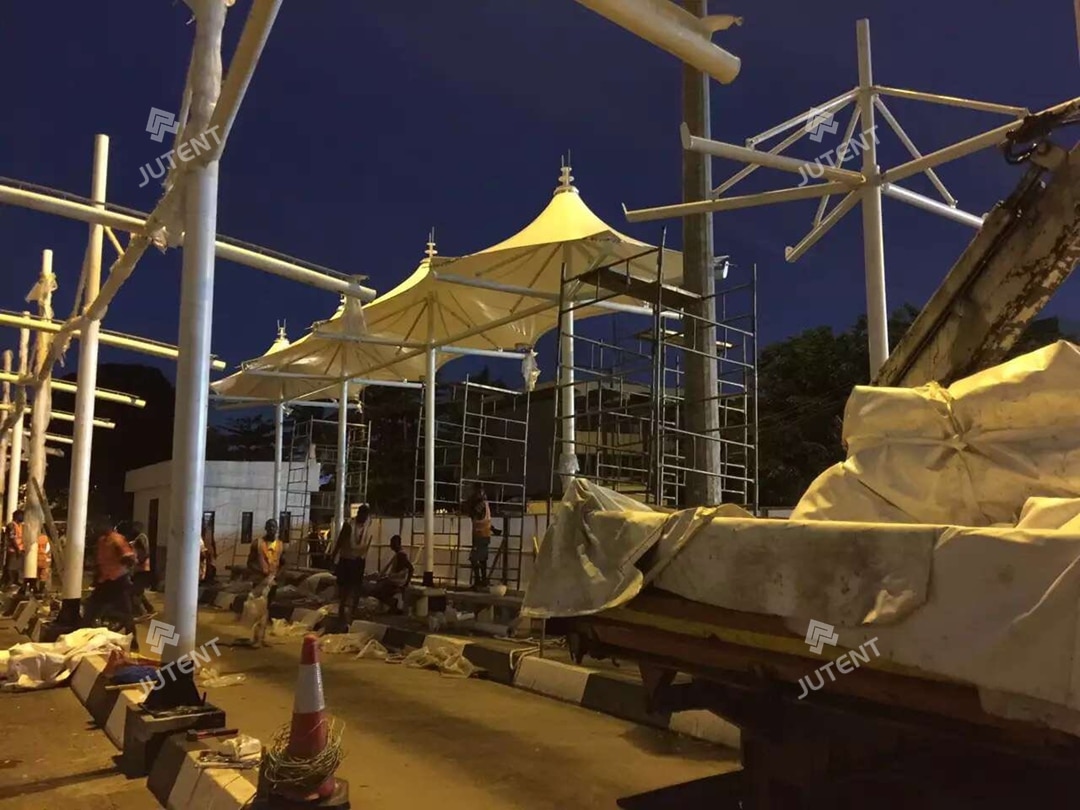

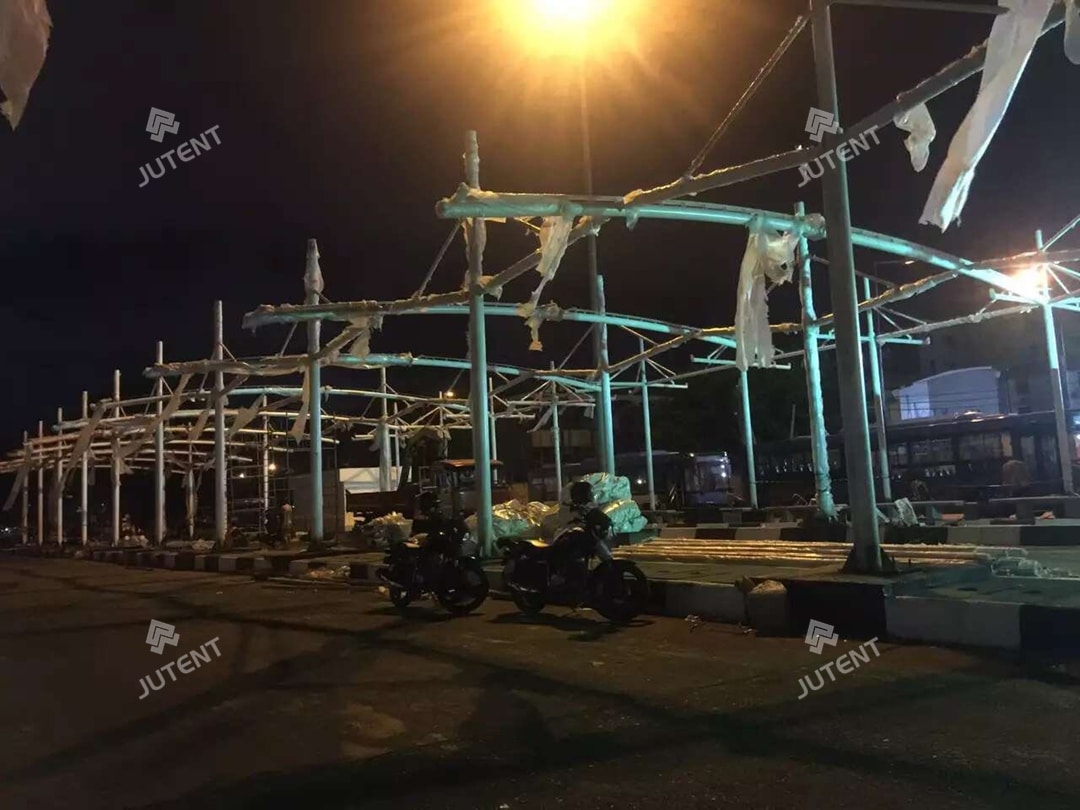

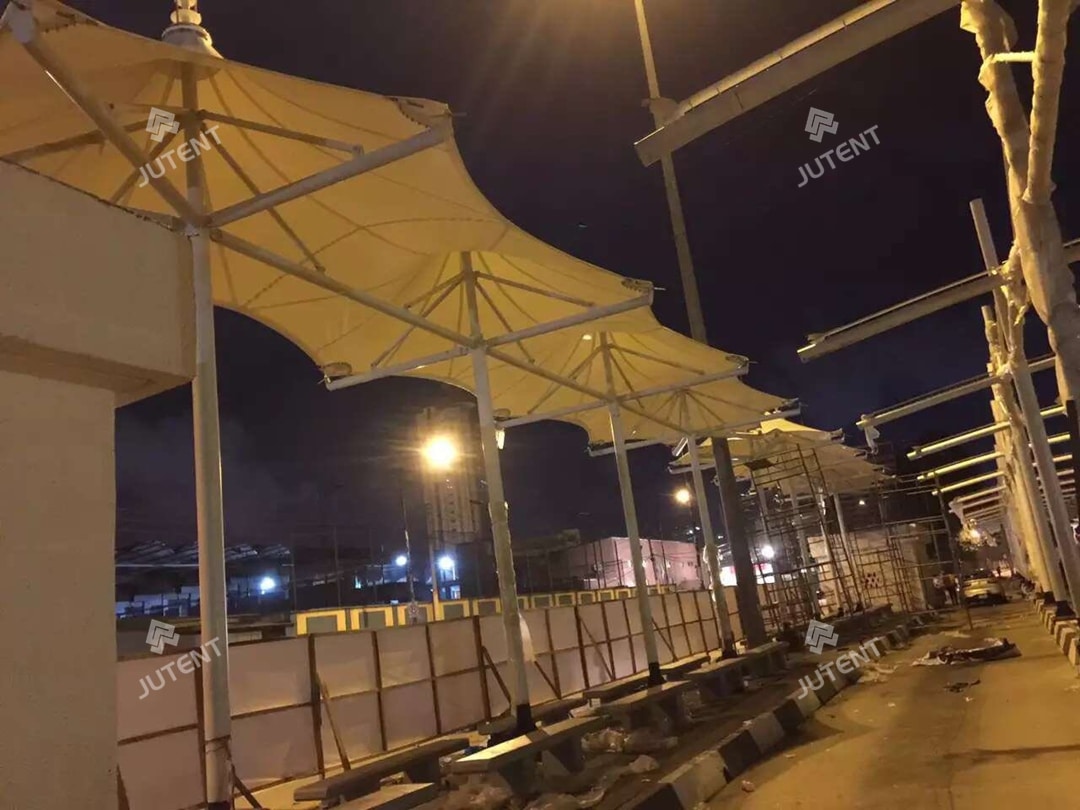

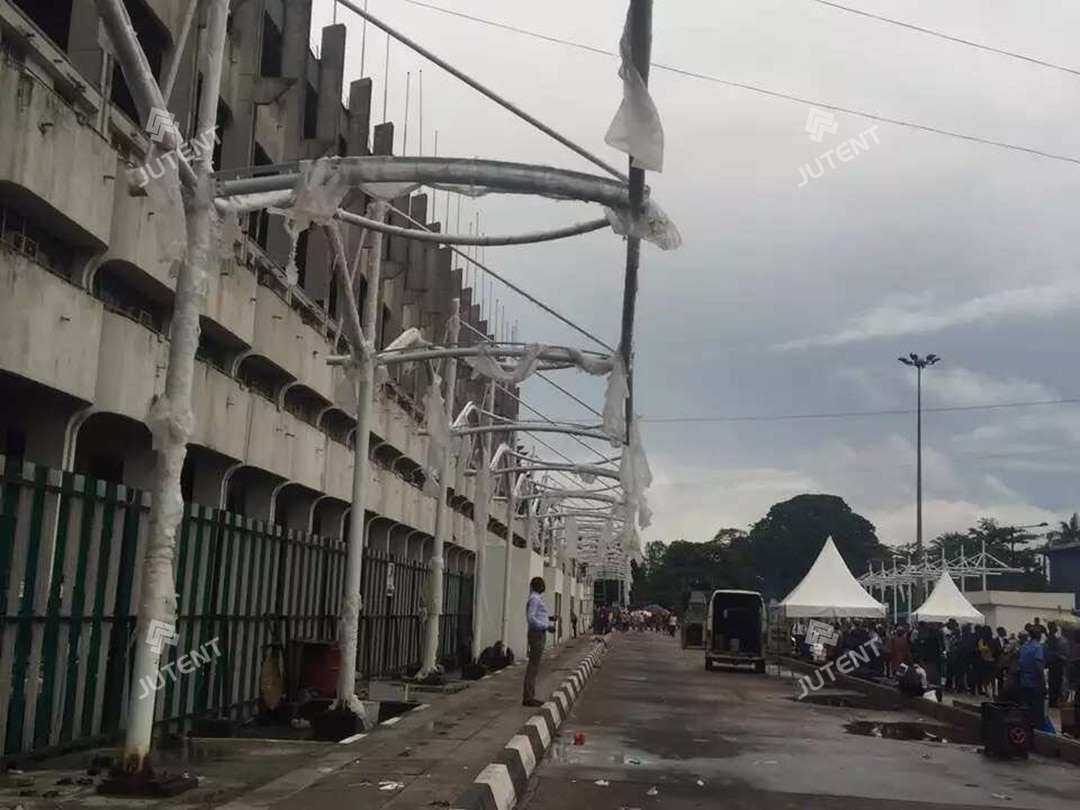

The project adopts a combination of wave-shaped structures and umbrella-style connected canopies, customized according to different functional zones. The structure is lightweight with an optimized load-bearing system, ensuring stability and strong visual impact. High-performance PVDF membrane and steel supports provide excellent weather resistance, UV protection, and long-term durability, making it suitable for complex outdoor environments.
Installation - Support

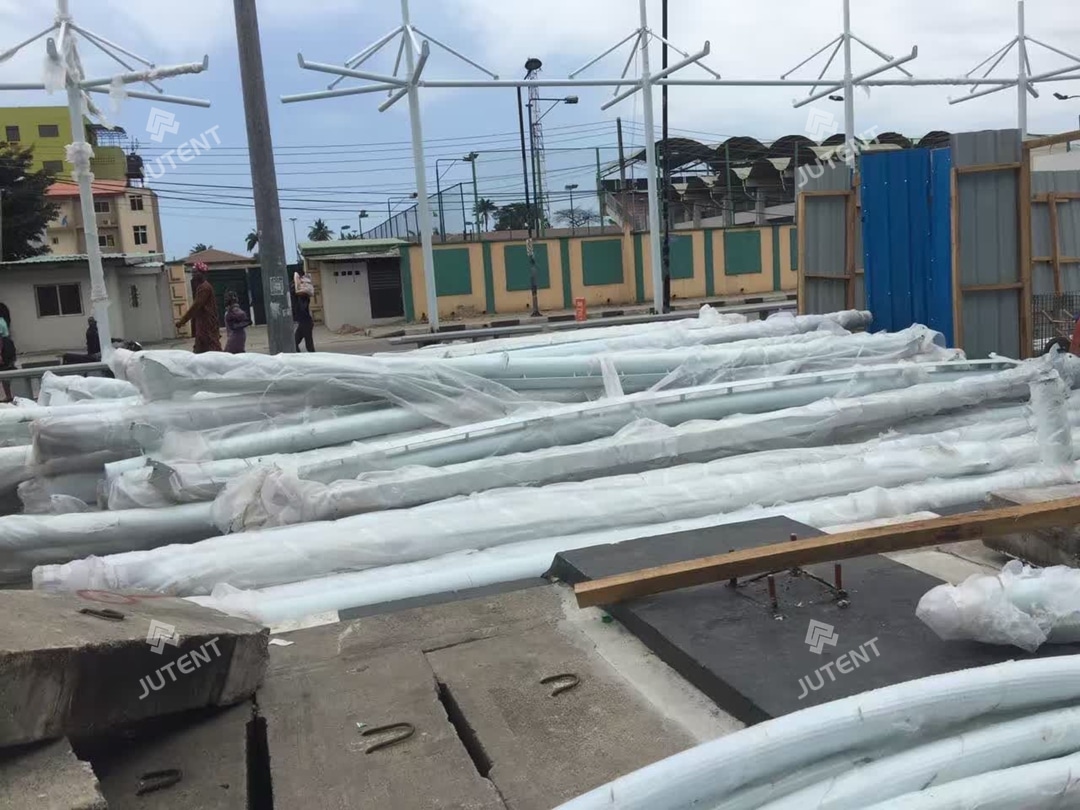

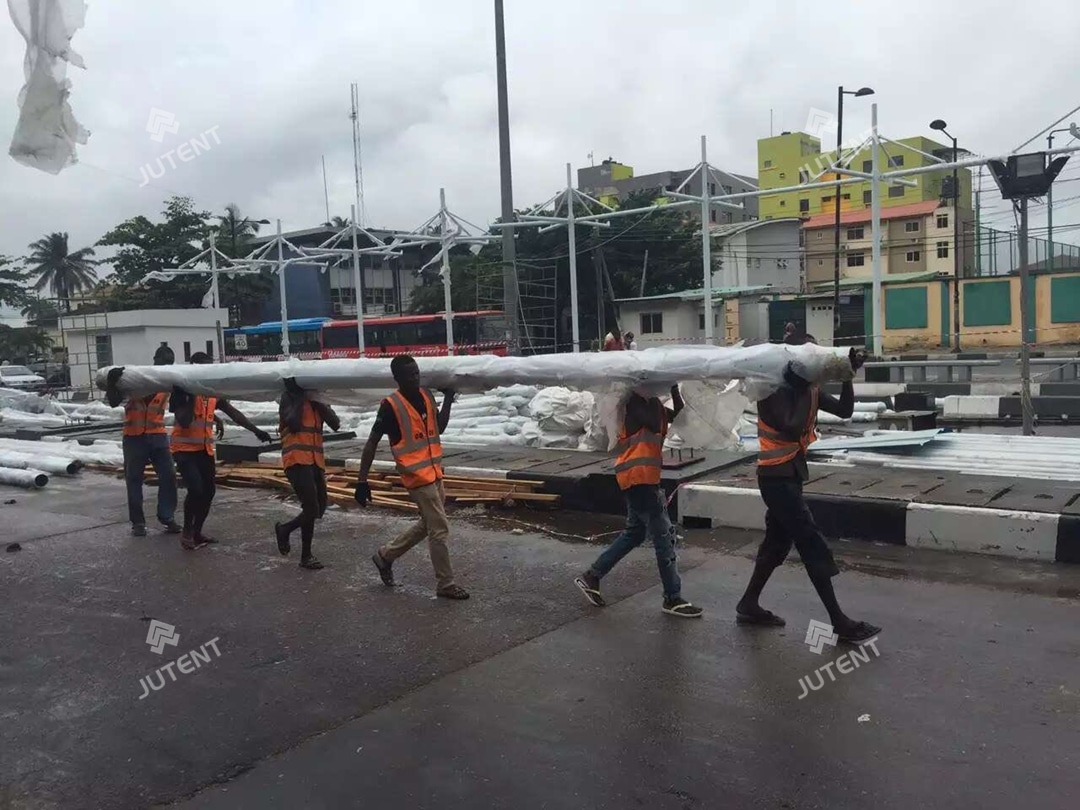

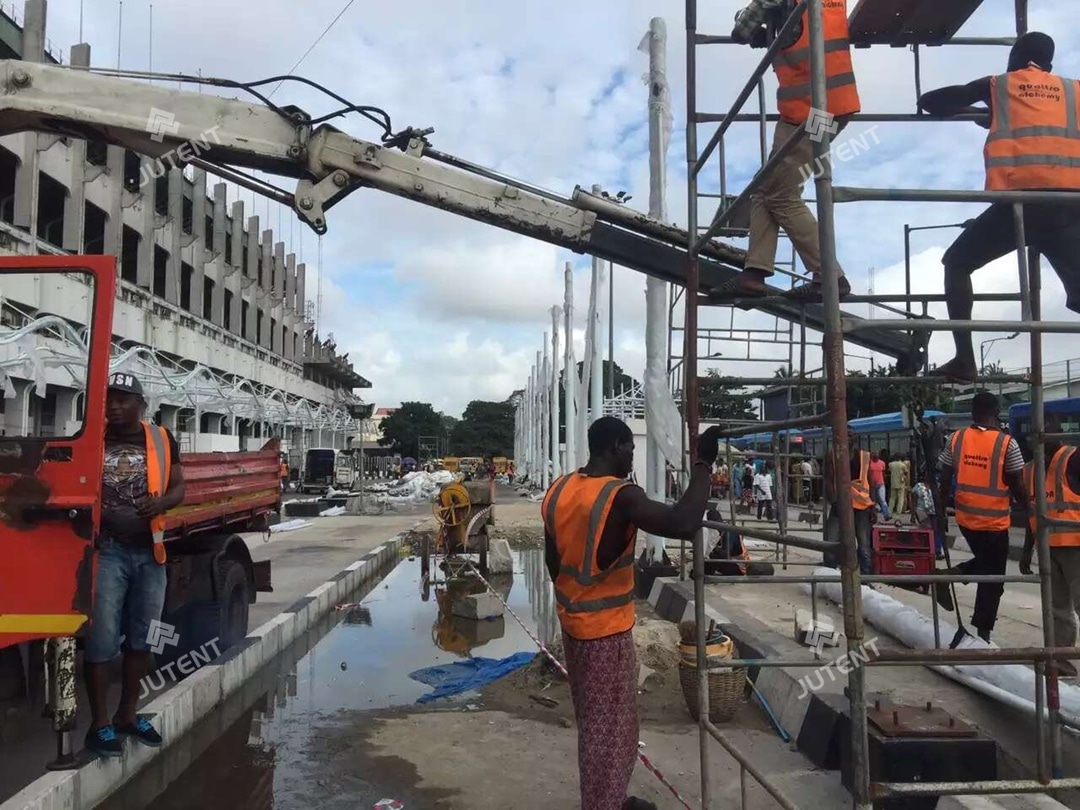

The project was designed and fabricated by our company based on the client’s requirements and layout drawings, then delivered via international logistics. Installation was carried out by the client’s local team, with our full support through detailed drawings and technical guidance to ensure smooth execution and successful delivery.
| Specification | ||
|---|---|---|
| Fabric Type | PVDF | |
| Frame Type | Frame Structure | |
| Design Load | Wind 120 km/h | |
| Design Life | 25-30 Yrs | |
| Warranty | 10 Years | |
