Fabric Eave Canopy for Industrial Building in Hanoi Vietnam
Industrial loading operations in Hanoi are optimized by this connected-peak PVDF installation covering 630㎡. The Fabric Eave Canopy ensures efficient rainwater drainage and durable protection for heavy-duty truck zones.
Location
Hanoi, Vietnam
Coverage（M²）
630㎡
Wind Speed
Wind 180 km/h
Complete Date
08/2023
Project Overview

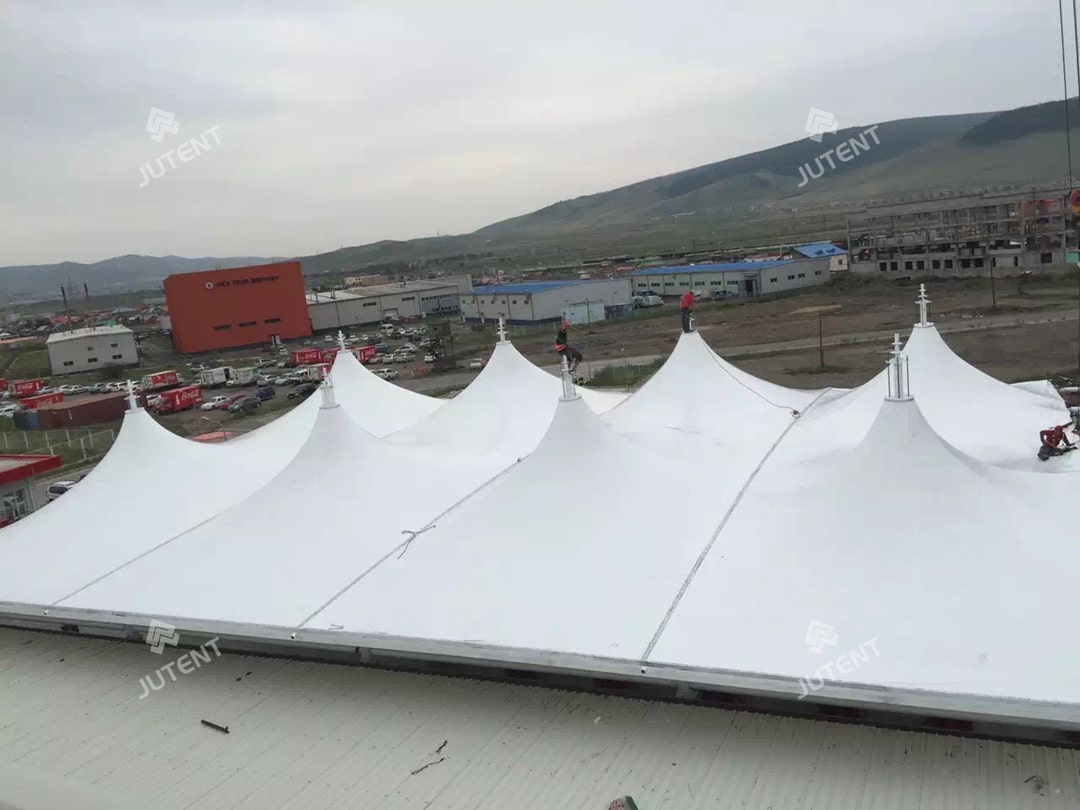

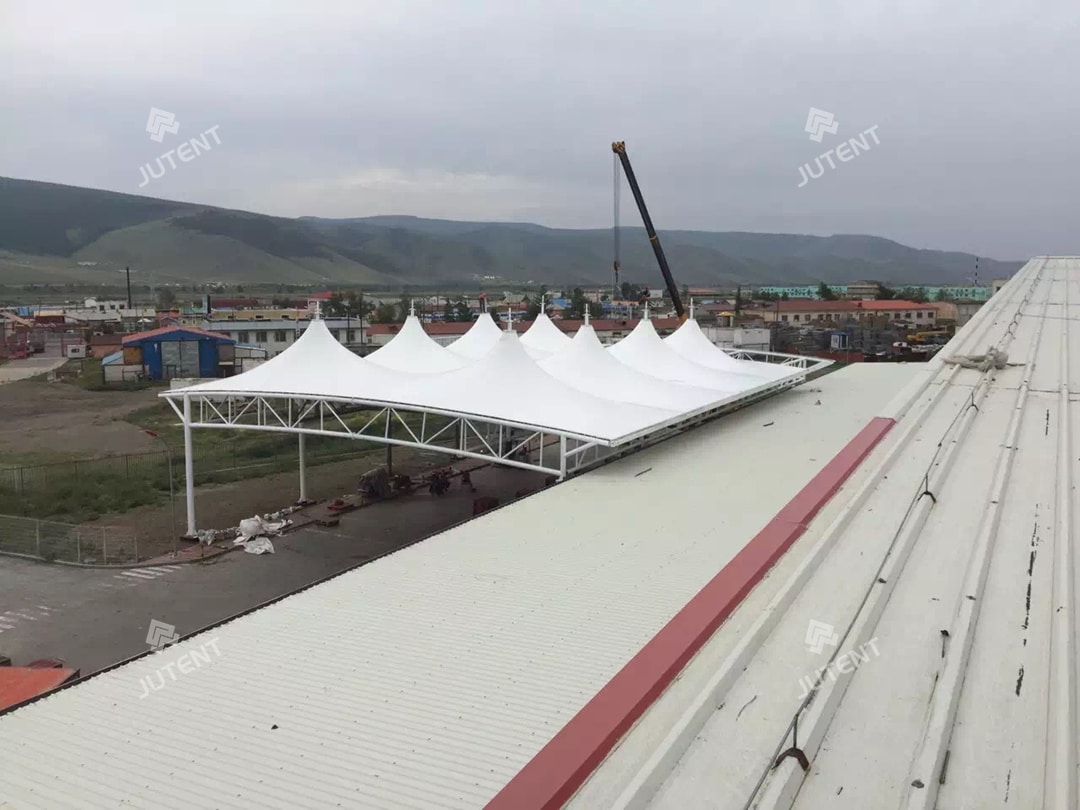

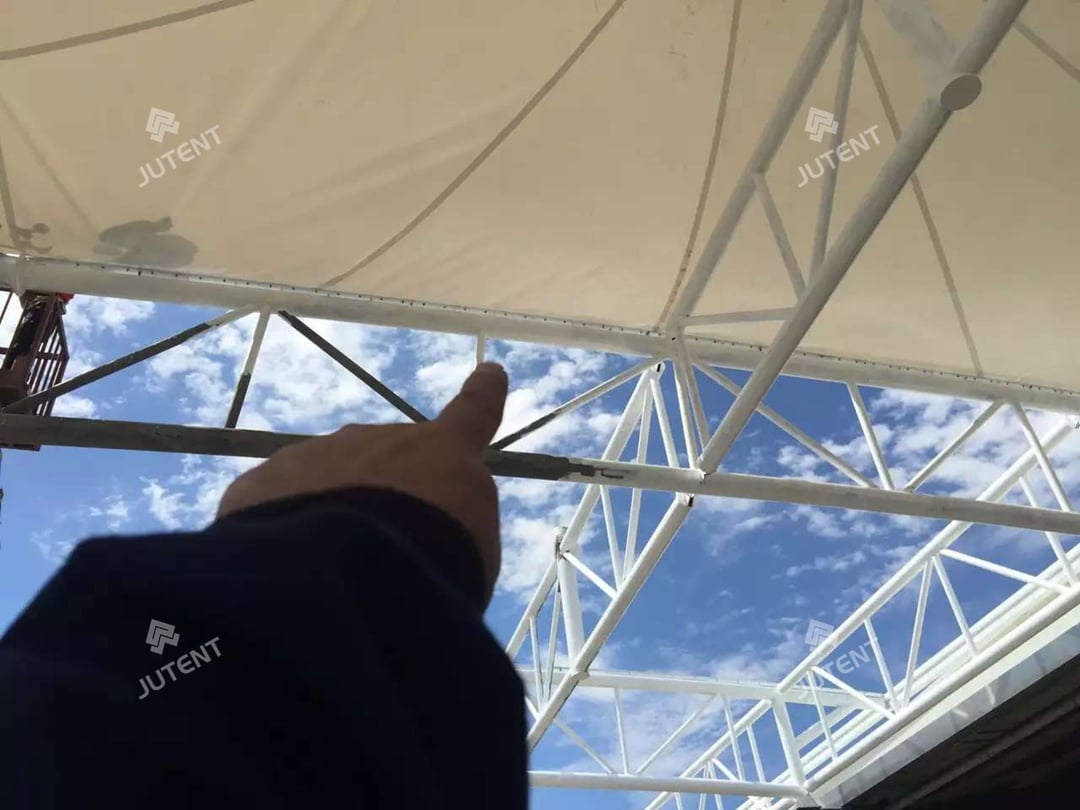

This project is located in Hanoi, Vietnam, and features a tensile membrane canopy system installed along the factory eaves, primarily used for industrial loading and unloading areas. Completed in August 2023, the total coverage area is approximately 630 square meters. The main structure adopts a truss steel frame with a white anti-corrosion coating, combined with white PVDF membrane material. The peak-style design presents a clean and modern architectural appearance, balancing functionality and visual consistency.
Drawing Visualization
Visualizing before fabrication
Design & Renderings
Challenge - Solution

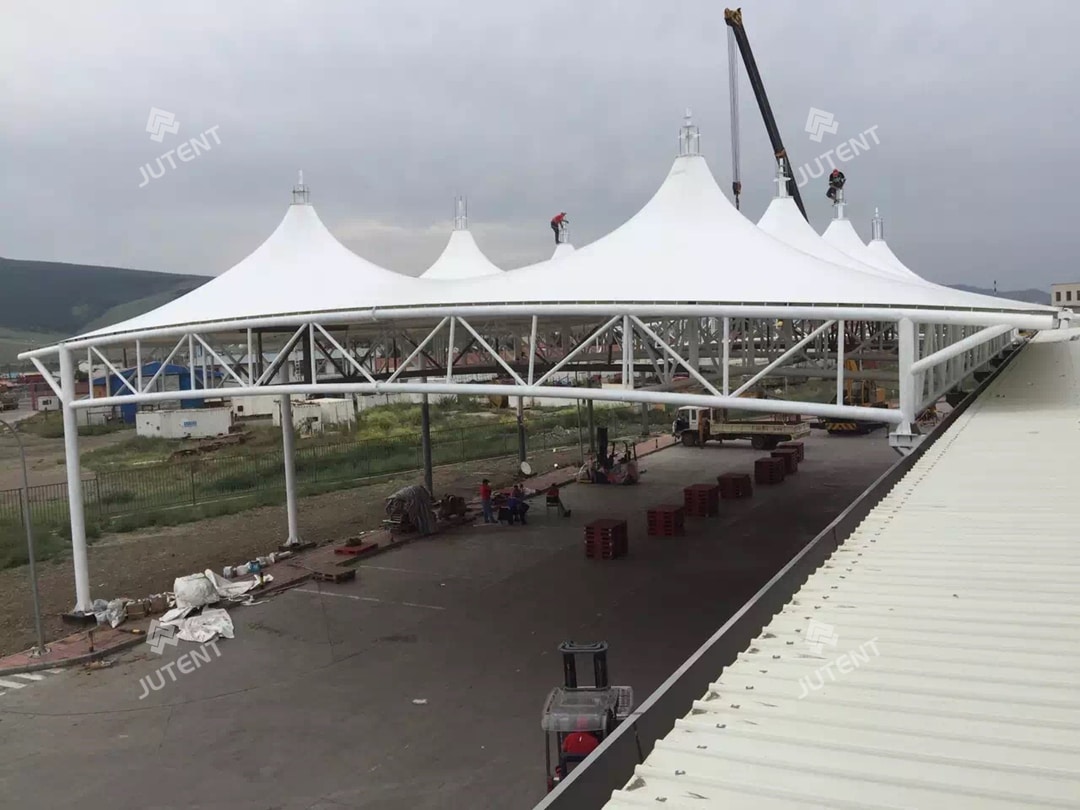

The project utilizes a connected peak structure, offering a lightweight and efficient system with a well-optimized load-bearing design for enhanced stability and spatial performance. It is specifically designed to provide sun shading and rain protection for heavy truck loading and unloading operations, improving working conditions and space utilization. The use of high-performance PVDF membrane, combined with a steel support system, ensures excellent weather resistance, UV protection, and long-term durability in complex outdoor environments.
Installation - Support

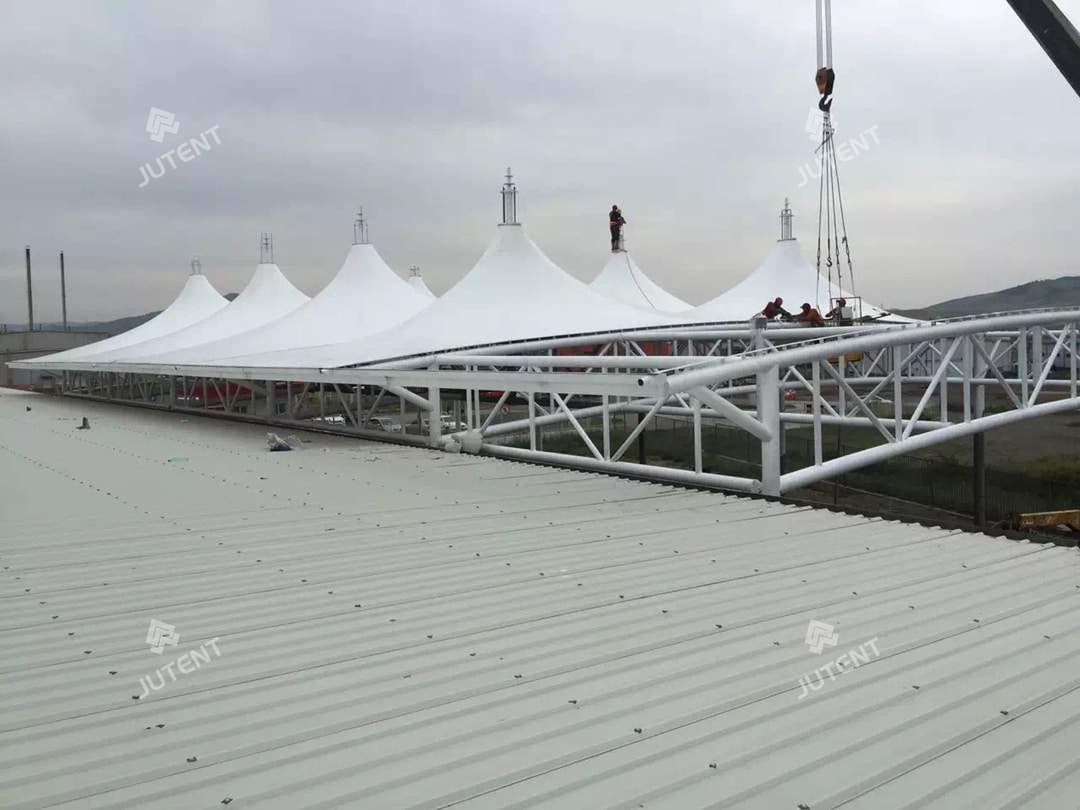

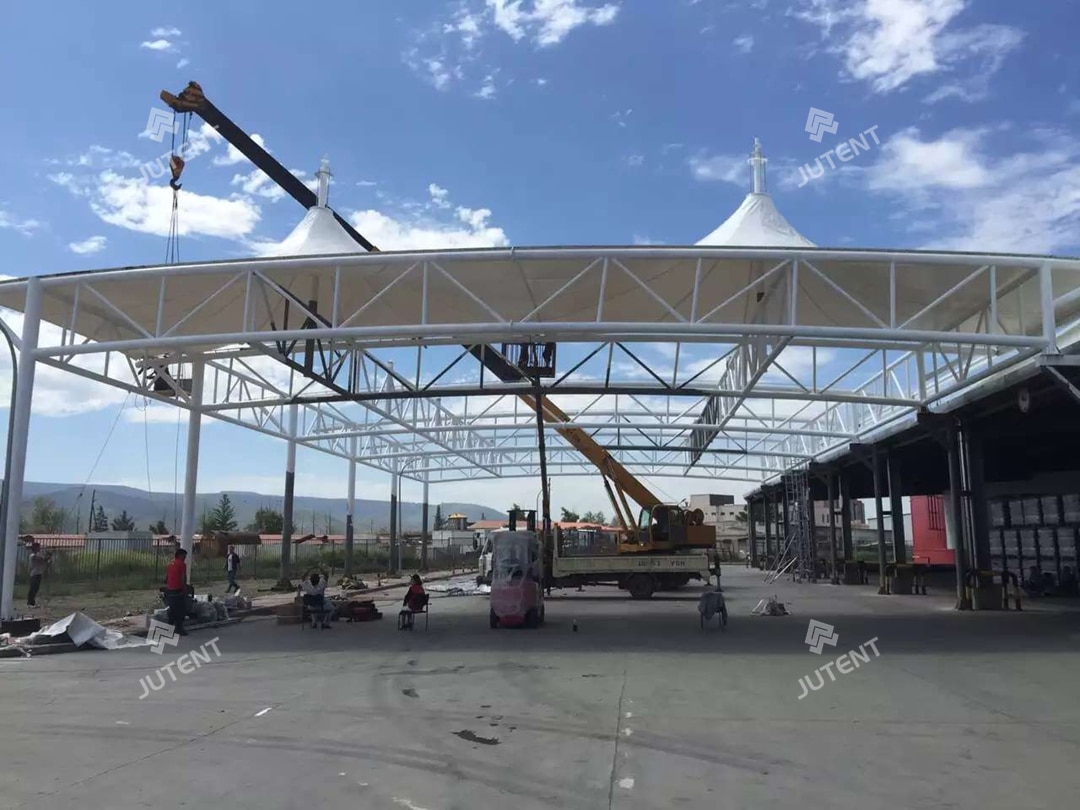

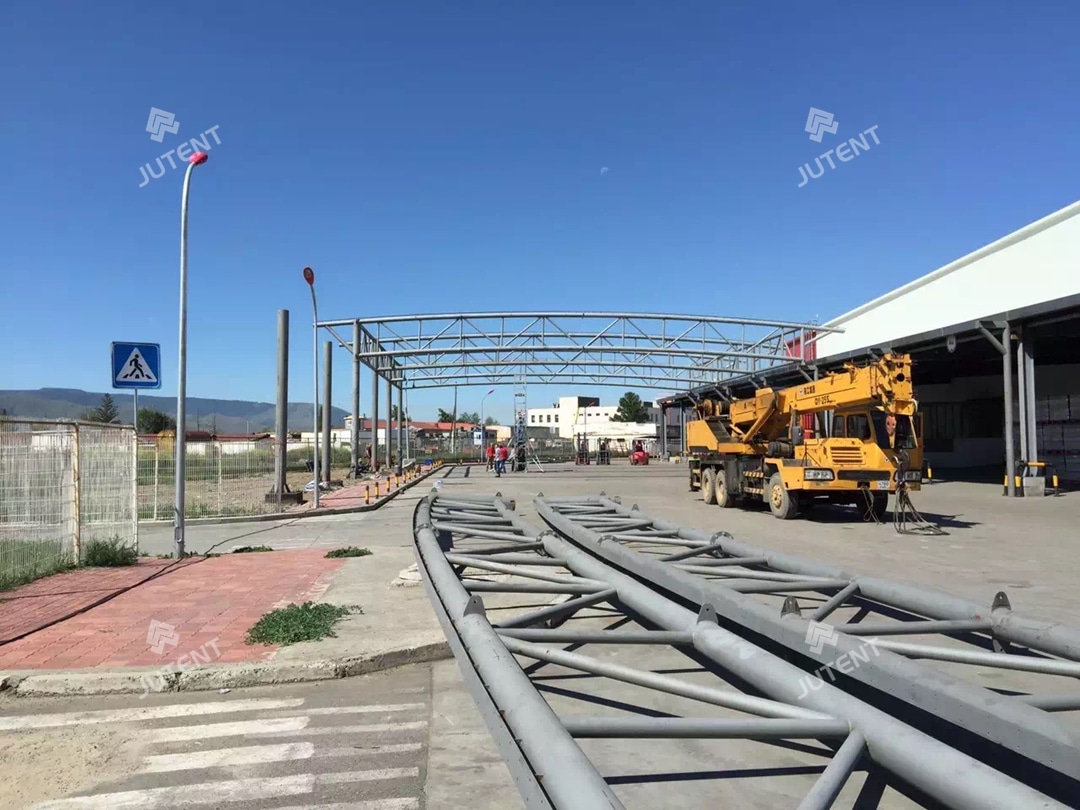

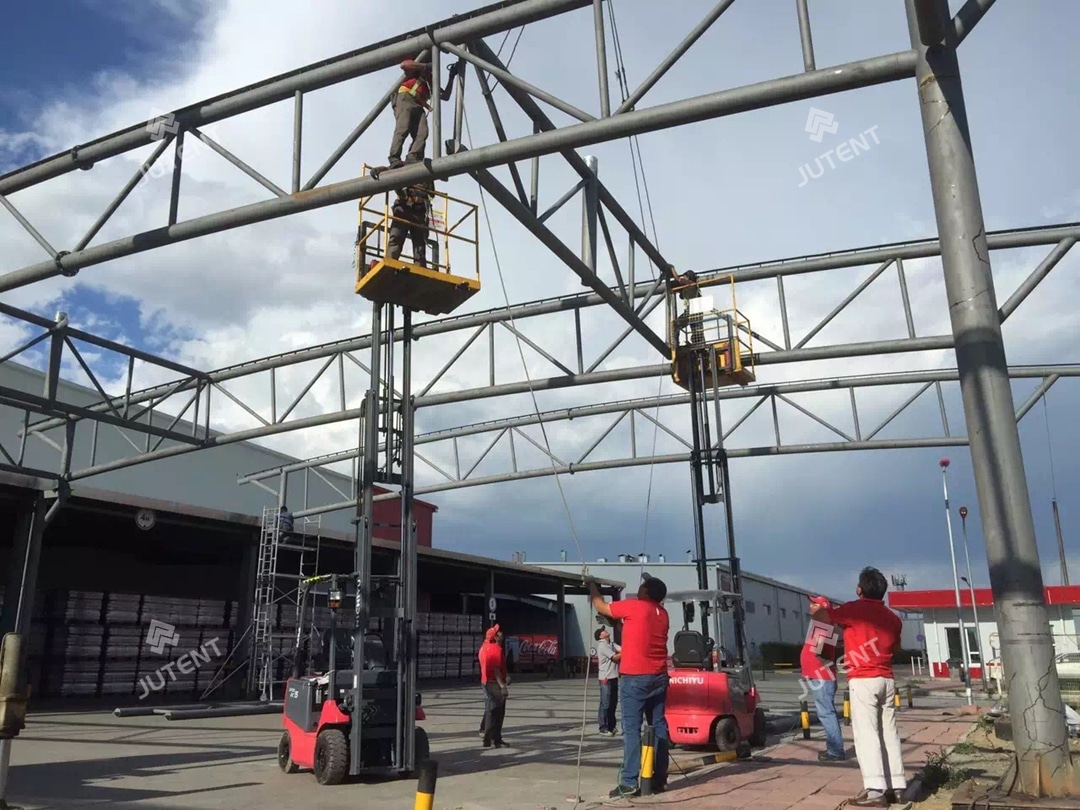

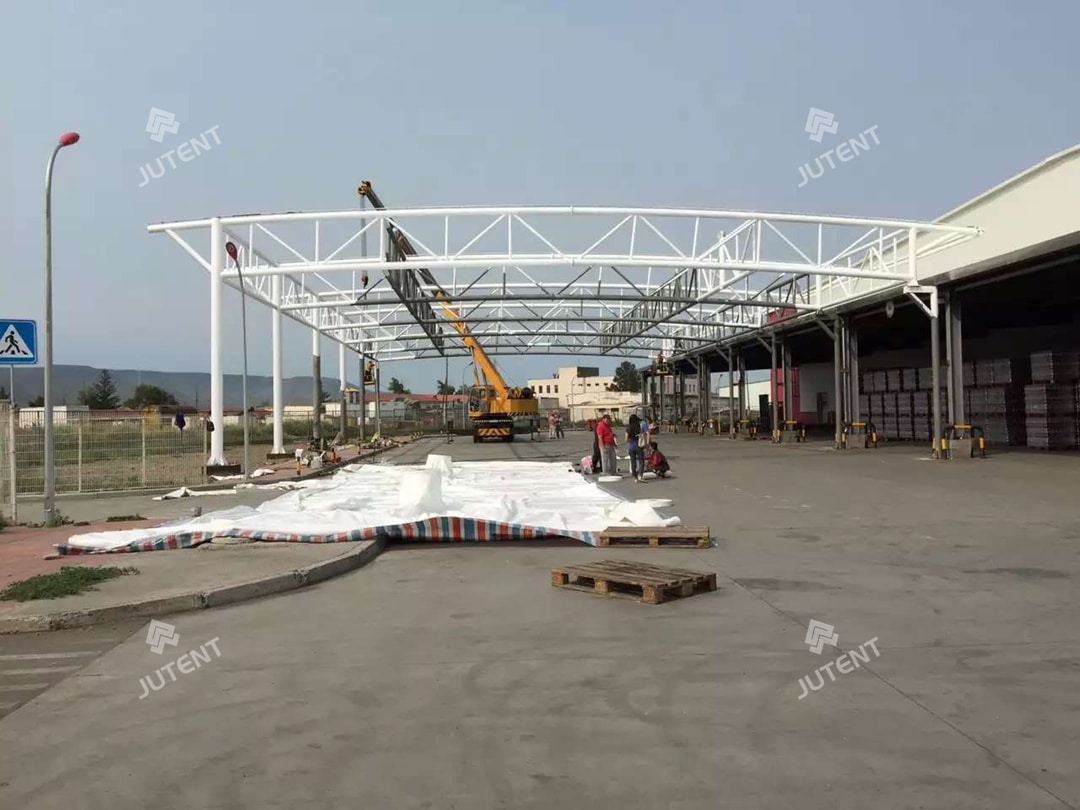

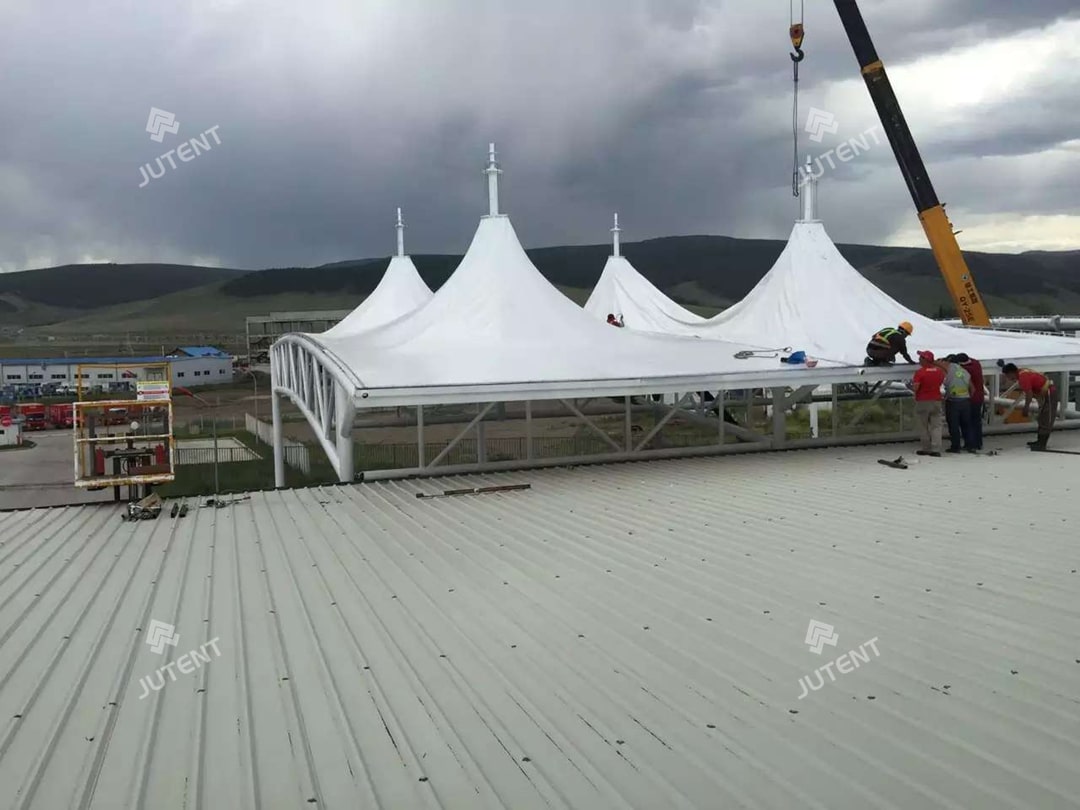

The project was designed and fabricated by our company based on the client’s requirements and selected structural system, and delivered via international logistics. Installation was carried out by the client’s local team, with our engineers providing on-site guidance and complete construction drawings to ensure smooth execution and efficient project delivery.
| Specification | ||
|---|---|---|
| Fabric Type | PVDF | |
| Frame Type | Frame Structure | |
| Design Load | Wind 180 km/h | |
| Design Life | 25-30 Yrs | |
| Warranty | 10 Years | |
