Junchantou Village Landscape Tensile Membrane Project

Landscape tensile membrane canopy in Junchuantou Village, Shanwei, China, 180 sqm PVDF roof over steel frame, completed 2021, providing sun and weather protection.

Location	Shanwei, China
Complete Date	01/2021
Area （M²）	299
Fabric Type	PVDF
Steel Type	Tensegrity / Cable-Truss
Design Load	Wind 120 km/h

Project Overview

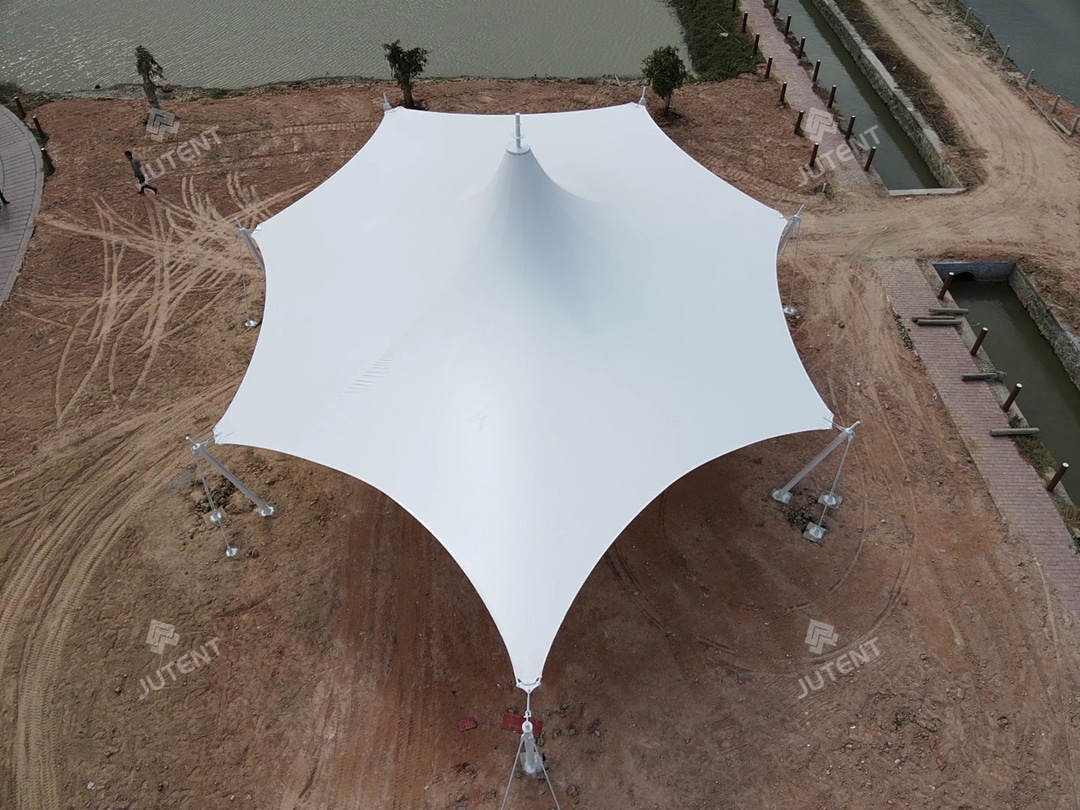

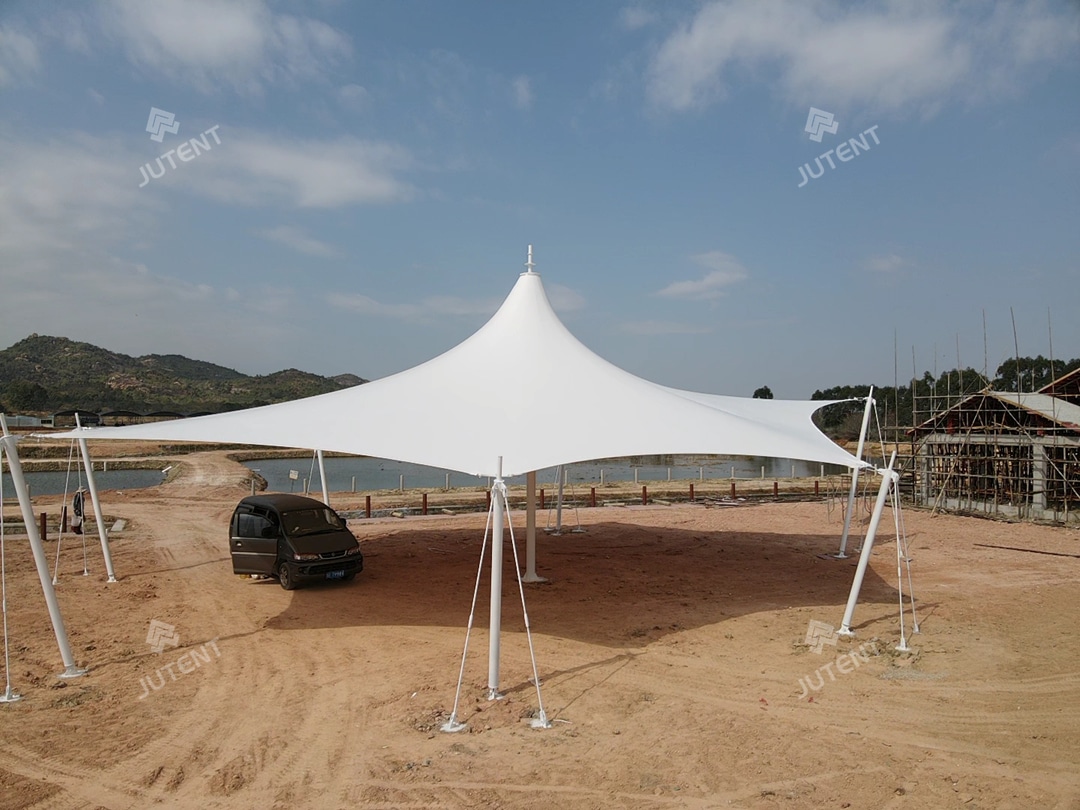

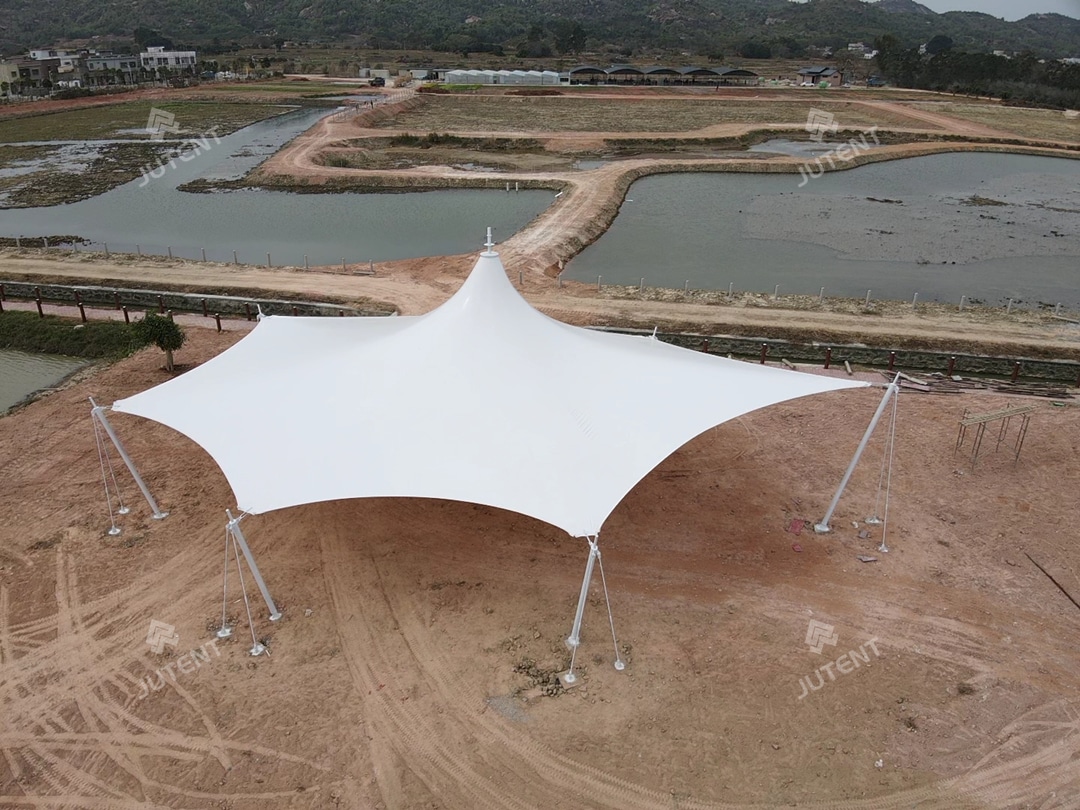

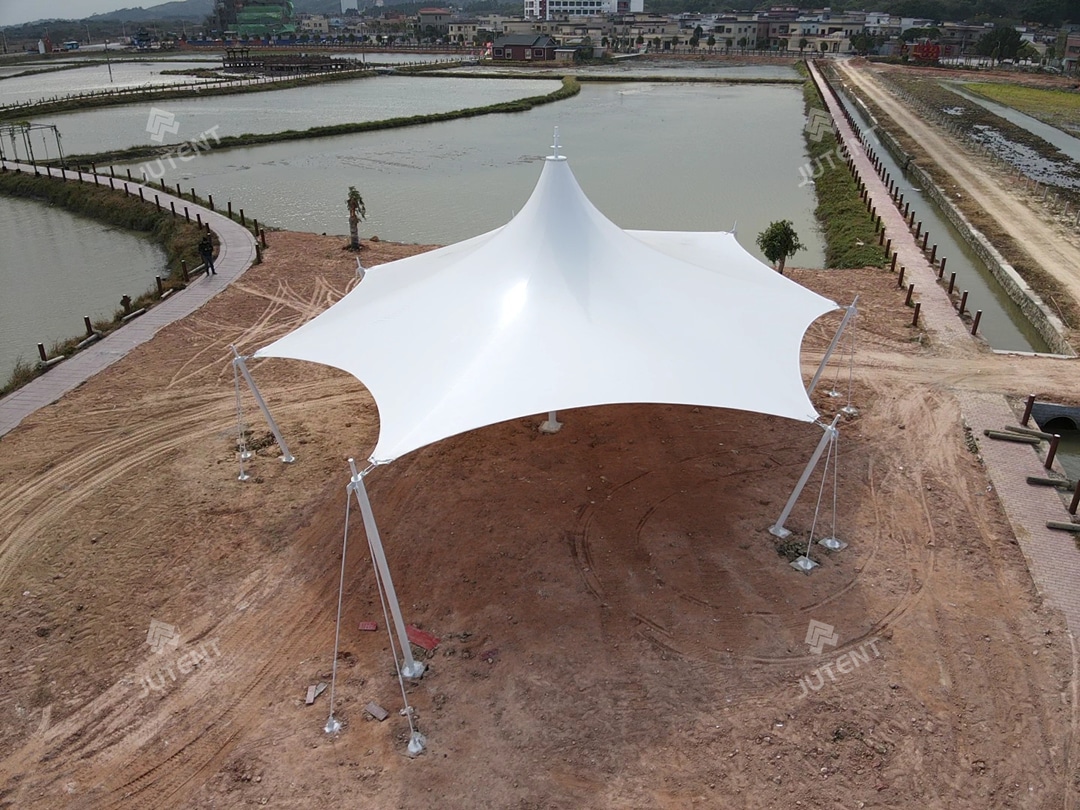

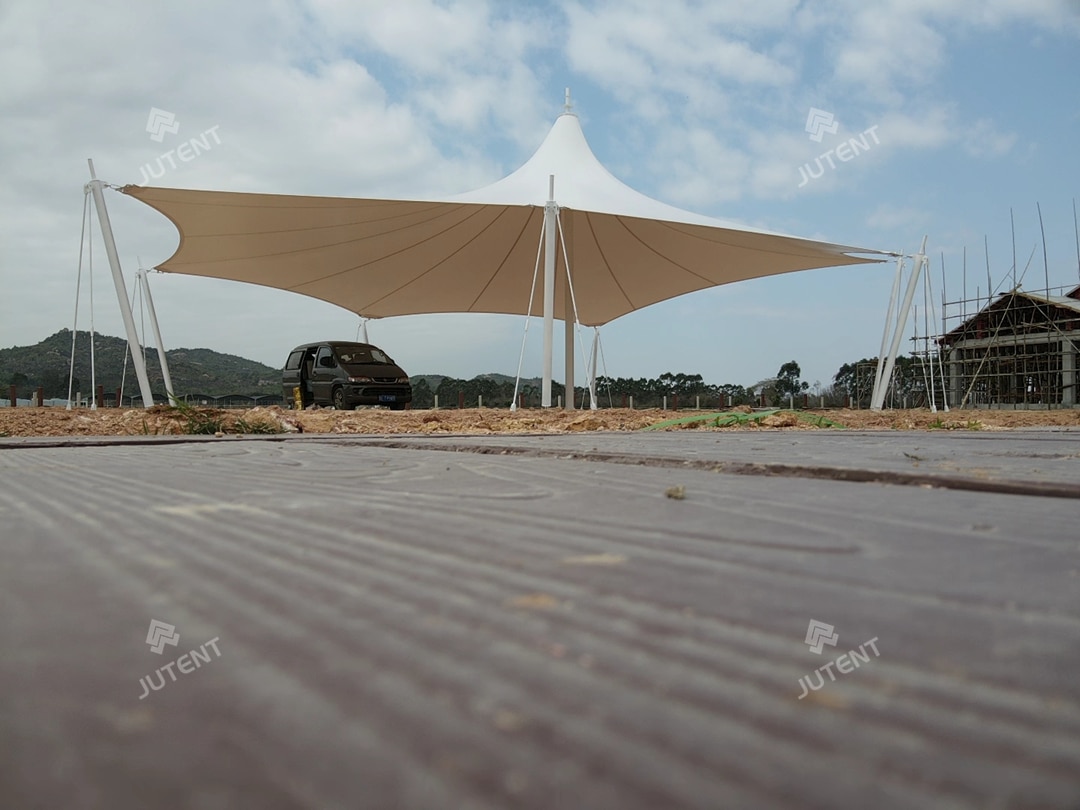

The project is located in Junchuantou Village, Shanwei City, China, and was completed in January 2021. It is a landscape tensile membrane canopy designed for a leisure and public activity area. The structure adopts a flexible edge cable-supported system, with overall dimensions of approximately 20 m × 15 m, a height of about 4 m, and a total projected area of around 300 sqm. The total steel consumption is approximately 2 tons. The steel structure is treated with an epoxy zinc-rich primer and a white topcoat, providing enhanced durability and corrosion resistance. The roof is covered with 1100 g/㎡ white PVDF architectural membrane, featuring B1 fire-retardant performance and meeting safety standards for public buildings.

Installation
and Support

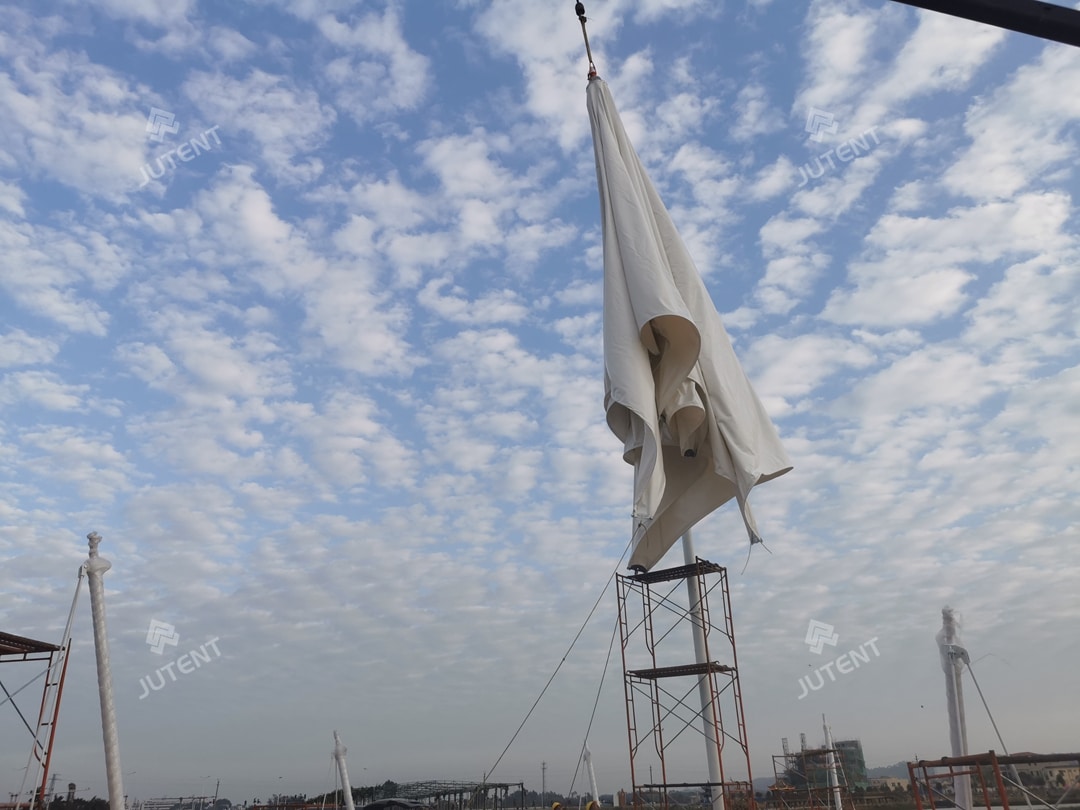

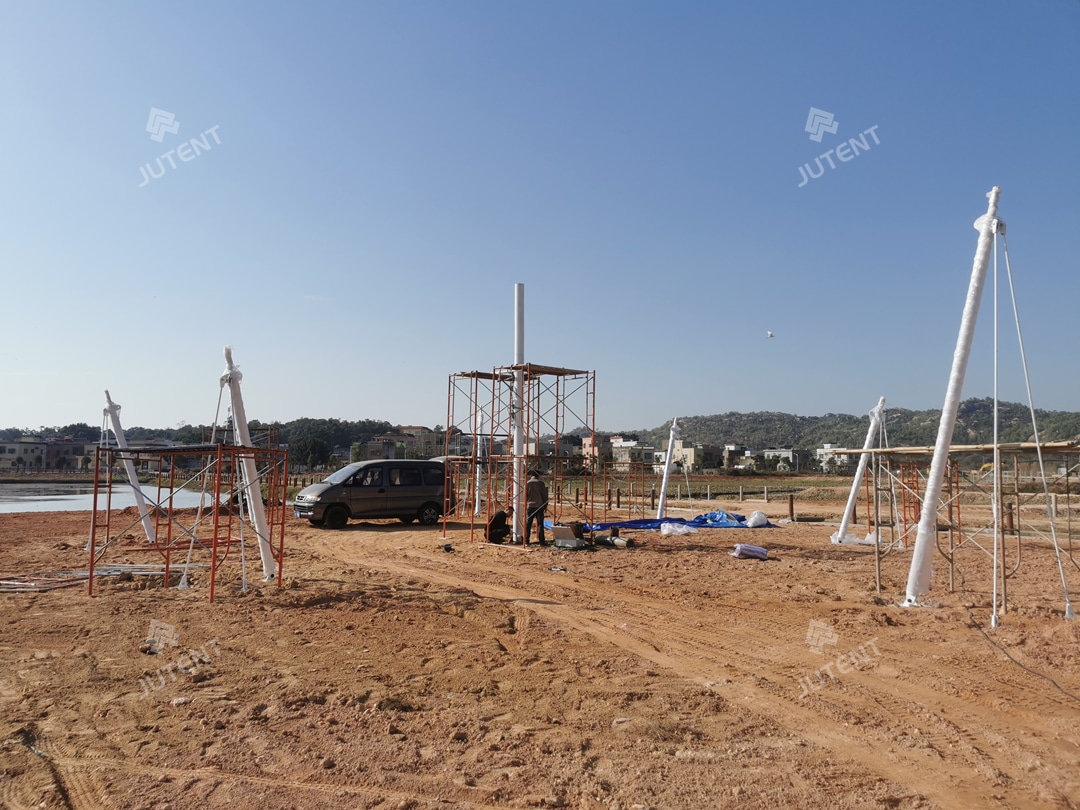

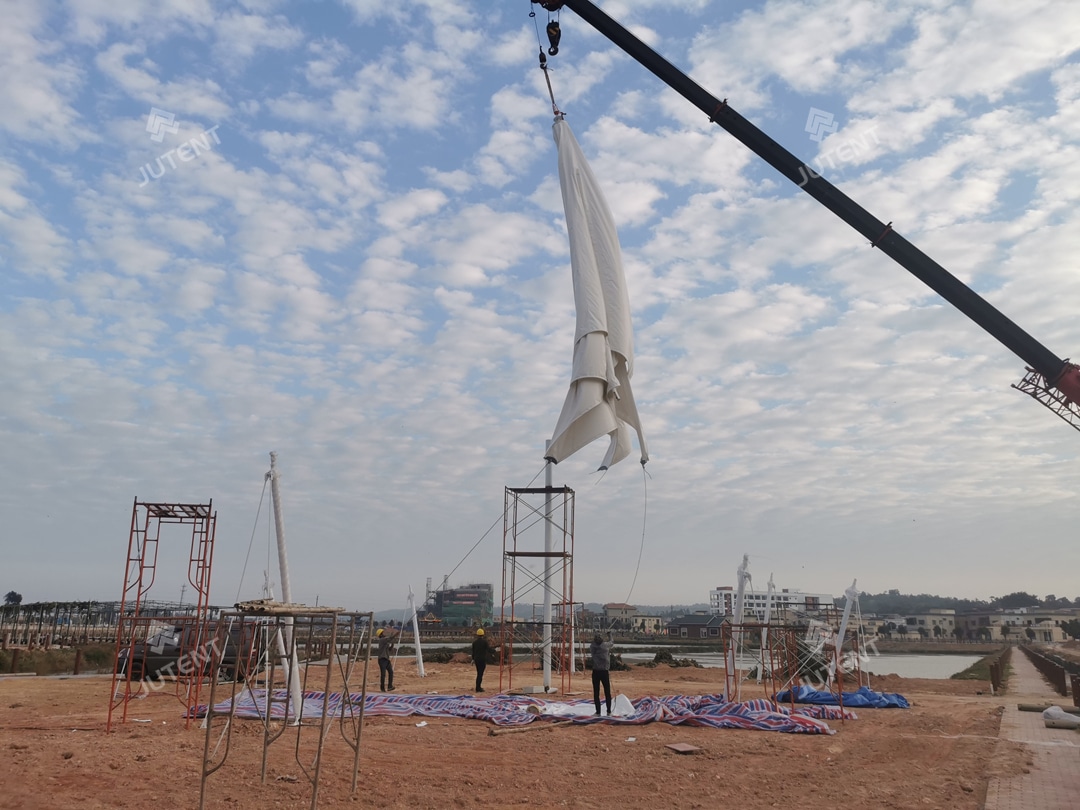

Installation was carried out on-site by our professional engineering team. Columns and membrane panels were installed using crane lifting. The entire installation process was completed efficiently within two days.

Application

The flexible-edge tensile membrane solution applied in this project is ideal for landscape features, park structures, and various commercial or industrial public spaces. For similar projects or customized tensile membrane canopy solutions, please feel free to contact our engineering team for professional support.
