Liuhua Lake Park Stage Canopy Project

Liuhua Lake Park stage tensile membrane canopy in Guangzhou, 280 sqm PVDF roof over steel frame, completed 2018, providing sun and rain protection for public spaces.

Location	Guangzhou, China
Complete Date	08/2018
Area （M²）	280
Fabric Type	PVDF
Steel Type	Truss Structure
Design Load	Wind 120 km/h

Project Overview

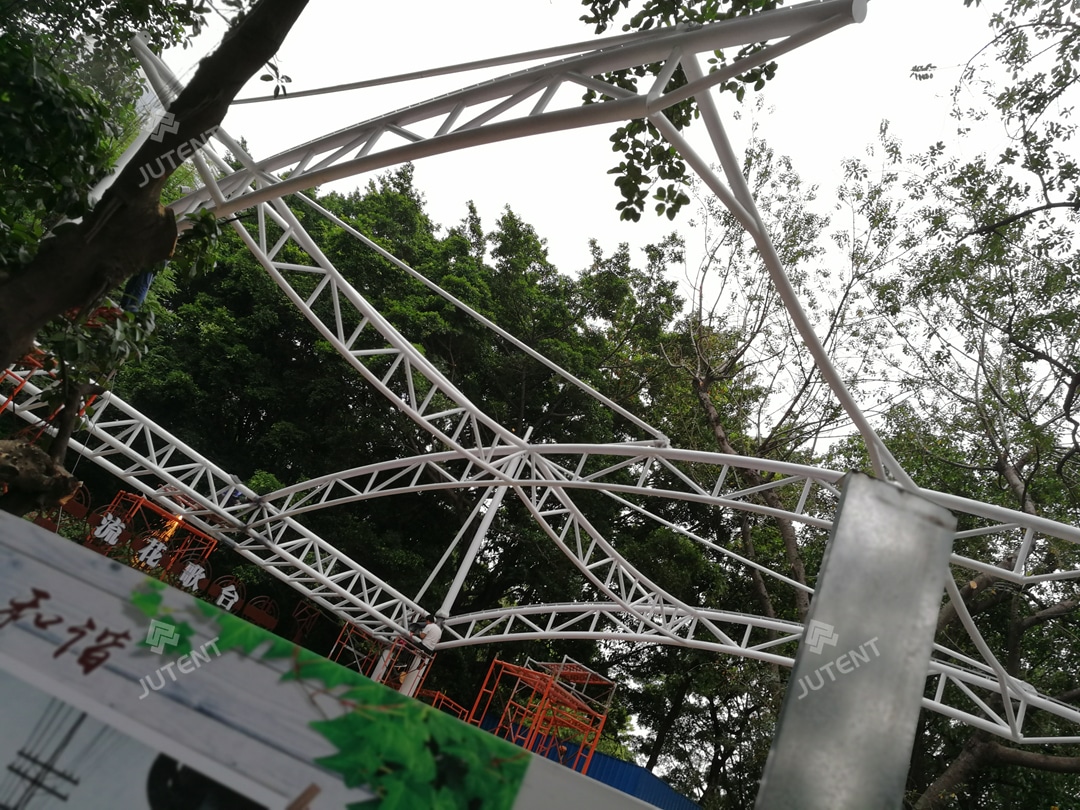

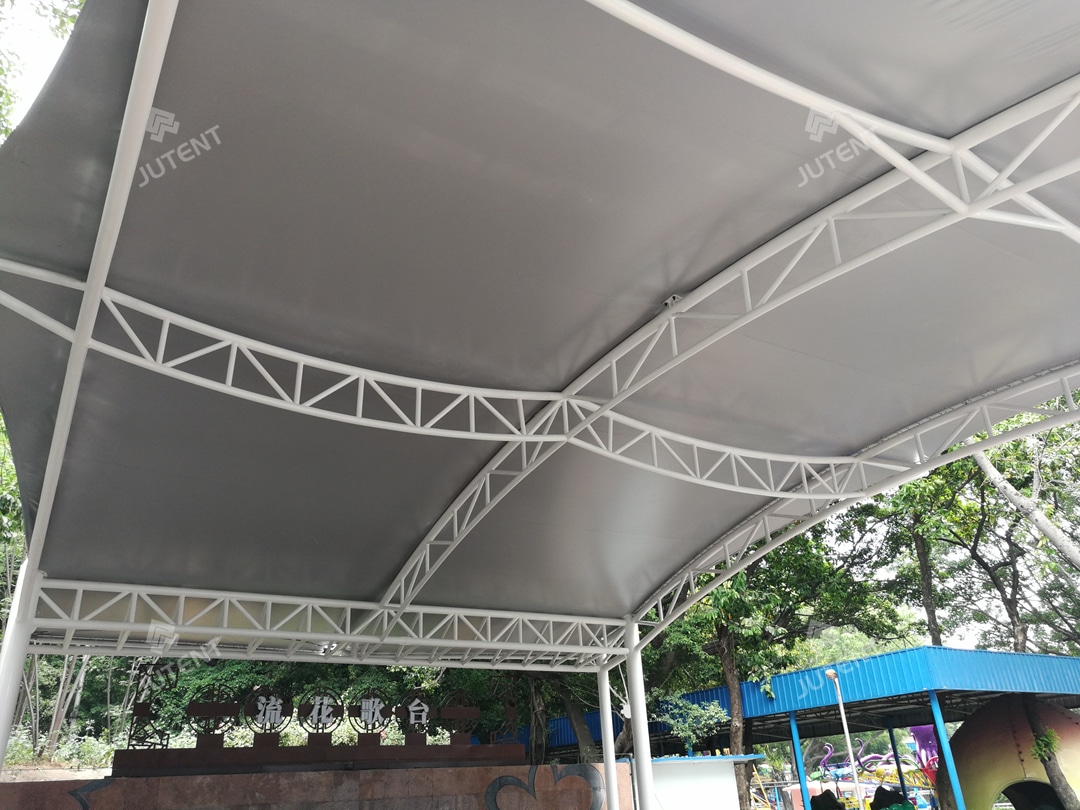

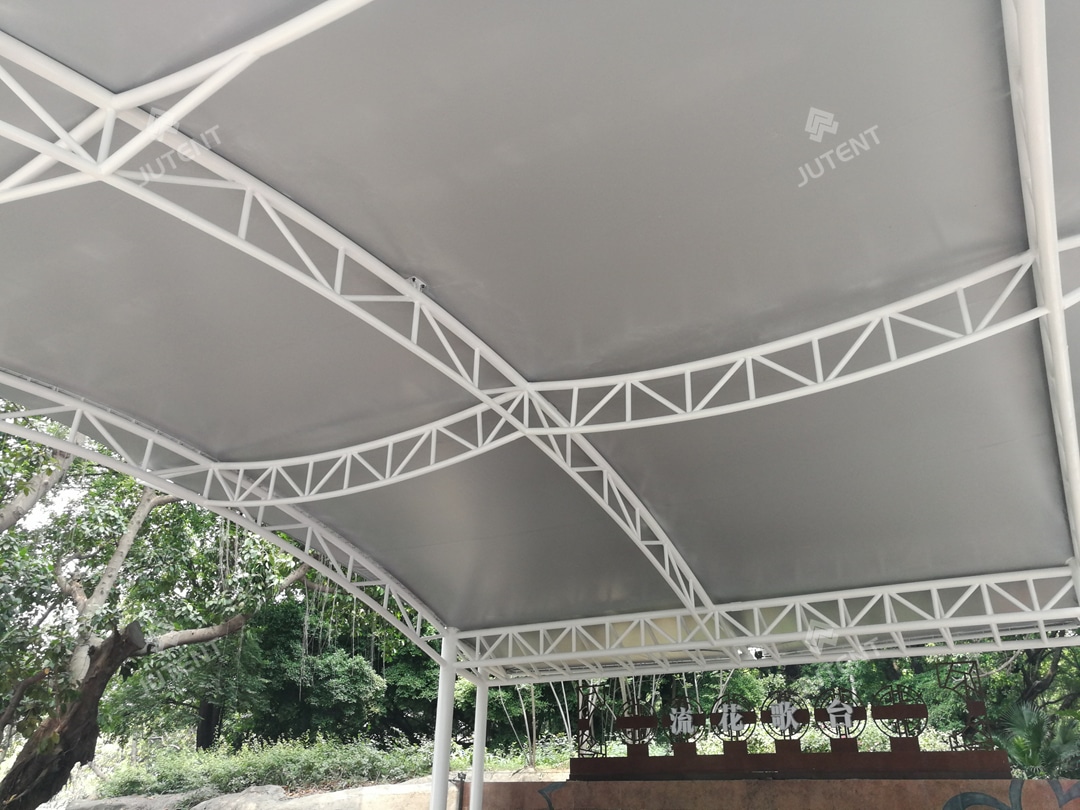

This project is located in Liuhua Lake Park, Guangzhou, China. Completed in 2018, it features a tensile membrane stage canopy with a total covered area of approximately 280 m². The roof adopts a cable-supported arched tensile membrane design, supported by a steel structure. The steel framework is treated with an epoxy zinc-rich primer and a white topcoat to enhance durability and corrosion resistance. The roof membrane uses 1100 g/m² gray PVDF architectural fabric with B1 fire rating, fully compliant with safety standards for public and commercial spaces.

Challenge and Solution

The client required a modern stage canopy that could provide effective sun and rain protection while enhancing the overall visual appeal of the park. Our team developed a cable-supported arched tensile membrane solution, combining lightweight structural performance with contemporary architectural aesthetics.

Installation
and Support

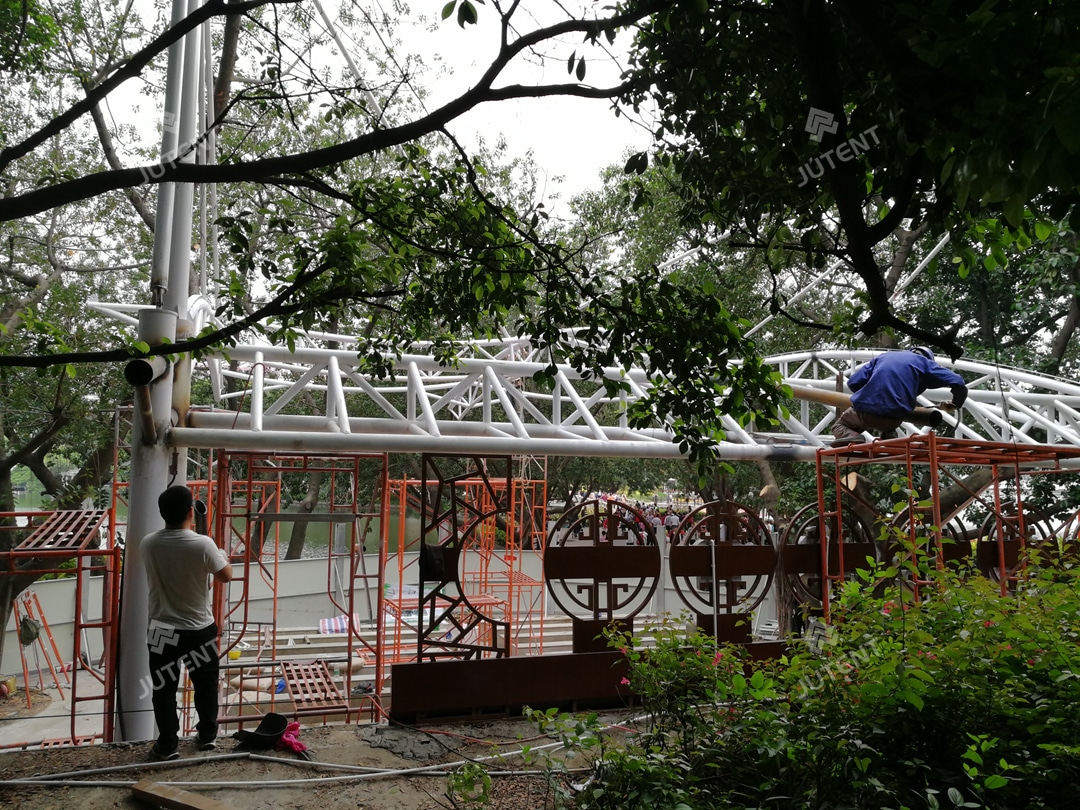

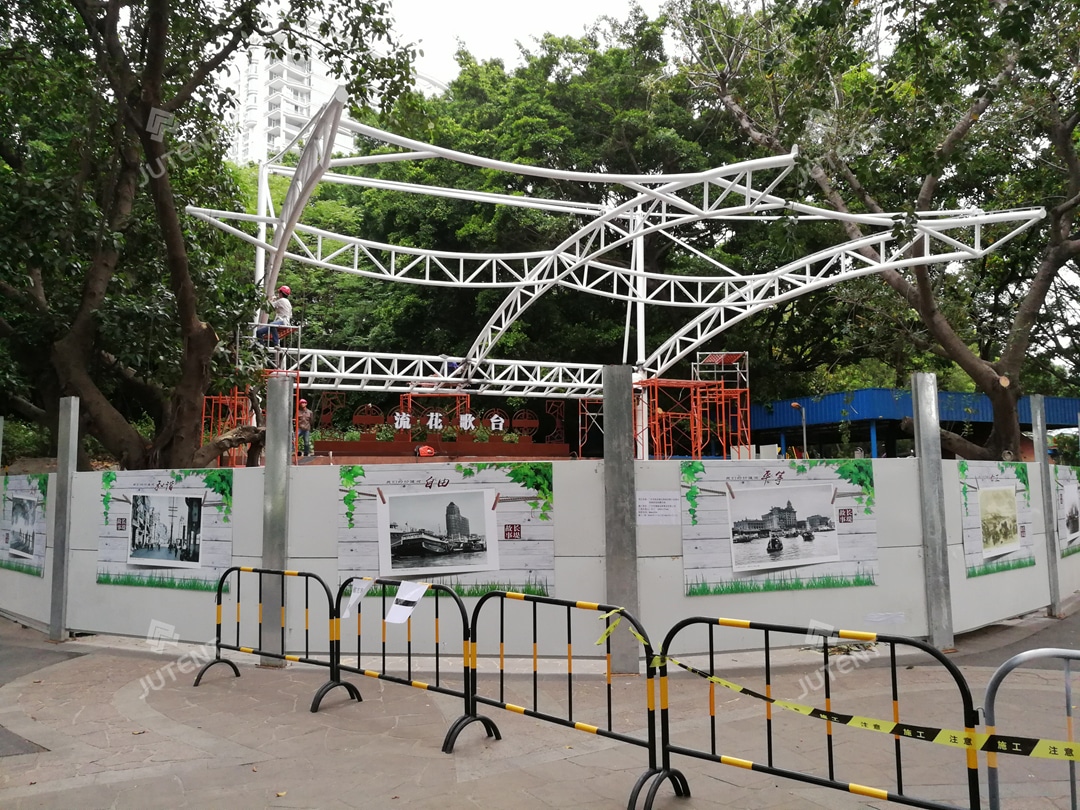

Installation was carried out by our professional team using a segmented assembly method with crane lifting. Precise control of membrane tension ensured smooth surfaces and accurate alignment. The project was completed efficiently and delivered as scheduled, fully meeting functional and aesthetic requirements.

Application

This type of tensile membrane stage canopy is well suited for stages, grandstands, parks, and various public spaces, offering a lightweight, durable, and visually distinctive roofing solution. For customized tensile membrane structure solutions, please contact our engineering team.
