Longchuan County Middle School Stage Tensile Membrane Canopy

Longchuan Middle School stadium grandstand canopy in Heyuan, China, 23×8 m PVDF tensile roof over steel frame, completed 2021, providing sun and rain protection.

Location	Heyuan, China
Complete Date	09/2021
Area （M²）	184
Fabric Type	PVDF
Steel Type	Truss Structure
Design Load	Wind 120 km/h

Project Overview

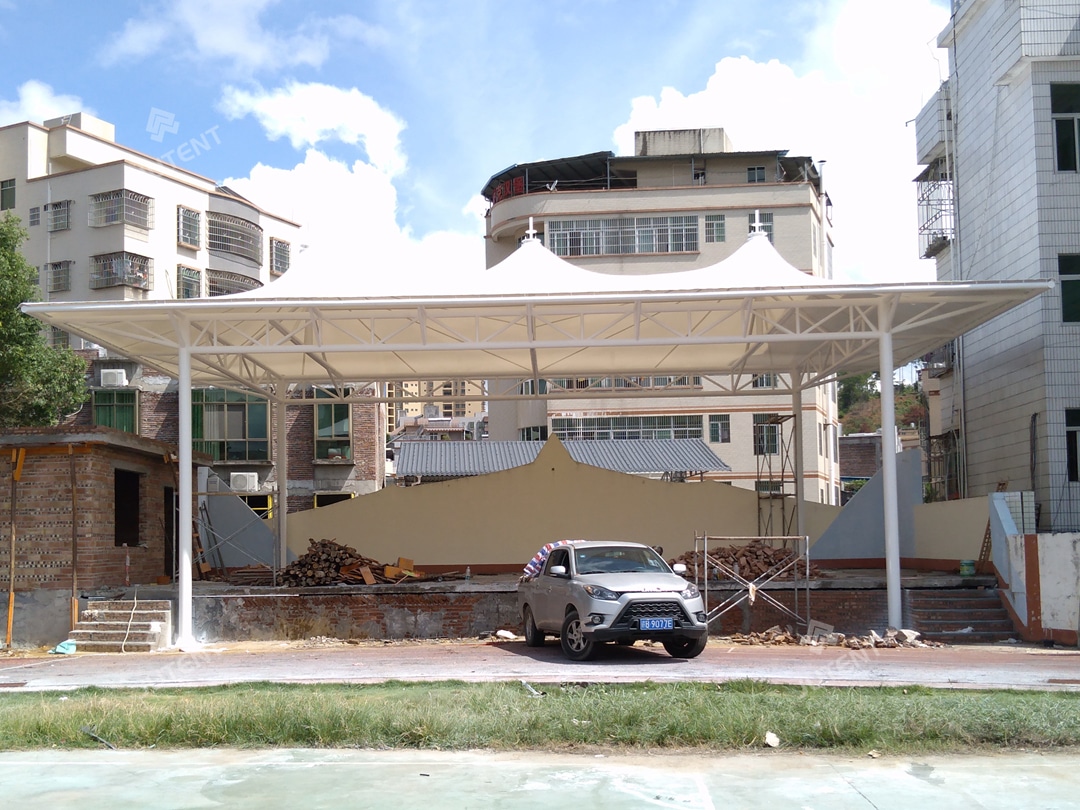

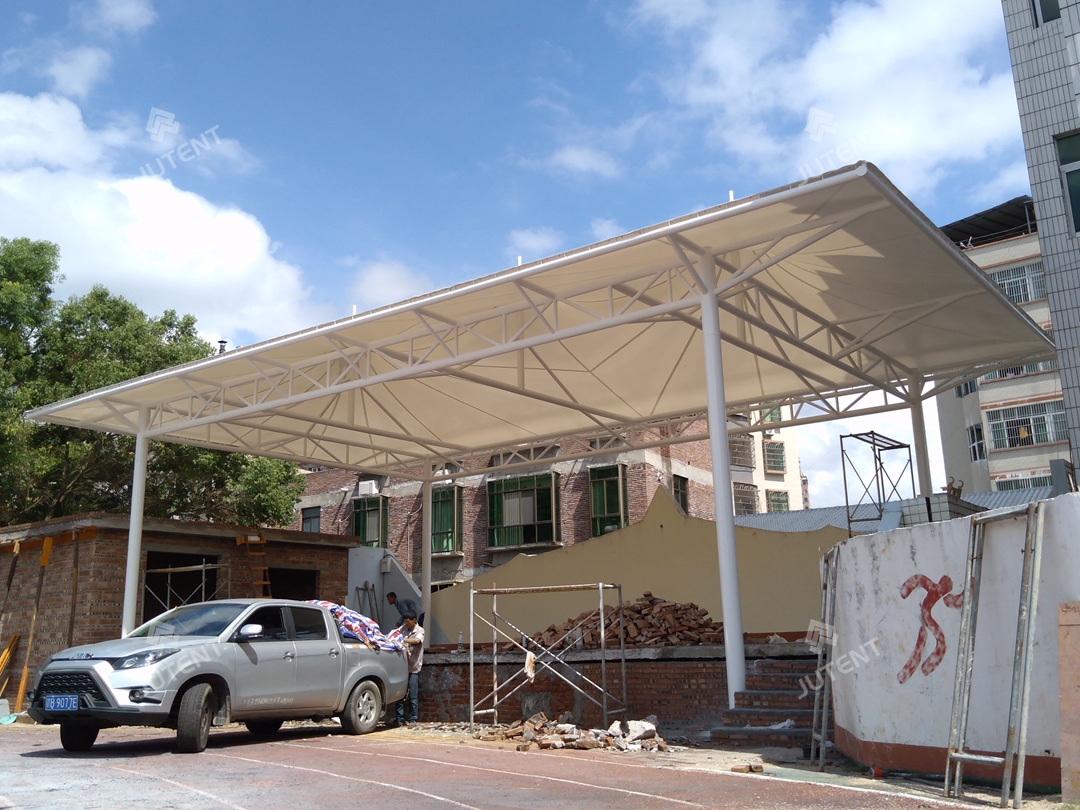

This project is located at Longchuan Middle School in Heyuan City, China, and was successfully completed in September 2021. It is a tensile membrane canopy installed over the school’s stadium grandstand. The canopy measures approximately 23 m × 8 m, with a central height of 5 m, and uses about 7 tons of steel, designed to meet the long-term functional needs of campus public activities. The steel structure is coated with an epoxy zinc-rich primer and white topcoat for corrosion protection, enhancing durability and longevity. The roof is covered with 1100 g/㎡ white PVDF architectural membrane, with B1 fire rating, meeting safety standards for public buildings and campus facilities.

Challenge and Solution

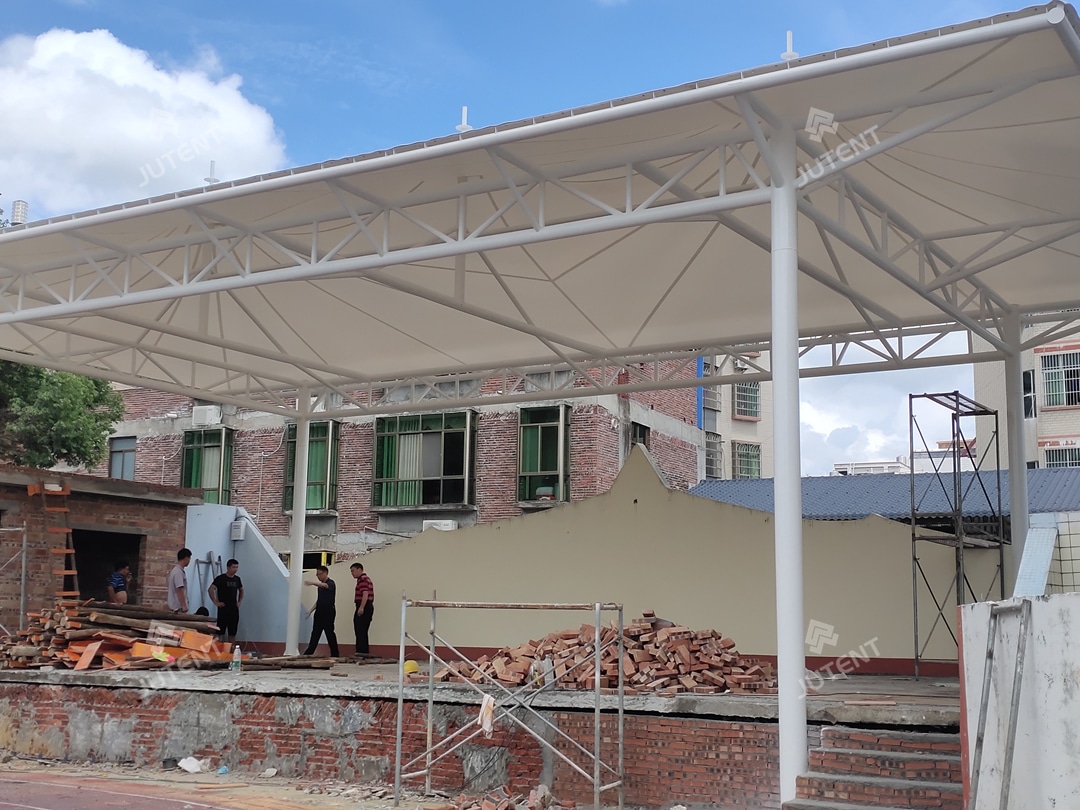

The canopy is located over the school stadium’s grandstand and is intended to support daily school activities, flag-raising ceremonies, and large campus events. The client required a structure that provides sun and rain protection while maintaining a clean, modern design that integrates with the campus environment. Based on site dimensions and functional requirements, we designed a triple-arched tensile membrane canopy. The lightweight and streamlined design meets all functional needs while enhancing the overall visual identity and aesthetic of the grandstand.

Installation
and Support

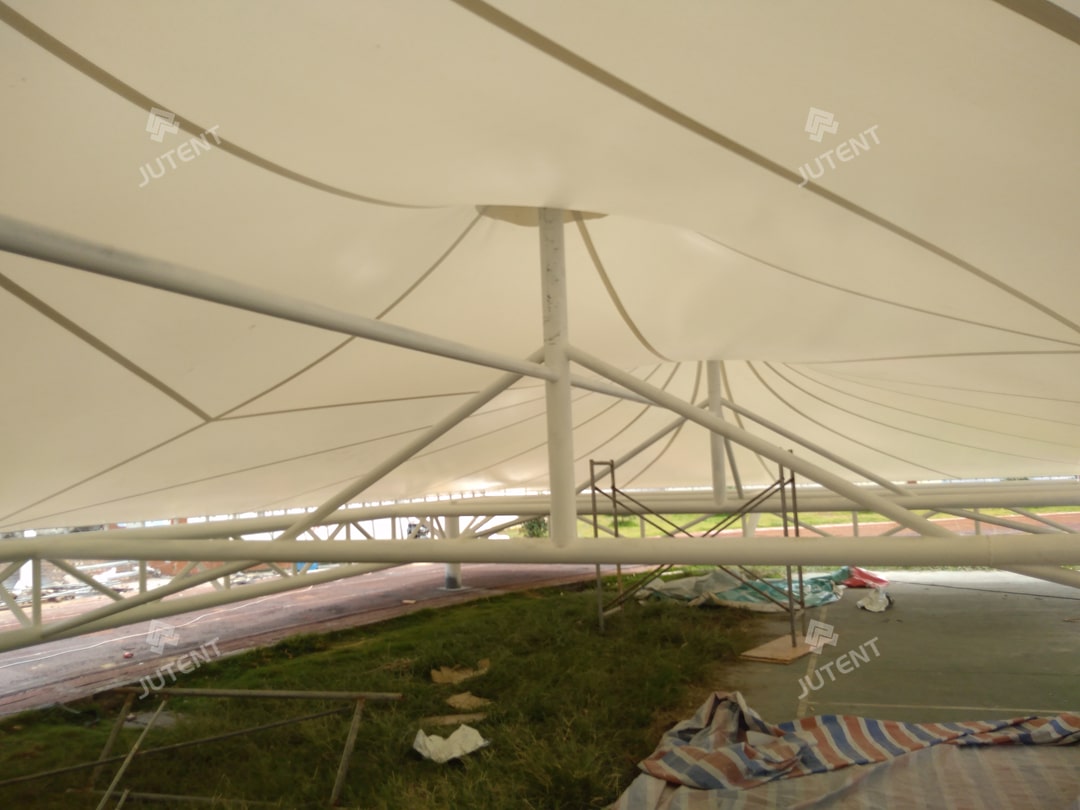

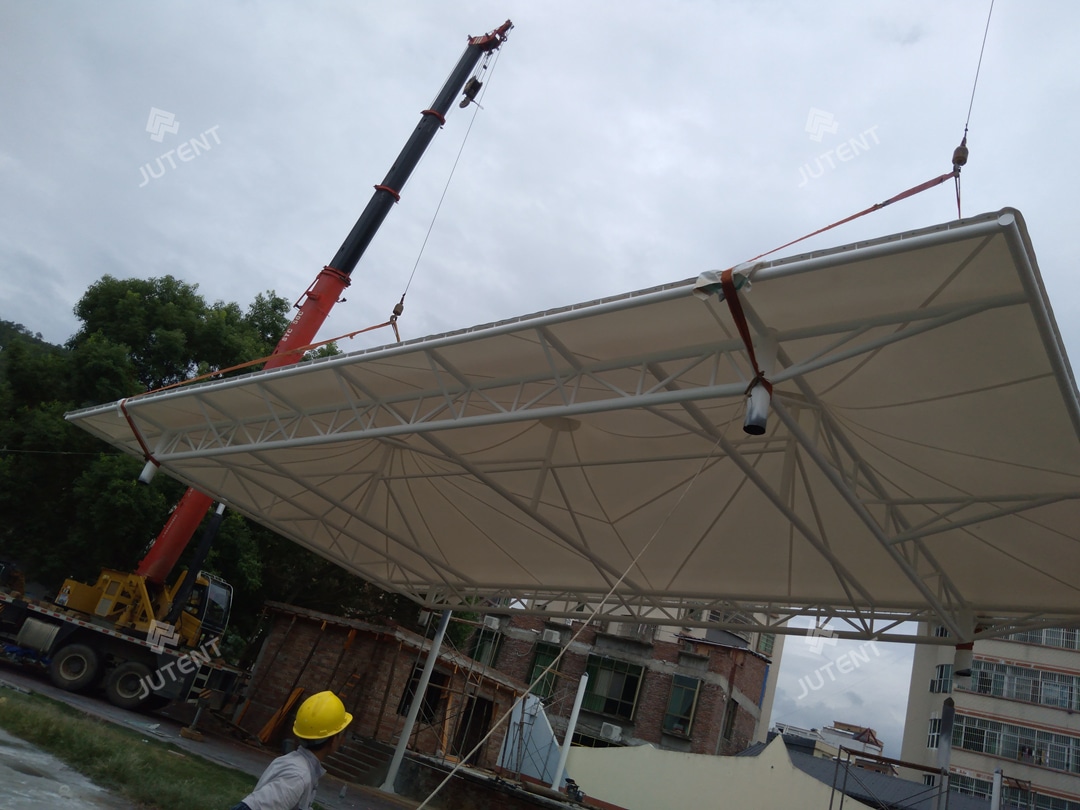

The project was executed entirely by our professional installation team. Considering on-site conditions, we employed a full assembly and lifting method: the steel framework and membrane were pre-assembled and tensioned on the ground to ensure uniform stress distribution and smooth lines. The complete structure was then lifted into position using two cranes and secured precisely. The installation process was efficient, and the project was completed on schedule, achieving the planned design outcomes.

Application

The triple-arched tensile membrane canopy is lightweight, visually appealing, and quick to install. It is suitable for school grandstands, stage canopies, park activity areas, and various public performance spaces. For similar projects or customized tensile membrane solutions, please contact our engineering team.
