People’s Park Stage Tensile Membrane Canopy

People’s Park stage tensile membrane roof in Dongguan, China, completed 2024. Double-peak PVDF membrane with steel structure provides durable sunshade, rain protection, and enhanced stage aesthetics.

Location	Dongguan, China
Complete Date	12/2024
Area （M²）	286
Fabric Type	PVDF
Steel Type	Truss Structure
Design Load	Wind 120 km/h

Project Overview

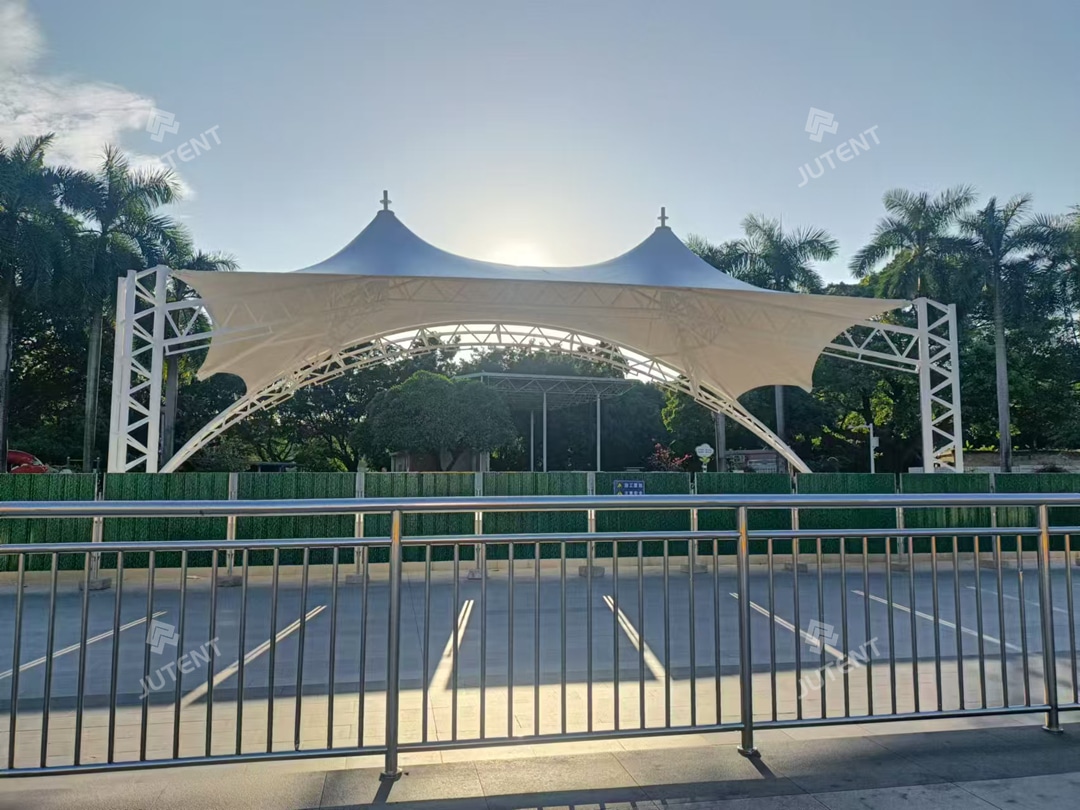

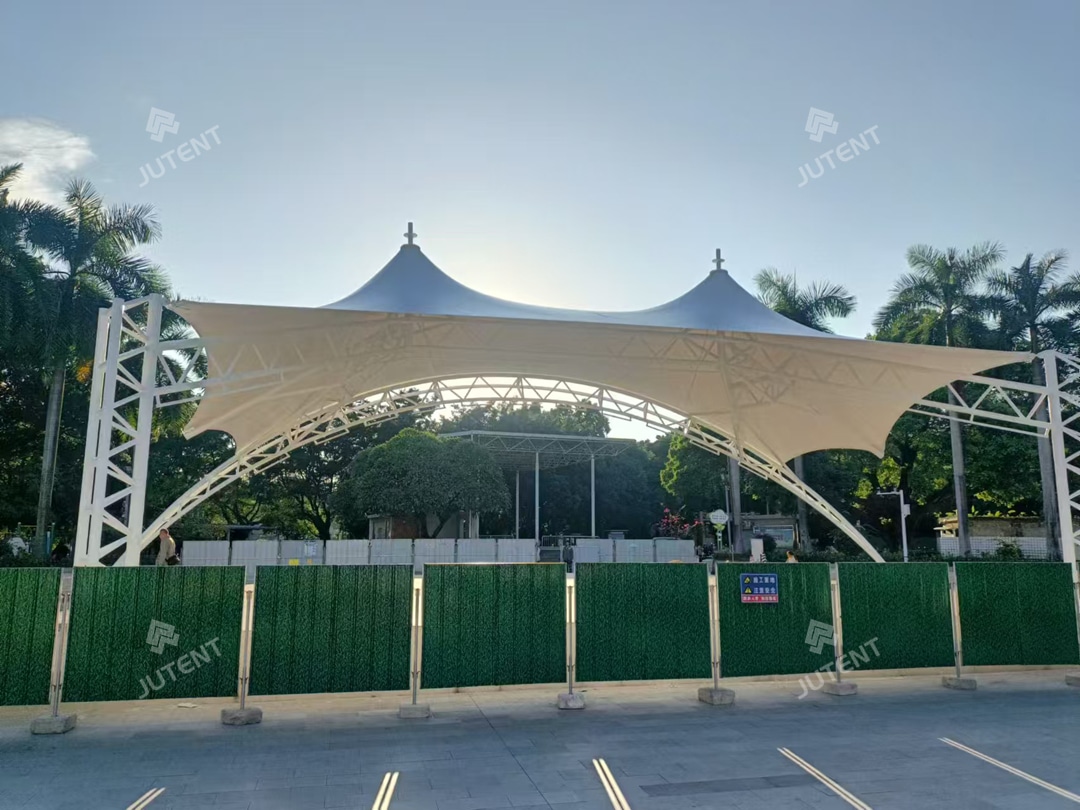

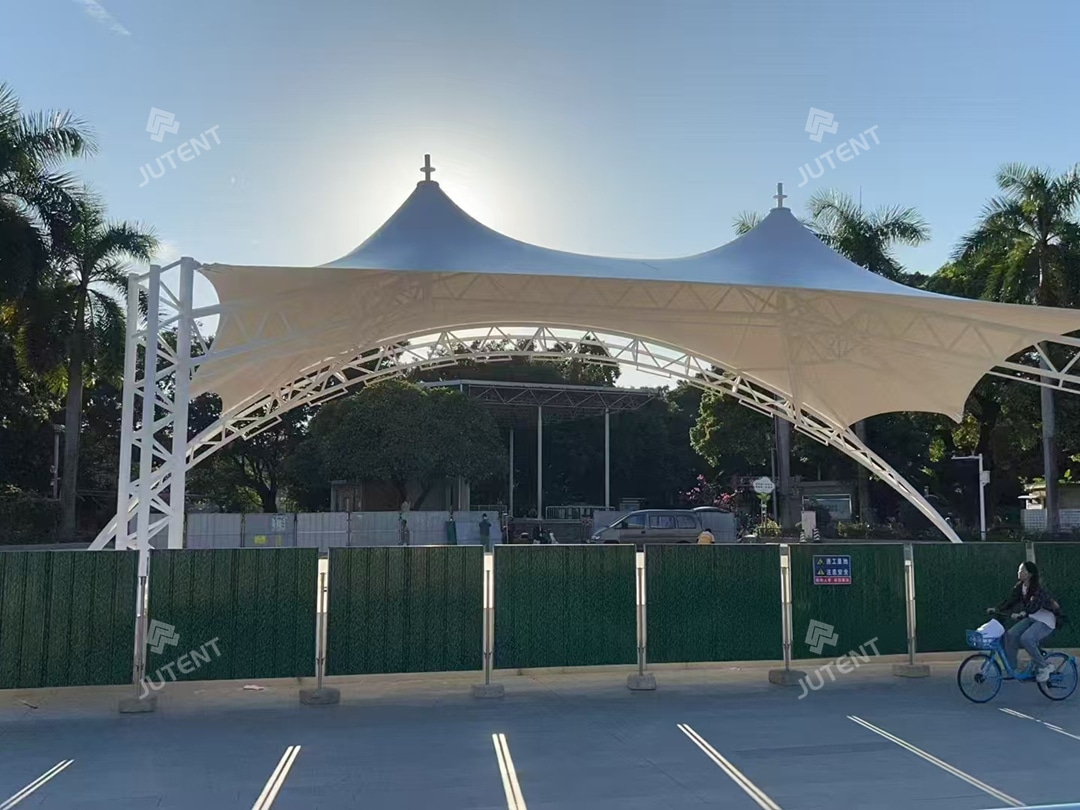

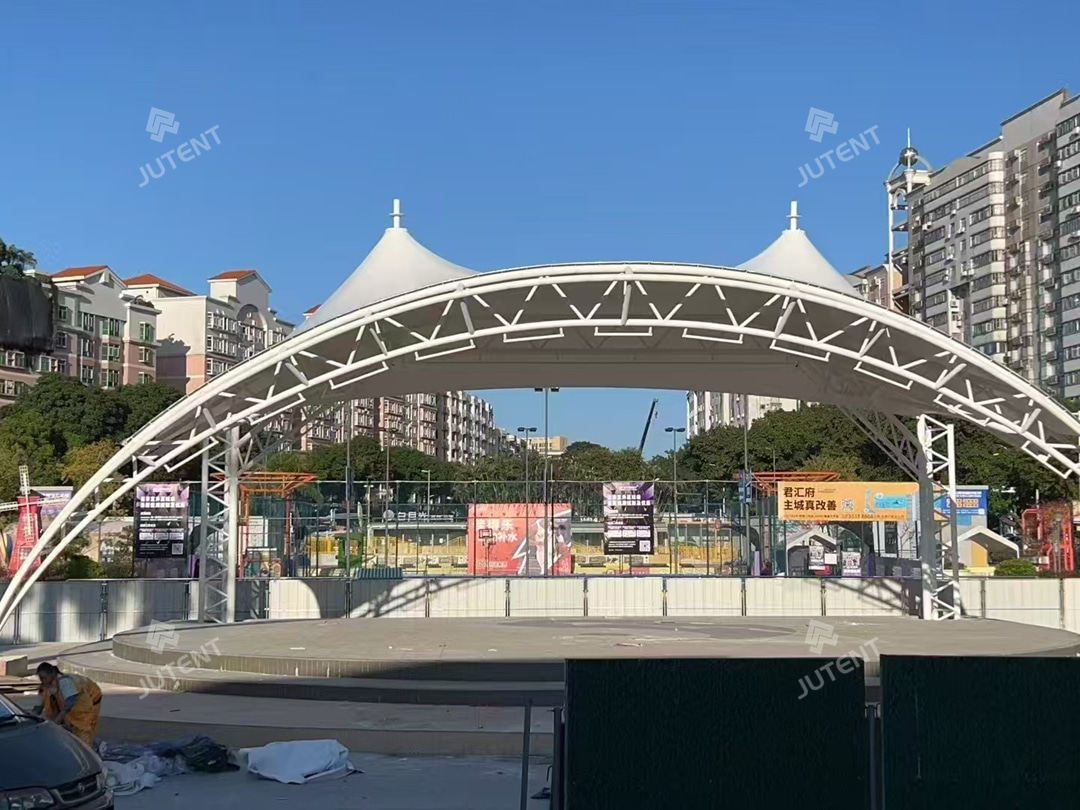

This project is located in People’s Park, Dongguan City, China, and was completed in December 2024. It is a public stage tensile membrane roof project. The canopy measures approximately 24 m × 10 m, with a central height of about 4 m, and a total steel consumption of around 4 tons. The overall construction period was approximately 25 days. The main steel structure is treated with an epoxy zinc-rich primer and white topcoat, providing enhanced durability and corrosion resistance. The roof is covered with 1100 g/㎡ white PVDF architectural membrane, featuring B1 fire-retardant performance, fully complying with safety standards for public and municipal buildings.

Challenge and Solution

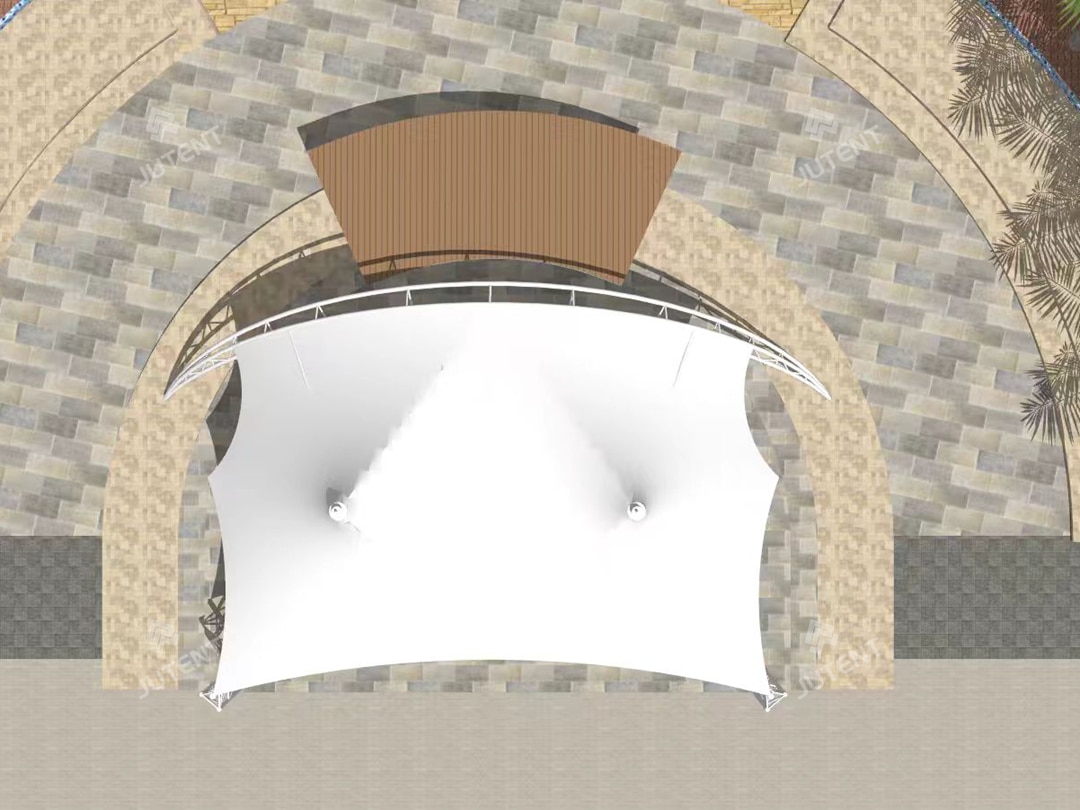

Located in a park plaza stage area, the client required a canopy that provides sunshade and rain protection while maintaining a natural and modern aesthetic for public performances and activities. Based on the site conditions and functional requirements, we designed a curved double-peak tensile membrane structure. This solution offers a lightweight and dynamic appearance while effectively fulfilling functional needs and enhancing the overall visual impact and identity of the stage space.

Installation
and Support

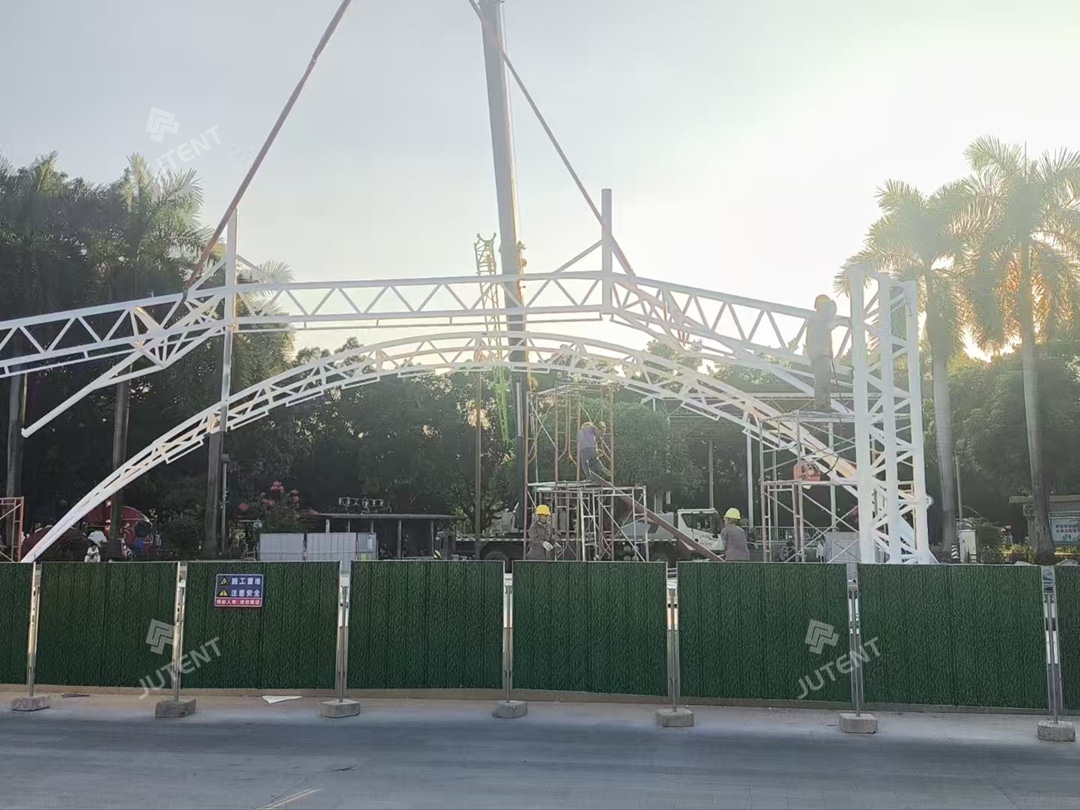

The project was entirely installed by our professional installation team. Considering the high pedestrian traffic in the park, the construction area was properly enclosed to ensure public safety. Key installation works included steel truss lifting, precise control of structural inclination angles, and accurate fixation of soft-edge membrane cables, ensuring a smooth membrane surface and uniform stress distribution while protecting the existing pavement. The project was completed on schedule and met all design and performance expectations.

Application

Curved stage tensile membrane structures are lightweight, visually appealing, and efficient to install, making them ideal for stages, grandstands, public event platforms, and various outdoor performance spaces. For customized tensile membrane solutions or to explore more project references, please feel free to contact our engineering team.
