Racecourse Tensile Membrane Canopy Project

Zhuhai equestrian tensile membrane canopy completed in 2018. 400 m² PVDF membrane roof with steel frame provides durable, lightweight shelter for sports venues.

Location	Zhuhai,China
Complete Date	05/2018
Area （M²）	400
Fabric Type	PVDF
Steel Type	Truss Structure
Design Load	Wind 120 km/h

Project Overview

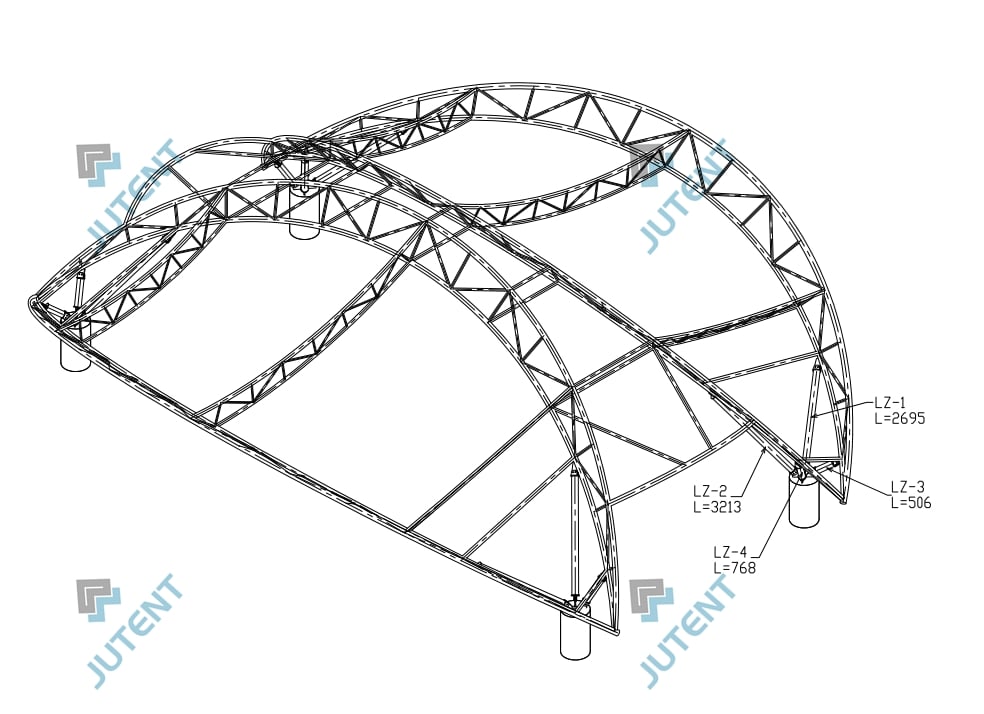

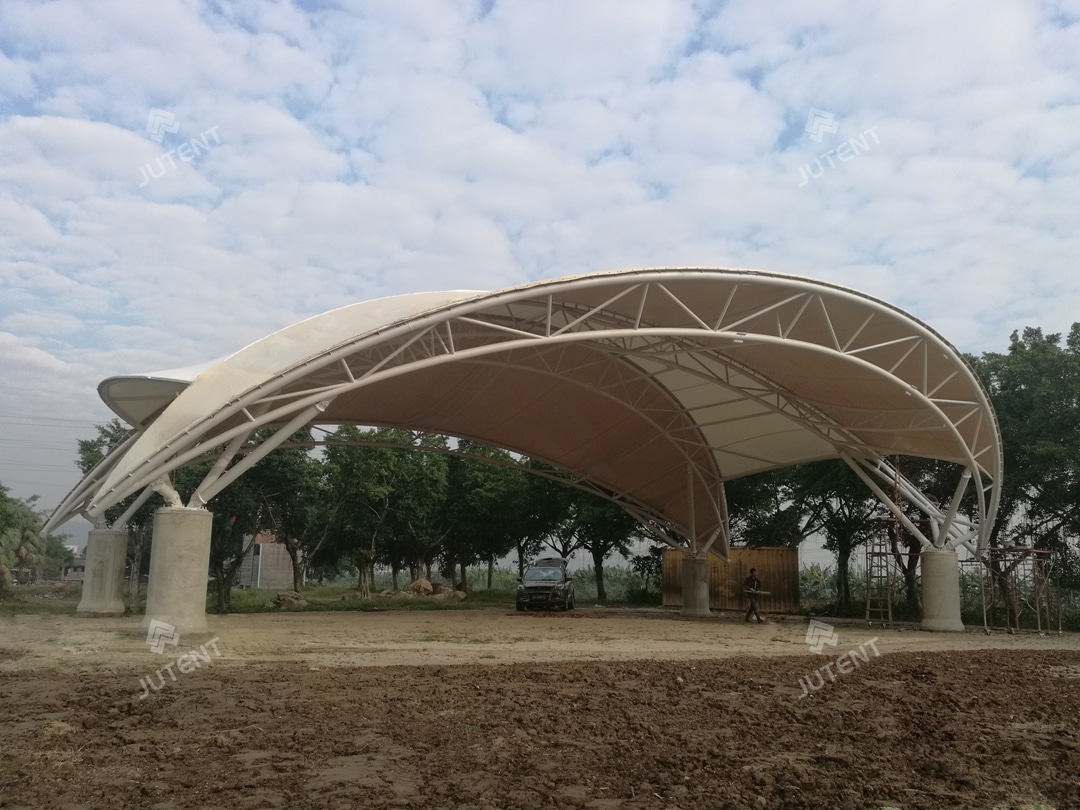

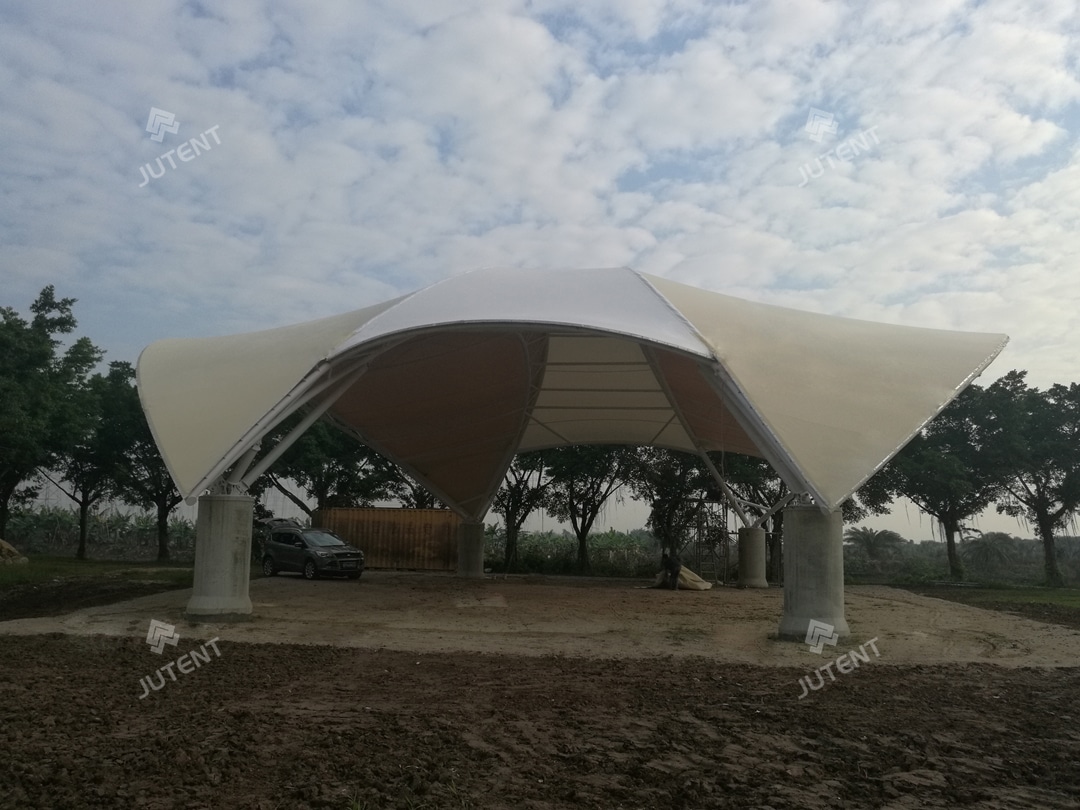

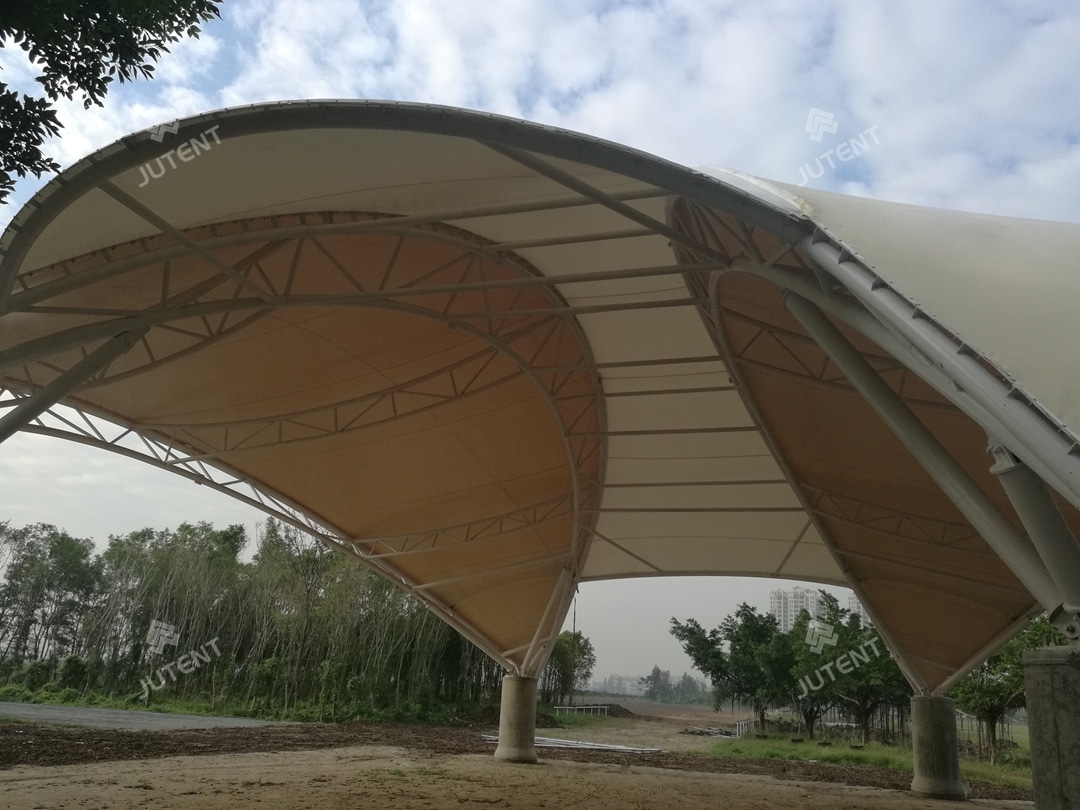

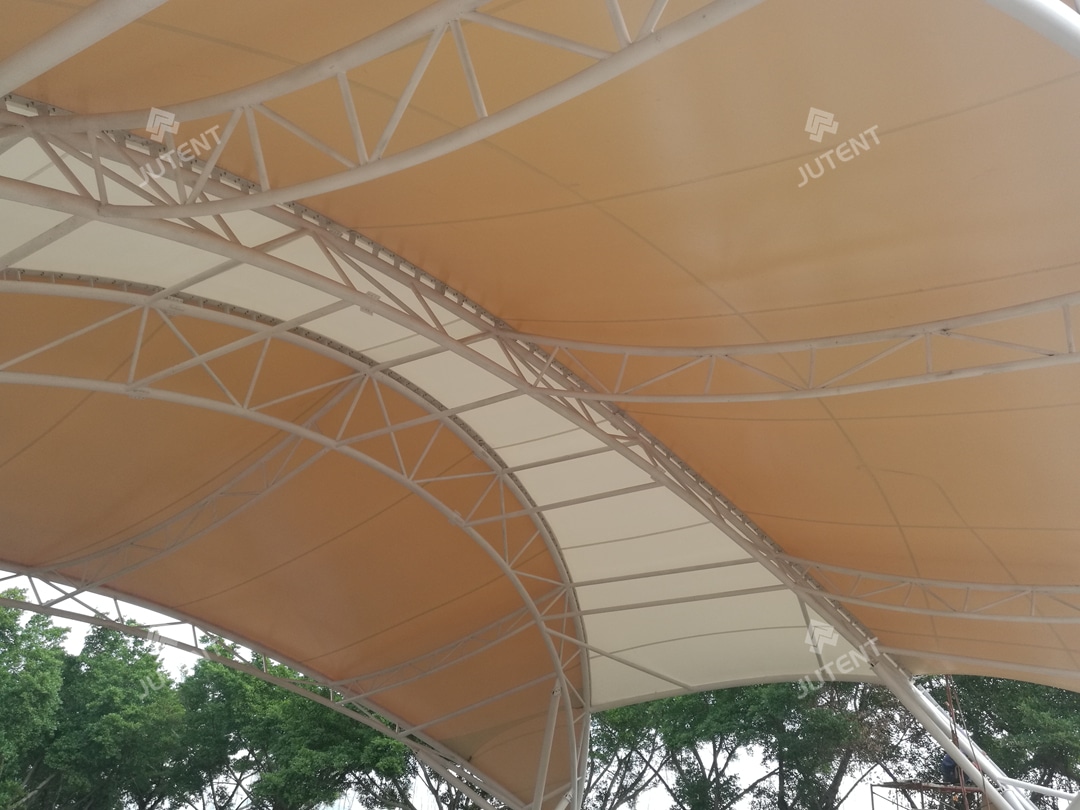

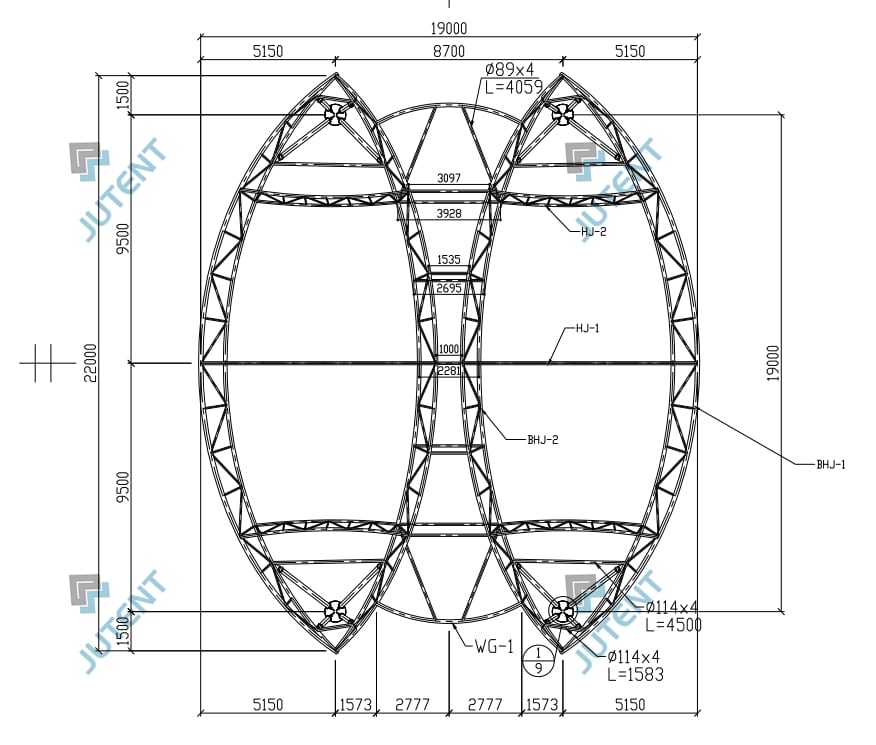

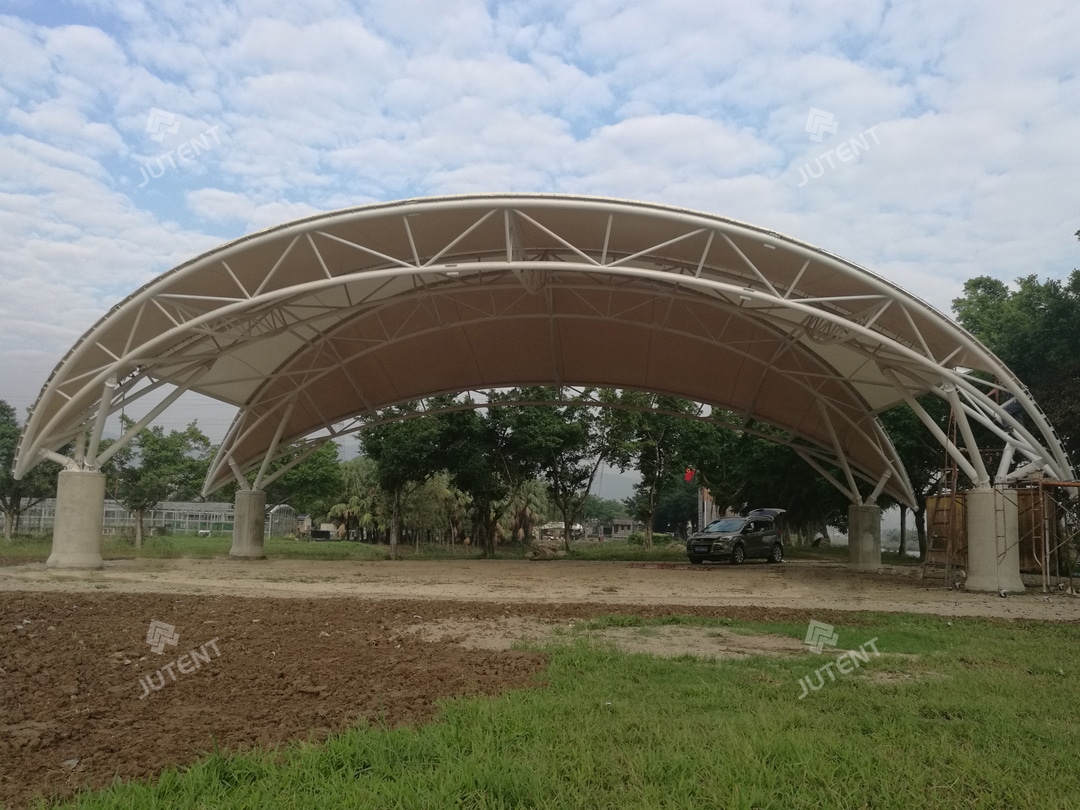

This project is a tensile membrane canopy for an equestrian training venue, located in Zhuhai, China, and was completed in May 2018 with a total construction period of approximately 25 days. The canopy covers an area of about 400 m², with overall dimensions of 22 m × 19 m. The primary structure adopts a steel framework system with a total steel consumption of approximately 16 tons. All steel components are treated with an epoxy zinc-rich primer and white topcoat, providing enhanced durability and corrosion resistance. The roof is finished with 1100 g/m² PVDF architectural membrane in yellow and white, featuring B1 fire-retardant performance, suitable for semi-permanent sports facilities.

Challenge and Solution

As the structure serves an equestrian sports facility, the client required a canopy that combines functional shelter, modern aesthetics, and verified wind-load safety performance. In response, a tensile membrane structure was designed to meet operational needs while maintaining a lightweight, dynamic appearance consistent with sports architecture.

Installation
and Support

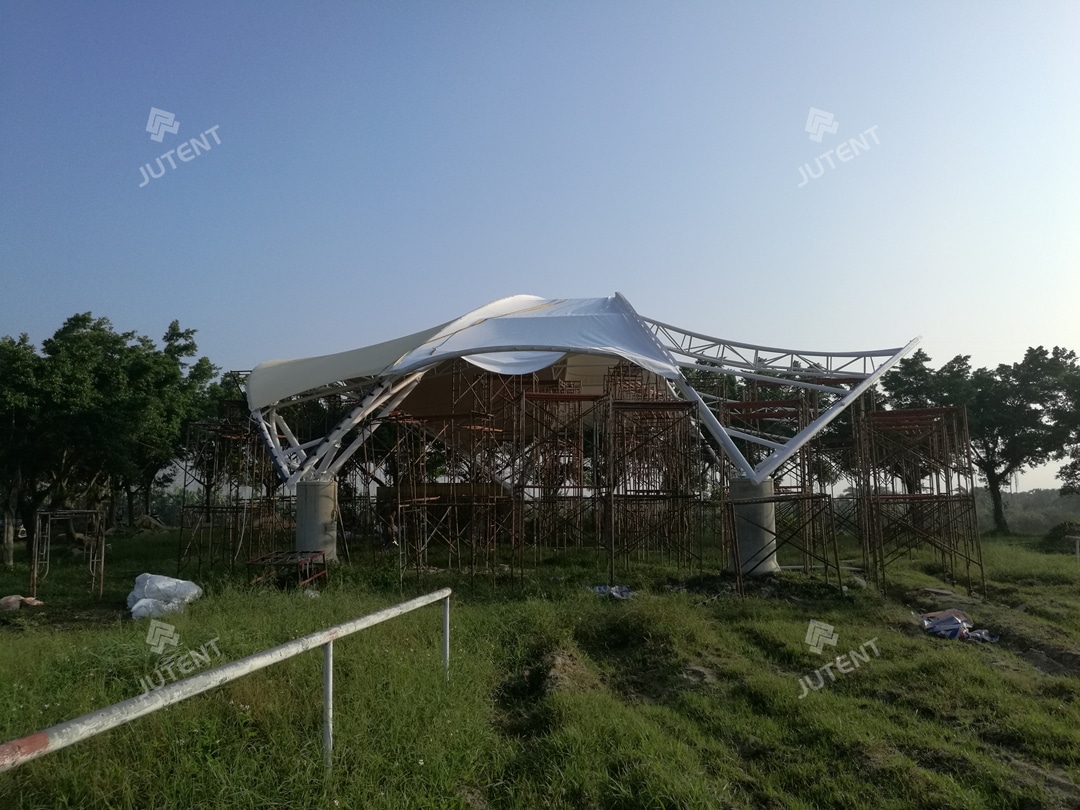

Installation was carried out by our professional team. Due to the non-hardened ground conditions on site, a segmented lifting installation method was adopted. Steel trusses were pre-assembled on the ground, lifted into position by crane, and followed by membrane installation. The project was completed efficiently and safely as scheduled.

Application

Tensile membrane structures offer advantages such as lightweight construction, fast installation, flexible design, and strong spatial adaptability, making them ideal for sports facilities, performance venues, cultural tourism projects, parks, and public activity spaces. For similar projects or customized tensile membrane solutions, please feel free to contact our engineering team.
