Campus Walkway Tensile Canopies: Design for Longer Spans and Aesthetic Demands

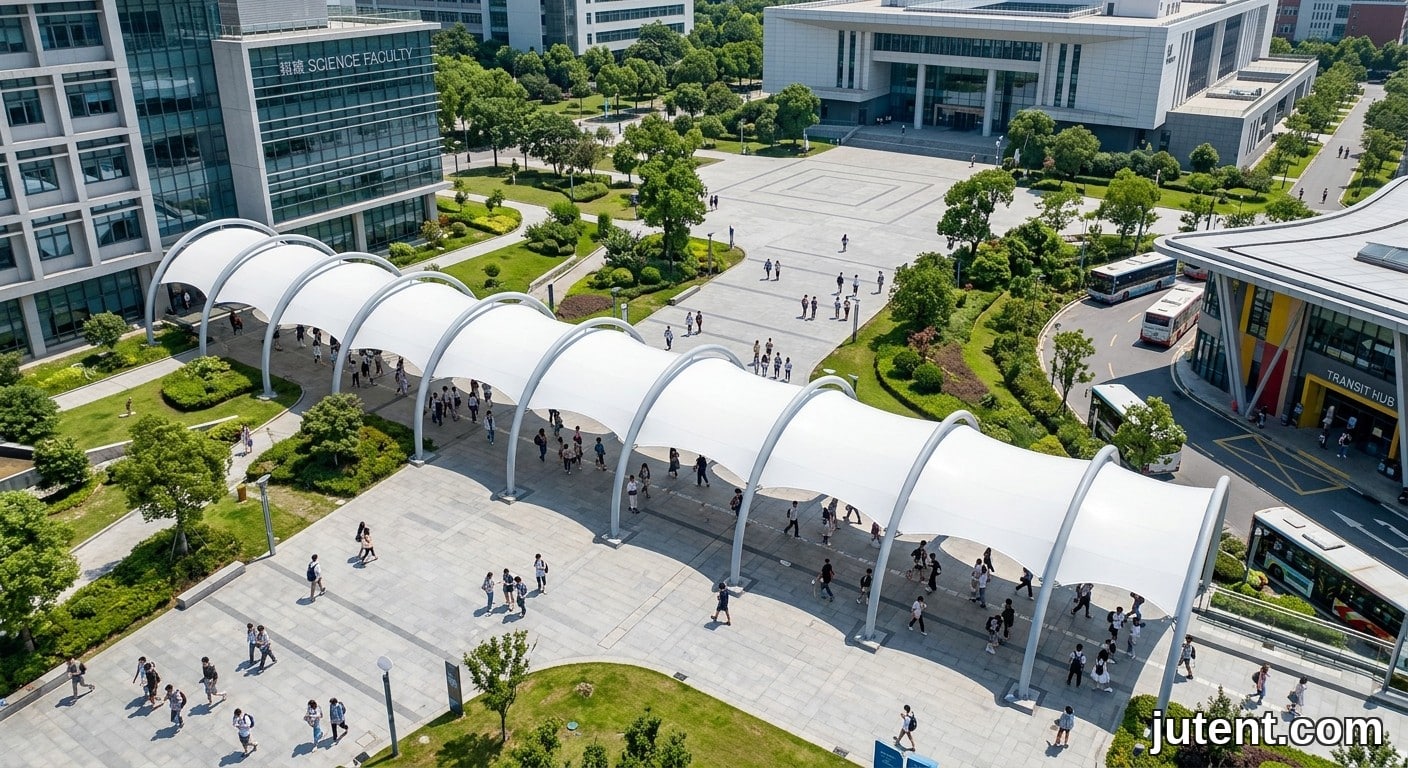

Melbourne, 2023. A university facilities team needed a continuous 120-metre weather protection system linking the science faculty to the main transit hub. The site’s existing underground utilities restricted column placement to a maximum of one footing every 15 metres, and the structure had to match the geometric lines of the adjacent library. Standard steel-roofed walkways could not achieve the required span without heavy, visually intrusive trusses that would dominate the pedestrian plaza. The specification required a campus walkway tensile canopy using a high-tension membrane over a minimal steel frame to bridge the distances while meeting the architectural brief. The final design successfully integrated weather protection without compromising the site’s complex underground utility network.

This scenario is common in tertiary environments. University walkway canopies must balance long continuous runs, strict aesthetic guidelines, and complex site constraints. Specifying these structures requires a different approach to engineering, material selection, and project sequencing compared to standard commercial shade sails.

Why Campus Walkway Canopies Have Different Requirements from School Walkways

Tertiary institutions operate on a different scale than primary or secondary schools. While standard School Walkways typically cover 2-metre-wide paths between adjacent classrooms, a campus covered walkway tensile structure often spans 4 to 6 metres in width to accommodate heavy bidirectional student traffic during peak lecture changeovers.

The primary difference lies in the structural grid. School walkways usually rely on columns spaced every 3 to 4 metres. In a university setting, frequent columns obstruct pedestrian flow and clash with existing infrastructure like 1.5-metre-deep underground service trenches, retaining walls, or established landscaping features. Campus projects demand column spacings of 10 to 20 metres to keep the ground plane clear.

Achieving these spans requires a shift in engineering logic. Instead of simple post-and-beam frames, the structure must utilize barrel vault or hypar (hyperbolic paraboloid) tensile forms. The membrane itself becomes a structural element, carrying wind and snow loads back to the primary steelwork through precise pre-stressing. This reduces the total steel tonnage required per square metre while allowing the canopy to clear wide plazas and arterial pedestrian routes without creating bottlenecks. This structural efficiency is what makes tensile architecture the default choice for modern university master plans.

Span Options: Long-Run Tensile Walkway Systems for Large Campuses

Continuous coverage over long distances dictates the structural configuration. For runs exceeding 50 metres, repeating modular bays provide the most efficient engineering solution. Unlike the smaller systems detailed in our School Walkway Canopy Guide, tertiary campus walkway shade systems utilize high-grade structural steel—typically 250×250×8mm SHS for primary columns—to support extended spans under high wind loads.

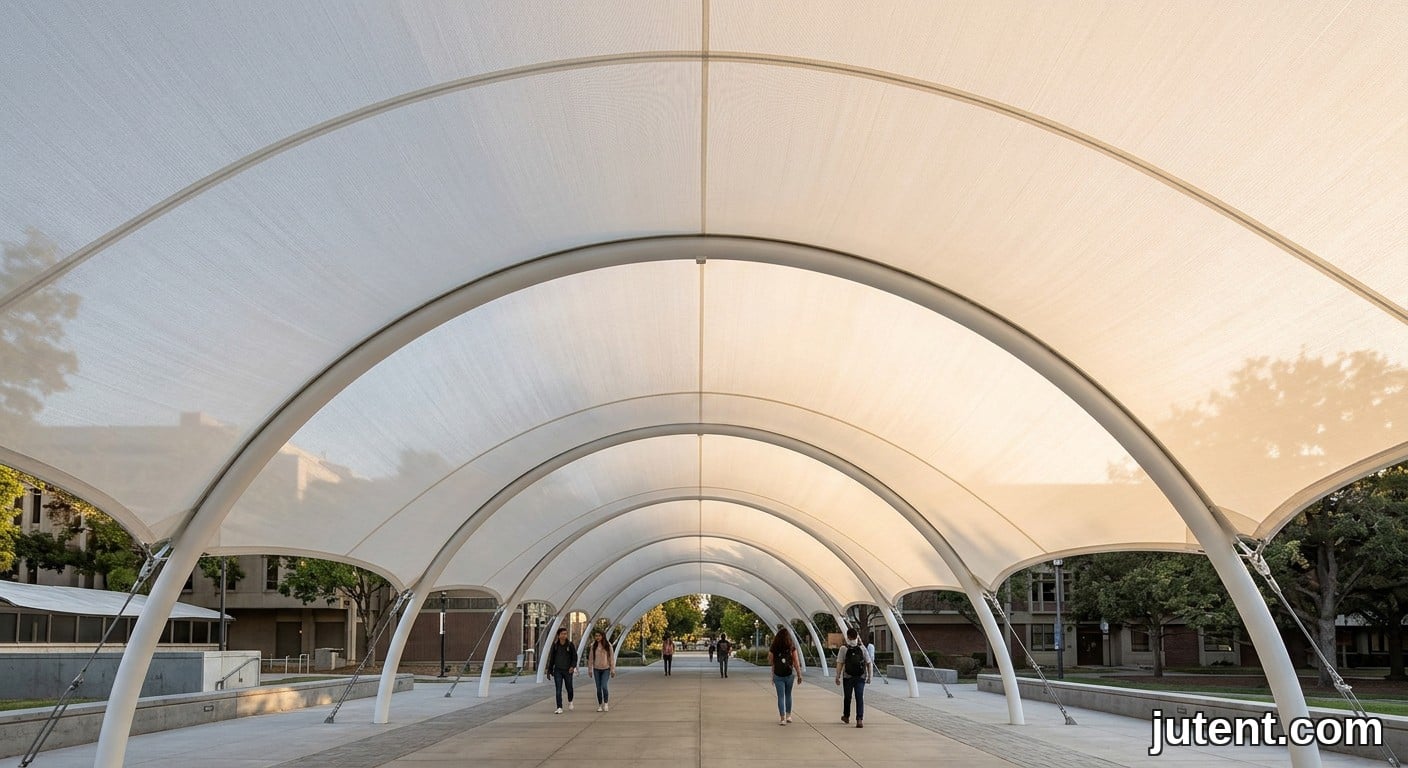

The barrel vault configuration is the standard for long-run applications. It easily achieves 15-metre column spacings and 5-metre widths while maintaining a consistent 3.5-metre clearance height for maintenance vehicle access. The curved membrane profile naturally sheds heavy rain and prevents ponding. This rapid runoff is critical for continuous structures where water accumulation can cause progressive membrane failure and structural overloading.

For sites requiring directional changes or elevation shifts, flying mast configurations offer flexibility. By using tension cables to support the membrane from a central mast, the canopy navigates corners or stepped terrain without requiring custom-curved steel beams. This modular approach allows contractors to install the primary steelwork rapidly, followed by membrane tensioning, keeping site disruption to an absolute minimum during active academic semesters. This method also eliminates the need for heavy lifting equipment on restricted campus pedestrian paths, ensuring safety zones remain intact.

Aesthetic Considerations: How Tensile Canopies Fit Campus Architecture

University master plans enforce strict visual guidelines. A campus pedestrian canopy cannot look like an industrial add-on; it must integrate with both heritage buildings and modern glass facades. Tensile membrane structures achieve this through geometric flexibility and material finish.

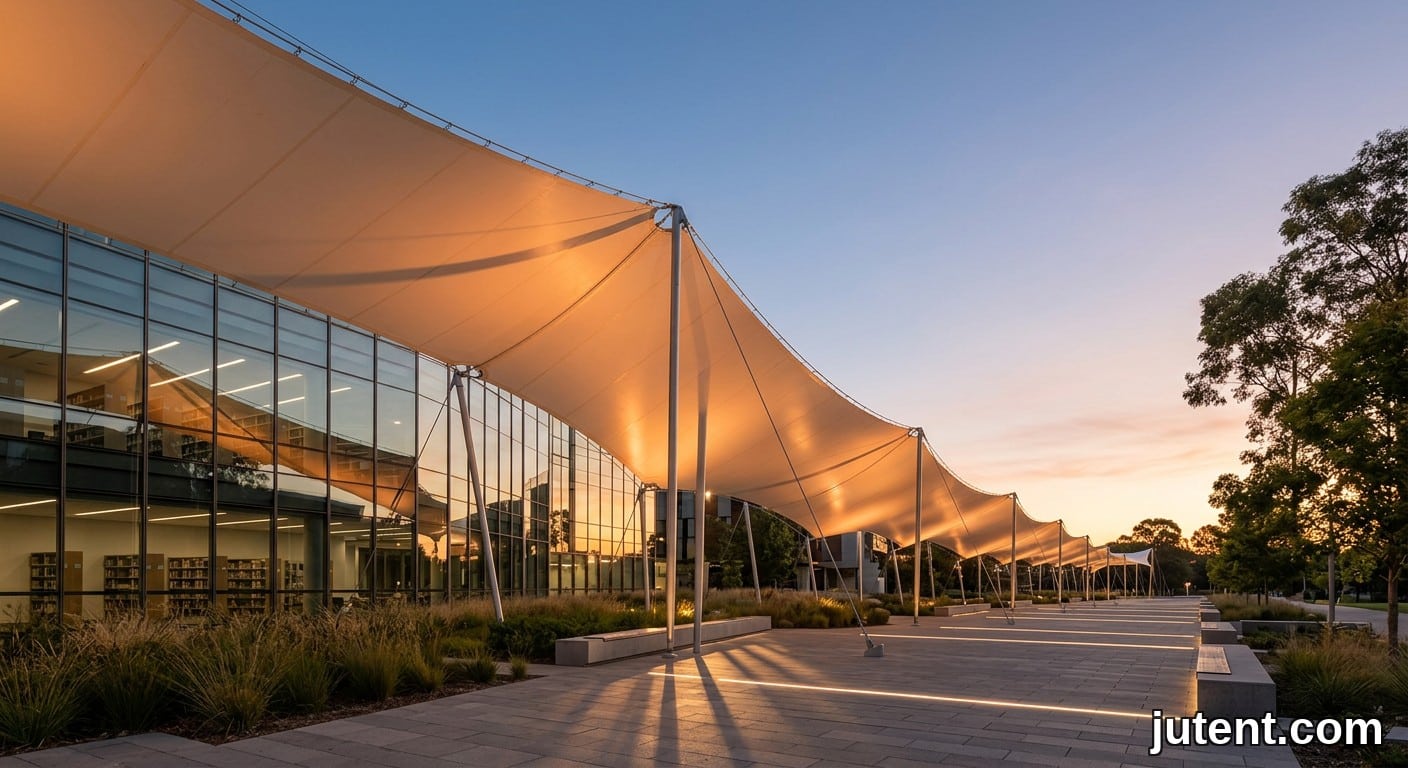

The membrane form is the primary visual driver. Conic structures provide a striking, modern aesthetic suitable for main entrances or transit interchanges, while low-profile hypar sails offer a subtle, flat trajectory that does not obscure the sightlines of adjacent multi-story buildings.

Color and finish selection directly impacts architectural integration. While white 1050g/㎡ PVDF is the default for maximum light transmission (typically 12-15%) and thermal reflection, the supporting steelwork provides the opportunity for campus branding. Steel frames are typically hot-dip galvanized and finished with a two-pack polyurethane topcoat, allowing exact color matching to existing campus infrastructure. This attention to detail ensures the new structure feels like a deliberate architectural choice rather than an afterthought.

Across 420+ projects in 30+ countries, the most common aesthetic error we see is specifying a high-gloss membrane finish in areas overlooked by multi-story faculty buildings. The resulting glare causes significant discomfort for occupants above. We specify matte-finish PVDF membranes for any canopy situated below adjacent building sightlines to eliminate this issue entirely.

Approval Processes: What University Campus Projects Typically Require

Tertiary campus projects involve multiple stakeholders, making the approval process significantly more rigorous than standard commercial builds. Facilities managers, campus architects, and external engineering consultants all review the canopy specification before a contractor can break ground.

Wind load certification is the primary hurdle. In a recent university project, the canopy was situated in a wind tunnel created by adjacent high-rise faculty buildings. Standard regional wind ratings were insufficient. We specified 200×200×8mm SHS primary columns with moment-connected base plates to handle the localized wind acceleration up to 45m/s—catching this at the design stage saved the project a complete re-engineering after permit submission.

Fire performance is the second critical approval metric. Because these canopies often connect directly to building egress points, the membrane must meet strict fire retardancy standards. We specify materials that achieve a Class 1 or Class 0 fire rating under BS 476, ensuring the membrane will not propagate flame or produce burning droplets in the event of a fire. Providing these specific material test certificates and localized engineering calculations during the initial tender phase prevents costly redesigns during the final building approval stage. Clear documentation is the key to keeping the project timeline on track and avoiding delays during the construction phase.

Cost Benchmarks: Campus Walkway Tensile Canopy Supply Cost

A 100-metre continuous campus walkway tensile canopy typically costs between $450 and $850 per square metre (supply only). This range is wide because tertiary projects carry specific engineering and material variables that standard shade structures do not.

The primary cost driver is the column spacing. Pushing the span from 10 metres to 20 metres reduces the number of footings the contractor must pour, but it exponentially increases the size of the steel members and the required tensioning hardware. A 20-metre clear span requires heavier steel profiles and higher-capacity stainless steel cables, pushing the supply cost toward the upper end of the benchmark.

Membrane selection also dictates the final figure. A standard 900g/㎡ PVDF membrane is sufficient for a 15-year design life and sits at the lower end of the cost spectrum. Upgrading to a 1200g/㎡ PVDF or a PTFE membrane extends the design life to 25+ years but increases the membrane material cost by 30-50%. For university facilities managers, the higher initial capital expenditure is almost always offset by the reduction in maintenance and replacement cycles over the campus master plan timeline. Factoring these variables into the initial budget prevents unexpected cost overruns during the procurement phase.
