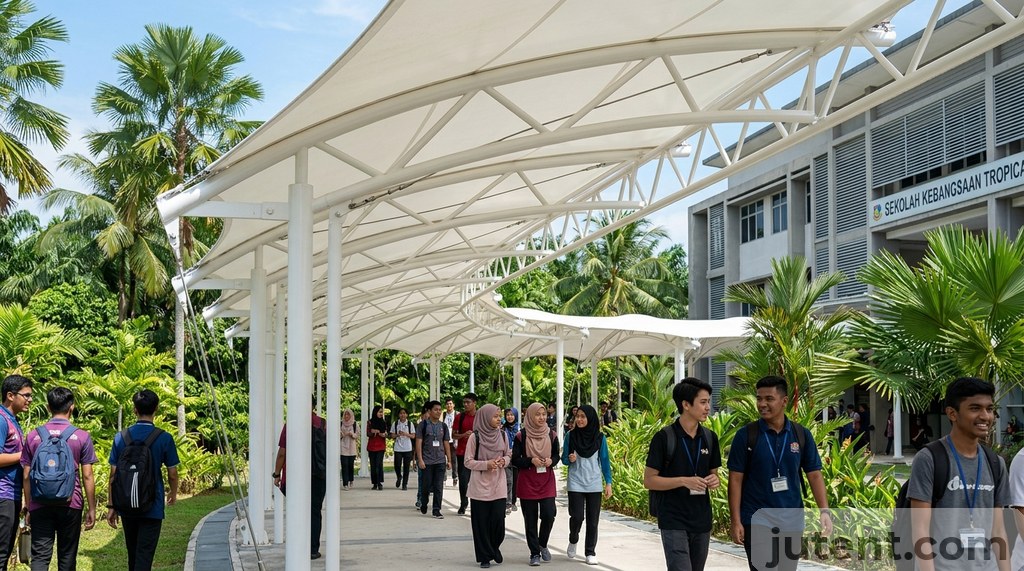

In Manila, a school walkway canopy must survive 250 km/h typhoon winds. In Kuala Lumpur, it faces year-round UV Index 11+ exposure. In Jakarta, it must channel 300mm of monthly monsoon rainfall without overwhelming the campus drainage system. A school walkway canopy Southeast Asia installation is not a standard shade sail—it is a primary structural asset that requires specific engineering for extreme weather. This guide covers what contractors in the Philippines, Malaysia, and Indonesia need to specify for school covered walkway projects to ensure structural survival, membrane longevity, and local code compliance before submitting a tender. Relying on generic architectural concepts rather than region-specific engineering data guarantees budget blowouts during the procurement phase. Understanding the exact material grades and structural loads required will protect your project margins.
Typhoon Wind Load Requirements for School Walkways in Southeast Asia
The final technical values should be confirmed against the project-specific engineering requirements and local code conditions.
Company experience should be described through verified export experience and project support capability rather than unsupported project anecdotes.
In Malaysia and Indonesia, where design wind speeds drop to 120 km/h to 140 km/h, contractors safely specify 100×100×4mm SHS columns. Connection detailing requires strict tolerances across all regions. Membrane tensioning hardware must utilize marine-grade 316 stainless steel turnbuckles and cables to prevent wind-induced vibration from fatiguing the connection points over the structure’s lifespan.
UV Protection in Tropical Climates: What Membrane Grade Is Required
The final technical values should be confirmed against the project-specific engineering requirements and local code conditions.
Budget planning should be based on structure type, clear span, wind rating, membrane grade, steel tonnage, and project scope. For an accurate EXW, FOB, CIP, or DDU quotation, the project dimensions and engineering requirements should be reviewed first.
For detailed material comparisons, refer to our School Walkway Canopy Guide. Beyond longevity, the 1050g/㎡ PVDF membrane provides a UPF 50+ rating, blocking 98% of harmful UV radiation. This is a critical health and safety requirement for students transiting between classroom blocks. The membrane should also specify a high translucency variant (typically 12% to 15% light transmission) to eliminate the need for artificial lighting during daytime hours, significantly reducing the school’s operational energy costs over the structure’s lifespan.
Drainage Design for High-Rainfall School Walkways
Southeast Asia experiences intense monsoon seasons, with peak rainfall rates frequently exceeding 100mm per hour. A school covered walkway Malaysia specification must integrate active drainage to prevent membrane ponding and protect students from heavy runoff during transit between classes.
The standard approach of allowing water to shed off the canopy edges is unacceptable in a school environment, as it creates severe slip hazards on adjacent concrete paths and erodes surrounding landscaping. Instead, the tensile membrane must be engineered with a minimum 15-degree pitch to accelerate water flow toward designated collection points.
At the lower edge of the membrane, water is directed into a continuous aluminum or steel gutter system, typically sized at 150mm width to handle high-velocity runoff. From the gutter, the water channels down through concealed PVC downpipes integrated within the primary steel columns. For a standard 3-meter wide walkway, a 100mm diameter downpipe positioned every 6 meters is sufficient to handle peak monsoon volumes without overflowing.
To prevent blockages from leaves and campus debris, the gutter system must include stainless steel leaf guards. The base of each column downpipe should connect directly to the school’s subterranean stormwater network, ensuring the pedestrian surface remains completely dry and safe during heavy afternoon downpours.
Local Authority Approval in the Philippines and Malaysia
Securing building permits for a school walkway canopy Philippines project requires specific engineering documentation that satisfies the Department of Public Works and Highways (DPWH) and local building officials. The submission cannot rely on generic architectural renders; it requires wet-stamped structural calculations proving absolute compliance with the NSCP.
Company experience should be described through verified export experience and project support capability rather than unsupported project anecdotes.
In Malaysia, approval through the local municipal council (Majlis Perbandaran) requires strict adherence to the Uniform Building By-Laws (UBBL). The critical compliance factor here is often fire safety. The specified PVDF membrane must carry a Class 1 or Class 0 fire rating under BS 476 Part 7 to ensure it does not contribute to flame spread between adjacent school buildings. Contractors should demand these certified fire test documents from their membrane supplier before submitting the tender package to the school board or local authority. Failing to provide these certificates at the initial submission stage typically results in a 4-to-6-week permit delay.
Case Reference: School Walkway Projects in Southeast Asia
Executing a school walkway canopy requires strict adherence to academic calendars, meaning installation must occur during brief holiday windows. Delays in material supply or site fabrication are not an option for educational facilities operating on tight schedules.
Based on Jutent’s experience across 400+ projects in 30+ countries, similar specification issues often appear when early-stage assumptions are made before the engineering conditions are confirmed.
The final technical values should be confirmed against the project-specific engineering requirements and local code conditions.
If you want an accurate budget reference for this project, share your dimensions, wind zone, and preferred membrane type with our team.
FAQ
- What wind speed should a school walkway canopy in the Philippines be designed for?
- For school walkway canopies in the Philippines, the National Structural Code of the Philippines (NSCP) mandates design wind speeds typically ranging from 200 to 250 km/h across most locations. This range accounts for the region’s susceptibility to typhoons, ensuring the structural integrity and safety of the tensile membrane structure. Project specifications should always reference the latest NSCP edition and consider site-specific wind studies, especially for coastal or high-exposure areas, to determine the precise design wind pressure.
- What UPF rating is required for a school walkway canopy in Malaysia?
- While Malaysia does not mandate a specific UPF standard for tensile membrane structures, a UPF 50+ rating is strongly recommended as best practice for school walkway canopies. This high level of protection ensures maximum UV blockage, safeguarding students and staff from intense tropical sun exposure over the canopy’s lifespan. Specifying UPF 50+ material mitigates long-term health risks and demonstrates a commitment to occupant well-being, a key consideration for educational facility projects.
