Dubai, July. Ambient temperatures routinely hit 48°C, surface temperatures on exposed steel exceed 65°C, and the UV Index peaks at an unforgiving 11+. Standard industrial tent specifications imported without modification will suffer severe plasticizer migration and UV degradation within 36 months. To engineer a durable warehouse tensile canopy Middle East logistics hubs can rely on, contractors must implement structural and material adaptations that account for extreme thermal expansion, high solar radiation, and strict regional wind codes.
Corrosion protection and service life should be described according to the selected protection system, project environment, and maintenance conditions rather than as an unconditional lifespan guarantee.
Gulf Climate: Why Standard Warehouse Tensile Canopy Specs Don’t Apply
The Gulf climate forces a complete recalculation of standard tensile structures. European or North American specifications typically prioritize snow loads and moderate wind. In the Middle East, the primary structural stressors are thermal cycling, UV degradation, and abrasive airborne sand.
A warehouse tensile canopy in the UAE or Saudi Arabia experiences daily temperature swings of up to 20°C. This thermal cycling causes significant expansion and contraction in the primary steel framework and the tensioned membrane. If connection details fail to accommodate this movement, the membrane will either over-tension and tear at the catenary cables or lose pre-stress, leading to ponding during heavy winter rain events.
Standard PVC membranes (typically 650g/㎡ to 850g/㎡) lack the protective topcoats required for this environment. Under extreme heat, plasticizers in standard PVC migrate to the surface, causing the fabric to become brittle and discolor within three years. For Warehousing applications in the Gulf, the baseline specification must shift to high-grade PVDF or PTFE architectures.
Cooling loads inside the structure also dictate the specification. A standard single-skin membrane transmits up to 15% of solar radiation. In a 45°C environment, this creates a greenhouse effect that renders the interior unusable for temperature-sensitive logistics. The design must mitigate this heat transfer at the material level before engineers even consider HVAC systems.
UV and Heat Protection: Membrane Grade for Gulf Projects
High-grade PVDF at 1050g/㎡ handles 95% of Gulf logistics projects. Standard PVC is viable only for temporary structures used under 24 months.
PVDF outperforms standard PVC due to its fluorocarbon surface layer, which reflects rather than absorbs UV radiation. At UV Index 11-12 (typical Gulf summer), a 1050g/㎡ PVDF membrane retains tensile strength within 10% of its original specification after 15 years. This surface layer also provides self-cleaning properties, preventing fine desert sand from embedding into the fabric weave.
For a heat-resistant warehouse tensile canopy, specify thermal transmission properties. A standard white PVDF membrane reflects approximately 75% of solar energy. To further reduce interior temperatures, specify a double-skin membrane system with an air gap or insulation layer. This configuration reduces interior ambient temperatures by 8°C to 12°C compared to single-skin structures, lowering cooling operational costs.
As noted in the Warehouse Tensile Canopy Guide, specify an anti-wicking treatment on the base yarn. High humidity in coastal cities like Dubai and Doha causes fungal growth if moisture penetrates micro-cracks at membrane edges. Finally, the membrane must carry fire retardancy ratings like NFPA 701 or DIN 4102 B1 to meet regional civil defense requirements.
Wind Load: UAE and Saudi Standards
Wind engineering in the Middle East requires strict adherence to local municipal codes, which often exceed international baselines due to the risk of shamal winds and coastal exposure.
A warehouse tensile canopy in Saudi Arabia must comply with the Saudi Building Code (SBC), specifically Chapter 7, which dictates wind load calculations. For coastal industrial zones like Dammam or Jeddah, the basic design wind speed is typically set at 40 m/s (144 km/h) to 45 m/s (162 km/h), depending on the exact exposure category and building height.
Similarly, a warehouse tensile canopy in Qatar or the UAE requires engineering calculations based on ASCE 7-16 or local municipal guidelines. Dubai typically requires a basic wind speed of 38 m/s (136 km/h) for 3-second gusts.
To meet these loads, the primary steel structure cannot rely on standard lightweight aluminum profiles used in temporary event tents. The specification must mandate hot-dip galvanized structural steel (minimum S355 grade) with moment-connected base plates. The galvanization thickness should be a minimum of 85 microns to prevent corrosion in high-salinity coastal environments. The membrane itself must be engineered with high-frequency welded seams capable of withstanding shear forces exceeding 4000 N/5cm. Foundation designs must also account for local soil conditions, often requiring deep concrete footings or micro-piles in areas with low soil bearing capacity or high water tables.
Case Reference: Projects in the Gulf Region
Across 420+ projects globally, the most common installation error we see in the Middle East is under-tensioning the membrane at the perimeter. Contractors often try to avoid wrinkles during installation in extreme heat, failing to achieve the specified pre-stress. The result is a structure that looks clean on day one but develops severe ponding and wind-whip within two years.

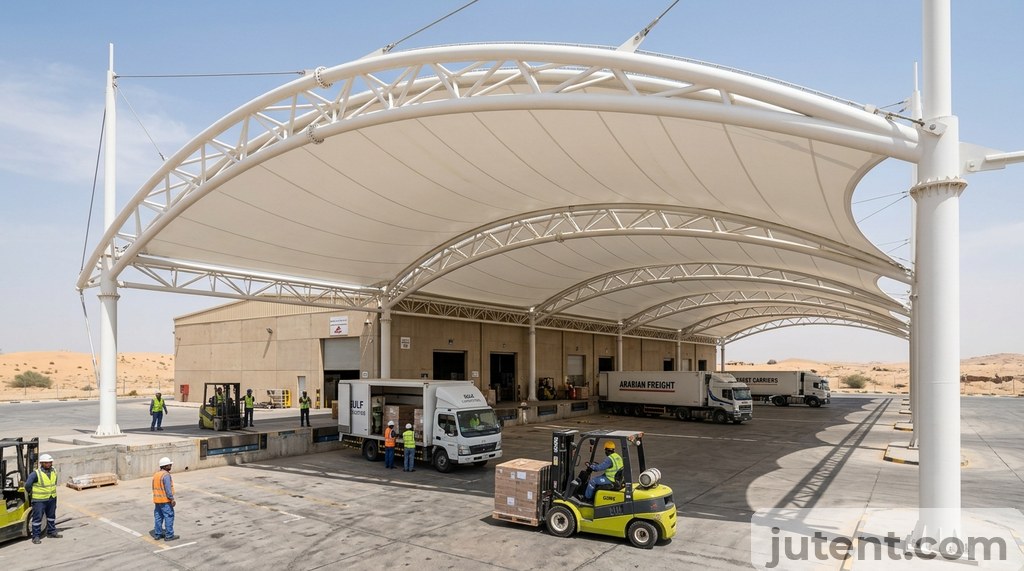

In a recent logistics project in the Jebel Ali Free Zone (JAFZA), the client required a 30m × 60m clear-span structure with an 8m eave height to accommodate heavy machinery and racking systems. The site’s coastal location required a 140 km/h design wind load and maximum corrosion resistance.
We specified 200×200×8mm SHS primary columns, hot-dip galvanized to 100 microns, and a 1050g/㎡ PVDF membrane. Catching the wind load requirements at the design stage and utilizing a heavy-duty steel portal frame rather than an aluminum truss saved the project a complete re-engineering after permit submission. The structure was engineered to accommodate the 20°C daily thermal expansion without stressing the membrane plates, ensuring the 15-year design life was protected. The entire structural kit was delivered pre-cut and pre-drilled, allowing the local site team to erect the frame without field welding. This modular approach reduced site time by 40% and eliminated the risk of damaging the galvanization layer through on-site modifications.
If you want an accurate budget reference for this project, share your dimensions, wind zone, and preferred membrane type with our team.
FAQ
- What membrane grade is recommended for a warehouse tensile canopy in the UAE?
- For a warehouse tensile canopy in the UAE, the optimal membrane grade is determined by a comprehensive assessment of project-specific engineering requirements, including anticipated wind loads, snow loads (if applicable for specific regions or high altitudes), and the building’s intended lifespan. Local building codes and regulations, particularly those pertaining to fire resistance and material durability in extreme heat and UV environments, must also be meticulously cross-referenced. Consulting with a structural engineer and the membrane manufacturer’s technical team is crucial to ensure the selected material meets all performance criteria and compliance standards.
- Do warehouse tensile canopy structures in Saudi Arabia need to meet specific building codes?
- Yes. Saudi Building Code (SBC) Chapter 7 covers wind loads. Any industrial or commercial canopy erected in the Kingdom must have its structural calculations aligned with these exact parameters. Municipalities will reject permit applications if the engineering drawings do not explicitly reference and satisfy the wind speed and load combinations dictated by the SBC for the specific project location, whether inland or coastal.
