Budget planning should be based on structure type, clear span, wind rating, membrane grade, steel tonnage, and project scope. For an accurate EXW, FOB, CIP, or DDU quotation, the project dimensions and engineering requirements should be reviewed first.
The 6 Factors That Drive Grandstand Canopy Cost
Six primary variables dictate the final grandstand shade structure price. Structural form and span depth are the heaviest cost drivers, followed by membrane selection, wind load requirements, foundation complexity, and supply scope.
- Structural Form: A simple post-and-beam design is the most economical. Cantilever structures, which eliminate front columns to preserve sightlines, require heavier steel sections and deeper foundations, increasing costs by 30–50%.
- Span Depth: The distance from the rear column to the front drip edge dictates the steel tonnage. A 12-metre cantilever requires exponentially more steel than an 8-metre cantilever to resist deflection under wind uplift.
- Membrane Grade: Upgrading from standard PVDF to PTFE increases the membrane material cost by roughly 2.5x, though it extends the design life past 25 years.
The final technical values should be confirmed against the project-specific engineering requirements and local code conditions. - Foundation Requirements: Poor soil bearing capacity requires deeper piles or larger pad footings, shifting civil costs upward.
- Supply Scope: A supply-only Grandstand Canopy kit shifts installation risk to the local contractor, lowering the upfront factory price compared to a full turnkey installation.

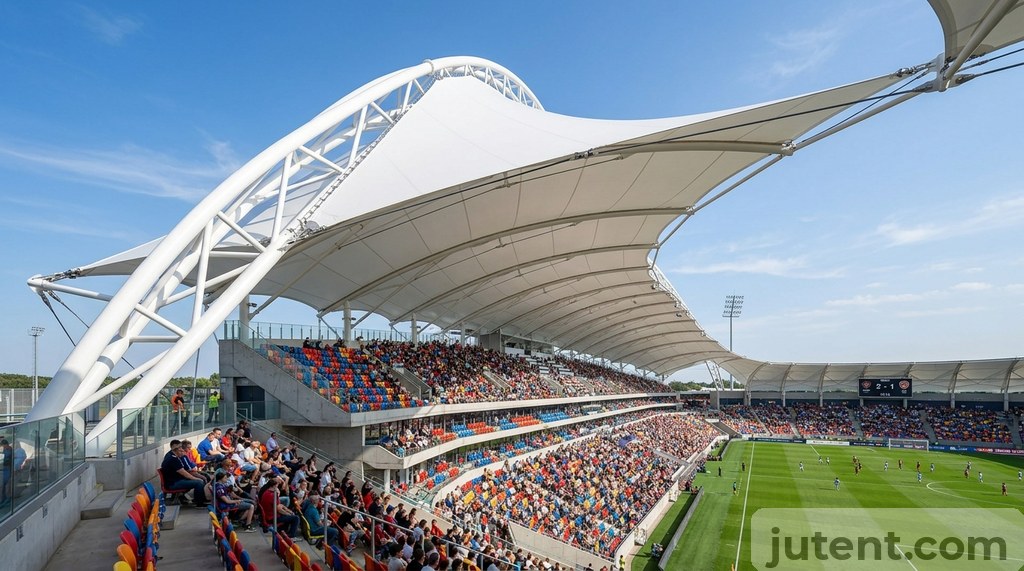

Cost by Structural Form: Cantilever vs Cable-Stayed vs Arched
The architectural geometry of the roof dictates the steel tonnage, which makes up 60–70% of the total material cost.
Cantilever Structures: This is the industry standard for stadiums because it removes front columns, ensuring unobstructed views for spectators. However, supporting a 10-metre to 15-metre roof entirely from the rear requires massive primary columns (often 400mm+ diameter CHS) and heavy moment connections at the base. Expect a stadium canopy cost per sqm of $90–$120 ex-factory for this configuration.
Cable-Stayed Structures: Using high-tensile stainless steel cables to support the front edge of the canopy reduces the required steel mass in the primary beams. This form is highly efficient for deep spans exceeding 15 metres. The cost per square metre is similar to a cantilever, but it becomes more economical at larger scales due to the significant reduction in structural steel weight.
Arched or Post-and-Beam Structures: The most cost-effective option for community sports fields and school bleachers. By placing columns at both the front and rear, the steel sections can be significantly lighter. Costs typically range from $55–$75/m². For more details on selecting the right geometry, see our Grandstand Canopy Structures Guide.
Membrane Grade Impact: PVDF vs PTFE Cost Difference
Membrane selection is the second largest variable in a tensile grandstand roof cost. The decision comes down to upfront budget versus required design life and fire compliance.
The final technical values should be confirmed against the project-specific engineering requirements and local code conditions.
PTFE (Polytetrafluoroethylene): Woven fiberglass coated with PTFE is the premium choice for major international stadiums. It offers a 25+ year lifespan, Class 1 fire rating, and superior self-cleaning properties. However, PTFE is brittle before tensioning, requires specialized handling, and demands high-temperature iron welding. Specifying PTFE typically increases the membrane portion of the budget by 150–200% compared to standard PVDF.
Based on Jutent’s experience across 400+ projects in 30+ countries, similar specification issues often appear when early-stage assumptions are made before the engineering conditions are confirmed.
Supply-Only vs Supply-and-Install: Understanding the Price Difference
Contractors must clearly define the procurement model during the tender phase, as it drastically alters the quoted price and risk distribution.
Budget planning should be based on structure type, clear span, wind rating, membrane grade, steel tonnage, and project scope. For an accurate EXW, FOB, CIP, or DDU quotation, the project dimensions and engineering requirements should be reviewed first.
Supply-and-Install: The manufacturer sends a specialized rigging team to erect the structure. While this guarantees the membrane is tensioned correctly, it adds significant costs for flights, accommodation, equipment rental (cranes, boom lifts), and daily site rates. This can increase the total project cost by 40–60% over a supply-only baseline.
For most mid-tier venue upgrades, the supply-only model is the most efficient path. The manufacturer provides detailed shop drawings, numbered components, and a step-by-step installation manual, allowing the local civil contractor’s steel erection crew to assemble the canopy using standard lifting equipment.
What’s Included in a Grandstand Canopy Price from Jutent
When evaluating a grandstand shade structure price, comparing quotes requires verifying the exact scope of supply. A lower initial quote often excludes critical hardware or engineering support, leading to cost overruns on site.
A standard supply-only package from Jutent includes:
finished with hot-dip galvanizing and a two-coat epoxy paint system for maximum corrosion resistance.
* Architectural Membrane: Pre-patterned and high-frequency welded 1050g/㎡ PVDF (or specified PTFE), complete with keder edges and tensioning pockets.
Typical specifications use Q235B or Q355B steel, 1050 g/㎡ PVDF or PTFE membrane as standard, and SS304 stainless accessories, with higher grades available when the project requires them.
* Engineering Documentation: Complete structural calculations, foundation reaction loads, and detailed assembly drawings.
We do not supply the concrete or rebar for the foundations, nor do we supply the anchor bolts that must be cast into the concrete before the steel arrives. Supplying cast-in anchors internationally often causes site delays; we provide the exact bolt specifications (e.g., M24 or M30 Grade 8.8) for local procurement.
How to Get an Accurate Quote: What Information You Need to Provide
Manufacturers cannot provide an accurate grandstand canopy budget based solely on seating capacity. A 1,000-seat grandstand can be long and shallow, or short and deep, resulting in entirely different steel requirements and span depths.
To receive a precise, actionable quote, provide the following parameters:
- Seating Dimensions: The total length of the grandstand and the depth from the rear row to the front row.
- Clearance Height: The required height from the top seating tier to the underside of the canopy roof. This dictates column height and wind exposure.
- Site Location: The exact city or region. This allows the engineering team to calculate the local maximum wind speed (e.g., 150km/h vs 250km/h) and snow load requirements.
- Structural Preference: Specify if the project requires a column-free cantilever design or if front columns are acceptable.
- Membrane Grade: Indicate whether the project specifies standard PVDF or requires PTFE for extended longevity or fire compliance.
A 40GP container typically supports about 21–28 tons of payload, while the actual covered area depends on structure type, steel quantity, and packing method.
If you want an accurate budget reference for this project, share your dimensions, wind zone, and preferred membrane type with our team.
FAQ
- What is the cost per square metre for a grandstand canopy?
- For a grandstand canopy, the supply cost generally falls between $55–$120 per square metre ex-factory. This range is influenced by several critical factors relevant to project planning. Structural form significantly impacts cost, with complex cantilever designs typically at the higher end due to increased engineering and material requirements. Conversely, simpler post-and-beam bleacher covers represent the lower end. Membrane grade, determined by material composition and durability specifications, also plays a key role, alongside the overall span of the structure, which dictates the scale of supporting elements.
- What information do I need to get an accurate grandstand canopy quote?
- To receive an accurate grandstand canopy quote, provide the seating depth and number of rows, which informs the necessary cantilever and overall structure. Specify the total canopy area in square footage or dimensions. Include the project location for precise wind and snow load calculations, crucial for structural engineering. Indicate your preferred structural form, such as a mast-supported or arch system, and your membrane grade preference, ranging from standard PVC to more durable PTFE-coated fiberglass, as these choices significantly impact material and fabrication costs.
- Does the grandstand canopy budget include foundation costs?
- No, the grandstand canopy budget from us does not include foundation costs. Our supply-only cost covers the complete tensile membrane structure system, which encompasses the steel frame, architectural membrane, tensioning cables, and all necessary connection hardware. Civil works, including site preparation, excavation, concrete pouring, rebar installation, and the placement of cast-in anchor bolts, are typically managed and executed by your local general contractor. To facilitate this, we provide comprehensive foundation reaction loads to your project’s civil engineer, enabling them to design the footings precisely according to the specific site soil conditions and local building codes.
If you want an accurate budget reference for this project, share your dimensions, wind zone, and preferred membrane type with our team.
