A pool tensile shade structure has to do more than cast shade over water. For contractors and aquatic facility developers, the right pool tensile shade structure must withstand chlorine-laden air, resist UV exposure, manage wind loads, and protect swimmers, spectators, and circulation zones without creating long-term maintenance problems. In practice, most specification mistakes come from four decisions: membrane grade selection, structural form, wind load compliance, and budget planning. This guide follows those decisions in order so project teams can compare options faster and lock the correct design approach before tender.
What Makes Pool Tensile Shade Structure Specification Different
Pool tensile shade structures must withstand a unique combination of environmental stresses: chlorine-laden air, intense UV exposure, and dynamic wind loads. Unlike typical outdoor tensile canopies, the membrane and structural components face accelerated degradation if not specified correctly.
The membrane must resist chlorine vapors that can cause premature material breakdown, while the structure requires corrosion-resistant finishes due to the humid, chemically aggressive atmosphere. Clearance heights over pools must also accommodate diving boards and spectator sightlines, often requiring minimum clearances of 3.5 to 5 meters.
These factors distinguish pool tensile shade structures from standard commercial tensile canopies and demand a tailored specification approach. For a detailed overview of pool shade options, see Pool Shade.
Chlorine Resistance: Why Membrane Grade Matters for Pool Environments
Chlorine resistance is the defining membrane property for pool tensile shade structures. Exposure to chlorine vapors can degrade polymer chains, reducing tensile strength and membrane lifespan.
High-grade PVDF membranes at 1050g/㎡ are industry standard for pool environments, offering chlorine resistance that extends service life beyond 15 years under typical outdoor pool conditions. Lower-grade membranes (e.g., 650–800g/㎡ PVC) may cost less upfront but often require replacement within 7–10 years due to chlorine-induced embrittlement.
PVDF’s fluorocarbon surface layer resists chemical attack and UV degradation simultaneously. For a technical comparison of PVDF versus PTFE membranes in pool applications, refer to Pvdf Vs Ptfe Membrane Comparison.

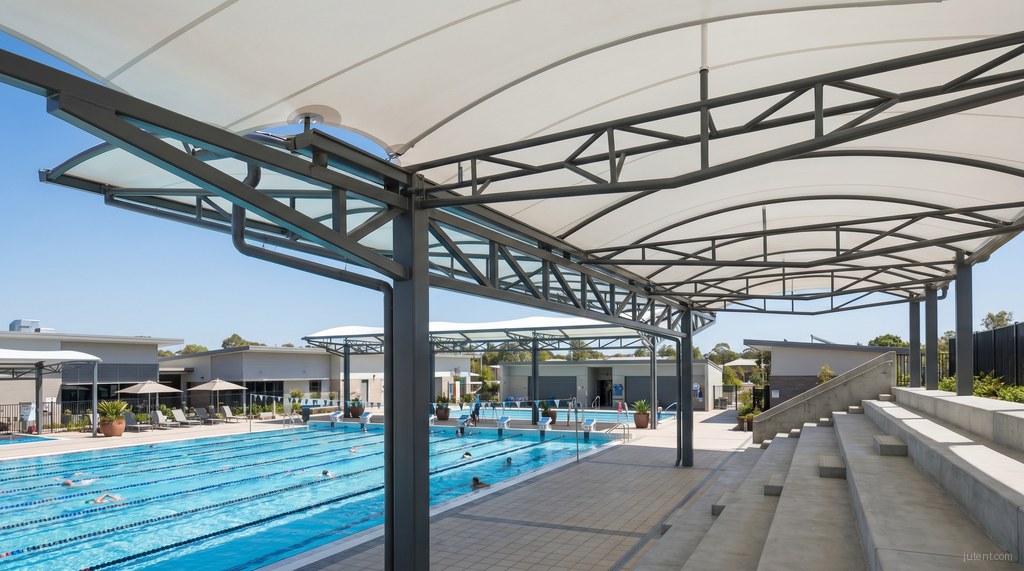

Structural Forms: Tensile Canopy, Hip Roof, and Sail Shade for Pools
Selecting the structural form impacts both aesthetics and engineering performance. The three common forms for pool tensile shade structures are:
| Structural Form | Typical Span (m) | Clearance Height (m) | Structural Weight (kg/m²) | Notes |
|---|---|---|---|---|
| Tensile Canopy | 15–30 | 3.5–5 | 25–35 | Cable-braced, minimal columns, elegant curves |
| Hip Roof | 10–20 | 4–6 | 40–50 | Pitched roof, rigid frame, better rain runoff |
| Sail Shade | 8–15 | 3–4.5 | 15–25 | Minimal structure, tensioned membrane, artistic |
Tensile canopies provide the largest clear spans with fewer columns, critical for unobstructed pool decks. Hip roofs offer increased rigidity and water shedding but add weight and cost. Sail shades are suitable for smaller pools or spectator areas but may require more frequent maintenance.
Wind Load and Structural Compliance for Aquatic Facilities
Wind load is a primary design driver for pool tensile shade structures, especially in coastal or tropical regions. Structures must comply with local codes, typically referencing ASCE 7 or equivalent standards.
Design wind speeds for aquatic facilities often range from 120 km/h to 200 km/h, depending on location. For example, a pool tensile canopy in Southeast Asia must be engineered for at least 160 km/h wind speed with a minimum safety factor of 1.5.
Structural members are sized accordingly; typical primary columns use 150×150×6mm SHS steel with hot-dip galvanizing plus fluorocarbon topcoat for corrosion resistance. Base plates are moment-connected to resist uplift and lateral forces. Clearance heights must consider wind pressure zones, with a recommended minimum of 4 meters to reduce vortex shedding effects.
Commercial Pool Shade: What ‘Commercial Grade’ Means for Pool Projects
‘Commercial grade’ pool shade structures specify materials and fabrication standards that ensure durability, safety, and compliance over a 15+ year design life.
Key commercial-grade criteria include:
- Membrane: Minimum 1050g/㎡ PVDF with chlorine and UV resistance
- Steel: Hot-dip galvanized to 275g/m² minimum, powder-coated finish
- Structural design: Engineered for local wind and seismic loads with certified calculations
- Fire rating: Compliant with local regulations, typically Class B or equivalent
- Warranty: Minimum 10 years on membrane and structure
These specifications distinguish commercial pool shade from residential or temporary solutions, which often use lighter membranes and less rigorous structural design.
Pool Tensile Shade Structure Cost: What Drives the Budget
A 20m × 10m pool tensile shade structure in Southeast Asia typically costs between $45,000 and $70,000 supply-only. The primary cost drivers include:
| Cost Factor | Impact on Budget |
|---|---|
| Membrane Grade | +$3–5/㎡ for 1050g PVDF vs lower grades |
| Structural Steel Size | Larger columns increase cost by 15–25% |
| Wind Load Rating | Higher design wind speeds add 10–20% |
| Finish Quality | Fluorocarbon topcoat adds 5–8% over galvanizing only |
| Custom Geometry | Complex shapes increase fabrication time |
Selecting a lower-grade membrane or undersized structure may reduce initial cost but increase lifecycle expenses due to premature replacement or repairs.
What Jutent Provides: Factory Supply, Documentation, and Logistics
Jutent supplies pool tensile shade structures with full factory fabrication, including:
- Pre-cut, pre-drilled steel components ready for site assembly without welding
- Certified structural calculations and engineering drawings
- Membrane pre-tensioned and factory-sewn with reinforced edges and stainless-steel fittings
- Packaging optimized for sea freight with clear component labeling
- Installation manuals with step-by-step procedures and quality control checklists
In a recent aquatic facility project, Jutent delivered a 25m × 12m tensile canopy engineered for 180 km/h wind load, with a 1050g/㎡ PVDF membrane and hot-dip galvanized steel. The structure was erected on site within five days, meeting all local compliance requirements.
FAQ
- What membrane is best for a pool tensile shade structure?
- For pool tensile shade structures, a high-grade PVDF (Polyvinylidene Fluoride) coated membrane is the optimal choice. This material offers superior resistance to the corrosive effects of chlorine and other pool chemicals, which is crucial for long-term durability in such environments. Furthermore, its excellent UV stability ensures the membrane maintains its color and structural integrity against prolonged sun exposure, minimizing degradation and extending the lifespan of the shade structure. Specifying a high-grade PVDF membrane mitigates maintenance concerns and provides lasting aesthetic appeal.
- What is the typical lead time for a pool tensile shade structure from Jutent?
- The typical lead time for a pool tensile shade structure from our factory is approximately 20–35 days for production. Following production, sea freight to destinations in Southeast Asia generally adds another 7–14 days. Therefore, contractors and project managers should anticipate an overall project timeline of 5–8 weeks from order confirmation to delivery for many export projects. This timeframe allows for meticulous fabrication and efficient logistics planning.
Send us your pool dimensions and we’ll provide a chlorine-resistant specification and indicative cost within 48 hours.
