Manila, 2023. An outdoor event venue developer needed a 25m × 15m concert stage canopy capable of supporting 4,500 kg of suspended lighting and line-array audio equipment. The site’s coastal location required a 250 km/h design wind load under the National Structural Code of the Philippines (NSCP). That combination of heavy point loads and extreme wind uplift ruled out standard aluminum truss systems and pushed the specification toward a custom-engineered tensile membrane structure with a heavy-duty steel primary frame.
A concert stage canopy must handle rigging loads for lighting and sound, survive high wind events, and look professional. This guide covers what event venues and contractors need to specify for permanent and semi-permanent concert stage structures, ensuring safety and performance before the project goes to tender.
What Makes Concert Stage Canopy Engineering Different
Standard shade structures only carry their own dead weight and environmental loads. A concert stage tensile roof is fundamentally different: it functions as a primary load-bearing grid for third-party equipment. The engineering must account for dynamic point loads from moving light fixtures, heavy line-array speakers, and motorized hoists, all while maintaining structural stability under severe wind uplift.
Clearance height dictates the structural geometry and steel tonnage. A standard community stage requires 6m to 8m of vertical clearance, while a music festival stage canopy often demands 10m to 14m to accommodate complex lighting rigs, automated trusses, and large LED video walls. As the height increases, the wind catchment area expands exponentially, requiring significantly larger primary steel members. For example, a 12m-high canopy spanning 20m typically requires 350×350×10mm SHS (Square Hollow Section) columns to control lateral deflection during a storm event.
Contractors specifying Stage Covers must provide the exact equipment weight and distribution early in the design phase. Retrofitting rigging capacity to a completed tensile structure is structurally impossible without adding secondary ground-supported truss systems, which defeats the architectural purpose of a clear-span canopy. The primary steel must be detailed with integrated, load-rated attachment points from day one.
Rigging Load Specification: How Much Load and Where It Goes
Define total suspended weight and specific point loads before engineering. Concert stage canopy rigging systems divide loads into three categories: front-of-house audio (line arrays), overhead lighting trusses, and rear video screens.
Mid-size municipal amphitheaters require a standard rigging capacity of 3,000 kg to 5,000 kg. This distributes across 10 to 15 dedicated points, each engineered for a 250 kg to 500 kg Safe Working Load (SWL). Large-scale commercial venues require up to 15,000 kg capacity, necessitating heavy-duty space frames or deep truss primary structures instead of simple portal frames.

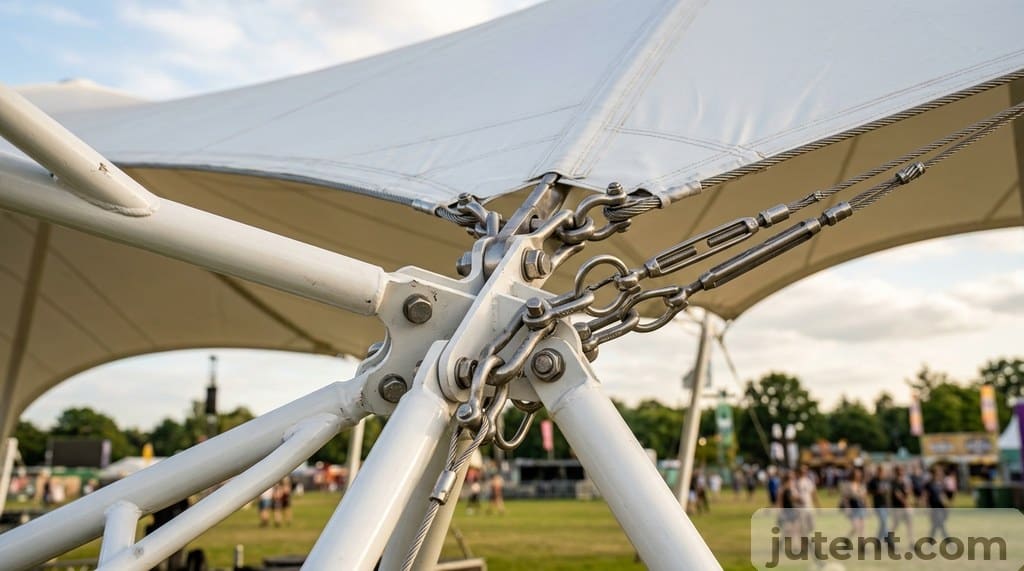

Across 420+ projects in 30+ countries, the most common specification error is ignoring the dynamic load of motorized hoists. A 500 kg static load exerts higher forces when chain motors start or stop. Engineers apply a dynamic amplification factor—typically 1.2 to 1.4—to all motorized rigging points. Contractors consulting an Outdoor Stage Canopy Guide must ensure rigging points weld directly to the primary steel structure, never the secondary membrane framework. These points use 20mm to 25mm thick steel eye plates, fully penetration welded and tested via magnetic particle inspection (MPI) before galvanizing.
Wind Performance: What Concert Stage Canopies Need to Withstand
Wind uplift is the governing environmental load for an outdoor concert stage canopy. The open-front design acts as a wind trap, translating horizontal gusts into upward forces on the roof structure and foundations.
Design wind speeds dictate membrane specifications and foundation sizing. Standard inland structures are engineered for 160 km/h (45 m/s) basic wind speeds, while coastal or hurricane-prone zones require 250 km/h (70 m/s) or higher. To resist these forces, the tensile membrane requires precise pre-stressing. A standard 1050g/㎡ PVDF membrane needs a biaxial pre-stress of 2.5 to 4.0 kN/m. Under-tensioning during installation causes high-wind flutter, accelerating fatigue at connection plates, coating degradation, and material failure.
Structural geometry dictates wind shedding efficiency. Saddle-shaped (hypar) or barrel-vaulted roof profiles direct wind flow over the structure, lowering the net uplift coefficient compared to flat or low-pitch designs. Engineers use computational fluid dynamics (CFD) and wind tunnel data to calculate these forces, ensuring the primary steel and concrete pad footings resist overturning moments. For a large 25m span, these footings often require 15 to 20 cubic meters of concrete per column.
Acoustic Considerations: Liner Options for Concert Stage Canopies
Tensile membranes are highly reflective to high-frequency sound. Without acoustic treatment, a single-layer PVDF or PTFE roof can create harsh echoes and sound focal points on stage, making it difficult for musicians to hear their monitors and degrading the audio quality for the audience.

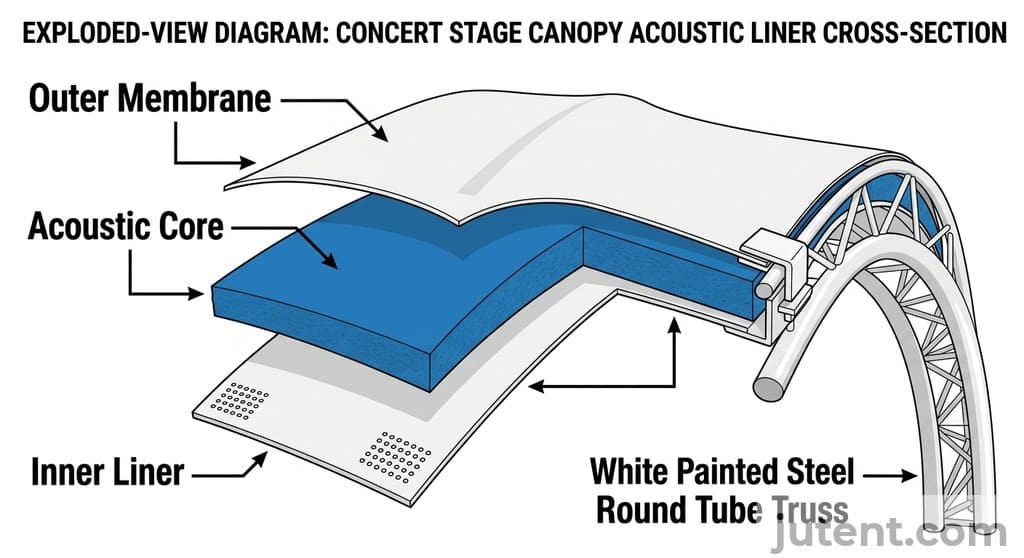

To control reverberation, engineers specify a double-layer membrane system incorporating an acoustic liner. The outer layer provides weather protection and structural tension, while the inner layer consists of a specialized porous fabric, often a PVC-coated polyester mesh or a woven glass fiber material. This inner liner absorbs sound energy, significantly reducing the reverberation time on stage.
A standard single-layer PVDF membrane has a Noise Reduction Coefficient (NRC) of approximately 0.05, meaning it absorbs almost no sound. By adding a 50mm to 100mm air gap and a high-porosity acoustic mesh liner, the NRC can be increased to 0.60 or higher. This setup absorbs mid-to-high frequencies (500 Hz to 4000 Hz) critical for vocal clarity and instrument separation.
The addition of an acoustic liner requires careful detailing at the perimeter connections to prevent moisture accumulation in the air gap. It also increases the dead load of the roof system by approximately 0.8 to 1.2 kg/㎡, which must be factored into the primary steel engineering alongside the rigging and wind loads.
Permanent vs Semi-Permanent Concert Stage Canopy: Pros and Cons
Venue developers must choose between a permanent structure designed for a 25-year lifespan and a semi-permanent system intended for seasonal deployment. This decision dictates the engineering approach, foundation design, and capital expenditure.
Permanent concert stage canopies utilize heavy-wall steel sections (300mm to 500mm diameter CHS) paired with architectural-grade membranes like 1050g/㎡ PVDF or PTFE. Engineers design these structures to local building codes for maximum wind and seismic loads, requiring deep reinforced concrete foundations. A permanent 20m × 15m structure typically costs between $85,000 and $140,000 supply-only, depending on rigging capacity and wind rating. The primary advantage is zero seasonal labor cost and a design life exceeding two decades.
Semi-permanent structures are engineered for rapid assembly and disassembly, utilizing modular aluminum trusses or lighter bolted steel frames. The membrane is often a lighter 750g/㎡ to 900g/㎡ PVC, designed to be folded and stored. While the initial supply cost is 30% to 40% lower than a permanent structure, venue operators must budget for recurring labor costs to erect and dismantle the canopy each season. These structures often rely on surface-mounted ballast blocks (water or concrete weights) rather than deep ground anchors, limiting their maximum wind rating to approximately 100 km/h to 120 km/h.
FAQ
- What rigging load capacity is standard for a concert stage canopy?
- For community and mid-size concert venues, rigging points rated at 200–500 kg each are standard. These points are typically distributed across a structural grid to support lighting trusses, line-array speakers, and video screens. A standard 15m wide stage might feature 10 to 12 of these points, providing a cumulative suspended load capacity of 3,000 kg to 5,000 kg. Large-scale commercial music festival stages require significantly higher capacities, often exceeding 1,000 kg per point, which demands heavy-duty primary steel engineering and larger concrete foundations to handle the combined dead and dynamic loads.
- Can a tensile concert stage canopy be designed for quick rigging setup?
- Yes. Jutent designs concert stage canopies with pre-installed rigging hardware. By welding rated eye plates and attachment nodes directly to the primary steel frame during fabrication, contractors eliminate the need for on-site drilling or secondary truss assembly. This pre-engineered approach allows production crews to attach motorized hoists and chain motors immediately upon arrival, drastically reducing the setup time required for touring acts and weekend festivals. All pre-installed points are tested and certified before the steel is galvanized. Send us your concert stage dimensions and rigging requirements and we’ll provide a specification and indicative cost.
Send us your concert stage dimensions and rigging requirements and we’ll provide a specification and indicative cost.
