A successful playground shade structure installation hinges on clear communication and a precise division of labor between the manufacturer and the contractor's site team. This guide clarifies what the manufacturer provides and what your site team needs to prepare, ensuring a smooth process from foundation to final tensioning. Understanding these responsibilities upfront is crucial for efficient project execution and a safe, durable outcome.

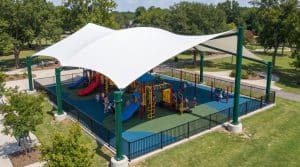

The Three Phases of a Playground Shade Structure Installation
Installing a playground shade structure is a structured process, typically broken down into three distinct phases: foundation work, post setting and frame assembly, and membrane attachment. Each phase requires specific expertise and careful coordination to ensure the structural integrity and aesthetic appeal of the final product. The initial phase, foundation work, involves preparing the ground and pouring concrete footings that will anchor the entire structure. This is a critical step, as the stability of the shade relies entirely on a well-executed foundation.
Following the foundation, the site team moves to post setting and frame assembly. This involves erecting the main support posts and connecting any pre-fabricated steel components to form the skeletal structure. Precision in this phase ensures that the frame is plumb, level, and correctly aligned to receive the tensile membrane. Finally, the membrane attachment phase involves carefully lifting, positioning, and tensioning the fabric membrane onto the assembled frame. This stage requires specialized techniques to achieve the correct tension, which is vital for the membrane's longevity and performance against environmental factors. Understanding these phases is key to a successful Playground Shade installation.
Foundation Work: Post Footings and What Your Civil Team Needs to Prepare
The foundation is the bedrock of any tensile structure, and playground shade structures are no exception. Your civil team's primary responsibility is to prepare the post footings according to the detailed engineering drawings provided by Jutent. These drawings will specify the exact dimensions, depth, and reinforcement requirements for each footing, tailored to the specific design and local soil conditions. Typically, this involves excavating the footing locations, installing rebar cages as per the structural engineer's design, and pouring concrete to the specified strength and finish. Proper curing of the concrete is essential before any steel posts are set.
It is imperative that the civil team adheres strictly to these specifications, as any deviation can compromise the stability and safety of the entire structure. Factors such as soil bearing capacity, wind loads, and seismic considerations are all accounted for in the foundation design. Your team will also need to ensure that the anchor bolts or embedded plates, which will connect the steel posts to the foundation, are precisely positioned and level before the concrete sets. Based on Jutent's experience across 400+ projects in 30+ countries, meticulous attention to detail during this phase is non-negotiable for a long-lasting installation. For a deeper dive into design considerations, refer to our Playground Shade Structures Guide.
Post Setting and Frame Assembly: What Arrives Pre-Fabricated
Once the foundations are cured and ready, the next phase involves setting the support posts and assembling the steel frame. Jutent Engineering prides itself on providing highly pre-fabricated components to streamline this process on-site. The steel posts, typically constructed from Q235B or Q355B grade steel, arrive pre-cut, pre-drilled, and with the specified surface treatment – either epoxy zinc-rich primer with an acrylic or fluorocarbon topcoat, or hot-dip galvanizing. This pre-fabrication significantly reduces on-site cutting, welding, and painting, saving valuable time and labor.
The contractor's site team will be responsible for carefully lifting and positioning these posts onto the anchor bolts or embedded plates in the foundations. Accurate plumbing and leveling of each post are critical at this stage. Once the posts are secured, any connecting beams or secondary steel elements, which also arrive pre-fabricated, will be bolted into place according to the assembly drawings. All connection points are designed for straightforward mechanical fastening, minimizing the need for complex on-site fabrication. This modular approach ensures a faster, more precise assembly, leading to a reliable and aesthetically pleasing frame ready for the membrane.
Membrane Attachment: Tensioning and Fixing Details
The final and arguably most visually impactful phase is the attachment and tensioning of the tensile membrane. Jutent typically supplies either a 1050 g/m² PVDF or PTFE membrane, depending on project specifications, which arrives pre-cut and pre-fabricated with all necessary edge details, corner plates, and attachment points. The contractor's site team will be responsible for carefully lifting the membrane into position over the assembled steel frame. This often requires specialized lifting equipment to prevent damage to the fabric.
Once loosely positioned, the membrane is systematically attached to the steel frame using a combination of cables, clamps, and specialized tensioning hardware. The tensioning process is critical; it involves gradually applying force to the membrane from multiple points until the desired form and tautness are achieved. This not only creates the iconic curved shapes of tensile structures but also ensures the membrane's stability against wind and rain, extending its service life. The installation manual will provide precise sequences and tensioning values to guide your team. Correct tensioning is paramount for the PVDF membrane's 10-year warranty (with a 15+ year service life) or the PTFE membrane's 15-year warranty (with a 25+ year service life).
What Jutent Provides: Drawings, Instructions, and Remote Support
Jutent Engineering acts as a thorough partner throughout your playground shade structure installation. For export projects, Jutent can provide design drawings, calculations, material specifications, installation manuals, and free remote guidance, subject to project scope and contract terms. Our detailed engineering drawings include foundation plans, steel fabrication drawings, assembly sequences, and membrane patterning information. These documents are meticulously prepared to ensure clarity and precision for your site team.
Beyond the documentation, Jutent offers invaluable remote technical support. Our experienced engineers are available to answer questions, troubleshoot issues, and provide guidance via phone or video calls during critical installation phases. This remote assistance is a standard offering, ensuring that your team has access to expert advice whenever needed. For larger or more complex projects, on-site supervision is available as a paid service, providing direct, hands-on guidance from a Jutent expert. This tiered support system ensures that whether you're installing a standard 100m² shade or a more intricate design, you have the backing of a manufacturer with 400+ projects in 30+ countries.
FAQ
- How long does it take to install a playground shade structure?
- A standard playground shade structure (100–200m²) typically takes 2–4 days for an experienced crew of 3–4. This timeframe accounts for the three main phases: foundation preparation (after concrete curing), post setting and frame assembly, and membrane attachment and tensioning. Factors like site accessibility, weather conditions, and the complexity of the design can influence the overall duration. Proper planning and adherence to the installation guide can help optimize efficiency.
- Does Jutent provide on-site installation supervision for playground shade projects?
- Yes, for large orders in Southeast Asia, Jutent can provide on-site supervision. This service is designed to offer direct expert guidance and quality assurance during critical installation phases. For projects outside this scope or for smaller installations, Jutent offers thorough remote guidance and detailed installation manuals to support your contractor site team effectively. On-site supervision is a paid service, tailored to project requirements.
