Dubai, July. 48°C ambient temperatures and a UV Index of 11. When engineering a pool tensile shade structure, Middle East baseline conditions demand materials capable of surviving extreme thermal loads while resisting constant chloramine off-gassing from the water below. Specifying a standard commercial canopy for a Gulf aquatic facility guarantees premature membrane embrittlement and rapid structural corrosion.
Contractors across the UAE, Saudi Arabia, and Qatar require specifications engineered specifically for high-UV, aggressive chemical environments. The operational cost of getting this wrong is severe: replacing a degraded membrane or remediating oxidized steel over an active swimming pool forces facility closures, complex over-water scaffolding, and specialized labor. Furthermore, installing these canopies over operational pools demands pre-engineered, modular systems that eliminate on-site welding and minimize deck disruption.
This guide outlines the exact architectural membrane grades—including PTFE and advanced PVDF-coated PVC—regional wind load standards, and structural detailing required to deliver a compliant, long-lasting aquatic shade system. We focus on the strict engineering realities that dictate successful procurement, fabrication, and installation in the Gulf region.
Gulf Climate: Why Pool Shade Specification Is Different in the Middle East
The operating environment for a Pool Shade in the Gulf requires simultaneous UV and chemical resistance.
In a typical Qatar project, membrane face temperatures routinely exceed 70°C during peak summer. This heat accelerates standard PVC plasticizer migration, causing fabrics to embrittle and crack within three years. Simultaneously, canopy undersides face continuous chlorine and chloramine off-gassing. Combined with coastal condensation in cities like Doha, Dubai, and Jeddah, this creates a highly corrosive micro-environment.
The extreme temperature delta between a 48°C day and a 25°C night drives severe thermal expansion in the steel frame. This movement requires engineered slip joints or flexible membrane tensioning systems to prevent structural fatigue.
Specifications must address these exact regional stressors. Primary steel frames require hot-dip galvanizing to ISO 1461 standards, followed by a marine-grade epoxy paint system with a minimum dry film thickness (DFT) of 250 microns. Standard paint systems may fail in Gulf aquatic environments; microscopic pinholes allow rapid sub-surface rust. The membrane must utilize architectural-grade topcoats, such as PVDF or PTFE, to block UV degradation while maintaining tensile strength under constant thermal cycling.
Membrane Grade for Gulf Pool Projects: PVDF Requirements
High-grade PVDF (Polyvinylidene Fluoride) at 1050g/㎡ is the baseline requirement for any pool shade UAE specification. Lower-weight membranes (700g/㎡ or 900g/㎡) lack the base cloth density to withstand the Gulf climate’s thermal loads and constant tensioning.

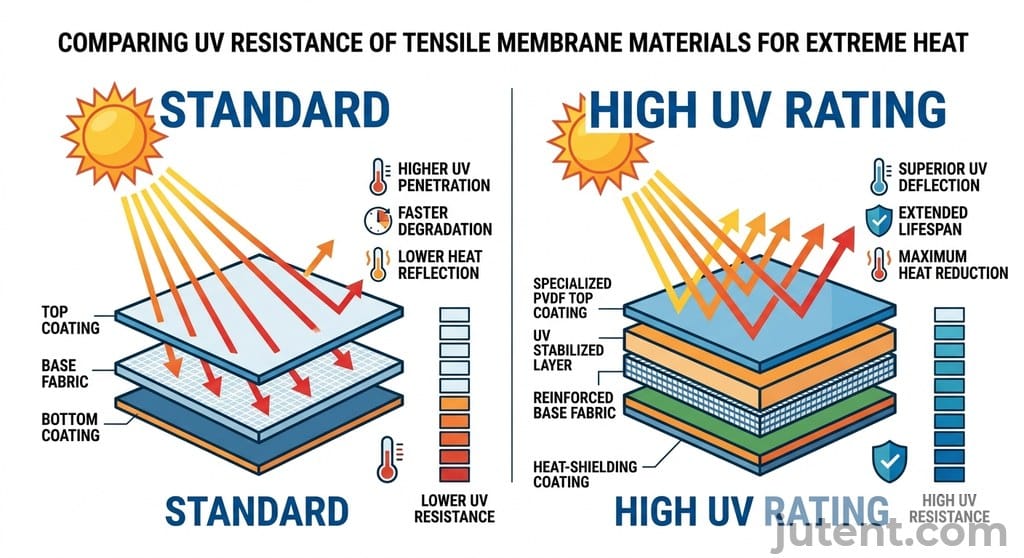

PVDF outperforms standard PVC in high-UV environments due to its fluorocarbon surface layer, which reflects UV radiation. At UV Index 11–12, a 1050g/㎡ PVDF membrane maintains tensile strength within 10% of its original specification after 15 years. Conversely, standard 650g/㎡ PVC in the same environment requires replacement at 5–7 years. Heavily shaded aquatic centers frequently specify block-out PVDF over translucent options to maximize cooling efficiency and eliminate water surface glare.
Contractors must verify PVDF coating thickness and anti-wicking base yarn treatments. Anti-wicking prevents microscopic mold growth if moisture penetrates the fabric edges. In high-humidity aquatic environments, untreated yarns draw in chlorinated water and atmospheric dirt, causing permanent black streaking across the canopy within 24 months. High-frequency seam welding must also be executed precisely to guarantee watertight integrity over the pool deck.
For a complete technical breakdown of membrane selection, refer to our Pool Tensile Shade Structure Guide.
Wind Load: UAE and Saudi Standards for Pool Shade Structures
Pool shade structures in the UAE and Saudi Arabia face severe uplift forces, particularly on elevated podiums, hotel rooftops, or coastal sites. Compliance with regional wind load codes is mandatory.
In Saudi Arabia, the Saudi Building Code (SBC) Chapter 7 governs wind load parameters. Coastal regions like Jeddah or Dammam require basic design wind speeds of 130 km/h to 160 km/h, adjusted for terrain category and structure height. In the UAE, Dubai Municipality and Abu Dhabi IBC adaptations mandate structures withstand 160 km/h (45 m/s) 3-second gust wind speeds. Integrating these parameters during initial design prevents permit rejections and costly re-engineering.
To resist these loads, engineers must size primary connections and foundations accurately. A 15m × 15m clear-span pool shade typically requires 25mm to 30mm thick base plates, secured using M24 or M30 chemical anchors with a minimum 250mm embedment into reinforced concrete footings. In coastal sabkha soils with poor bearing capacity, footings require increased mass to resist membrane uplift.
Tensioning systems must also withstand wind-induced vibration. Specify marine-grade stainless steel (Grade 316L) for turnbuckles and edge cables. Grade 304 stainless steel corrodes rapidly under the combined exposure of Gulf coastal humidity and pool chlorine.
Case Reference: Pool Shade Projects in the Gulf Region
Across 420+ projects globally, the specification error we see most often in Middle Eastern aquatic facilities is under-sizing the concrete footings due to a misunderstanding of tensile uplift forces. A tensile membrane acts like a sail; the primary load transferred to the foundations is not dead weight, but upward pull.

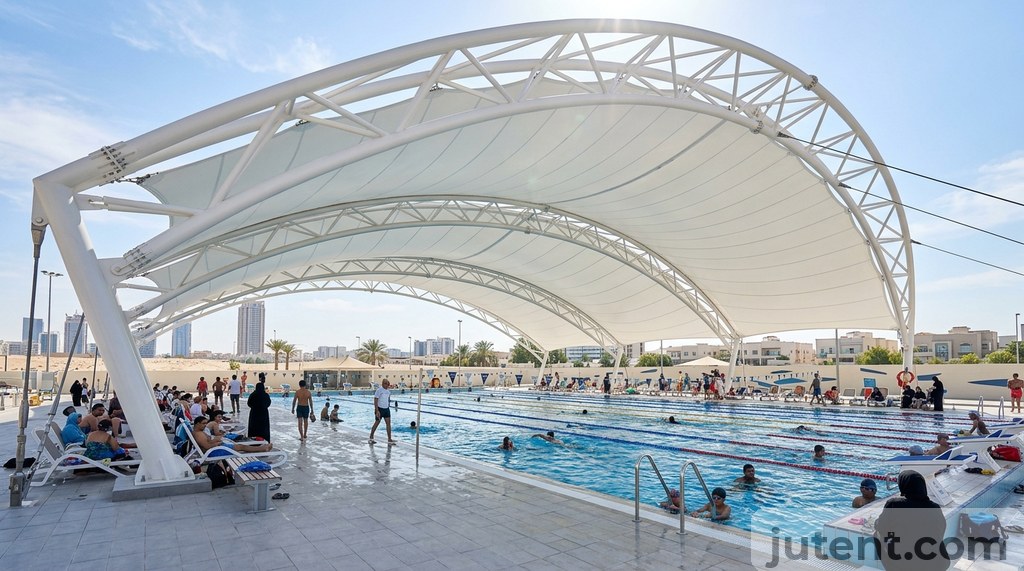

In a recent commercial pool project in Doha, the client required a 30m × 15m continuous barrel-vault shade over the main swimming area, with columns restricted to the perimeter deck to maintain clear lifeguard sightlines. The site’s coastal wind zone required a 150 km/h design load.
That combination of a 15m clear span and high wind rating ruled out standard cantilevered frames. We engineered a structural steel arch system utilizing 250mm circular hollow sections (CHS) with a 10mm wall thickness. To combat the highly corrosive environment, all steel components were hot-dip galvanized and finished with a three-coat marine epoxy system.
The membrane specified was a 1050g/㎡ PVDF fabric with a 100% block-out layer. This specific membrane choice dropped the ambient temperature beneath the canopy by up to 8°C, ensuring the facility could operate safely during peak afternoon heat. The entire structure was pre-engineered, trial-assembled in the factory, and shipped to the site for a bolted installation, eliminating the need for on-site welding over the finished pool deck. By supplying the complete kit with numbered components and a step-by-step installation manual, the primary structure was erected safely in just six days.
FAQ
- What membrane grade is recommended for a pool shade structure in the UAE?
- For pool shade structures in the UAE, a high-grade PVDF membrane is the recommended standard. Specifically, an architectural grade with a weight of 1050 g/m² offers the optimal balance of durability, UV resistance, and longevity required for the region’s extreme heat and intense solar radiation. This specification ensures the membrane maintains its structural integrity and aesthetic appeal over its service life, minimizing maintenance and maximizing client satisfaction for demanding outdoor applications.
- Do pool shade structures in Saudi Arabia need to meet specific building codes?
- Yes, tensile membrane pool shade structures in Saudi Arabia must comply with the Saudi Building Code (SBC). Specifically, Chapter 7 addresses critical wind load considerations, which are paramount for structural integrity in the region’s climate. Compliance requires careful material selection and engineering to withstand local environmental stresses. To ensure your project meets all applicable regulations and performs optimally, provide us with your exact pool project location in the Middle East, and our team will furnish a precise, climate-specific membrane specification tailored to those requirements.
Tell us your pool project location in the Middle East and we’ll provide a climate-specific specification.
