Budget planning should be based on structure type, clear span, wind rating, membrane grade, steel tonnage, and project scope. For an accurate EXW, FOB, CIP, or DDU quotation, the project dimensions and engineering requirements should be reviewed first.
When developers request a covered pedestrian route, initial estimates often fail to account for site-specific engineering loads, material upgrades, or the difference between a simple bolt-down installation and a complex foundation requirement. Getting the numbers right early prevents value-engineering delays later in the project timeline and ensures the final structure meets both aesthetic and functional requirements. This guide breaks down the key cost factors, provides realistic price ranges, and explains exactly what moves the number from the baseline to the premium end of the spectrum, allowing you to establish a reliable retail walkway canopy budget from day one.
The 5 Factors That Drive Retail Walkway Canopy Cost
Five primary variables dictate the final retail walkway canopy price: structural steel weight, membrane grade, foundation requirements, wind load specifications, and installation scope.
The final technical values should be confirmed against the project-specific engineering requirements and local code conditions.
Membrane selection represents the second largest variable, making up 20–30% of the material cost. Tensioning hardware also plays a role; specifying 316 marine-grade stainless steel edge cables instead of standard galvanized cables increases the hardware budget but prevents rust bleeding over the lifespan of the structure.
Foundation sizing dictates the remaining budget. Contractors specifying Retail Walkways must account for the difference between bolting base plates to an existing reinforced concrete slab versus excavating and pouring new 800mm × 800mm × 1000mm pad footings. Poor soil bearing capacity requires deeper excavation, adding hidden costs before the steel even arrives on site.
Cost by Project Scale: Small vs Large Applications
Economies of scale heavily influence the commercial retail walkway canopy cost per square metre. Large-scale applications yield a lower unit rate due to optimized steel cutting, continuous membrane patterning, and reduced setup waste in the manufacturing facility.
For a small application—such as a 15m × 3m entrance canopy—the supply cost often sits at the higher end of the $50–$70/m² spectrum. The engineering, detailing, and machine setup time remain fixed regardless of the short span, meaning these overheads are distributed across a much smaller footprint.
Conversely, a large application—like a 150m × 4m continuous retail promenade—pushes the supply cost closer to the $25–$40/m² baseline. In these projects, standardizing a repeating 5m bay spacing allows for mass production of identical steel trusses and membrane panels. This repetition drastically reduces the engineering cost per square metre and maximizes shipping efficiency, allowing components to pack tightly into a 40ft High Cube container.
As detailed in our Retail Walkway Canopy Guide, developers planning multi-phase retail parks should procure the canopy package as a single contract. Splitting a 200m walkway into four separate 50m orders typically increases the total material and shipping budget by 12–18% due to redundant setup phases.

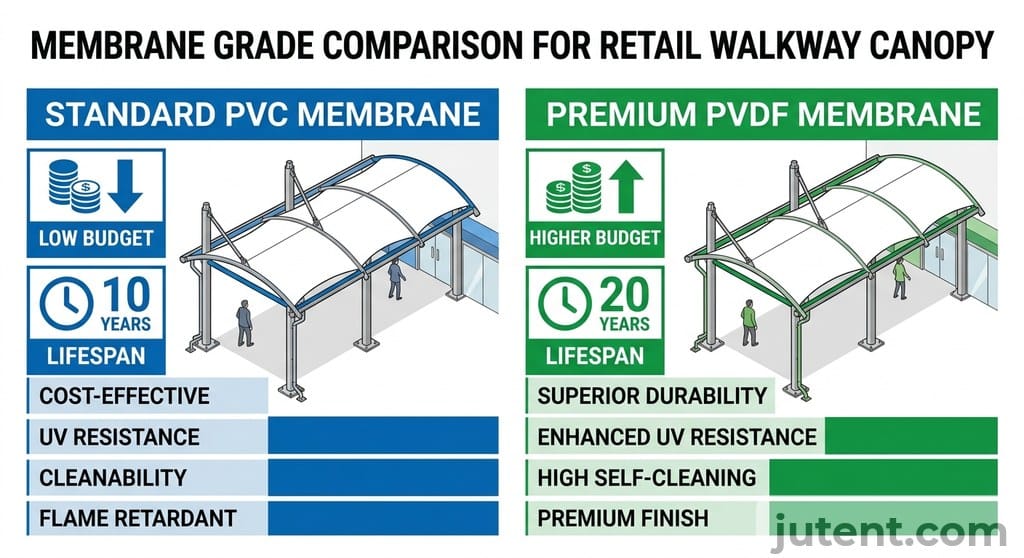

Membrane Grade: How Material Choice Affects the Budget
Membrane specification directly dictates both the initial retail walkway canopy budget and the long-term maintenance cycle. The decision comes down to weight, surface coating, and required design life.
A standard 750g/㎡ PVDF-coated membrane is the baseline for commercial walkways, offering a 10–12 year lifespan and keeping the initial cost low. However, specifying a heavier 1050g/㎡ PVDF membrane increases the fabric cost by approximately $3–$5/m² while extending the lifespan to 15–20 years. The thicker fluorocarbon surface layer also provides superior self-cleaning properties, reducing annual maintenance costs.
Based on Jutent’s experience across 400+ projects in 30+ countries, similar specification issues often appear when early-stage assumptions are made before the engineering conditions are confirmed.
For premium retail environments requiring a Class 1 fire rating or a 25+ year design life without replacement, PTFE is the required specification. This material upgrade typically doubles the membrane portion of the budget and requires specialized handling during installation to prevent creasing the fiberglass base cloth. PTFE also demands heavier tensioning hardware, marginally increasing the steel budget.
Supply-Only vs Supply-and-Install: Understanding the Price Difference
Contractors must clearly define the procurement scope early, as the difference between a supply-only kit and a full supply-and-install contract drastically alters the final retail walkway canopy price.
A supply-only contract covers the engineering, fabrication, and delivery of the primary steel, tensioning hardware, and membrane. This typically costs $25–$70/m² ex-factory. The contractor assumes responsibility for site preparation, foundation pouring, steel erection, and membrane tensioning. This route is highly cost-effective for main contractors who already have riggers, lifting equipment, and site management in place.
A supply-and-install contract shifts the erection risk to the canopy specialist. This adds labor, travel, equipment hire (such as a 20-ton crane or scissor lifts), and site management fees to the budget. Installation typically adds $30–$60/m² to the project. Working in operational retail environments further increases this cost, as night shifts and phased cordons reduce daily productivity.
The prefabricated system is designed to simplify on-site assembly, and Jutent can provide drawings, manuals, and free remote installation guidance. For more complex projects, experienced installers or on-site supervision support may be arranged on request.
How to Get an Accurate Quote
To move from a rough budget to a fixed manufacturing price, contractors must provide four specific data points to the engineering team. Vague requests yield padded quotes; precise data yields optimized pricing.
First, provide the exact dimensions: total length, width, and required clearance height. A 3m clearance height requires significantly less steel column mass than a 4.5m clearance designed to accommodate delivery vehicles or emergency access.
For export projects in high-wind or high-exposure regions, the structure should be engineered to the applicable local code and checked against the project-specific loading conditions.
Third, define the preferred structural form. A cantilevered walkway requires heavier base plates and larger foundations to resist overturning moments compared to a symmetrical double-column barrel vault. Providing a preliminary soil report also prevents foundation cost surprises.
specify the membrane grade preference (e.g., 1050g/㎡ PVDF) and the required steel finish (hot-dip galvanized or epoxy painted).
If you want an accurate budget reference for this project, share your dimensions, wind zone, and preferred membrane type with our team.
FAQ
- What is the cost per square metre for a retail walkway canopy?
- Supply cost typically ranges from $25–$70/m² ex-factory, depending on structural form and membrane grade. This figure covers the engineering, fabrication, and delivery of the primary steel, tensioning hardware, and membrane, with the contractor managing site erection. Factors such as the chosen structural form, like a cantilevered design versus a symmetrical barrel vault, and the required clearance height significantly influence the steel mass and thus the cost. Membrane grade also plays a crucial role; for instance, a 1050g/㎡ PVDF membrane adds $3–$5/m² compared to a 750g/㎡ baseline, while PTFE can double the membrane budget for premium applications.
- What information do I need to get an accurate retail walkway canopy quote?
- Project dimensions, location (for wind load), preferred structural form, and membrane grade preference are essential for an accurate quotation. Providing exact dimensions, including total length, width, and required clearance height, directly impacts the necessary steel mass. The precise project location is critical for calculating local wind and snow load requirements, which dictates structural member sizing and foundation design. Defining the preferred structural form, such as a cantilevered or barrel vault design, influences foundation requirements and steel specifications. Finally, specifying the membrane grade (e.g., 1050g/㎡ PVDF) and desired steel finish ensures the initial quote is accurate to within 5% of the final manufacturing cost, preventing budget overruns.
