Procuring a school walkway canopy from an overseas manufacturer involves more steps than a local purchase. This checklist covers everything from RFQ to delivery — so nothing falls through the cracks.
Step 1: Define the Scope — Walkway Dimensions, UPF Requirements, and Wind Zone
The initial phase of school walkway canopy procurement requires precise definition of project parameters. Begin by accurately measuring the walkway dimensions: length, width, and desired height clearance. These measurements are critical for accurate material estimation and structural design. Consider the intended use of the walkway – is it purely for pedestrian shelter, or will it accommodate service vehicles or equipment? This influences load-bearing requirements and structural robustness.
Next, specify Ultraviolet Protection Factor (UPF) requirements for the membrane material. For school environments, high UPF ratings are essential to protect students and staff from harmful UV radiation. Standard PVDF membranes typically offer excellent UV resistance, but specific certifications should be requested.
Crucially, identify the local wind zone and snow load requirements. These are dictated by building codes and geographical location. A reputable manufacturer will require this data to engineer a structure capable of withstanding local environmental conditions. Failure to account for these factors can lead to structural failure and significant liability. Based on Jutent's experience across 400+ projects in 30+ countries, overlooking these initial specifications is a common pitfall in international procurement. Ensure all local regulations are clearly communicated in your Request for Quotation (RFQ).
School Walkways
Step 2: Evaluate Suppliers — What to Ask and What to Look For
Supplier evaluation is a critical step in school walkway canopy sourcing. Beyond basic pricing, focus on a manufacturer's technical capabilities, quality control, and experience with international projects.
Begin by requesting a company profile, including their ISO 9001 and SGS certifications. These indicate adherence to international quality management standards. Ask for a portfolio of similar projects, specifically school walkways or public infrastructure canopies, with verifiable references. Inquire about their engineering team's qualifications and their process for structural analysis and design.
Crucial questions for technical verification include:
* What steel grades do they typically use (e.g., Q235B, Q355B) and can they provide material certificates?
* What membrane materials do they offer (e.g., 1050 g/m² PVDF, PTFE) and what are their respective warranties and service lives? (PVDF: 10-year warranty, 15+ years service life; PTFE: 15-year warranty, 25+ years service life).
* What surface treatment methods are applied to the steel structure (e.g., hot-dip galvanizing, epoxy zinc-rich primer + acrylic topcoat, epoxy zinc-rich primer + fluorocarbon topcoat)? Avoid manufacturers offering only less durable options.
* What is their minimum project scope? (Jutent's is 100 m²).
* Do they provide detailed engineering drawings, wind load calculations, and installation guides?
* What level of installation support do they offer (e.g., free remote guidance, paid on-site supervision)?
About
Step 3: Review the Quotation — What Should and Shouldn't Be Included
A well-structured quotation is more than just a price list; it's a detailed proposal outlining the scope of supply. When reviewing a quotation for school walkway canopy tender, ensure it clearly itemizes all components and services.
What should be included:
* Detailed Bill of Materials (BOM): This should list all steel components (columns, beams, trusses), membrane panels, tensioning hardware (e.g., SS304 standard, SS316 optional), cables, and connection plates.
* Material Specifications: Explicitly state the grade of steel, membrane type and weight (e.g., 1050 g/m² PVDF), and surface treatment for steel.
* Engineering Scope: Confirmation that the design will meet specified wind and snow loads, with a commitment to provide relevant calculations and drawings.
* Packaging Details: How will components be packed for international shipping to prevent damage?
* Incoterms: Clearly state the Incoterm (e.g., FOB, CIF, EXW) to define responsibilities for shipping, insurance, and customs.
* Payment Terms: Standard terms for overseas orders are typically 30–50% deposit on order confirmation, with the balance due before shipment.
* Warranty Information: Explicitly state the warranty period for the overall project (1 year), membrane (PVDF: 10 years; PTFE: 15 years), and expected service life.
* Installation Support: Detail the availability and cost of remote guidance or on-site supervision.
* Pricing per m²: For tensile membrane structures, pricing is typically quoted per square meter. Expect ranges like $30–$50/m² for minimal steel structures, $40–$70/m² for simple PVDF forms, or $60–$90/m² for complex PVDF forms. PTFE membranes add approximately $20/m² to these PVDF ranges.
What shouldn't be included (or should be clarified):
* Ambiguous “miscellaneous” charges.
* Lack of specific material grades or treatment methods.
* Unrealistic delivery timelines without a clear production schedule.
* Vague warranty statements without specific durations or coverage.
Step 4: Confirm the Order and Monitor Production
Once the quotation is thoroughly reviewed and all technical and commercial terms are agreed upon, proceed to order confirmation. This typically involves signing a formal contract and remitting the agreed-upon deposit.
After order confirmation, proactive monitoring of the production process is essential for school walkway specification checklist adherence. Request a detailed production schedule from the manufacturer, outlining key milestones such as steel fabrication, membrane cutting and welding, surface treatment, and final assembly checks.
Request regular progress updates, ideally with photographic or video evidence at critical stages. This allows you to verify that materials specified in the contract are being used and that quality control procedures are being followed. For export projects, Jutent can provide design drawings, calculations, material specifications, installation manuals, and free remote guidance, subject to project scope and contract terms.

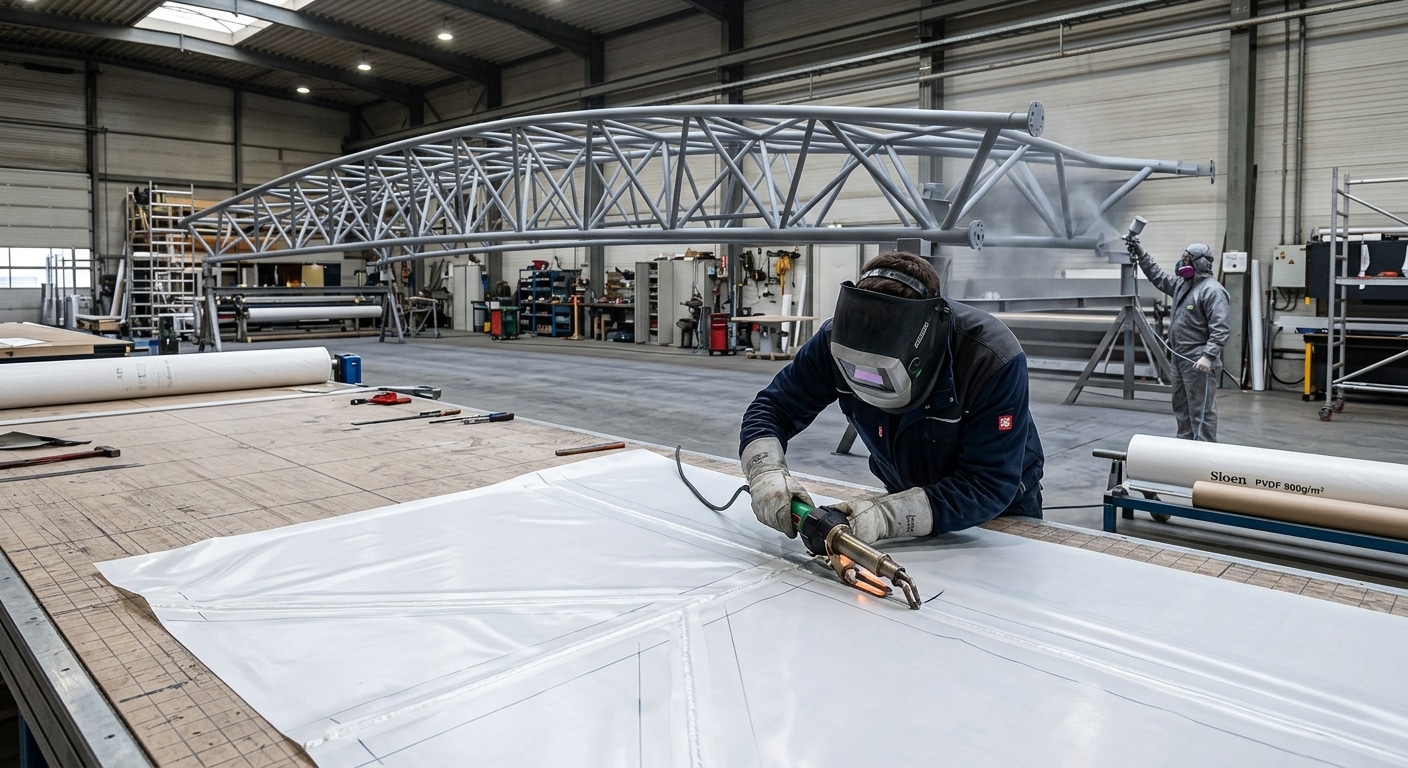

Pay particular attention to the steel surface treatment stage. Confirm that the specified method (e.g., hot-dip galvanizing, epoxy zinc-rich primer + fluorocarbon topcoat) is being applied correctly. For membrane fabrication, ensure the correct material weight and type are being used and that seams are properly welded. Any deviations from the agreed specifications should be addressed immediately. A reliable monitoring process minimizes surprises upon delivery and ensures the final product meets your quality expectations.
Step 5: Receive, Inspect, and Install
The final stage involves receiving, inspecting, and installing the school walkway canopy. Upon arrival at the port of destination, ensure all customs clearance procedures are handled efficiently. Once the shipment reaches your site, a thorough inspection is paramount before offloading or accepting delivery.
Receiving and Inspection Checklist:
* Packing List Verification: Cross-reference the received items against the manufacturer's packing list.

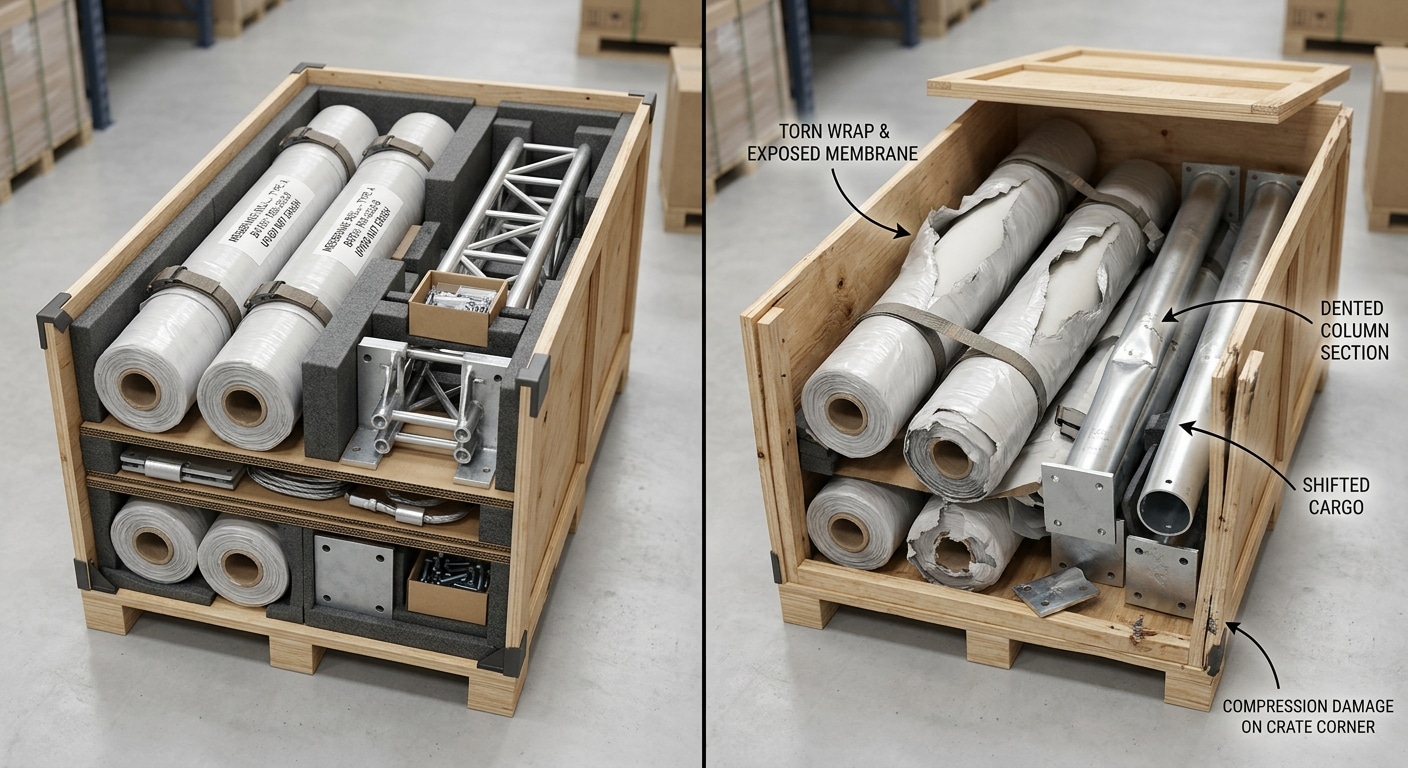

* Damage Assessment: Inspect all crates and bundles for visible shipping damage. Document any dents, tears, or punctures with photographs.
* Component Count: Verify that all major components, including steel members, membrane panels, and hardware boxes, are present.
* Material Verification: Conduct a spot check of material labels (e.g., steel grade, membrane type) against the project specifications.
* Surface Treatment Check: Visually inspect the steel structure for consistent surface treatment application and absence of rust or peeling.
Following inspection, proceed with installation. Jutent provides thorough installation guides and offers free remote guidance to assist your installation team. For more complex projects or if local expertise is limited, paid on-site supervision services are available. Ensure your installation team adheres strictly to the provided engineering drawings and installation manual to guarantee structural integrity and safety. After installation, a final inspection should be conducted to confirm proper tensioning of the membrane, secure fastening of all components, and overall aesthetic quality. The overall project typically carries a 1-year warranty.
FAQ
- Q: What documents should a school walkway canopy manufacturer provide with an order?
- A: A reputable manufacturer should provide a thorough set of documents. This includes UPF test certificates for the membrane, detailed engineering drawings for fabrication and installation, wind load calculations specific to your project's location, and steel material certificates (e.g., for Q235B or Q355B). a precise packing list detailing all components and an exhaustive installation guide are essential for successful project execution.
- Q: What payment terms are typical for a school walkway canopy order from China?
- A: Standard payment terms for international orders, particularly from manufacturers in China, typically involve an upfront deposit. This deposit usually ranges from 30% to 50% of the total order value and is required upon order confirmation. The remaining balance is then due before the shipment departs the manufacturer's facility. This structure provides security for both the buyer and the supplier throughout the production and logistics process.
Contact Jutent with your school walkway project details and we'll guide you through every step of the procurement process.
