Choosing the right retail walkway canopy supplier is a critical decision for international contractors. The success of your project hinges on a partner who not only delivers quality products but also understands the complexities of global logistics, engineering standards, and project timelines. This article outlines the key considerations for contractors and procurement managers when selecting a supplier, detailing Jutent Engineering's value proposition and what you can expect from our partnership. From meticulous engineering documentation to reliable material specifications and thorough logistical support, we aim to simplify your procurement process and ensure project success.
What Contractors Need from a Retail Walkway Canopy Supplier
For contractors operating across diverse international markets, the demands on a retail walkway canopy supplier are multifaceted. Beyond the obvious need for a high-quality product, reliability, clear communication, and adherence to project specifications are paramount. Contractors require a supplier who can consistently deliver on time, within budget, and to the exact technical requirements of each unique project. This includes a clear understanding of local building codes, wind load requirements, and material certifications. A supplier's ability to provide detailed engineering documentation and support throughout the project lifecycle significantly reduces risks and streamlines the installation process.
the ability to adapt to varying project scales and complexities is essential. Whether it's a small, elegant canopy for a boutique retail outlet or an extensive network of covered walkways for a large shopping mall, the supplier must demonstrate flexibility and expertise. The ideal retail walkway canopy manufacturer offers a range of design options, material choices, and surface treatments to meet aesthetic and functional demands. Based on Jutent's experience across 400+ projects in 30+ countries, we understand that every project presents unique challenges, and our approach is always tailored to meet those specific needs. We strive to be more than just a supplier; we aim to be a trusted partner.

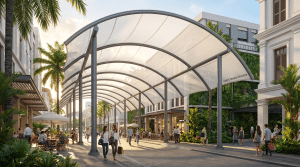

Retail Walkways
Engineering Documentation: What Jutent Provides as Standard
As a leading retail walkway canopy supplier, Jutent understands that thorough engineering documentation is the backbone of any successful international project. Our commitment to transparency and technical excellence ensures that contractors receive all necessary information to facilitate smooth approvals, fabrication, and installation. For export projects, Jutent can provide design drawings, calculations, material specifications, installation manuals, and free remote guidance, subject to project scope and contract terms. This suite of documents is meticulously prepared by our in-house engineering team, ensuring compliance with international standards and best practices.
Our standard documentation package typically includes:

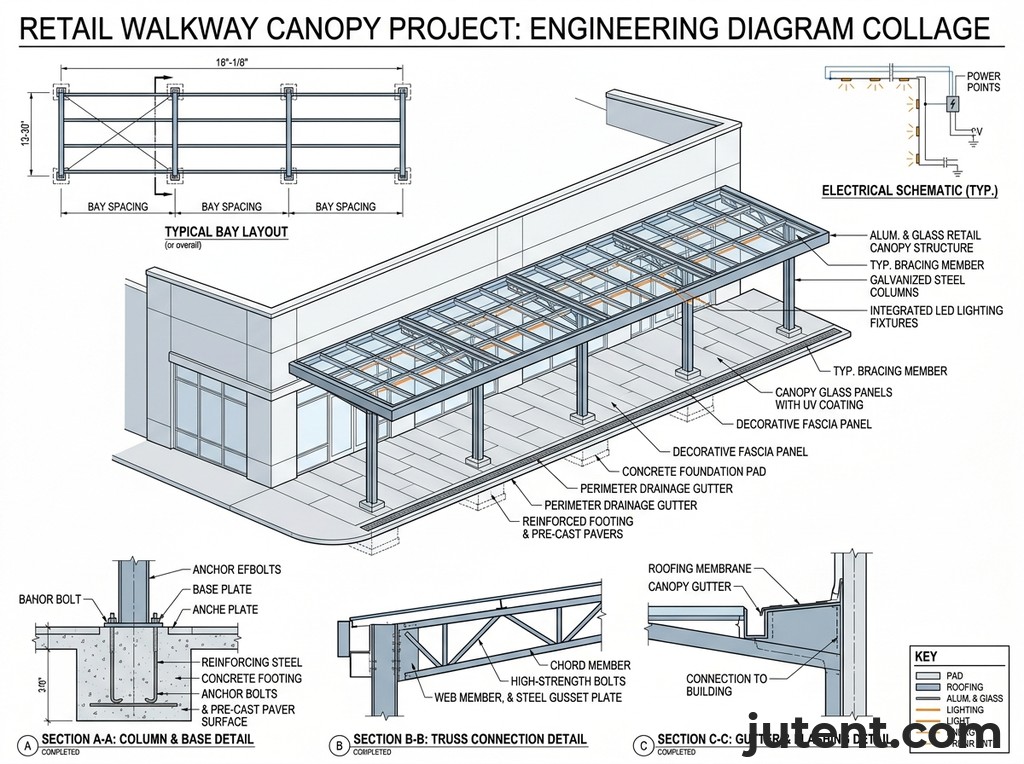

- Architectural Drawings: Detailed plans, elevations, and sections illustrating the canopy's design, dimensions, and integration points.
- Structural Analysis Reports: Thorough calculations for wind loads, snow loads (where applicable), and seismic considerations, ensuring the structural integrity of the canopy. Typical technical values should always be written conservatively and described as subject to project design.
- Material Specifications: Detailed breakdowns of all components, including membrane type (PVDF or PTFE), steel grades (Q235B, Q355B), and connection hardware (SS304 standard, SS316 optional upgrade).
- Fabrication Drawings: Precise drawings for steel members and membrane panels, guiding the manufacturing process.
- Installation Manuals: Step-by-step guides for on-site assembly, including safety guidelines and recommended procedures. We also offer free remote guidance and paid on-site supervision services.
This thorough approach to documentation minimizes potential misunderstandings, accelerates the approval process with local authorities, and empowers your installation teams. Our ISO 9001 and SGS certifications further underscore our commitment to quality and adherence to international standards.
About
Membrane Quality and Steel Specification: What's Included
The longevity and performance of a retail walkway canopy are directly tied to the quality of its materials. As a dedicated retail walkway canopy manufacturer, Jutent prioritizes the use of high-grade membranes and reliable steel to ensure durability and aesthetic appeal for decades. Our standard membrane offering is 1050 g/m² PVDF, known for its excellent UV resistance, self-cleaning properties, and a typical service life of 15+ years, backed by a 10-year warranty. For projects demanding even greater longevity and performance, we offer PTFE membrane, which boasts a 25+ year service life and a 15-year warranty.
For the structural steel components, Jutent utilizes high-strength steel grades Q235B and Q355B, selected for their superior mechanical properties and suitability for tensile structures. The surface treatment of our steel is critical for corrosion protection, especially in diverse climates. We offer two approved treatment options:
- Epoxy zinc-rich primer + acrylic topcoat: A durable and cost-effective solution providing excellent corrosion resistance.
- Epoxy zinc-rich primer + fluorocarbon topcoat: Offers enhanced UV stability and color retention, ideal for projects requiring long-term aesthetic integrity.
- Hot-dip galvanizing: Provides superior, long-lasting corrosion protection, particularly in harsh or coastal environments.
All connection hardware is supplied in SS304 stainless steel as standard, with SS316 available as an optional upgrade for projects requiring enhanced corrosion resistance, such as those in marine environments. This meticulous attention to material specification ensures that every retail walkway canopy supplied by Jutent is built to withstand the elements and maintain its structural integrity and visual appeal for its entire service life.
Production and Delivery: Lead Times and Logistics Support
Efficient production and reliable delivery are hallmarks of a dependable retail walkway canopy supplier. At Jutent, our streamlined manufacturing processes and extensive experience in international logistics ensure that your project stays on schedule. Our production facility is equipped with advanced machinery and operated by skilled technicians, allowing us to maintain strict quality control and optimize lead times.
Typical lead times for retail walkway canopy projects vary depending on the complexity and scale, but generally range from 4 to 8 weeks for fabrication after final design approval. This timeframe includes the cutting and welding of membrane panels, steel fabrication, surface treatment, and pre-assembly checks. We understand the importance of clear communication regarding timelines, and our project managers provide regular updates throughout the production phase.
For delivery, Jutent acts as a thorough retail walkway canopy supplier China, offering reliable logistics support to contractors worldwide. We have established relationships with reputable shipping companies, enabling us to manage freight forwarding and customs documentation efficiently. Our team assists with:
- Packaging: All components are carefully packed to prevent damage during transit, with clear labeling for easy identification on-site.
- Container Loading: Optimized loading plans ensure efficient use of container space and secure transportation.
- Shipping Documentation: Preparation of all necessary export documents, including commercial invoices, packing lists, and certificates of origin.
- Tracking: Providing shipment tracking information so you can monitor your order's progress.
Our goal is to make the procurement and delivery process as smooth as possible, minimizing logistical headaches for our international clients.
FAQ
- Q: What countries does Jutent supply retail walkway canopy to?
- A: Jutent has supplied retail walkway canopy to contractors in Malaysia, Philippines, UAE, Saudi Arabia, Nigeria, Kenya, South Africa, and others. Our extensive experience spans over 30 countries across Southeast Asia, the Middle East, Africa, and Australia. We are well-versed in international shipping regulations and project requirements, making us a trusted partner for global contractors seeking a reliable **retail walkway canopy supplier**.
- Q: What is the minimum order size for a retail walkway canopy from Jutent?
- A: Jutent's minimum project size is approximately 50m² / $3,000 USD. While we can accommodate smaller, specialized projects, our typical project scope for tensile membrane structures is 100 m² or more. This allows us to optimize our production processes and deliver cost-effective solutions for contractors. Pricing for PVDF membrane, simple form structures typically ranges from $40–$70/m², with PTFE membrane adding approximately $20/m² to this range.
Contact Jutent with your project details and we'll provide a full supplier information pack within 24 hours.
