Budgeting for a Tensile Membrane Structure: What Contractors Must Know

PVDF and PTFE membranes both work for outdoor stage canopies, but they perform differently over time. This comparison covers UV resistance, fire rating, acoustic performance, and the cost difference that matters for a performance venue project.

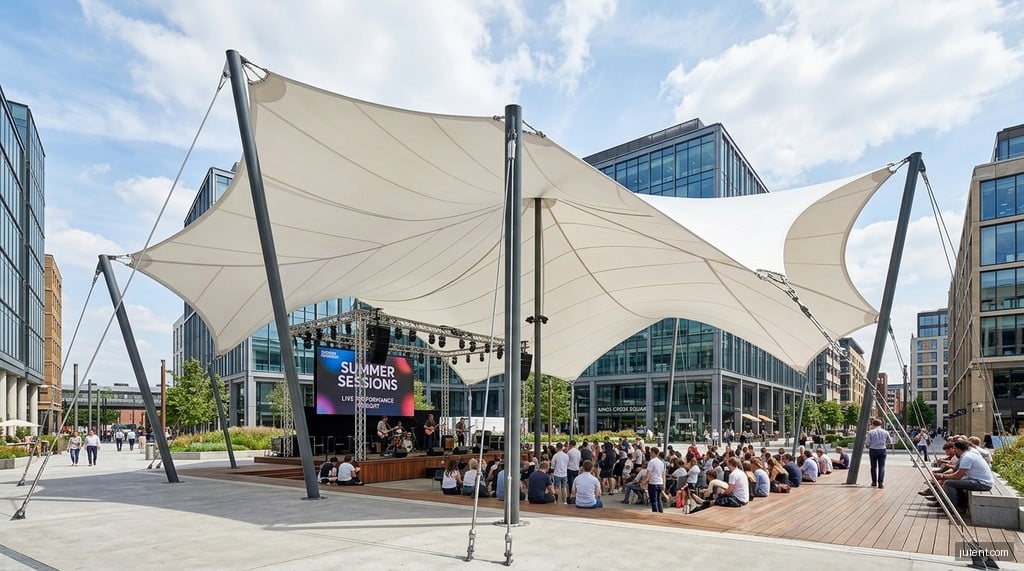

Choosing the right membrane for an outdoor stage canopy involves balancing long-term performance, regulatory compliance, and budget. For contractors and project managers, understanding the fundamental differences between PVDF (Polyvinylidene Fluoride) and PTFE (Polytetrafluoroethylene) is crucial for making an informed decision that aligns with the project's specific requirements and expected lifespan. This guide will break down the key performance indicators and cost implications to help you specify the optimal material for your next performance venue project.

What PVDF and PTFE Membranes Are (and What They're Not)

Both PVDF and PTFE are high-performance architectural membranes used in tensile structures, including stage canopies. They are not simple tarpaulins or temporary fabric covers; rather, they are engineered materials designed for architectural applications requiring durability, weather resistance, and specific aesthetic qualities.

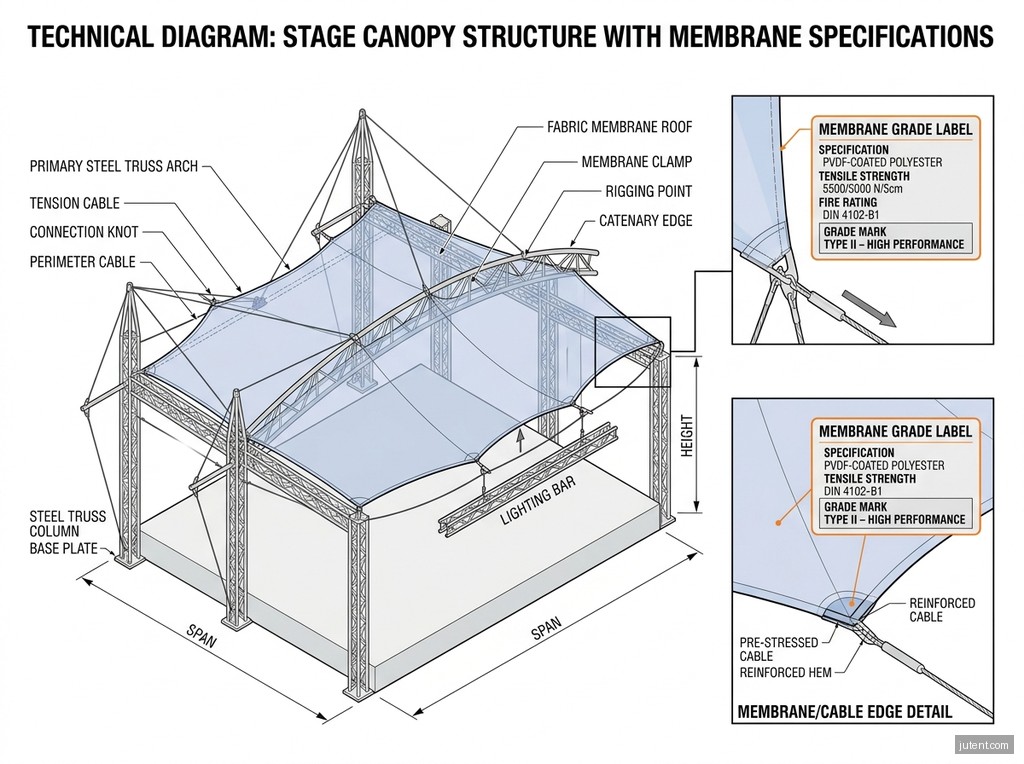

PVDF (Polyvinylidene Fluoride) coated polyester fabric consists of a woven polyester base fabric coated with PVC (Polyvinyl Chloride), which is then finished with a PVDF lacquer. The PVDF lacquer provides a smooth, low-friction surface that enhances UV resistance, dirt repellency, and extends the material's service life. This multi-layer construction offers a balance of strength, flexibility, and cost-effectiveness. The polyester core provides the tensile strength, while the PVC offers waterproofing and adhesion for the PVDF topcoat.

PTFE (Polytetrafluoroethylene) coated fiberglass fabric is a more advanced material. It features a woven fiberglass base fabric coated with PTFE. Fiberglass provides exceptional strength, dimensional stability, and inherent fire resistance. The PTFE coating offers superior chemical inertness, UV stability, and a self-cleaning surface. Unlike PVDF, which relies on a topcoat for its enhanced properties, PTFE's properties are inherent to the coating itself, making it incredibly durable and long-lasting.

It's important to note that while both are membrane materials, their core compositions and coating technologies differ significantly, leading to distinct performance characteristics. They are engineered solutions for permanent or semi-permanent structures, not temporary shelters. For a deeper dive into specific applications, explore Jutent's range of Stage Covers.

UV Resistance: How Each Membrane Performs After 10 Years Outdoors

UV radiation is a primary factor in the degradation of outdoor materials. For a stage canopy, consistent exposure to sunlight can lead to material embrittlement, discoloration, and a reduction in tensile strength over time. The choice between PVDF and PTFE significantly impacts how well a membrane resists these effects.

PVDF membranes offer excellent UV resistance due to their PVDF lacquer topcoat. This coating acts as a protective barrier, reflecting UV rays and preventing the underlying PVC from degrading quickly. A high-quality PVDF membrane typically comes with a 10-year warranty and can achieve a service life of 15+ years. Over this period, you can expect minimal yellowing and a gradual, predictable reduction in mechanical properties. Regular cleaning can help maintain its aesthetic appeal and extend its effective life by preventing dirt and pollutants from embedding into the surface, which can accelerate degradation.

PTFE membranes, by contrast, exhibit superior UV resistance. The PTFE coating is inherently stable under UV exposure, meaning it does not degrade or discolor even after decades in direct sunlight. This exceptional stability is a key reason why PTFE membranes typically carry a 15-year warranty and are expected to have a service life of 25+ years, often exceeding 30 years in practice. The fiberglass base fabric is also highly resistant to UV degradation. This long-term performance makes PTFE an ideal choice for projects where longevity and minimal maintenance are paramount, especially in regions with intense solar radiation.

After 10 years outdoors, a well-maintained PVDF canopy will still perform admirably, but a PTFE canopy will show virtually no signs of UV-induced degradation, maintaining its original appearance and mechanical integrity to a much higher degree. For a more detailed technical comparison, refer to our Pvdf Vs Ptfe Membrane Comparison.

Fire Rating: What Performance Venue Projects Typically Require

Fire safety is a critical consideration for any public venue, and stage canopies are no exception. Building codes and project specifications often mandate specific fire ratings for materials used in such structures. The inherent properties of PVDF and PTFE membranes lead to distinct fire performance characteristics.

PVDF membranes (PVC coated polyester with PVDF topcoat) typically achieve fire ratings such as B1 (China), M2 (France), or Class A (USA) depending on the specific formulation and thickness. While they are not inherently non-combustible, they are designed to be self-extinguishing, meaning they will stop burning once the ignition source is removed. During a fire, PVDF membranes will char and melt, but they generally do not propagate flames rapidly. For many outdoor stage canopy projects, especially those with open sides and adequate egress, these fire ratings are sufficient to meet local building codes. However, for enclosed or semi-enclosed performance spaces, or projects with very stringent fire safety requirements, a higher standard might be necessary.

PTFE membranes (PTFE coated fiberglass) offer superior fire performance due to the inherent properties of fiberglass and PTFE. Fiberglass is non-combustible, and PTFE is also non-flammable. As a result, PTFE membranes typically achieve the highest fire ratings, such as Class A (USA ASTM E-84), A2 (European EN 13501-1), or Class 0 (UK BS 476 Part 6 & 7). In a fire, PTFE membranes will not burn, melt, or drip flaming particles. Instead, they will typically char in place, maintaining structural integrity for a longer period and preventing the spread of fire. This makes PTFE an excellent choice for projects where fire safety is a paramount concern, such as large concert venues, theaters, or structures located in densely populated areas where fire containment is critical. Based on Jutent's experience across 400+ projects in 30+ countries, PTFE is often specified for high-profile public venues due to its superior fire safety profile.

Acoustic Performance: Does Membrane Type Affect Sound Reflection?

For performance venues, acoustics are paramount. The materials used in a stage canopy can influence how sound behaves, affecting both the performers on stage and the audience. While the overall shape and geometry of a tensile structure are the primary drivers of its acoustic properties, the membrane material itself does play a role, albeit a secondary one.

Both PVDF and PTFE membranes are relatively thin and lightweight compared to traditional building materials. This means they tend to be highly reflective of sound rather than absorptive. When sound waves hit the membrane surface, they are largely bounced back into the performance area or outwards, depending on the canopy's design.

PVDF membranes have a smooth, somewhat flexible surface. Their acoustic reflectivity is high, similar to many hard surfaces. The specific acoustic properties (e.g., absorption coefficient) can vary slightly based on the membrane's thickness and surface texture, but generally, they contribute to a live, reflective acoustic environment. This can be beneficial for amplifying natural sound or for venues where electronic amplification is used, as it helps project sound towards the audience. However, in some cases, excessive reflection can lead to echoes or reverberation if not managed through careful design and potentially additional acoustic treatments.

PTFE membranes also have a very smooth and highly reflective surface. Due to their greater stiffness and density compared to PVDF, they might exhibit slightly different reflective characteristics, but the practical difference in acoustic performance for most stage canopy applications is minimal. Like PVDF, PTFE contributes to a reflective acoustic environment. The primary acoustic benefit of PTFE, if any, would be its long-term stability, ensuring consistent acoustic performance over decades without material degradation affecting sound reflection.

Ultimately, for both PVDF and PTFE, the acoustic performance of a stage canopy is overwhelmingly determined by its architectural form – the curvature, height, and overall geometry of the membrane. Designers often use computational acoustic modeling to predict and optimize sound distribution within and around the canopy, irrespective of whether PVDF or PTFE is chosen. Any fine-tuning of acoustics would typically involve secondary measures like strategically placed acoustic panels or baffles, rather than relying solely on the membrane material's inherent properties.

Cost Comparison: When the PTFE Premium Is Justified for a Stage Project

Cost is always a significant factor in any construction project. While both PVDF and PTFE offer excellent performance, PTFE comes at a premium. Understanding when this additional investment is justified is key for contractors and project managers.

PVDF membranes are generally more cost-effective upfront. For a simple form PVDF membrane structure, you might expect costs in the range of $40–$70/m². For more complex forms, this could increase to $60–$90/m². This makes PVDF an attractive option for projects with tighter budgets or those where a 15-20 year service life is sufficient. The lower initial material cost allows for greater flexibility in other project areas or for achieving a larger canopy footprint within a given budget. The overall project cost for a tensile membrane structure with minimal steel, including design, fabrication, and installation guidance, typically falls within $30–$50/m².

PTFE membranes carry a higher price tag, typically adding approximately $20/m² to the PVDF range. This means a PTFE membrane structure would start around $60–$90/m² for simple forms and could go higher for complex designs. This premium reflects the superior material properties: enhanced UV resistance, non-combustibility, and a significantly longer service life (25+ years, often exceeding 30).

The PTFE premium is justified in several scenarios:
* Long-term Investment: For permanent public venues designed to last 25 years or more, the higher initial cost of PTFE is offset by its extended lifespan and reduced maintenance requirements. The total cost of ownership over several decades often favors PTFE.
* High Fire Safety Requirements: As discussed, PTFE's superior fire rating makes it the preferred, and sometimes mandated, choice for projects with stringent fire safety codes or high public occupancy.
* Extreme Environmental Conditions: In regions with intense UV radiation, high pollution, or corrosive atmospheres, PTFE's chemical inertness and UV stability provide unparalleled durability.
* Prestige Projects: For iconic or high-profile performance venues where uncompromising quality and longevity are paramount, PTFE is often selected to ensure the structure maintains its aesthetic and functional integrity for generations.

For export projects, Jutent can provide design drawings, calculations, material specifications, installation manuals, and free remote guidance, subject to project scope and contract terms. This support can help optimize the overall project cost, regardless of the membrane choice.
