Kuala Lumpur, 2023. A municipal sports council needed a futsal court canopy over two side-by-side recreational pitches—40m × 25m total coverage—without intermediate columns interrupting the run-off zones. The site’s heavy monsoon rainfall required rapid water shedding, and the budget capped out before standard heavy steel portal frames became viable. That combination of clear span, weather resistance, and cost constraint pushed the specification toward a tensile membrane structure.
Futsal court canopies are one of the most cost-effective tensile shade projects—smaller spans, simpler geometry, and high demand across Southeast Asia and the Middle East. Here’s what the specification involves.
Standard Futsal Court Dimensions and What They Mean for Canopy Span
A standard international futsal court measures 20m × 40m, while recreational courts often scale down to 15m × 25m. The canopy span must exceed these dimensions to account for the 2m minimum run-off zone on all sides, pushing the required clear span to 24m × 44m for a full-size pitch.
This 24m span is the critical threshold in structural design. At this width, standard straight steel beams become heavy and expensive to transport. A tensile membrane system resolves this by using a curved arch or cable-tensioned barrel vault design, which relies on the membrane’s pre-stress rather than steel mass to achieve stability.
For a 24m clear span, engineers typically specify 219mm or 273mm diameter circular hollow sections (CHS) for the primary arches, spaced at 5m to 6m intervals. This configuration keeps the steel tonnage low while providing sufficient clearance height—usually 7m at the apex and 4m at the eaves—to prevent the ball from striking the roof during play. Sport Court Shade

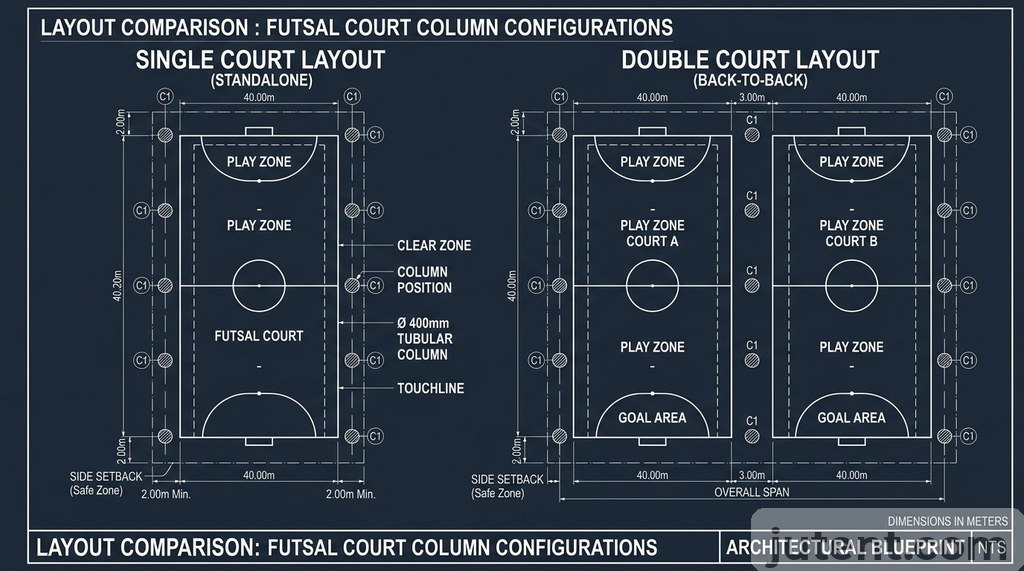

Single vs Double Futsal Court Coverage: Column Layout Options
Column placement dictates both the structural tonnage and the safety of the playing environment. For an outdoor futsal shade covering a single court, the standard layout uses four to six perimeter columns. This keeps all steelwork entirely outside the run-off zone.
When covering double courts side-by-side (e.g., a 40m × 50m total footprint), contractors face a decision: use a single massive 50m clear span or introduce a shared centre column line. A 50m clear span requires a heavy truss system, doubling the steel cost per square metre. Introducing a centre column line between the two courts drops the individual spans back to 25m, allowing for standard CHS arches and significantly reducing the budget.
Based on Jutent’s experience across 400+ projects in 30+ countries, similar specification issues often appear when early-stage assumptions are made before the engineering conditions are confirmed.
Membrane Grade for Futsal Courts: When PVDF Is Worth the Premium
PVDF at 1050g/㎡ handles 95% of futsal court shade structure projects. Lower-grade PVC or lighter 850g/㎡ membranes are only appropriate for temporary installations or regions with very low UV indexes.
Corrosion protection and service life should be described according to the selected protection system, project environment, and maintenance conditions rather than as an unconditional lifespan guarantee.
A futsal court cover also requires high light transmission to reduce daytime lighting costs. White 1050g/㎡ PVDF typically offers 10% to 13% translucency. This diffuses natural sunlight evenly across the pitch, eliminating harsh shadows and glare that disrupt gameplay. While 1050g/㎡ PVDF carries a $3–$5/㎡ premium over 850g/㎡ alternatives, the lifespan difference is 5–8 years. The math does not support the saving, especially when factoring in the cost of deploying a crew to replace a 1,000-square-metre canopy.
Futsal Court Tensile Canopy Cost: What Drives the Final Number
Pricing should be reviewed by product category and project scope rather than treated as a fixed published number. For an accurate quotation, the structure size, wind rating, membrane grade, and delivery terms should be confirmed first.
First is the wind load requirement. A structure engineered for a standard 100km/h wind zone requires significantly less steel mass and foundation concrete than one designed for a 250km/h typhoon zone. The heavier steel sections required for high wind loads can increase the primary frame cost by 40%.
Second is the geometric complexity. A standard barrel vault or arch design is highly efficient, minimizing fabric waste and simplifying the steel fabrication. Custom hyperbolic paraboloid (hypar) shapes or cantilevered designs require thicker steel profiles to handle the asymmetric tension, driving up the price.
Corrosion protection and service life should be described according to the selected protection system, project environment, and maintenance conditions rather than as an unconditional lifespan guarantee.
Installation Considerations: What Your Site Team Needs to Prepare
Site preparation dictates the installation speed. The foundation schedule must be completed and cured to 28-day strength before the steel erection begins. For a standard 24m span arch canopy, the reinforced concrete pad footings typically measure 1.5m × 1.5m × 1.2m deep, depending on the local soil bearing capacity.
In a recent municipal sports facility project, the contractor needed the structure to arrive pre-cut and pre-drilled for site assembly without welding. We supplied the complete kit with numbered components, moment-connected base plates, and a step-by-step installation manual. By eliminating site welding, the primary steel was erected in four days using a single 25-ton mobile crane.
Membrane tensioning requires specific sequencing. The fabric must be pulled evenly across the arches using hydraulic jacks or heavy-duty ratchets. The most common installation error is under-tensioning the membrane at the perimeter to avoid wrinkles, rather than achieving the specified pre-stress. This results in a structure that looks clean on day one but develops water ponding within two years. Proper tensioning requires pulling the membrane to a minimum of 2.5 kN/m.
If you want an accurate budget reference for this project, share your dimensions, wind zone, and preferred membrane type with our team.
FAQ
- What is the standard span for a futsal court canopy?
- A standard futsal court is 20m × 40m (full size) or 20m × 25m (recreational). Most tensile canopy designs use 4–6 columns at the perimeter, achieving 20–25m clear spans. To accommodate the necessary safety run-off areas, the actual structural span is usually 4m wider and longer than the court lines. For a full-size international pitch, this means engineering a 24m × 44m clear span. This width is highly efficient for barrel vault tensile structures, allowing the use of standard circular hollow section steel arches without requiring heavy, complex truss systems.
- How much does a futsal court canopy cost?
- Supply cost for a single futsal court (20m × 25m) typically ranges from $15,000–$35,000 USD ex-factory, depending on membrane grade and steel specification. Installation cost varies by location. The lower end of this budget reflects standard 100km/h wind load designs using 850g/㎡ PVDF membrane and basic hot-dip galvanized steel framing. The upper end accounts for high wind zone engineering (up to 250km/h), heavier 1050g/㎡ PVDF architectural fabric, and upgraded marine-grade paint systems required for coastal environments. Freight volume usually requires one to two 40-foot open-top containers.
