Specifying a tensile canopy for a recreational facility involves three decisions that most architects and contractors get wrong the first time: selecting the right structural form, managing water runoff, and balancing clear spans against steel tonnage. Choosing the right sail shade structure, cone, or cantilever form for a sports court affects drainage, wind performance, and cost — not just aesthetics. This guide covers each configuration, providing the dimensional and load data required to get the specification right before going to tender.
The Three Main Tensile Canopy Forms for Sports Courts
A tensile membrane canopy design relies on curvature to carry loads. For sports facilities, this curvature is typically achieved through three primary configurations: sail shades, cone (or hypar) forms, and cantilever structures. The selection dictates the steel weight, foundation size, and the required membrane pre-stress.
A flat or low-pitch roof requires heavy steel trusses to resist deflection. Tensile structures use the membrane itself as a structural element. By introducing double curvature—where the fabric curves in two opposing directions—the membrane can span distances of 20 to 40 meters with minimal supporting steel.
The choice of form directly impacts the playing environment. A standard tennis court requires a minimum clearance height of 6.7 meters over the baseline and 10.6 meters at the net. A Sport Court Shade must accommodate these vertical clearances while keeping columns outside the run-off zones. This requirement immediately eliminates certain low-profile designs and forces the specification toward forms that elevate the structural steel away from the playing surface.
Sail Shade Structure: When It Works and When It Doesn’t
A sail shade structure provides highly effective coverage for smaller recreational areas, seating zones, or partial court layouts, but it presents distinct engineering limitations for full-size competitive sports courts. The primary constraint involves tension distribution over large spans.
In a typical shade sail sports court application, the membrane is tensioned between independent perimeter columns. To maintain structural stability under dynamic wind loads, the fabric requires significant pre-stress. As the clear span increases beyond 15 meters, the tension loads transferred to the corner columns increase exponentially. This geometric reality requires massive concrete foundations and heavy-wall steel pipes—often exceeding 250mm in diameter—to resist the resulting bending moments.
Independent sails also inherently leave gaps in coverage. While acceptable for a casual playground or park setting, a multi-court tennis or basketball facility requires continuous weather protection to maintain playing conditions. If the project demands 100 percent rain protection over a standard 36m × 18m court footprint, a single continuous membrane supported by a rigid perimeter frame proves structurally more efficient than multiple overlapping sails. For a deeper dive into sizing these systems, refer to our Tensile Shade Structures Sports Courts Guide.

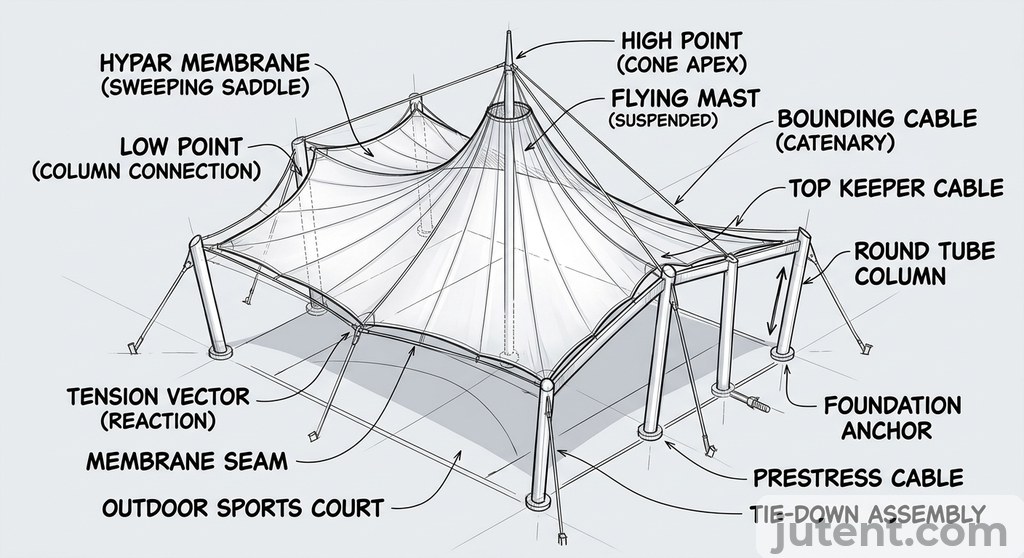

Cone and Hypar Forms: Drainage Advantages and Structural Efficiency
A cone shade structure and its geometric relative, the hyperbolic paraboloid (hypar), offer the highest structural efficiency of any tensile canopy form. By utilizing a central mast or alternating high and low perimeter connection points, these forms create aggressive double curvature.
This curvature solves the most common failure point in membrane structures: water ponding. A properly tensioned cone form with a minimum pitch of 15 degrees sheds water instantly. The radial tension lines distribute wind and snow loads evenly across the membrane surface, transferring forces efficiently to the supporting steel.
Based on Jutent’s experience across 400+ projects in 30+ countries, similar specification issues often appear when early-stage assumptions are made before the engineering conditions are confirmed.
Typical specifications use Q235B or Q355B steel, 1050 g/㎡ PVDF or PTFE membrane as standard, and SS304 stainless accessories, with higher grades available when the project requires them.

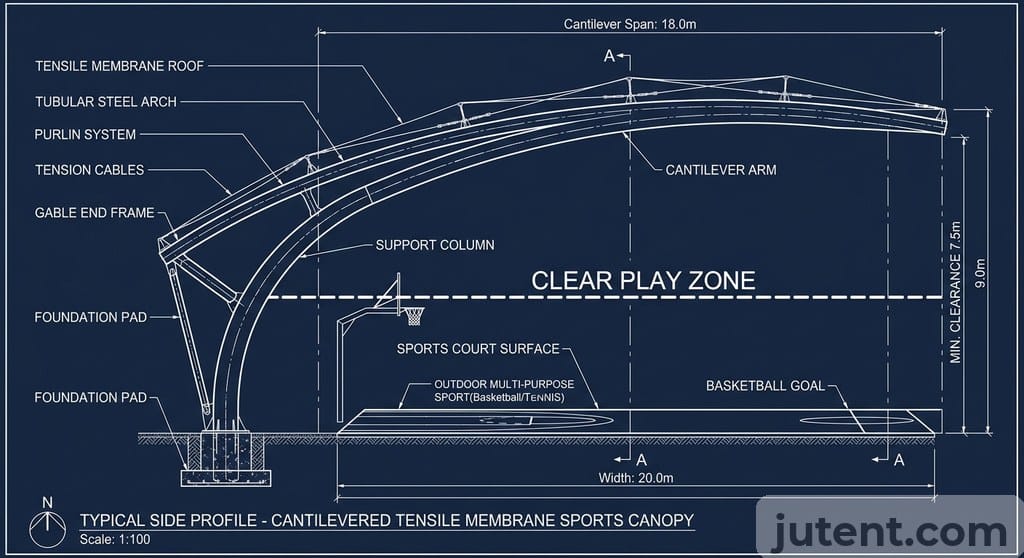

Cantilever Shade Structure: Maximum Clear Span Without Mid-Court Columns
A cantilever shade structure is the definitive solution when sightlines and unobstructed movement are the primary project constraints. By placing all structural columns on one side of the court, this form eliminates collision hazards and provides an open viewing angle for spectators.
The engineering trade-off for a clear span is foundation size and steel mass. A cantilever projecting 12 meters over a padel or tennis court acts as a massive sail. The overturning moment at the base of the column is severe. To counteract this, the primary columns typically require deep reinforced concrete pile foundations or large spread footings, often exceeding 3m × 3m × 1m per column.
The steel specification also scales up. A 12-meter cantilever supporting a 1050g/㎡ PVDF membrane in a standard 120 km/h wind zone will typically require 350mm to 400mm deep steel sections at the column-to-rafter connection. While the initial structural cost is higher than a standard four-post hypar, the cantilever form is often mandatory for professional facilities where baseline run-off zones must remain entirely free of vertical obstacles.
How Form Affects Wind Load and Structural Cost
The relationship between canopy form, wind resistance, and cost is strictly mathematical. Wind loads do not act uniformly on a tensile membrane; they create localized zones of high suction and pressure. The form of the canopy dictates how these forces are managed.
A flat or low-profile sail shade structure catches wind uplift like an airplane wing, requiring heavier steel to hold it down. Conversely, a cone shade structure deflects lateral wind and uses its double curvature to resist flutter.
Company experience should be described through verified export experience and project support capability rather than unsupported project anecdotes.
Cost directly follows steel tonnage. A highly efficient cone structure might require 12–18 kg of steel per square meter. A long-span cantilever in the same wind zone can easily demand 25–35 kg/㎡.
Choosing the Right Form for Your Project
Selecting the correct tensile canopy form requires balancing the court dimensions against the site’s environmental loads and the client’s budget.
Specify a sail shade structure for auxiliary areas, spectator seating, or single-court recreational setups where intermediate columns do not interfere with play. Keep individual sail spans under 15 meters to avoid exponential increases in foundation costs.
Specify a cone or hypar form for maximum structural efficiency and weather protection. This is the optimal choice for multi-court facilities in regions with heavy rainfall or high wind loads. The aggressive pitch ensures long-term membrane tension and eliminates ponding risks.
Specify a cantilever shade structure when unobstructed baselines and premium sightlines are mandatory. Budget accordingly for the increased steel tonnage and foundation requirements necessary to resist the overturning moments of a 10-to-12-meter clear projection.
By aligning the architectural form with the physical realities of tension, wind, and drainage, contractors can deliver a sports canopy that meets both the aesthetic intent and the strict performance requirements of the facility.
If you are developing a project concept and need layout or structural guidance, share your project information and our team can review the design direction with you.
FAQ
- Is a sail shade structure suitable for a sports court?
- Sail shade structures can be suitable for smaller recreational sports courts, offering partial sun protection and an aesthetically pleasing design. However, for full-size basketball, tennis, or multi-sport courts, their inherent design often results in gaps in coverage, especially during peak sun hours. For comprehensive overhead protection across larger playing surfaces, cantilever or multi-post tensile membrane designs are generally preferred. These options provide superior, consistent shade coverage and are engineered for the structural performance required over expansive areas.
- What is the most wind-resistant tensile canopy form?
- For optimal wind resistance in tensile membrane structures, forms like the hypar (hyperbolic paraboloid) and cone are inherently superior to flat or single-curvature sails. Their double-curved geometry efficiently distributes wind loads across the membrane surface and into the supporting structure, minimizing stress concentrations and deflection. This inherent stability is a critical factor for architects and engineers designing canopies in high-wind zones. While these forms offer superior performance, the final wind resistance also depends on fabric strength, connection details, and the overall structural engineering.
