EV Charging Canopy for Parking Station in Huizhou
Within Huizhou, this tie-rod cantilever PVDF installation withstands 160 km/h winds to protect a 390㎡ charging area. The EV Charging Canopy delivers essential rain protection and commercial shading for electric vehicle stations.
Location
Huizhou,China
Coverage（M²）
390㎡
Wind Speed
Wind 160 km/h
Complete Date
04/2020
Project Overview
This project is located in Huizhou, China, and was completed in 2020. With a total covered area of approximately 390 m², it serves as a tensile membrane canopy for electric vehicle charging stations, providing effective sun shading and rain protection. The structure adopts a tie-rod cantilever system with I-beam steel supports. All steel components are treated with epoxy zinc-rich primer and white topcoat for corrosion resistance. The roof is covered with 1100 g/m² white PVDF membrane, achieving B1 fire resistance and meeting safety standards for semi-permanent public structures.
Drawing Visualization
Visualizing before fabrication
Design & Renderings
Challenge - Solution
The client required a modern, cost-effective membrane canopy solution for EV charging stations. Based on functional needs and budget considerations, a tie-rod tensile membrane design was proposed, featuring a clean appearance, stable structure, and high durability, fully meeting project requirements.

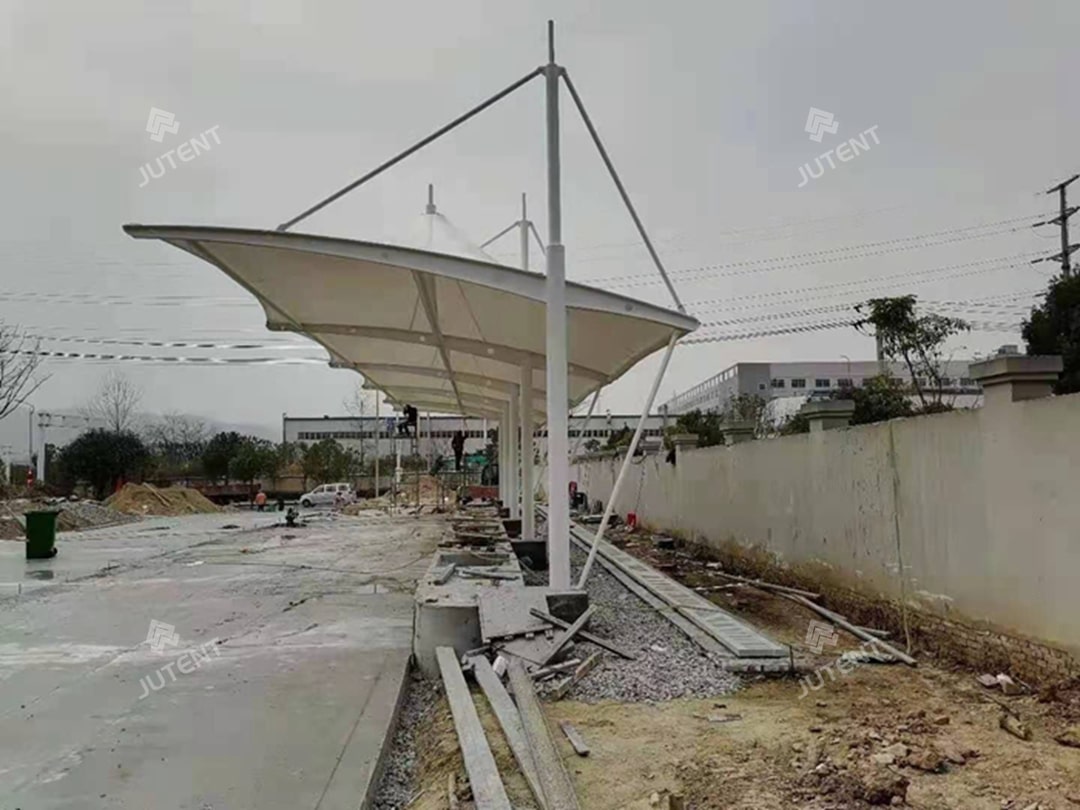

On-site Execution
Fabrication & Installation phases
Construction Process
Installation - Support
Installation was carried out by our professional on-site team using a segmented assembly process. The steel framework was installed first, followed by precise membrane tensioning to ensure structural alignment and uniform stress distribution. The project was completed efficiently and on schedule.
| Specification | ||
|---|---|---|
| Fabric Type | PVDF | |
| Frame Type | Frame Structure | |
| Design Load | Wind 160 km/h | |
| Design Life | 25-30 Yrs | |
| Warranty | 10 Years | |
