Church Canopy Structure for Tel Aviv Religious Building Project
Situated in Tel Aviv, this framed dome-style installation utilizes 1100 g/m² fire-rated PVDF to protect a 378㎡ area. The Church Canopy Structure offers robust weather resistance and long-term performance for institutional religious buildings.
Location
Tel Aviv, Israel
Coverage（M²）
378㎡
Wind Speed
Wind 120 km/h
Complete Date
06/2022
Project Overview

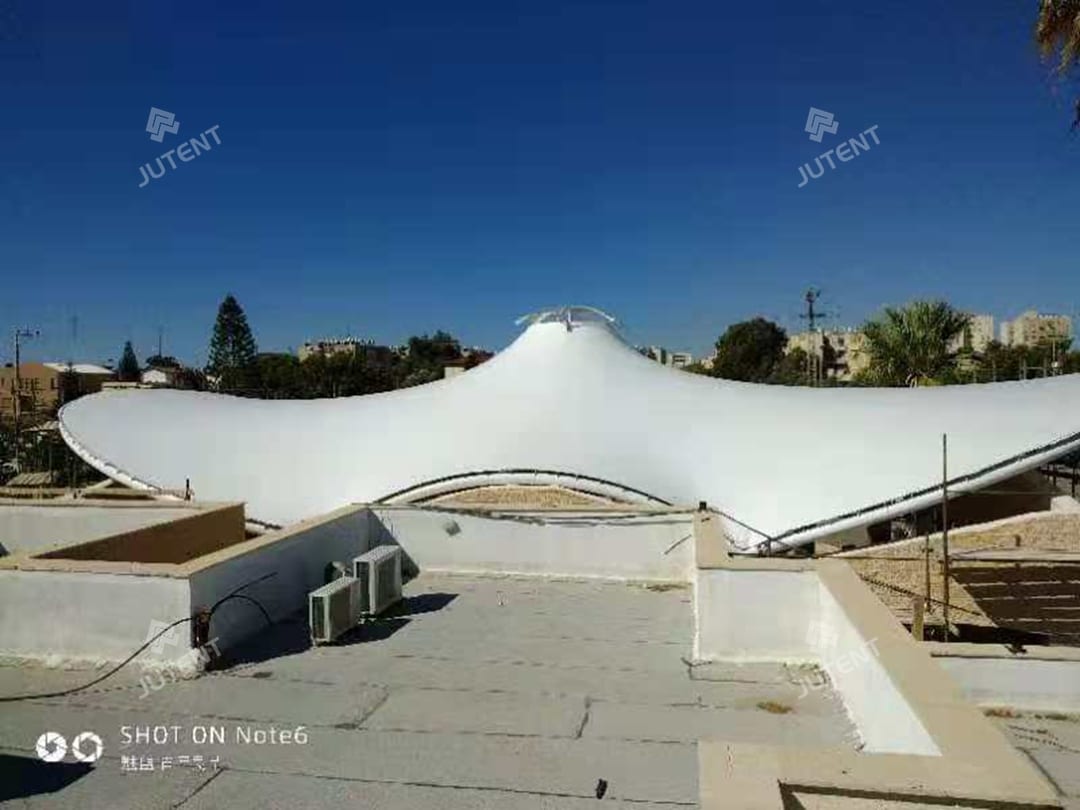

Located in Tel Aviv, Israel, this church tensile membrane canopy project was completed in 2022. The structure covers an area of approximately 378 m² and features a framed dome-style tensile membrane design supported by a steel structure.
The steel framework is treated with an epoxy zinc-rich primer and a white topcoat to ensure long-term corrosion resistance and durability. The roof is clad with 1100 g/m² gray PVDF architectural membrane, rated B1 for fire resistance, meeting safety standards for public and commercial buildings.
Challenge - Solution
The client required a modern canopy that provides effective sun and rain protection while integrating seamlessly with the church’s existing wall structure. After detailed coordination, our design team proposed a dome canopy combined with a curved cantilever membrane edge, achieving both functional coverage and architectural harmony with the existing building.
Installation - Support
On-site installation was carried out by the client’s construction team, with our engineers providing professional guidance throughout the process. A segmented assembly method with crane lifting was adopted to ensure accurate positioning and uniform membrane tension. The project was completed efficiently and in full accordance with design and performance requirements.
| Specification | ||
|---|---|---|
| Fabric Type | PVDF | |
| Frame Type | Frame Structure | |
| Design Load | Wind 120 km/h | |
| Design Life | 25-30 Yrs | |
| Warranty | 10 Years | |
