PVDF and PTFE membranes both work for outdoor stage canopies, but they perform differently over time. This comparison covers UV resistance, fire rating, acoustic performance, and the cost difference that matters for a performance venue project.
Choosing the right membrane for an outdoor stage canopy involves balancing initial cost with long-term performance and specific project requirements. For contractors and project managers, understanding the nuances between PVDF (Polyvinylidene Fluoride) and PTFE (Polytetrafluoroethylene) is crucial for delivering a durable, compliant, and cost-effective solution. This guide will help you navigate the decision-making process by comparing these two primary membrane options across key performance indicators.
What PVDF and PTFE Membranes Are (and What They're Not)
Both PVDF and PTFE are high-performance polymer coatings applied to a woven fiberglass or polyester fabric base, creating a flexible, durable material suitable for tensile structures. They are not rigid panels or traditional roofing materials; rather, they are engineered fabrics designed to withstand environmental stressors while maintaining structural integrity and aesthetic appeal.
PVDF membrane typically consists of a polyester fabric coated with PVC (Polyvinyl Chloride) and then finished with a PVDF topcoat. This topcoat provides excellent dirt resistance, UV protection, and extends the lifespan of the PVC. It's a versatile material, offering a good balance of performance and cost, making it a popular choice for a wide range of tensile architecture, including stage canopies.
PTFE membrane, on the other hand, is a fiberglass fabric coated with PTFE. This combination results in a highly durable, self-cleaning, and extremely long-lasting material. Unlike PVDF, PTFE does not rely on a separate topcoat for its performance characteristics; the PTFE coating itself provides superior resistance to UV radiation, chemicals, and extreme temperatures.

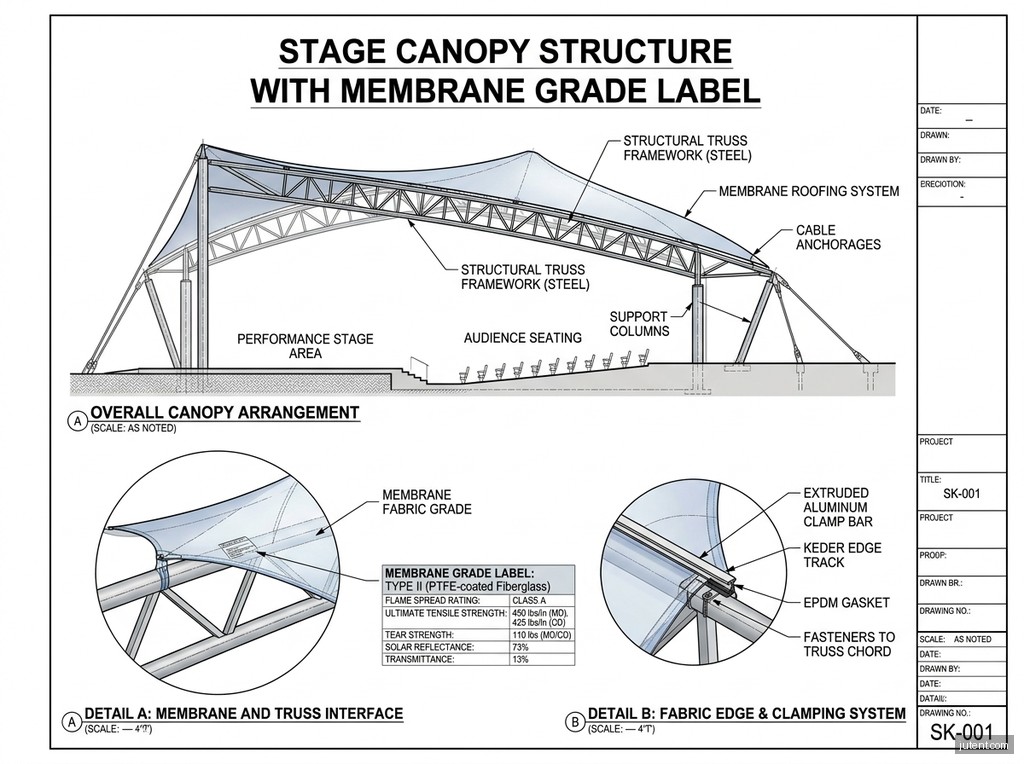

It's important to understand that while both are “membrane grade,” their underlying compositions and coating technologies differ significantly, leading to distinct performance profiles. For example, a standard membrane might be 1050 g/m² PVDF or PTFE, but their inherent properties dictate their suitability for different project demands.
UV Resistance: How Each Membrane Performs After 10 Years Outdoors
UV resistance is a critical factor for any outdoor structure, especially a stage canopy exposed to direct sunlight for extended periods. The sun's ultraviolet radiation can degrade materials over time, leading to discoloration, loss of strength, and reduced service life.
PVDF membranes, with their PVDF topcoat, offer good UV resistance. The topcoat acts as a protective barrier, reflecting a significant portion of UV radiation and preventing the underlying PVC from degrading rapidly. This protection contributes to a typical 10-year warranty and a 15+ year service life for PVDF membranes. Over a decade, a well-maintained PVDF canopy will generally retain its structural integrity and aesthetic appearance, though some subtle yellowing or loss of vibrancy might occur depending on the specific formulation and environmental conditions.
PTFE membranes, by contrast, exhibit superior UV resistance. The PTFE coating itself is inherently stable under UV exposure, meaning it does not degrade or discolor significantly over time. This exceptional stability is a key reason why PTFE membranes come with a 15-year warranty and offer a 25+ year service life. After 10 years outdoors, a PTFE stage canopy will typically show virtually no signs of UV degradation, maintaining its original translucency and strength. This long-term stability makes PTFE an excellent choice for permanent installations where longevity and consistent appearance are paramount.

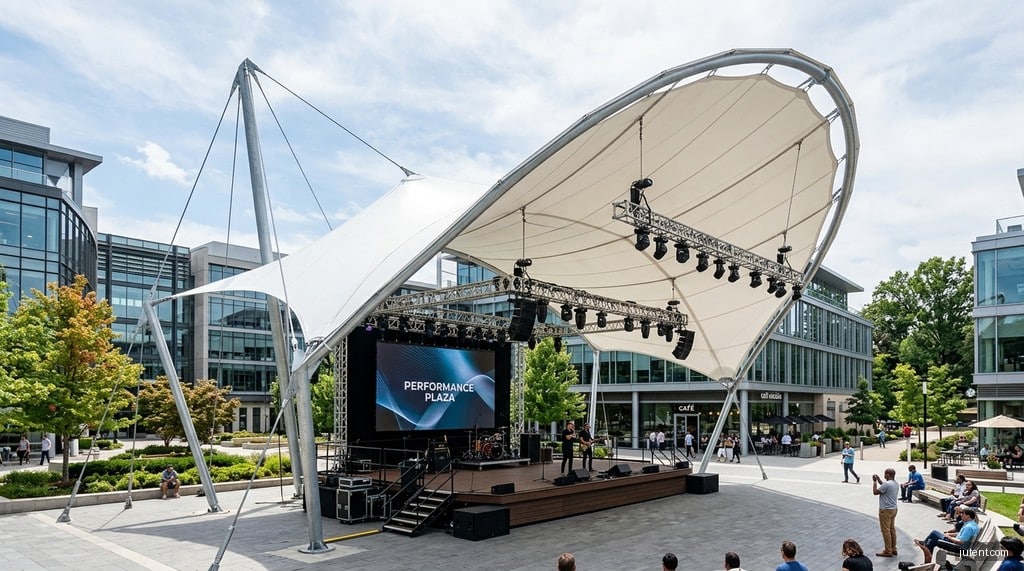

Pvdf Vs Ptfe Membrane Comparison
Fire Rating: What Performance Venue Projects Typically Require
Fire safety is a non-negotiable aspect of any public venue, and stage canopies are no exception. Performance venue projects often have stringent fire rating requirements to ensure the safety of performers and audiences. Understanding how PVDF and PTFE membranes perform under fire conditions is essential for compliance and risk management.
PVDF membranes, due to their PVC component, are typically rated as flame retardant. They are designed to self-extinguish when the flame source is removed and will not contribute significantly to the spread of fire. Specific fire ratings for PVDF can vary based on the manufacturer and formulation, but they generally meet international standards for flame retardancy, such as NFPA 701 or European classifications like B1. For many outdoor stage applications, this level of fire resistance is sufficient and meets local building codes.
PTFE membranes, however, offer superior fire performance. The fiberglass fabric base is inherently non-combustible, and the PTFE coating is also non-flammable. This combination results in a material that will not burn, melt, or drip when exposed to fire. PTFE membranes typically achieve the highest fire ratings, often classified as non-combustible (e.g., Class A in the US, or A2 in Europe). For high-profile performance venues, large-scale public events, or projects in regions with extremely strict fire safety regulations, the non-combustible nature of PTFE can be a decisive factor, providing an added layer of safety and peace of mind. Based on Jutent's experience across 400+ projects in 30+ countries, projects requiring the highest possible fire safety often specify PTFE.
Acoustic Performance: Does Membrane Type Affect Sound Reflection?
For a stage canopy, acoustic performance can be a consideration, particularly in how it affects sound reflection and overall sound quality within the performance area. While the primary function of a canopy is protection from the elements, its material properties can subtly influence the acoustic environment.
Both PVDF and PTFE membranes are generally considered acoustically reflective materials. Their smooth, taut surfaces tend to reflect sound rather than absorb it. This reflection can be beneficial for projecting sound towards an audience, but it can also lead to unwanted echoes or reverberation if not managed through design. The specific acoustic properties, such as sound absorption coefficient, are relatively low for both materials.
The difference in acoustic performance between PVDF and PTFE membranes themselves is minimal and often negligible in the context of a large outdoor stage. The dominant factor influencing the acoustics of a tensile membrane stage canopy is its geometric shape and overall design. Complex, undulating forms or strategically placed acoustic panels within the structure will have a far greater impact on sound reflection, diffusion, and absorption than the slight material differences between PVDF and PTFE. For example, a hyperbolic paraboloid shape will diffuse sound differently than a simple cone. Therefore, while both membranes are reflective, the choice between them for acoustic reasons is rarely a primary driver. Engineers and acousticians will focus more on the canopy's form and any integrated acoustic treatments to achieve desired sound characteristics.
Cost Comparison: When the PTFE Premium Is Justified for a Stage Project
The cost difference between PVDF and PTFE membranes is a significant factor in project budgeting. While PVDF offers a more economical entry point, the long-term value of PTFE can justify its higher initial investment for certain projects.
For tensile membrane structures with minimal steel, the cost can range from $30–$50/m². When considering the membrane material itself, PVDF membrane for a simple form typically costs $40–$70/m², while for a complex form, it can be $60–$90/m². PTFE membrane generally adds approximately $20/m² to these PVDF ranges. This means a PTFE stage canopy can be 30–50% more expensive than a comparable PVDF canopy on a per-square-meter basis. This pricing is always per m², never per linear metre, and applies to projects with a minimum scope of 100 m².
The PTFE premium is justified when the project demands superior longevity, minimal maintenance, and the highest fire safety standards. For permanent stage installations intended to last 25 years or more, the extended service life and warranty of PTFE (15-year warranty vs. 10-year for PVDF) translate into lower lifecycle costs. The self-cleaning properties of PTFE also reduce maintenance expenses over time. for high-profile venues or projects with stringent fire codes, the non-combustible nature of PTFE can be a non-negotiable requirement, making the added cost a necessary investment in safety and compliance. For export projects, Jutent can provide design drawings, calculations, material specifications, installation manuals, and free remote guidance, subject to project scope and contract terms, helping to optimize overall project costs regardless of membrane choice.
FAQ
- Q: Is PTFE membrane worth the extra cost for an outdoor stage canopy?
- A: For projects with a 25+ year design life or high fire rating requirements, PTFE is worth the 30–50% premium. Its superior UV resistance, non-combustible properties, and self-cleaning surface contribute to significantly lower maintenance costs and a longer service life compared to PVDF. This makes PTFE a more economical choice in the long run for permanent, high-value installations where durability and safety are paramount.
- Q: Does membrane type affect the acoustics of a stage canopy?
- A: The acoustic difference between PVDF and PTFE is minimal. Both materials are generally reflective, and their slight variations in density or surface texture have a negligible impact on sound performance in a large outdoor setting. Acoustic performance is primarily determined by membrane shape, the overall structural design, and any integrated acoustic treatments. Engineers focus on the canopy's geometry to achieve desired sound projection or diffusion.
