Grandstand Tensile Membrane Roof System for Stadium Seating
Stadium seating in Heyuan is protected by this 1950㎡ curved PVDF installation supported by a 31-ton steel frame. The grandstand tensile membrane roof system provides effective, durable coverage for large-scale college sports.
Location
Heyuan,China
Coverage（M²）
1950㎡
Wind Speed
Wind 120 km/h
Complete Date
05/2022
Project Overview

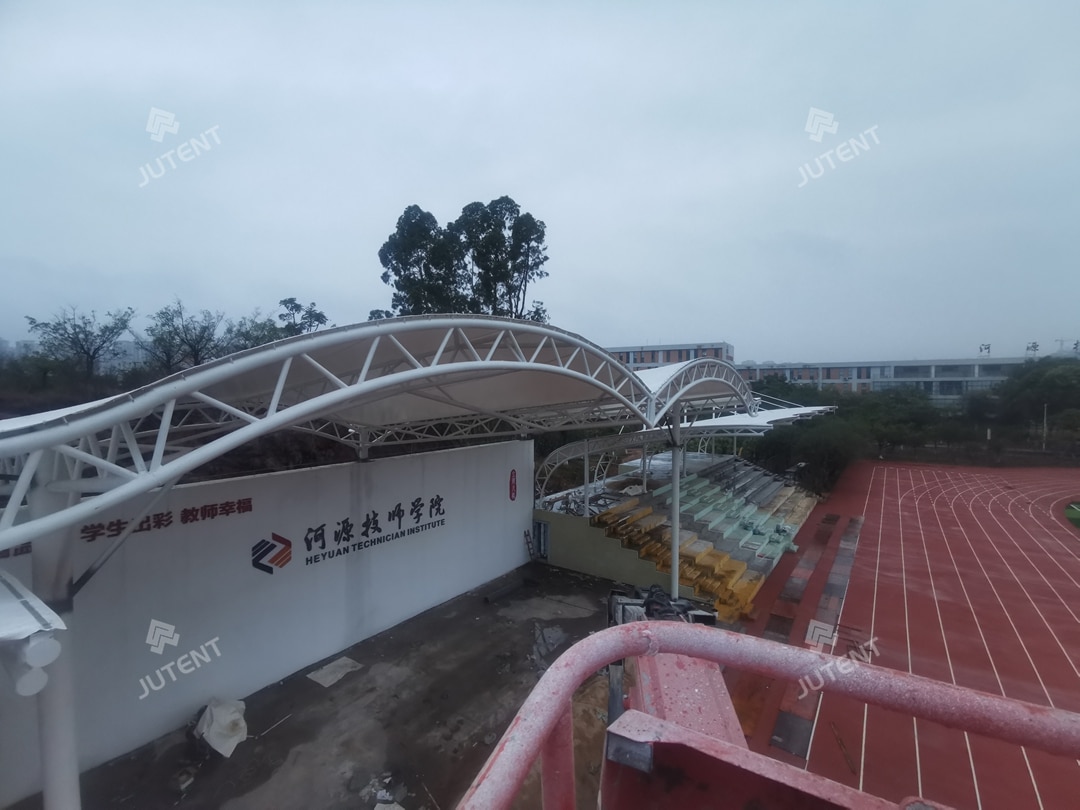

Located at Technical College in Heyuan, China, this grandstand tensile membrane canopy was completed in May 2022. The canopy measures approximately 135 m × 12 m, with a steel usage of 31 tons, and a construction period of 35 days. The main steel structure features epoxy zinc-rich primer and white topcoat for corrosion protection and durability. The roof is covered with 1100 g/㎡ white PVDF architectural membrane, B1 fire-rated, compliant with public building safety standards.

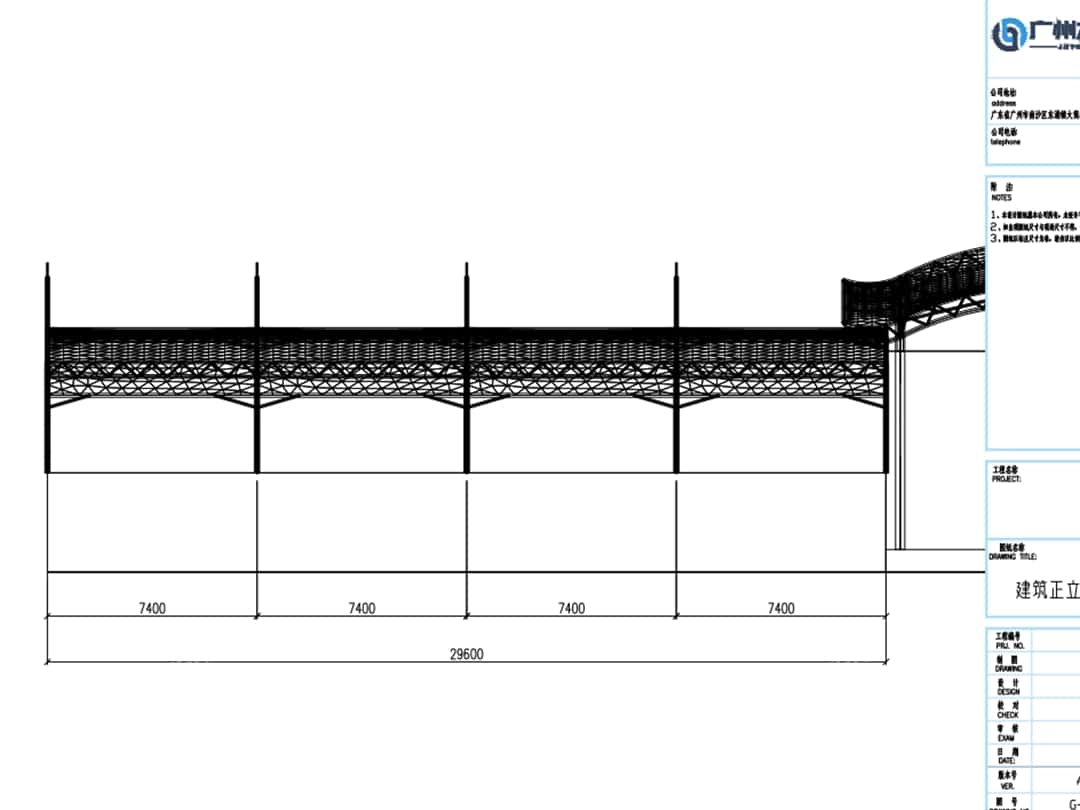

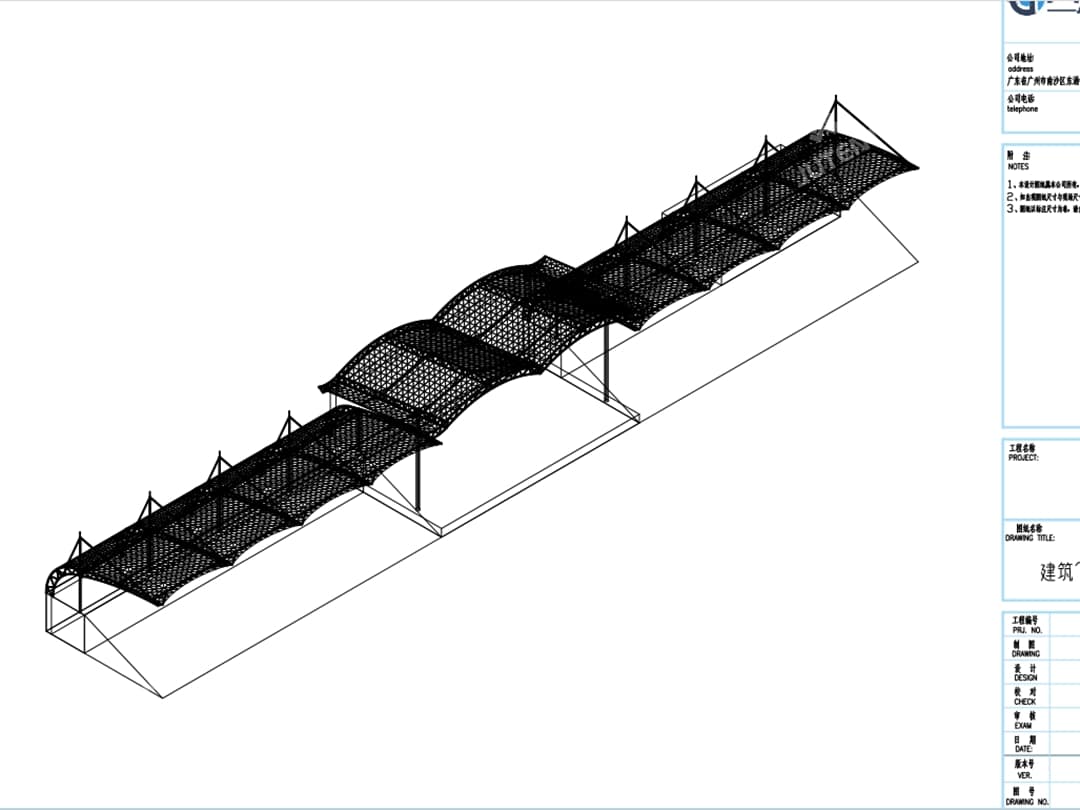

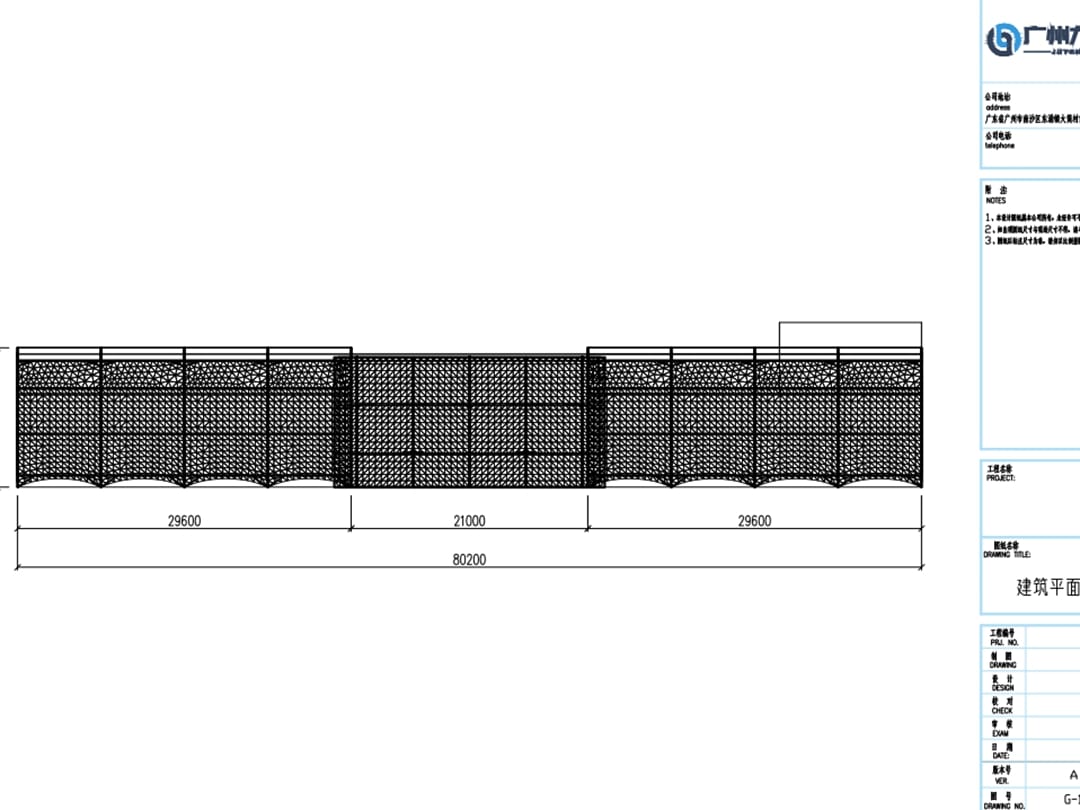

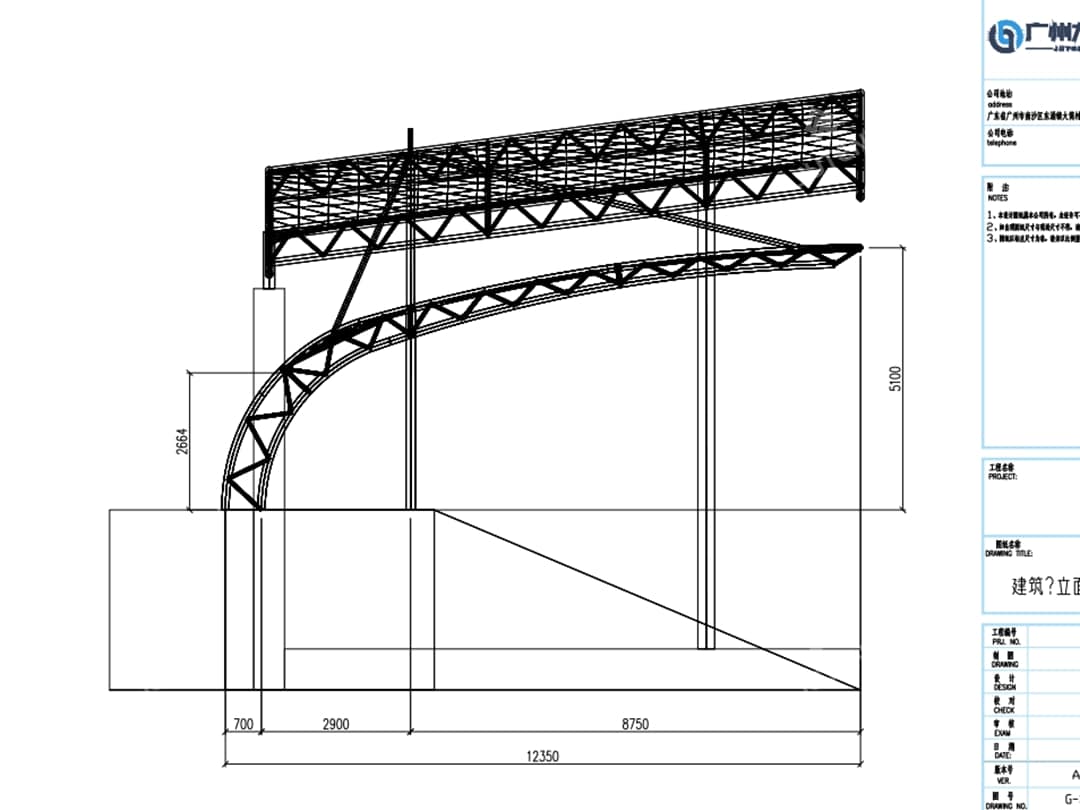

Drawing Visualization
Visualizing before fabrication
Design & Renderings
Challenge - Solution
Situated over the stadium grandstand, the client required a canopy that provides sun and rain protection while offering a modern aesthetic for spectators and public events. The project adopted a curved tensile membrane design, creating a lightweight, flowing structure that enhances visual appeal and spatial identity.

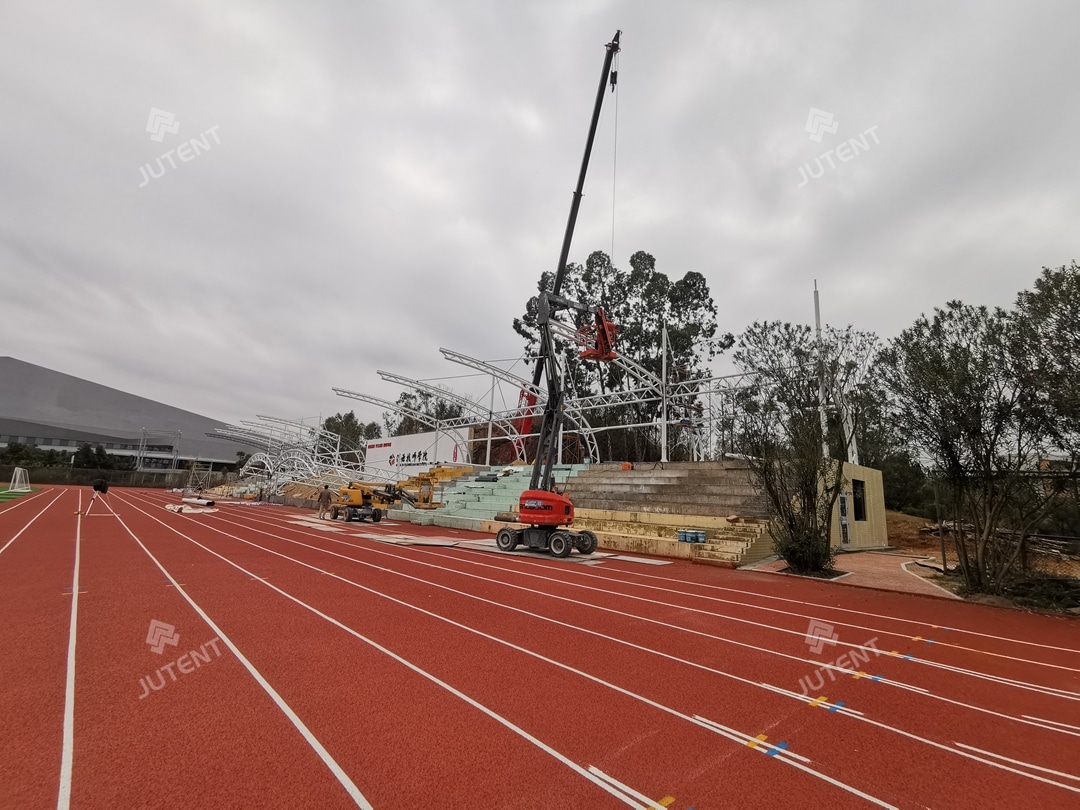

Installation - Support
The project was executed by our professional installation team, with safety barriers in place during construction. Key tasks included steel truss hoisting, precise control of structural angles, and accurate fixing of the membrane cables, ensuring uniform stress and smooth membrane surfaces.
| Specification | ||
|---|---|---|
| Fabric Type | PVDF | |
| Frame Type | Truss Structure | |
| Design Load | Wind 120 km/h | |
| Design Life | 25-30 Yrs | |
| Warranty | 10 Years | |
